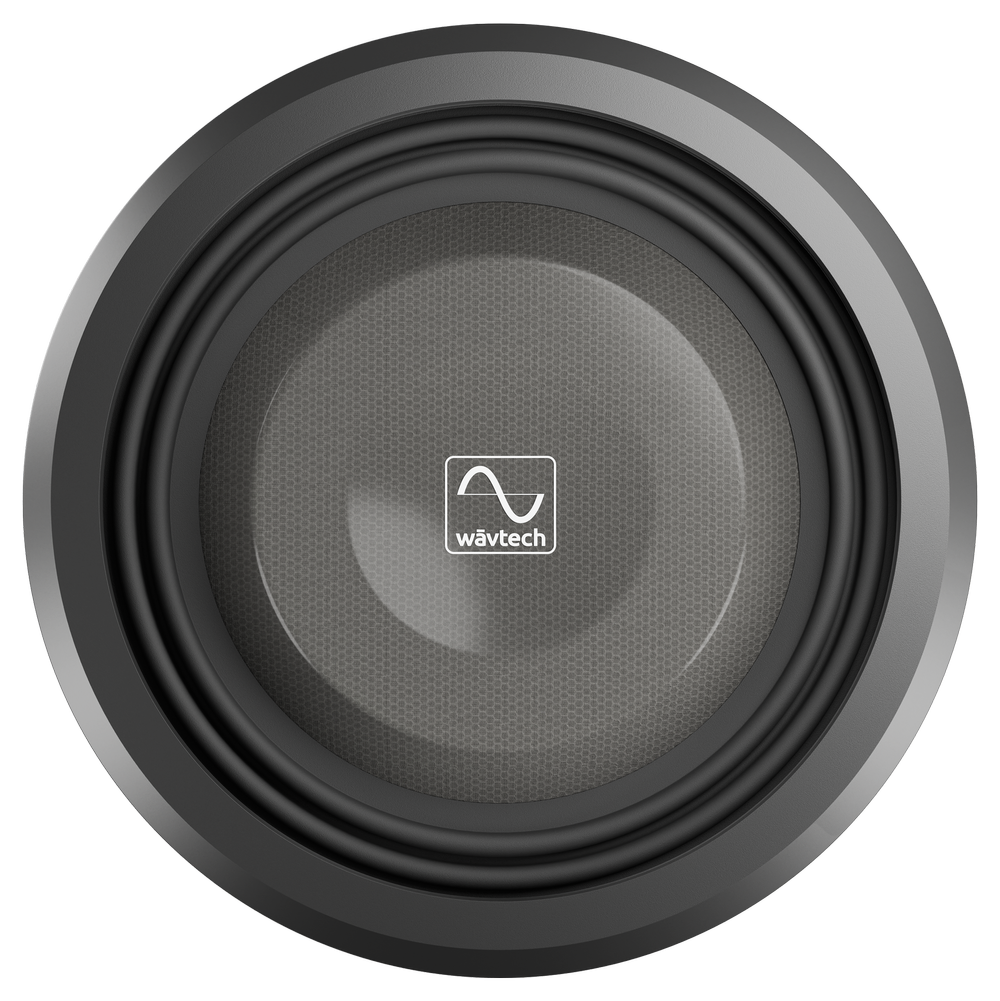

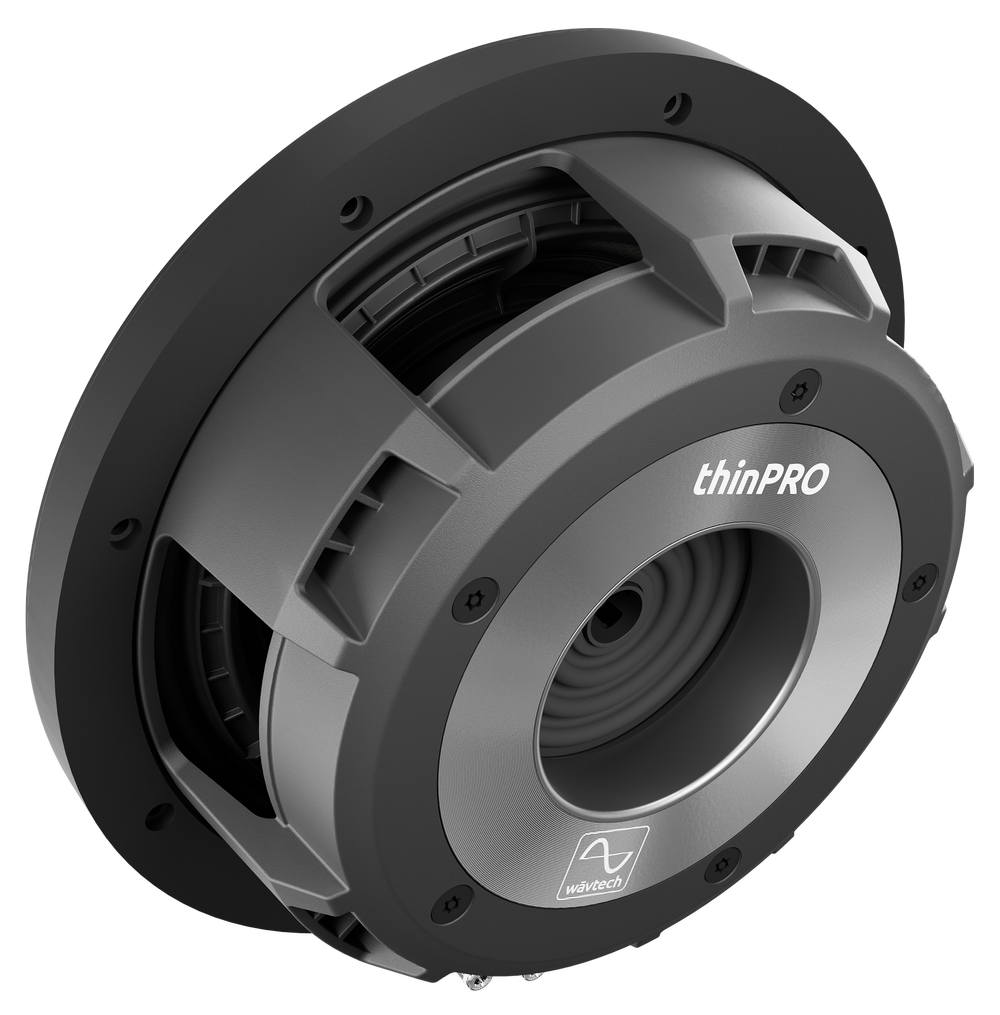

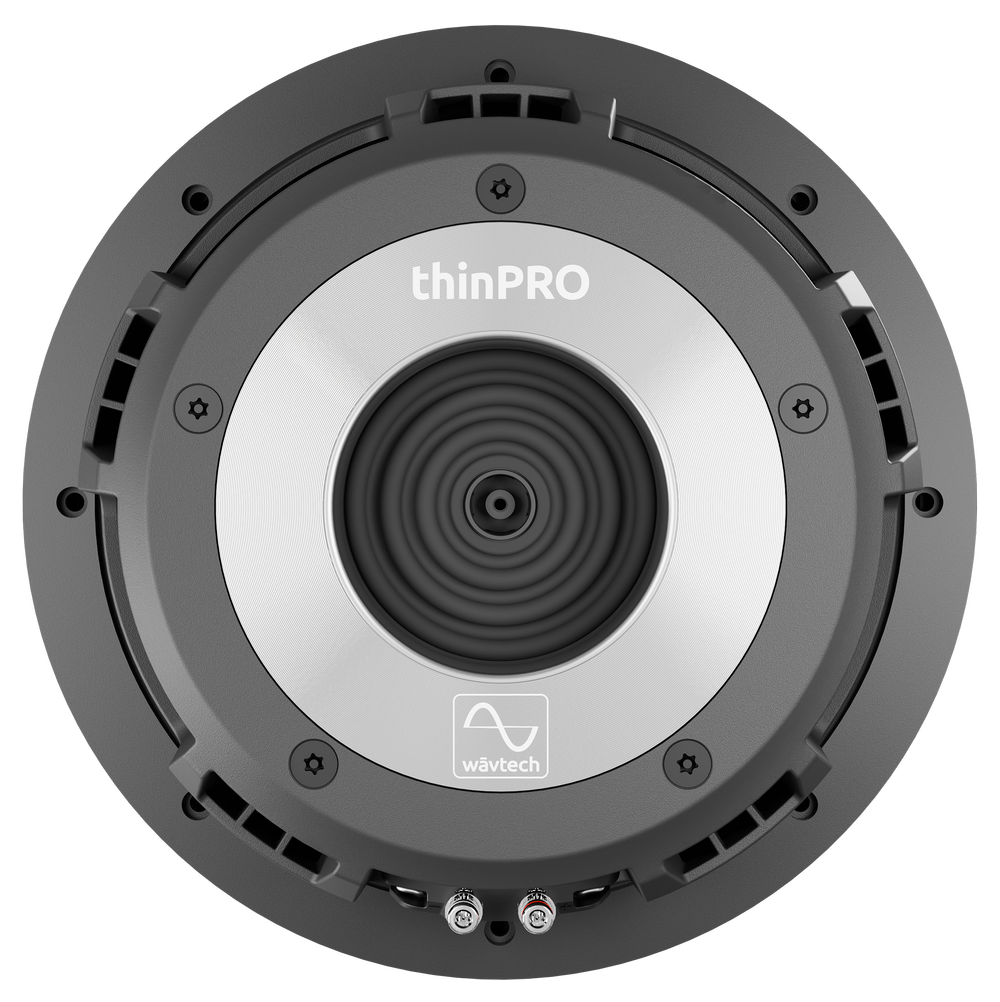

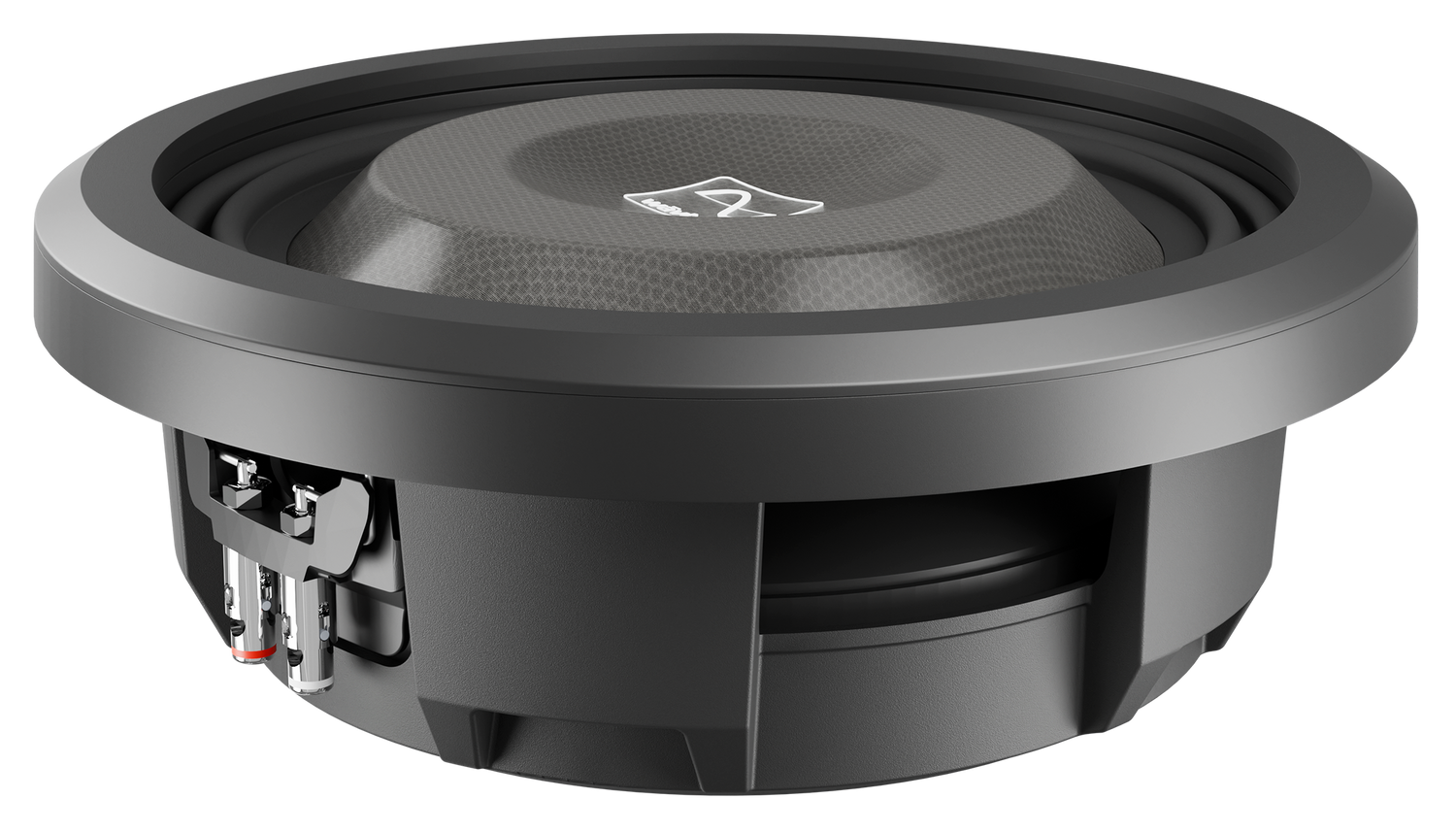

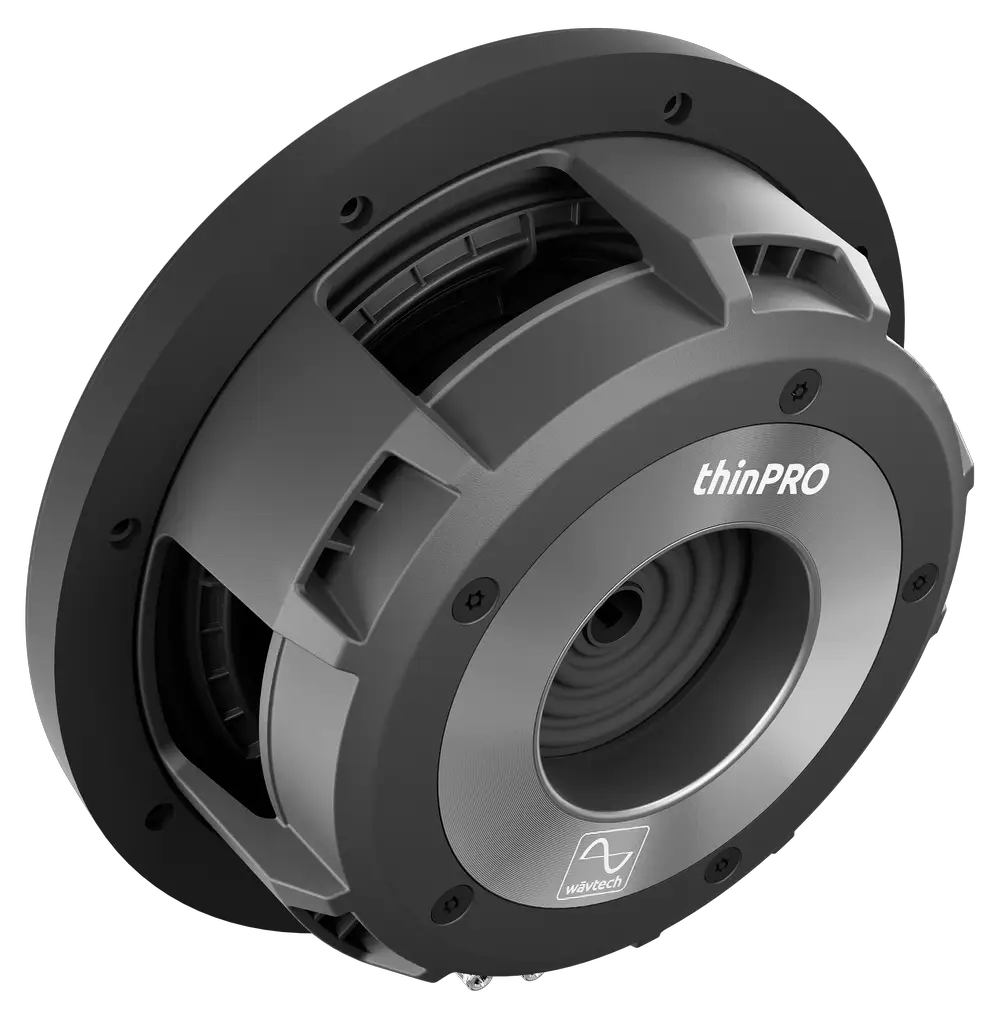

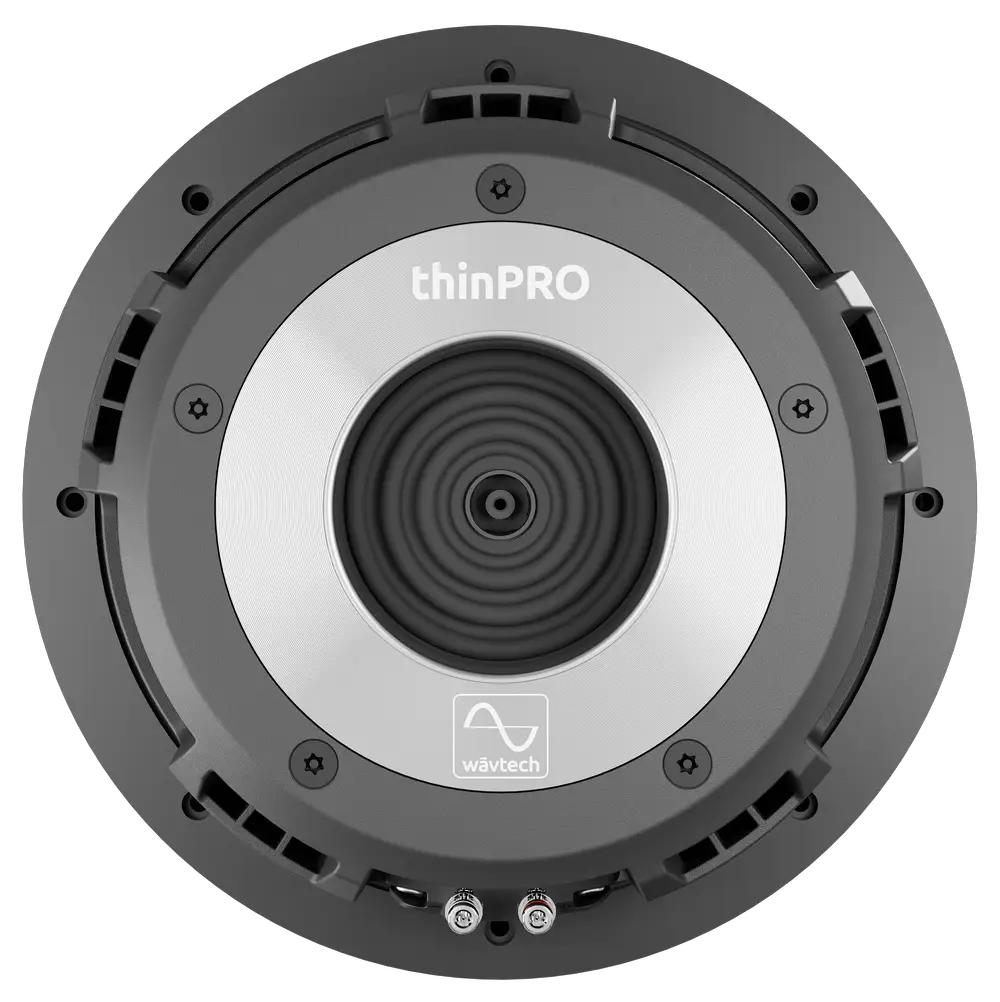

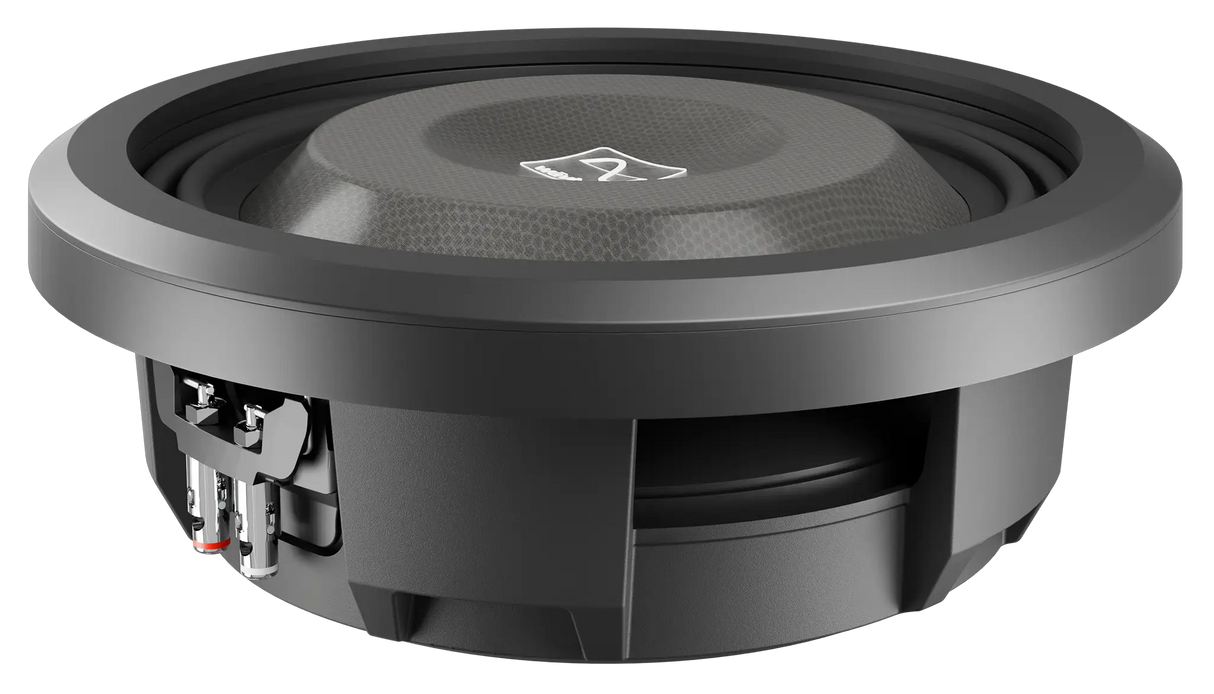

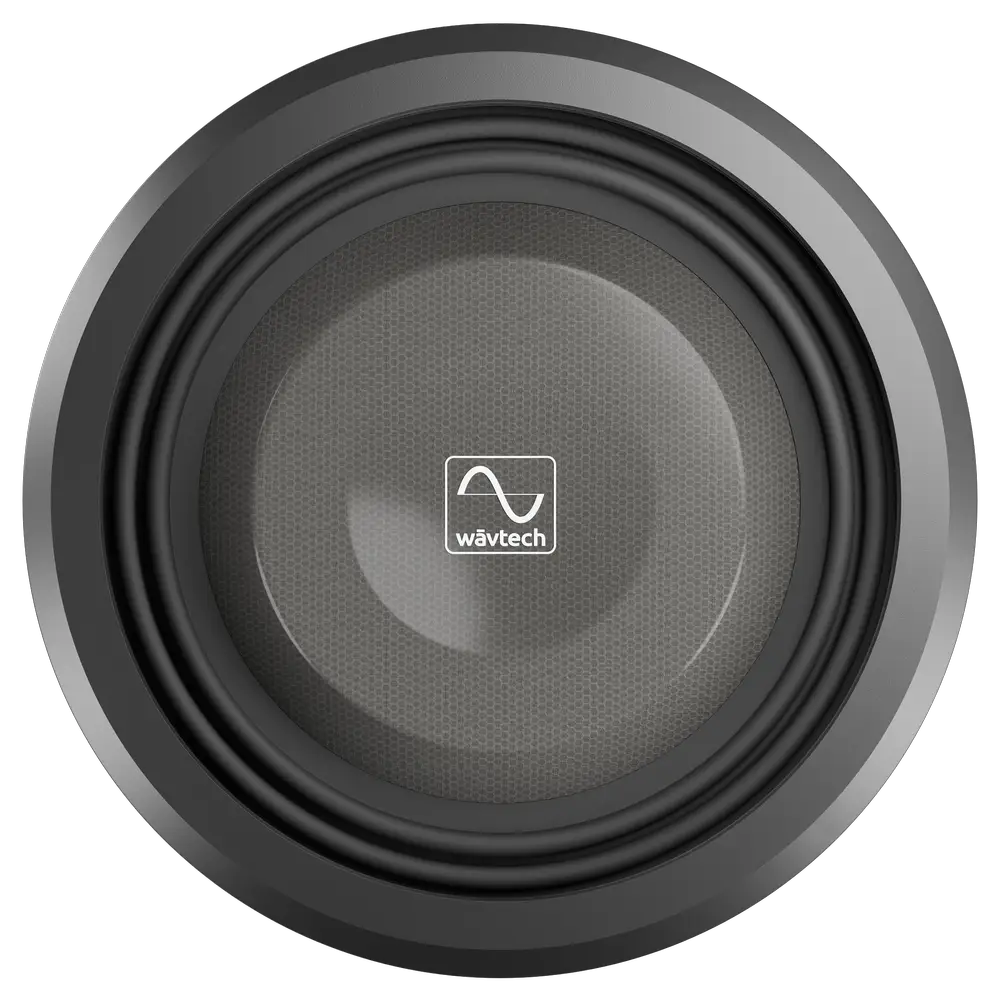

Wāvtech thinPRO10 10” Professional Series Shallow Subwoofer

The thinPRO10 is the ultimate paradox. There really isn’t anything else like it. Our Patent Pending design changes the game for what is possible with a shallow subwoofer. With a mounting depth of less than 3”, if it won’t fit in the desired location, you probably aren’t putting a subwoofer there. The dual mirrored NBR spiders and axial force transfer assembly allows for unparalleled performance in a multitude of applications.

The FEA optimized dual gap motor structure features a massive motor with double stacked strontium magnets. This maximizes flux density and control for an impressive 20mm of linear xmax. The honeycomb cone is made of a composite Nomex® and glass fiber, making it incredibly rigid and very lightweight. The 4.5” voice coil, available in 2 or 4 ohm, provides a powerful moving force with 750W RMS power handling.

The point of a shallow subwoofer is maximum performance in a small enclosure. The thinPRO10 is perfect in both small sealed and ported enclosures. Sealed box sizes range from 0.25-0.8cu ft, with the sweet spot at 0.35cu ft. Ported enclosures range from 0.4-1.0cu ft, with 0.6cu ft recommended for optimum performance.

thinPRO10 Features

• 750 Watts RMS Power Handling

• 2.9” Mounting Depth

• 4.5” Voice Coil

• 4-Layer Winding on Vented Polymide Composite Former

• Protective Grille

• Honeycomb Nomex® and Glass Fiber Cone

• FEA Optimized Dual-Gap Motor Structure

• Double-Roll NBR Surround

• Mirrored Internal NBR Spiders

• 8AWG Push Terminals

• Vented Cast Aluminum Frame

• Dimensions: 9 1/8in (232mm) Standard 10” cutout
