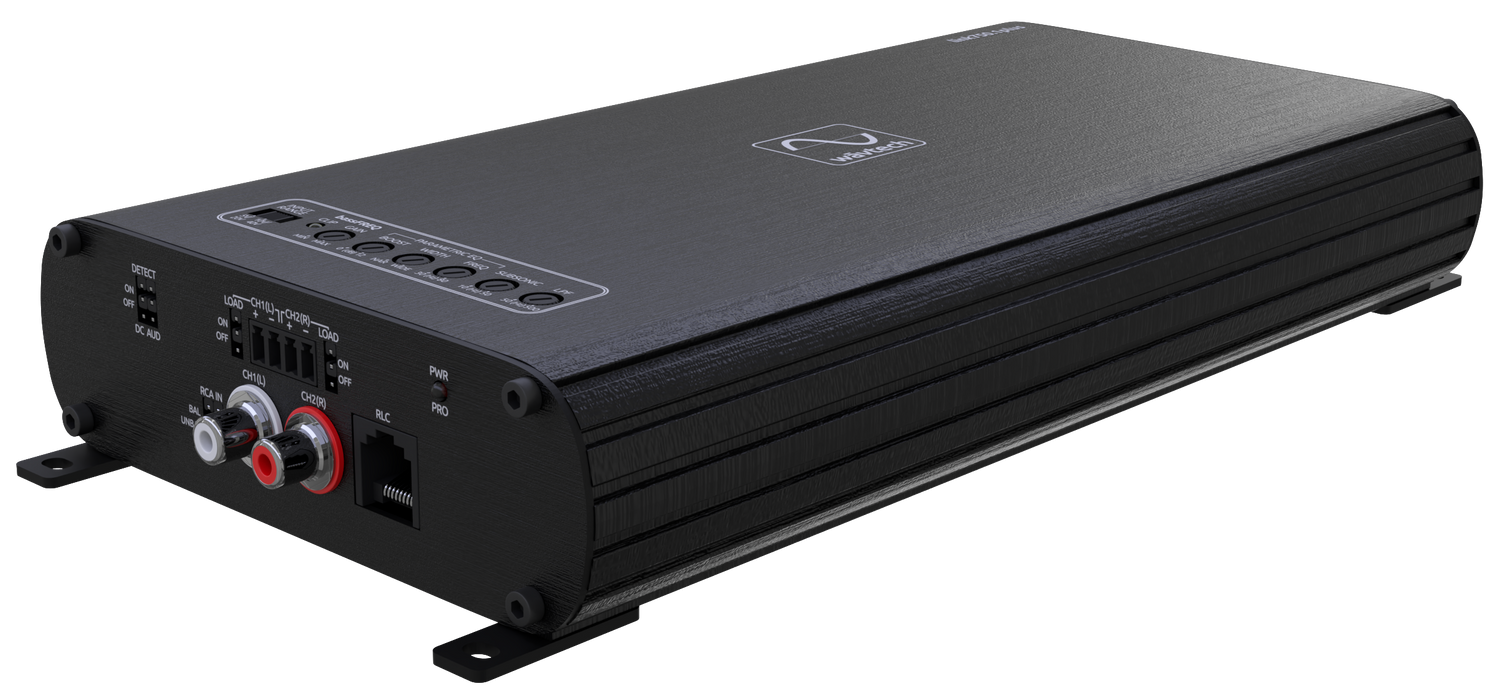

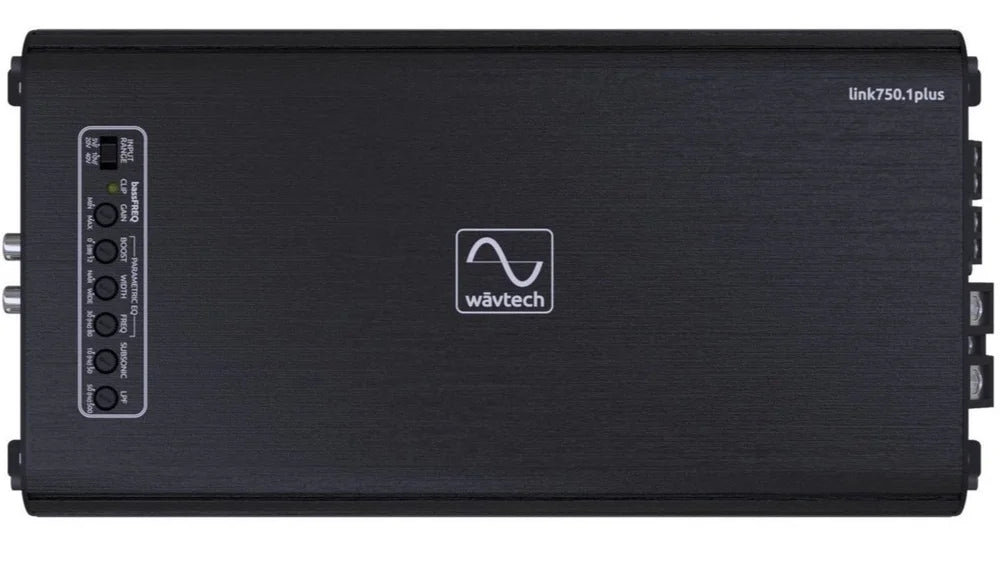

Wāvtech link750.1plus 750 Watt Monoblock Amplifier

The Wāvtech link750.1plus is a 750-watt mono amplifier built for subwoofer-focused car audio installs, delivering stable output at 1 or 2 ohms thanks to its Dual Rail Voltage Power Supply. Its compact 10.25” x 5.5” x 1.65” aluminum chassis houses a full feature set designed for precise bass control in tight spaces.

• 750 Watt Mono Amplifier: 400W x 1 @ 4 ohms; 750W x 1 @ 2 ohms; 750W x 1 @ 1 ohm — provides high-level output for demanding subs while preserving clarity at low impedance.
• Dual Rail Voltage Power Supply: maintains the same output at 2 or 1 ohm, enabling flexible subwoofer wiring without sacrificing performance.
• Small Footprint: compact chassis (10.25”x5.5”x1.65”) for easier installation in confined spaces.
• bassFREQ Bass Processor w/Parametic EQ: includes a 24dB per octave crossover, adjustable parametric EQ, and 24dB per octave subsonic filter for precise sub tuning.
• Fully Adjustable Parametric EQ: enables targeted shaping of the bass response to match vehicle acoustics and subwoofers.
• Variable Low-Pass Crossover (-24dB/oct): defines the upper limit of the bass signal sent to the sub, reducing mid/high bleed.
• Variable Subsonic Filter (-24dB/oct): attenuates ultra-low frequencies that can waste power or cause woofer stress.
• Remote Level Control (RLC) w/ Optional linkRC: adjust output level from the seat position; compatible with the optional linkRC remote control.
• Active Thermal Management: monitors temperature to maintain performance and protect internal components under load.
• Start/Stop Vehicle Ready and Adaptive OEM Load Technology: compatible with modern Start/Stop systems and OEM electrical loads for seamless integration.
• 40V Input Capability and Differential Balanced Inputs: supports a wide signal range with reduced noise for clean bass signals.
• Variable Gain w/ Clip LED and Auto Turn-On via DC-Offset or Audio Signal Detect: easy setup, real-time monitoring, and reliable wake-up behavior.

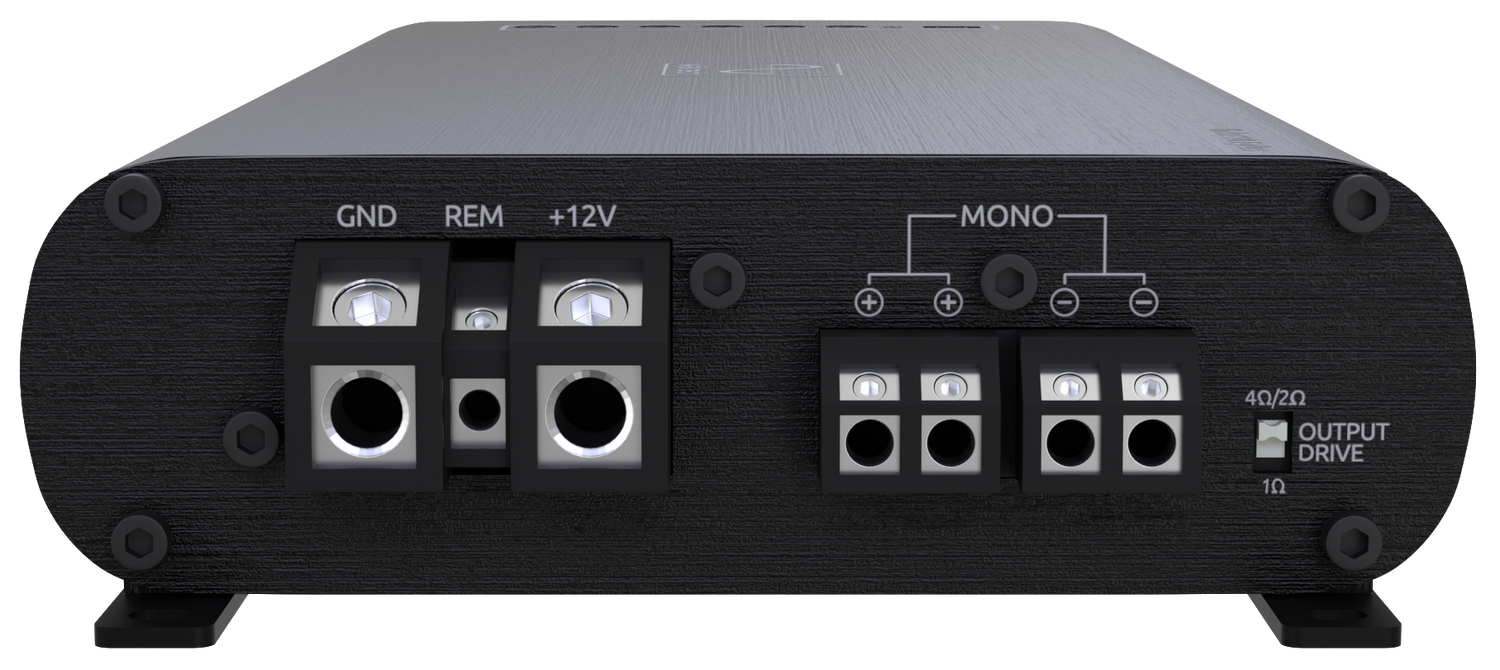

• Locking Detachable Hi-Level Speaker Terminals and 4 Gauge Power/Ground Terminals: secure, high-current connections for durable installations.

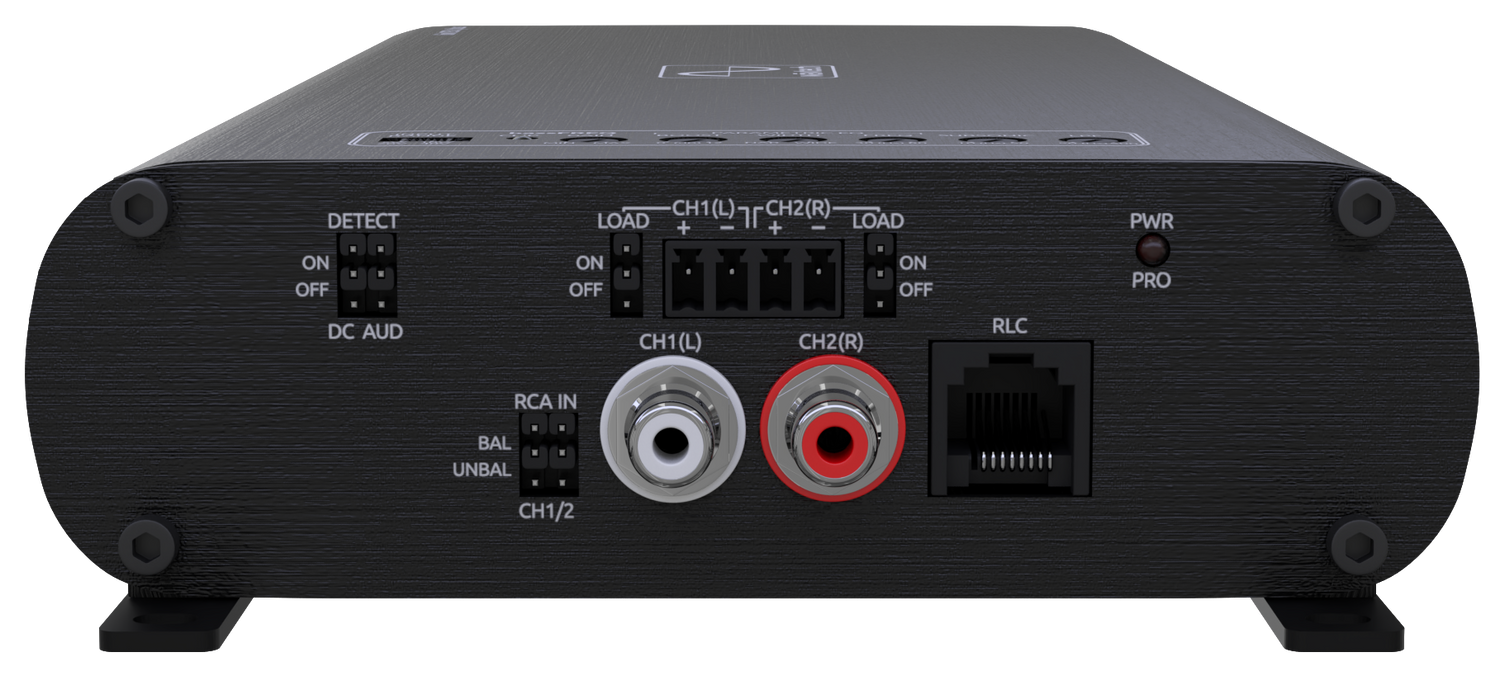

• Panel Mount RCA’s and Compact Aluminum Chassis w/ Detachable Mounting Tabs: provides solid signal paths and flexible mounting options.
• Impedance Switch (4/2 or 1 ohm): select the impedance to match your subwoofers and let the amp do the rest.

In a real car build, the link750.1plus powers a subwoofer with confidence, offering stable 1- or 2-ohm output, precise bass tuning via bassFREQ, and installation-friendly features like a compact chassis, locking terminals, and a simple auto-turn-on workflow. The combination of adaptive OEM loading and Start/Stop readiness makes it a practical choice for modern vehicles needing robust, sub-focused amplification without compromising onboard systems.
