Wāvtech link600.5mini 600 Watt 5-Channel Amplifier

The Wāvtech link600.5mini is a compact 600W, 5-channel amplifier designed for tight installs, delivering 75W RMS per main channel at 2 ohms and a 300W RMS sub channel at 2 ohms, with built-in signal summing for streamlined setups.

• Power output (main channels): 75 watts RMS x 4 @ 2 ohms, and 50 watts RMS x 4 @ 4 ohms. In real-world use, this provides solid front/rear channel performance at low impedance while remaining flexible if you drive higher-impedance speakers.
• Power output (sub channel): 300 watts RMS x 1 @ 2 ohms (200 watts RMS x 1 @ 4 ohms). This dedicated mono channel is designed to power a subwoofer with clean, substantial bass authority.
• Footprint: 11.1” x 4.5” x 1.66” (1.65” listed in specs). The small footprint fits in tight locations where many 5-channel amps won’t.
• Built-in input summing: Supports up to 6-channel input. Real-world benefit: you can integrate signals without needing an external processor in applications where a full-range signal isn’t present.
• Crossover and filtering options: CH1/CH2 feature a variable high-pass crossover (-12 dB/oct) with 1x/10x CH1/2; CH3/CH4 offer a variable HP/BP/LP crossover (-12 dB/oct); CH5 provides a variable low-pass (-24 dB/oct) plus a subsonic filter (-24 dB/oct) and bass EQ. This gives flexible tuning for both front/rear channels and the sub.
• Remote sub control option: Optional linkRC to control the subwoofer level from the front of the vehicle, simplifying on-the-fly level adjustments during install or in-car listening.
• Advanced input and gain features: Differential balanced inputs and variable gain with a clip LED allow precise signal matching and visual indication of clipping during setup.
• Thermal and load management: Active thermal management with Adaptive OEM Load Technology and 40V input capability. Real-world reliability in variable car environments, maintaining performance and protection under load.

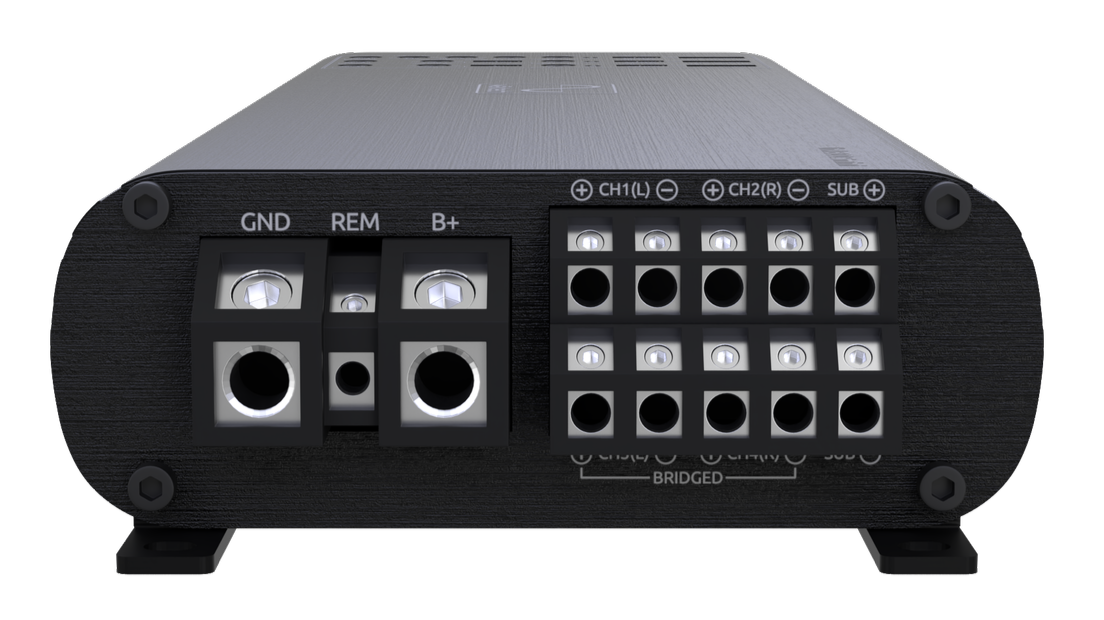

• Install versatility: Start/Stop System compatibility, EV Ready, lockable detachable hi-level speaker terminals, 4-gauge power/ground terminals, professional-grade panel-mount RCAs, and a compact aluminum chassis with detachable mounting tabs. These build qualities support secure, durable installations in factory or aftermarket environments.

Benefits: The link600.5mini excels in space-limited builds that still demand a full 5-channel setup with a strong sub. Its built-in summing reduces the need for external processors, and the diverse crossover options let you tailor each channel for precise tonal balance. With OEM-load adaptability and 40V input tolerance, it’s well-suited for modern vehicles and complex OEM integration projects, while the optional linkRC keeps sub level adjustments convenient from the wheel well or dash area. The compact chassis and robust terminals support reliable, clean power delivery in compact car audio builds.
