Wāvtech link6+ 6-Channel LOC w/autoBASS, Matrix Summing and Remote

The Wāvtech link6+ is a 6-channel line-output converter designed for upgrading factory front/rear/sub setups, delivering front, rear and sub outputs to aftermarket amplifiers with flexible matrix routing and advanced bass control. Its matrix summing and autoBASS circuit address OEM signal limitations while preserving full-range outputs for high‑fidelity upgrades.

• 6-Channel Line Output Converter: Provides dedicated outputs for front, rear and sub channels to feed aftermarket amplifiers from a factory head unit.
• 6-Channel Matrix Summing Processor (6-in/6-Out): Any input can be assigned to any output, enabling flexible routing and maintaining full-range signals across all channels with analog summing.
• Bass Roll-off correction via autoBASS (patent pending): Corrects factory bass roll-off to allow better bass response when adding higher‑quality aftermarket components.
• Parametric EQ (PEQ): Fine-tunes the subwoofer output to match room gain and system goals for tighter, more musical bass.
• Multi-Function Remote: Remote controls level and source, master volume, fader, and AUX volume for complex installations.
• Independent CH5/6 Level/Source/Function Select: Configure CH5 and CH6 independently to suit specific outputs or screening needs.
• AUX 3.5mm Input (2/4/6ch Input Select: Direct, Copy or Sum)
• Start-Stop Vehicle Compatible: Suitable for installations in vehicles with startup/stop signaling concerns.
• Matrix Summing with +/-6dB Level Trim: Fine-tune output levels per channel to balance system dynamics.
• Never Zero CH5/6 Output with Front & Rear Input: Maintains defined levels on CH5/6 regardless of front/rear input activity.
• Adaptive OEM Load Technology: Reads OEM load characteristics to interface cleanly with factory systems.
• Differential Balanced Inputs: Improves noise rejection in automotive environments.
• Low Impedance Outputs: Ensures strong signal drive to aftermarket amps with minimal loss.

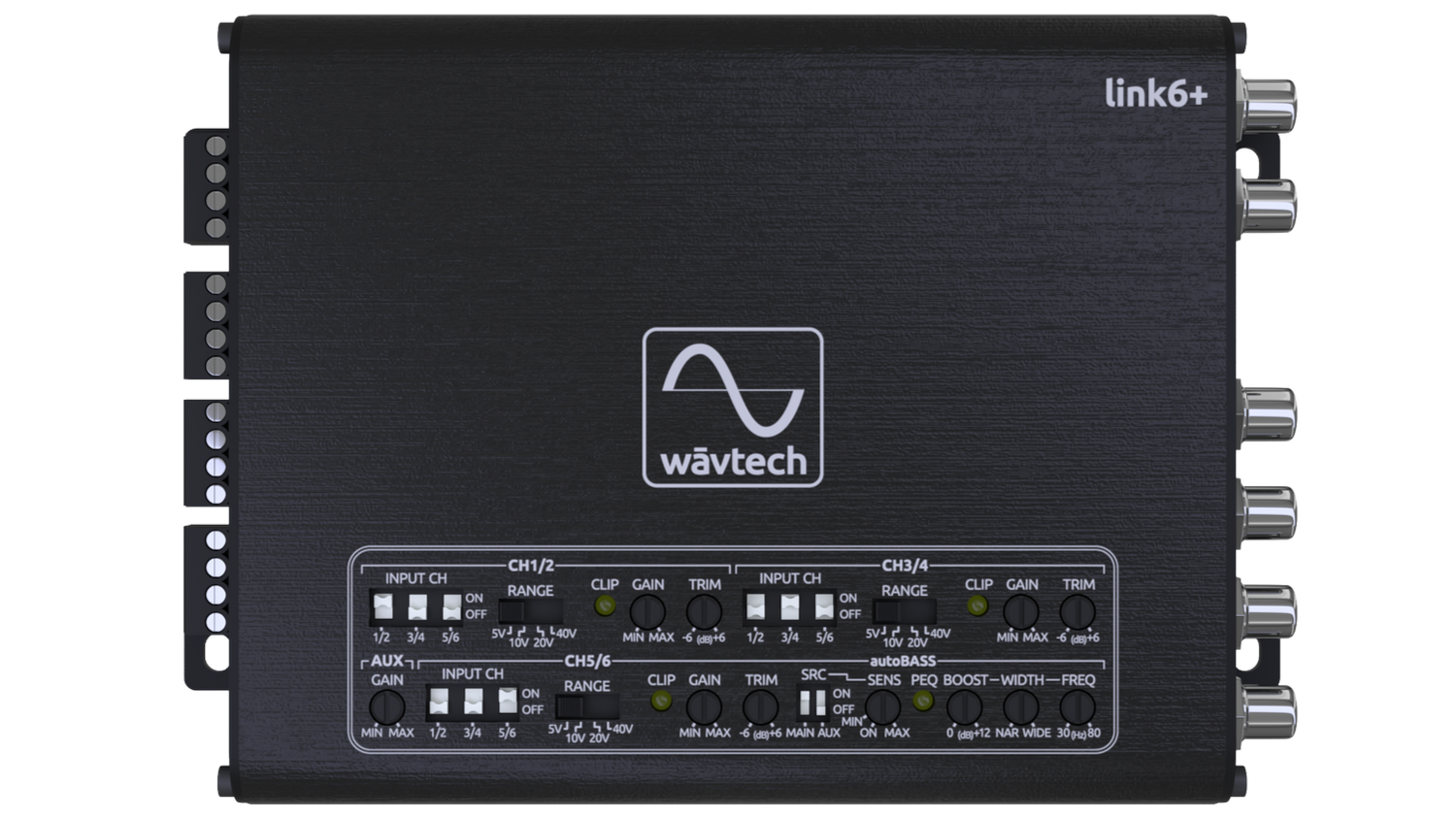

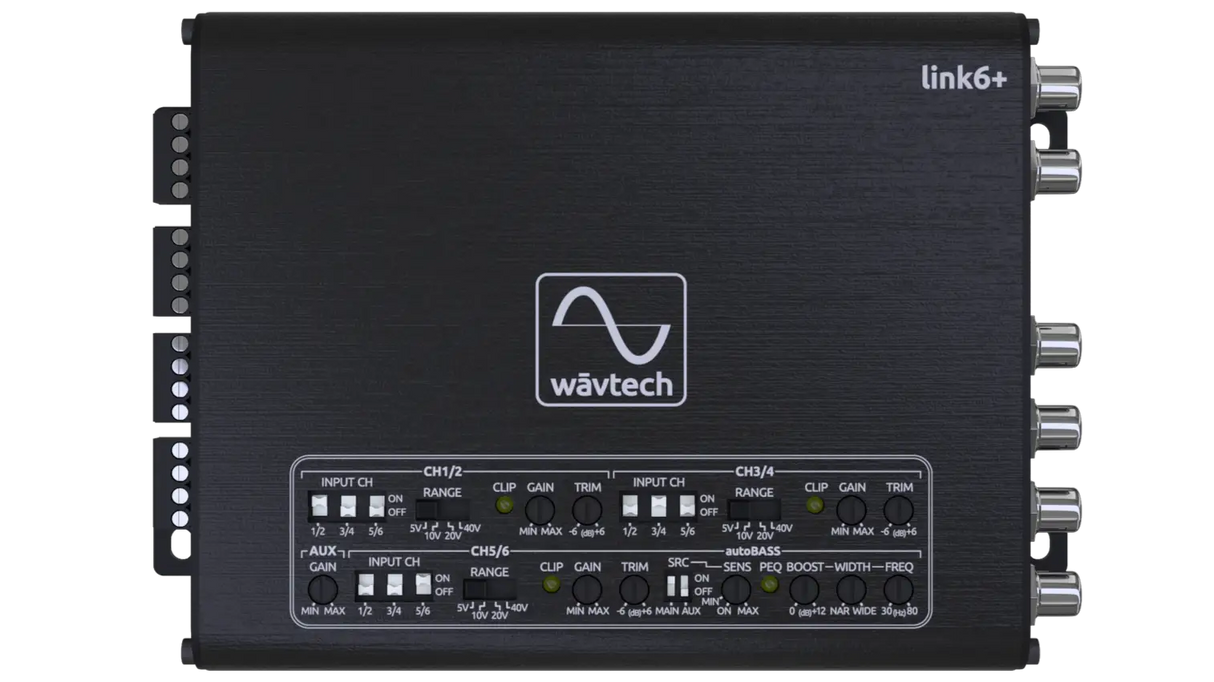

• Variable Gain Adjustments w/ Clip LEDs: Set precise output levels while monitoring for clipping indicators.
• Auto Turn-On via DC-Offset or Audio Signal Detect: Powers on automatically when a signal or DC offset is present.
• Generated +12V Remote Output: Provides a remote supply for other devices in the install.

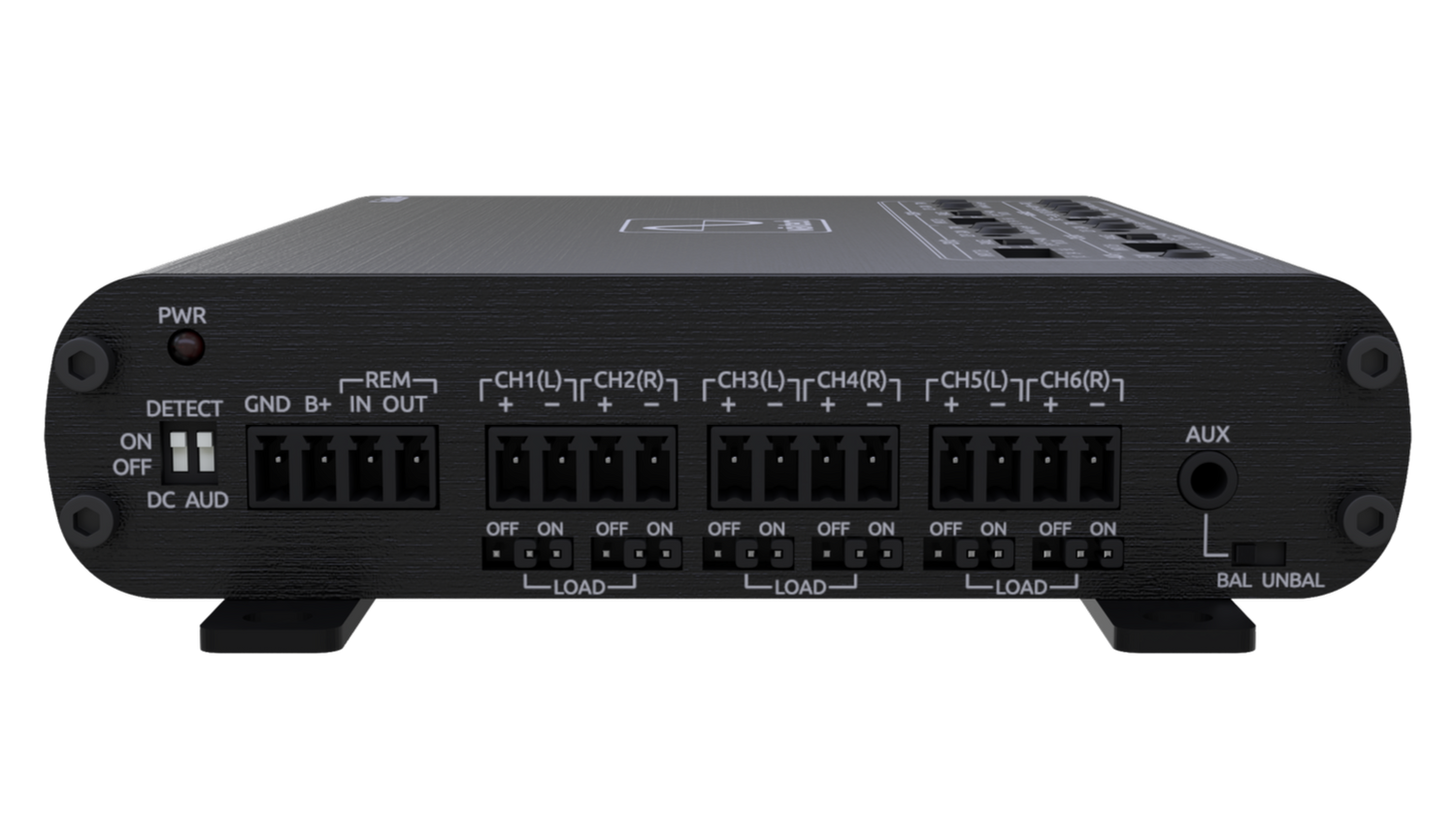

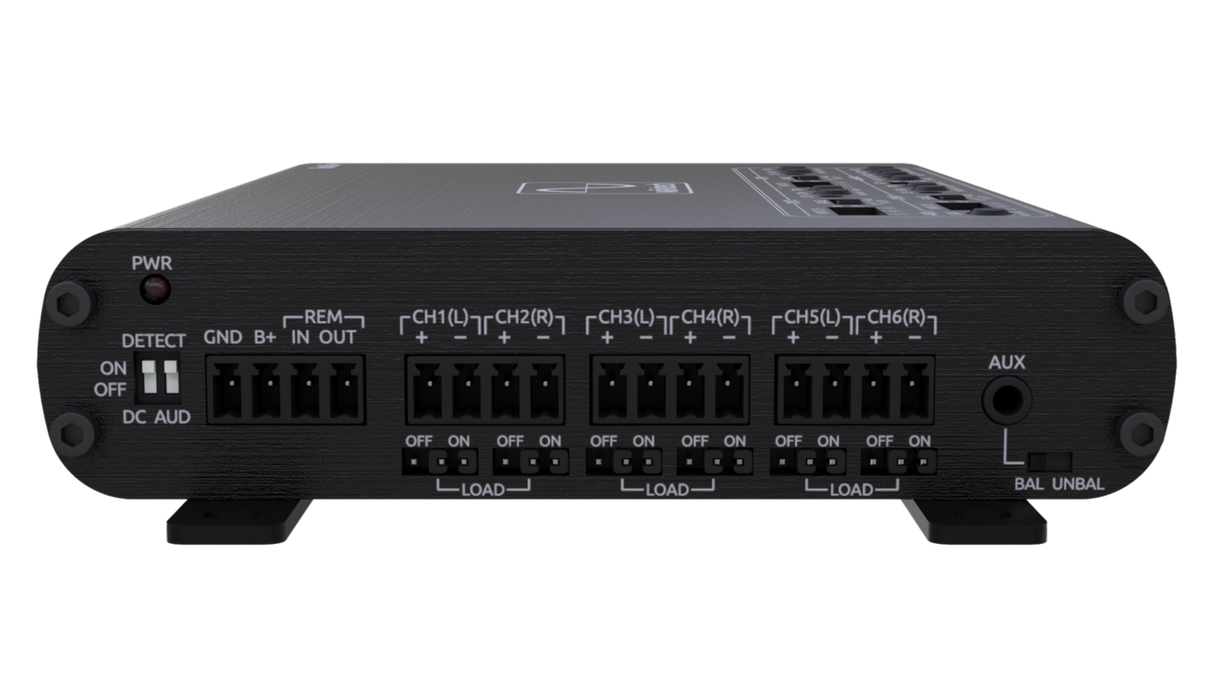

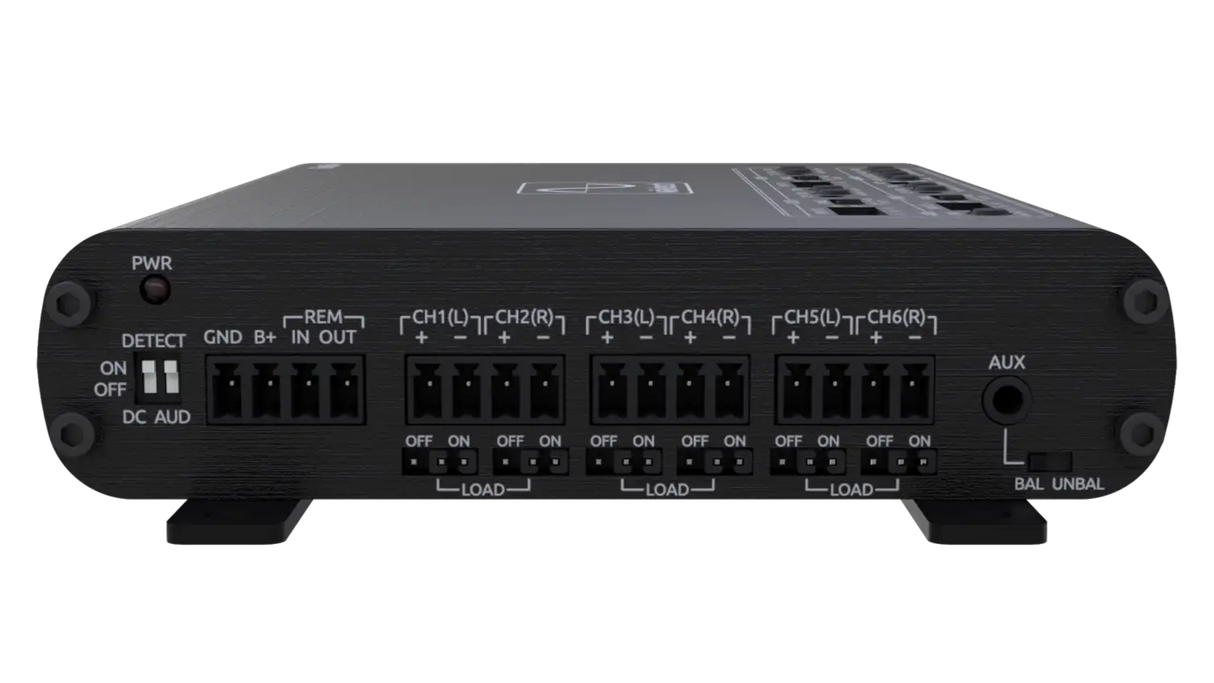

• Locking Detachable Power/Speaker Terminals: Secure, serviceable connections for reliable installations.

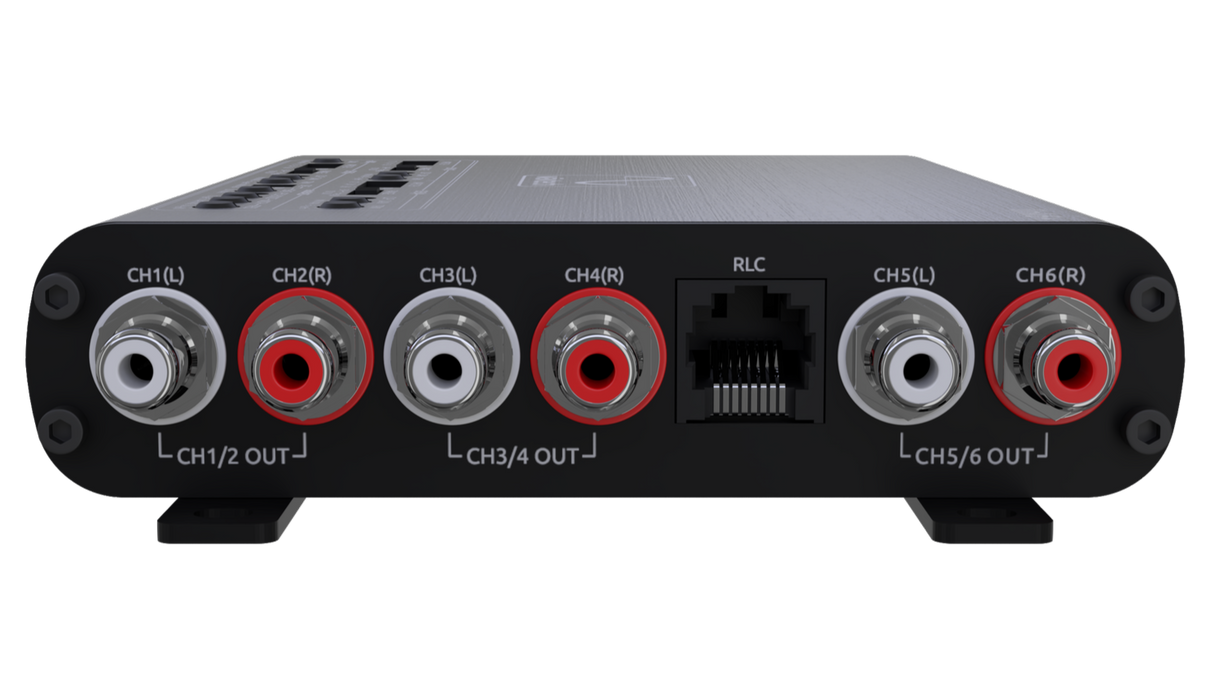

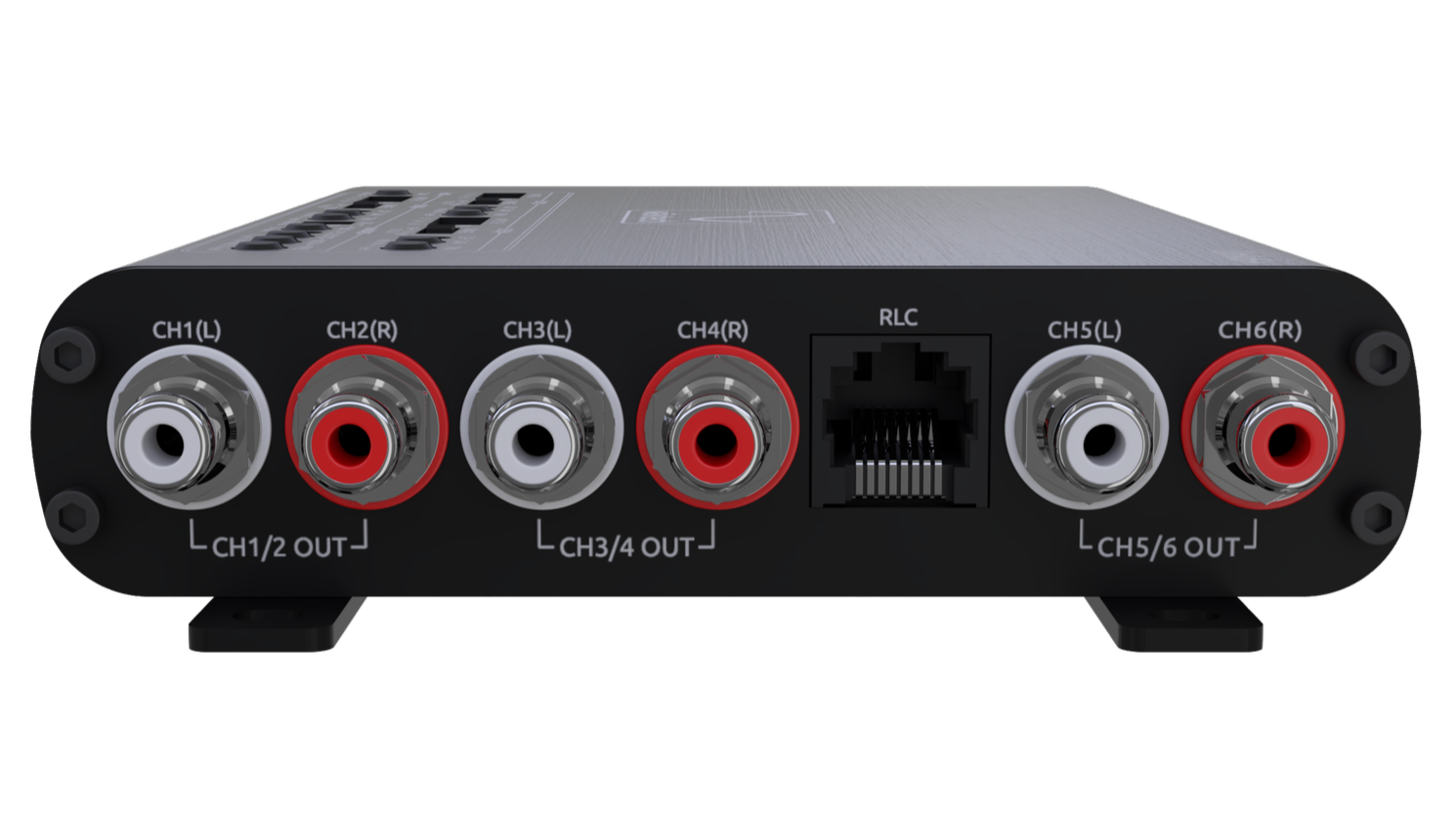

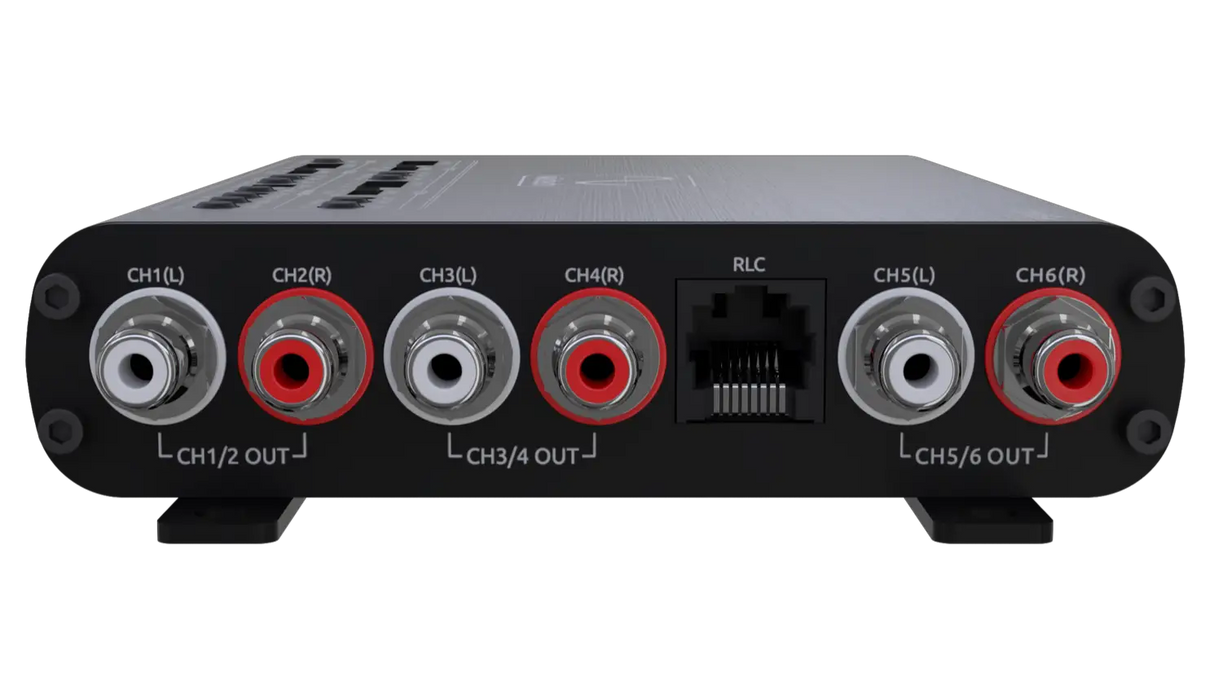

• Professional Grade Panel Mount RCA’s: High-quality connectors suitable for professional installs.
• Compact Aluminum Chassis w/Detachable Mounting Tabs: Sturdy enclosure with flexible mounting options.
• Output Voltage (Max): >10Vrms
• Output Impedance: <50Ω
• Input Sensitivity: SPK 2-20Vrms, AUX 0.5-5Vrms
• Max Input Voltage (SPK): 40Vrms
• Frequency Response: <10Hz to 100kHz
• THD+N (SPK/AUX): <0.05% /<0.05%
• S/N (SPK/AUX): >114dBA / >113dBA
• Turn-On Trigger: +12V, DC-offset & Audio Detect
• Generated +12V Output: >500mA
• Chassis Dimensions: 1.1”x4.7”x5.8” (29x120x148mm)

The link6+ is built for modern vehicle upgrades where factory protections and limited signal paths can constrain performance. Its matrix summing, autoBASS, and PEQ enable precise, flexible integration with aftermarket amps while maintaining signal integrity, making it suitable for complex front/rear/sub installations and demanding car-audio builds.
