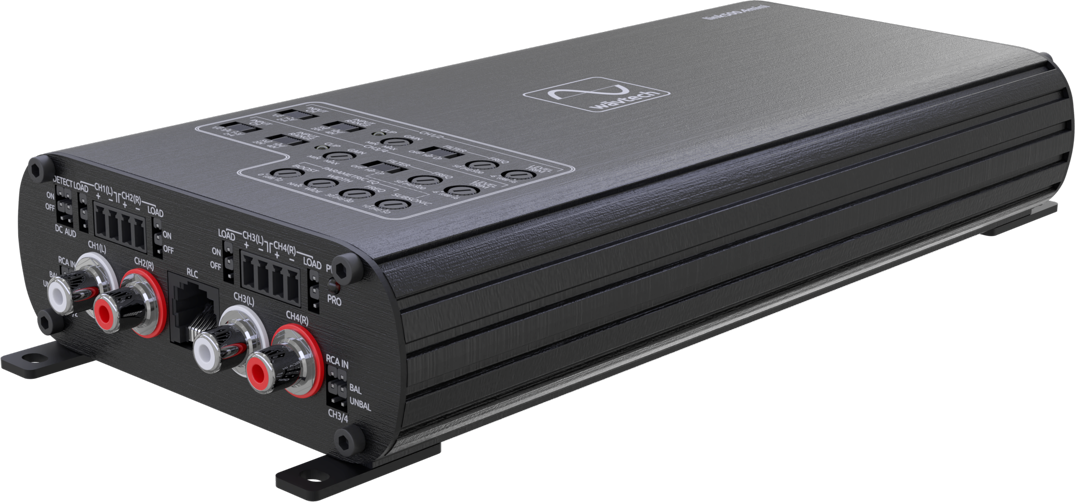

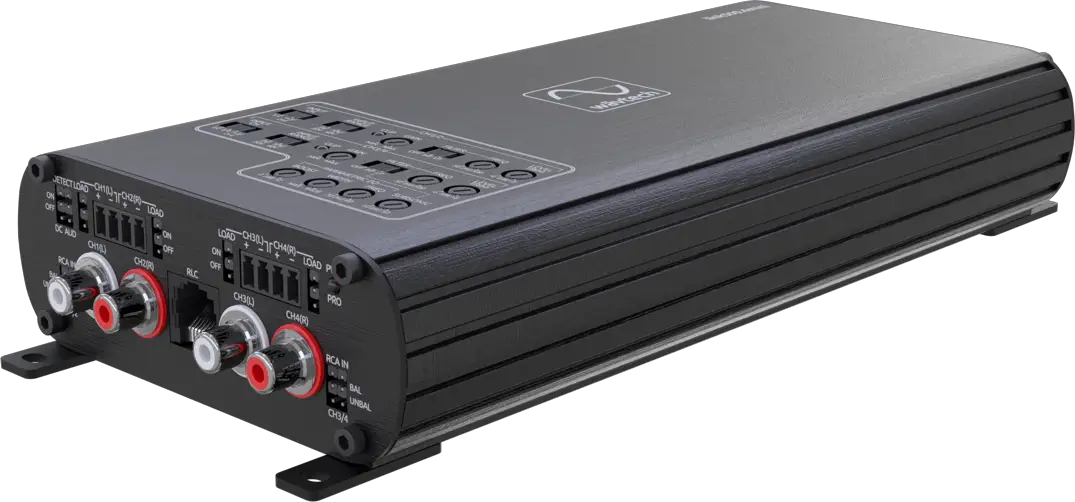

Wāvtech link500.4mini 500 Watt 4-Channel Amplifier

The link500.4mini is a 500W four-channel amplifier designed for compact installs, built for car audio enthusiasts who want real power for a front stage plus sub in a small footprint. In 3-channel mode it delivers 125 watts x 2 for the main speakers and 250 watts x 1 for the sub, ensuring strong performance without bulk.

• 500 Watt 4-Channel Amplifier: total system power with 75W x 4 @ 4 ohms, 125W x 4 @ 2 ohms, and 250W x 2 @ 4 ohms (BTL). This gives flexible headroom across the four channels for either full-range or bridged configurations.
• Small Footprint: 9.2” x 4.5” x 1.65” chassis fits tight dashboards and shallow install spaces while still delivering substantial power.
• Adjustable Paragraphic EQ (Channels 3/4): precise frequency shaping on the sub/satellite pair to tailor bass response and midbass behavior to your vehicle’s acoustics.
• Variable Subsonic Filter (Channels 3/4): removes ultra-low frequencies that can overwhelm smaller subs or ported enclosures, improving clarity and reduce excursion.
• Variable Hi/Low Pass Crossover (-12dB/oct): flexible crossover control across channels to define exact bandwidth for front and rear playbacks.
• Remote Level Control (RLC) w/ Optional linkRC (CH 3/4): convenient in-cabin adjustment for sub/sat levels without reaching the amplifier.
• Built-In Summing w/ Level Trim Adjustment: enables factory radios that lack a full-range signal to drive the amp without external processing.
• Active Thermal Management: maintains performance and guards against overheating under demanding playback.
• Start/Stop System Compatible: integrates with vehicle electronics to wake or sleep with the car’s system.
• Adaptive OEM Load Technology: adapts to the vehicle’s OEM load, supporting stable operation with diverse factory systems.
• 40V Input Capability: accepts higher input voltages for robust signal handling and headroom.
• Differential Balanced Inputs: reduces noise and hum for clearer signal transmission from source to amp.
• Variable Gain Adjustment w/ Clip LED: fine-tune input sensitivity and visibly monitor clipping to protect speakers.
• Auto Turn-On via DC-Offset or Audio Signal Detect: powers on automatically when signal or offset is present, simplifying installs.
• Locking Detachable Hi-Level Terminals: secure, vibration-resistant high-level connections.
• 4 Gauge Power/Ground Terminals: supports solid power delivery and grounding for stable operation.
• Professional Grade Panel Mount RCA’s: durable, shielded inputs with reliable connections.
• Compact Aluminum Chassis w/ Detachable Mounting Tabs: rigid, lightweight build with versatile mounting options.

In real-world builds, the link500.4mini suits front-stage plus sub configurations in cars where space is at a premium. Its built-in summing helps integrate OEM systems without extra processors, while the selectable crossovers and channel-specific EQs let you tune for clarity, bass extension, and overall imaging. The combination of robust power, thermal management, and flexible input options makes it a coherent choice for enthusiasts seeking measurable performance without a bulky footprint.
