Wāvtech link500.1mini 500 Watt Monoblock Amplifier

Delivering 500W RMS into 2 ohms in a compact 9.2” x 4.5” x 1.65” chassis, the Wāvtech link500.1mini is a dedicated bass amplifier built for both factory and aftermarket head units. Its high-level input up to 40V and RCA input up to 10V, combined with a tunable bass path, provides precise, punchy low-end in a small footprint.

• Power Output: 500W RMS @ 2 ohms (mono); 300W x 1 @ 4 ohms. This gives strong bass performance when driving a sub, with higher efficiency at 2Ω for deeper, louder low-end.

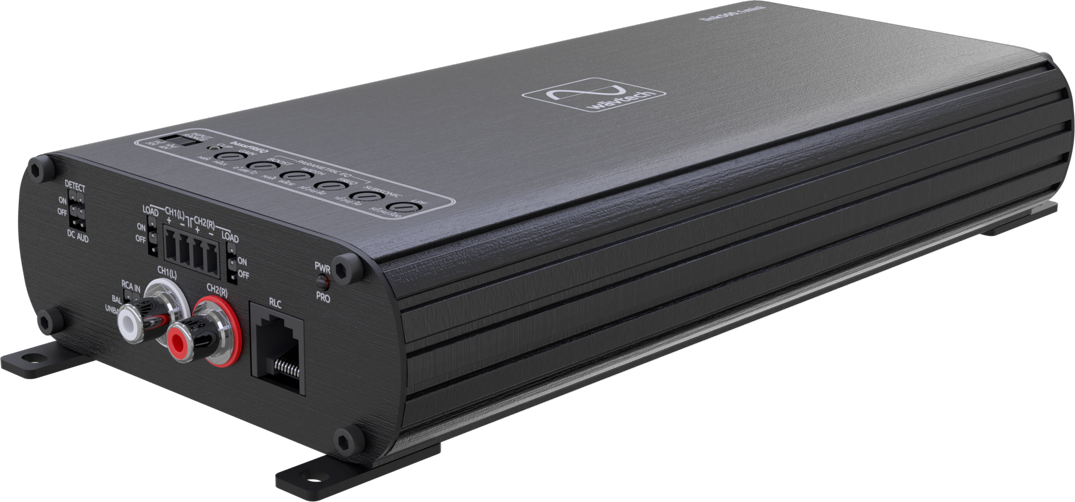

• Footprint & Build: Small footprint (9.2” x 4.5” x 1.65”); Compact Aluminum Chassis with Detachable Mounting Tabs. Fits tight compartments while maintaining solid heat dissipation.
• Bass Tuning Suite: bassFREQ Bass Processor w/ Parametic EQ; 24dB/oct Low-Pass Crossover; Subsonic Filter (-24dB/oct). Precise tonal shaping to integrate a subwoofer with any vehicle cabin.

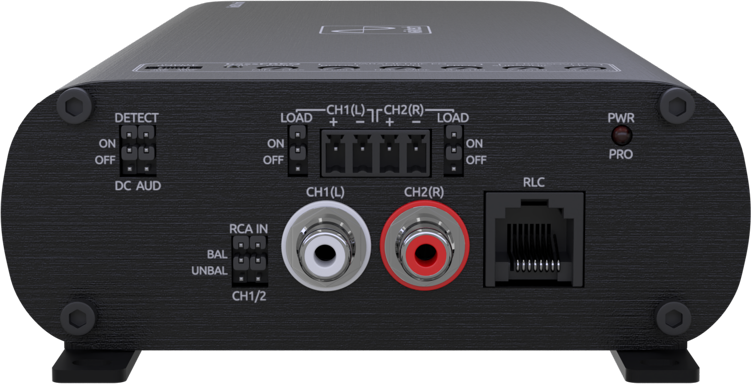

• Inputs: Speaker-level inputs up to 40V (Adaptive OEM Load Technology); RCA inputs up to 10V; Differential Balanced Inputs. Flexible signal options for factory or aftermarket sources with reduced noise.
• Controls & Remote: Remote Level Control (RLC) with Optional linkRC; allows in-cabin level adjustment and programming convenience.
• System Compatibility: Start/Stop System Compatible; Auto Turn-On via DC-Offset or Audio Signal Detect. Works with modern vehicles and maintains proper power behavior.

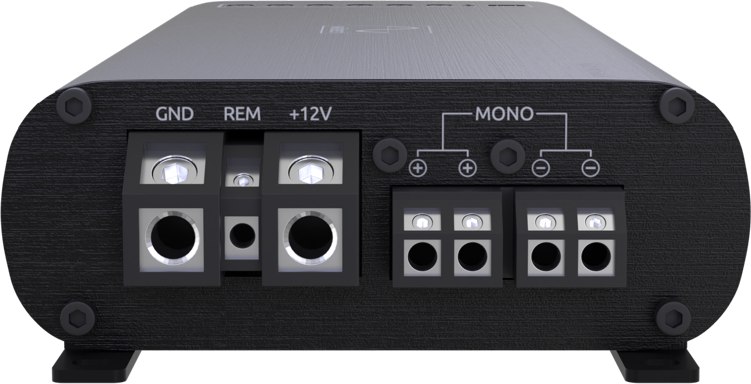

• Connectors & Signal Path: Locking Detachable Hi-Level Speaker Terminals; 4 Gauge Power/Ground Terminals; Professional Grade Panel Mount RCAs. Reliable, secure connections for high-current bass applications.
• Quality & Noise: Frequency Response <10 Hz to >500 Hz; THD+N <1% at rated power; S/N >81 dBA (1W, 4Ω). Clear bass with low distortion across its operating range.

In a typical car audio build, the link500.1mini pairs a sub with either a factory or aftermarket head unit, delivering controlled bass through its adjustable crossover and bass processor. The 40V speaker-level input accommodates OEM signals, while the RCA path supports upgraded sources, all within a compact package that suits under-seat or trunk installs. Active thermal management and Start/Stop compatibility help maintain performance and reliability in demanding bass applications.
