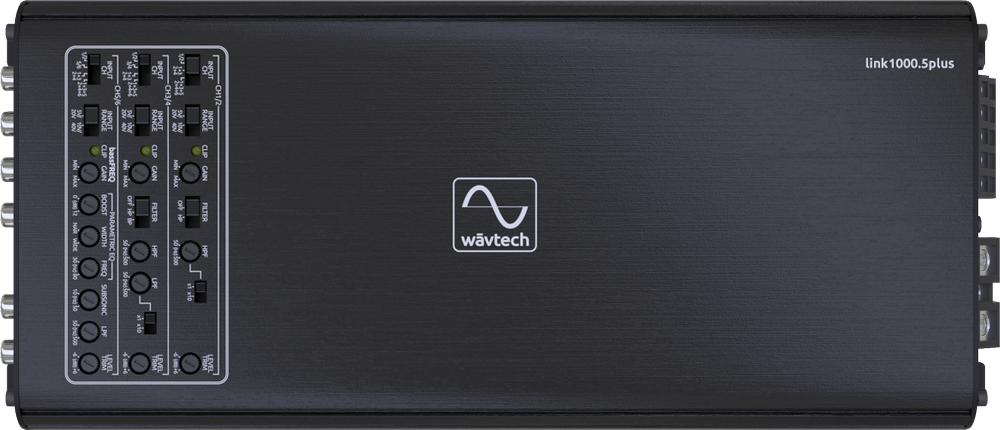

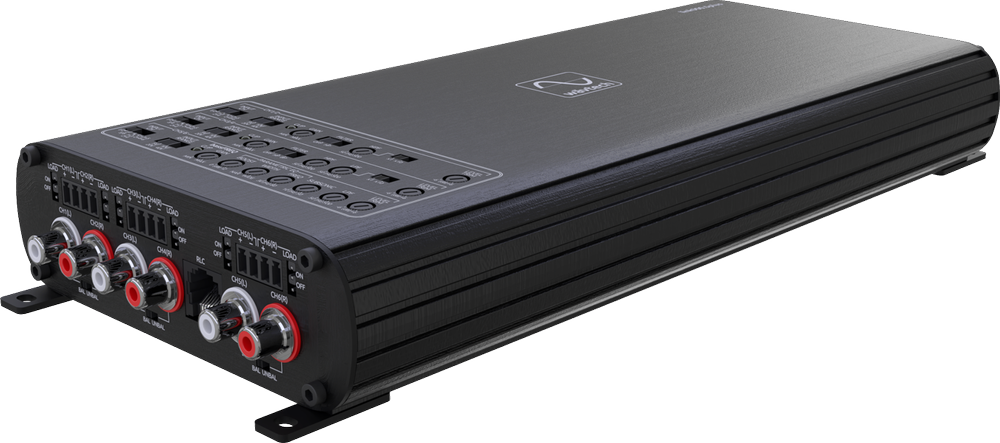

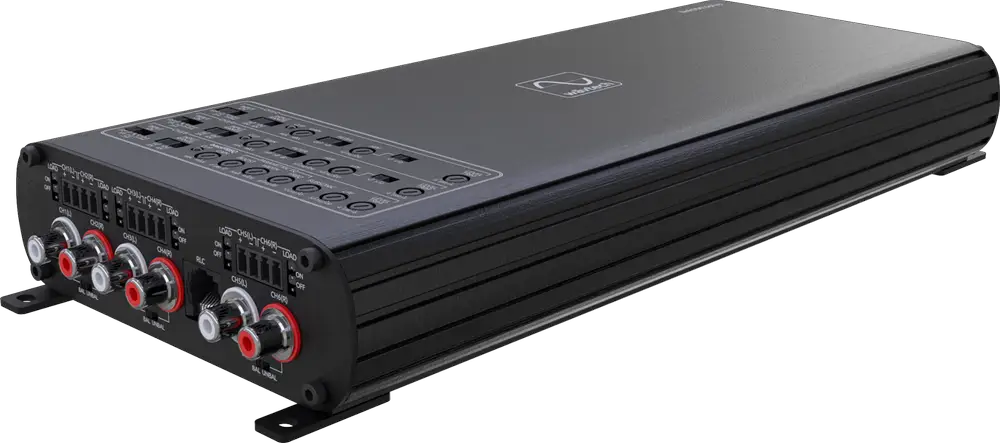

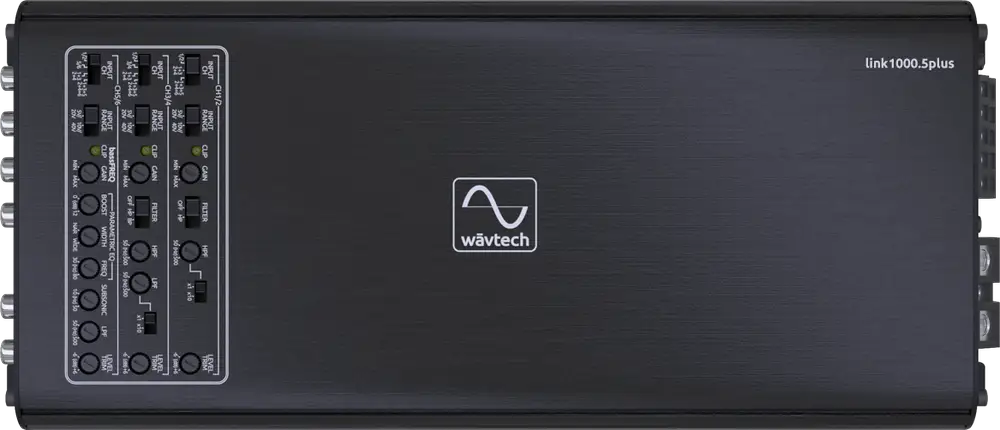

Wāvtech link1000.5plus 1,000 Watt 5-Channel Amplifier

The link1000.5plus is a 1,000-watt, five-channel amplifier designed for a complete, high‑performance car audio system. It combines four main channels with a dedicated bridged sub channel in a compact 11.9” x 5.5” x 1.65” aluminum chassis, built for enthusiasts who want integrated processing and flexible signal routing.

• Power outputs: Main channels 75 watts x 4 at 4 ohms; 125 watts x 4 at 2 ohms. Sub channel (BTL) 300 watts x 1 at 4 ohms; 500 watts x 1 at 2 ohms. Real-world: at 2 Ω, each front/rear channel has ample headroom, while the sub channel delivers substantial low-end when bridged for the bass signal.
• Channel count and input flexibility: 5-channel design with summing on multi-channel models; supports up to 6–8 input channels on multi-channel configurations. Real-world: flexible signal routing lets you blend full‑range and processed signals without an external processor in many setups.
• bassFREQ bass processor with parametric EQ: Integrated bass processing with a parametric EQ for shaping sub-bass response. Real-world: fine-tune low-end depth and balance without adding external gear.
• Crossover architecture: CH1/CH2: Variable high-pass crossover (-12 dB/oct); CH3/CH4: Variable HP/BP/LP crossover (-12 dB/oct); CH5: Variable low-pass crossover (-24 dB/oct) and subsonic filter (-24 dB/oct) with an adjustable parametric EQ. Real-world: precise frequency separation for front/rear channels and the sub, reducing crosstalk and improving imaging.
• Remote and control: CH5 Remote Level Control (RLC) with optional linkRC. Real-world: adjust sub level from the front seat for quick tuning without reaching into the trunk.

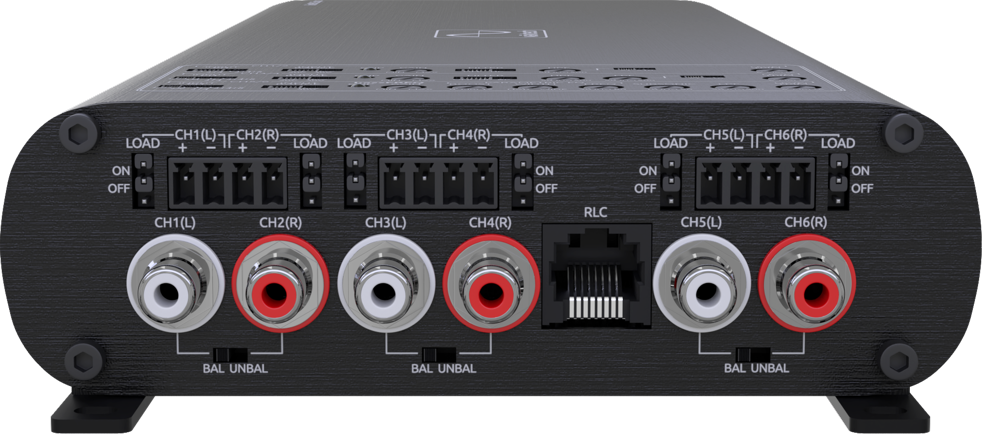

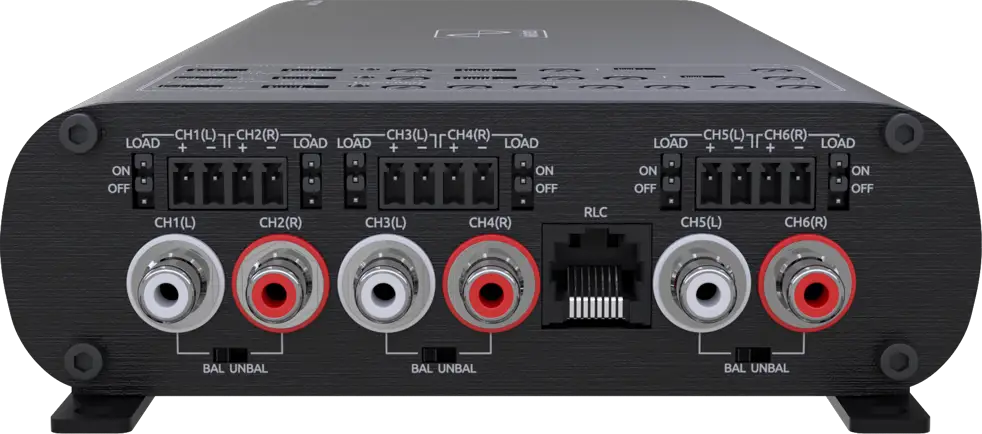

• Inputs and sensitivity: Differential balanced inputs; input sensitivity SPK 1–20 Vrms, RCA 0.2–5 Vrms (0.4–10 Vrms), max input (SPK) 40 Vrms. Real-world: flexible compatibility with factory head units and external processors while preserving signal integrity.
• Startup and load handling: Start/Stop system compatible; adaptive OEM load technology; auto turn-on via DC-offset or audio signal detect. Real-world: reliable wake-up with modern vehicles and stable performance when connecting to factory systems.

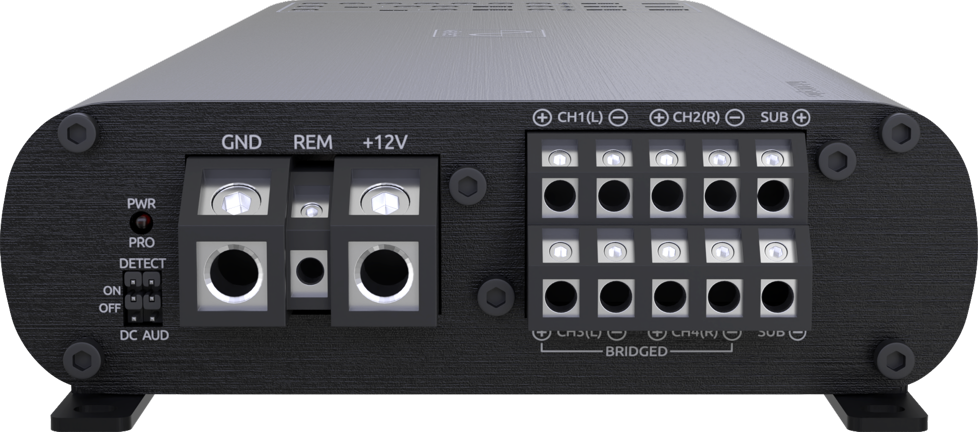

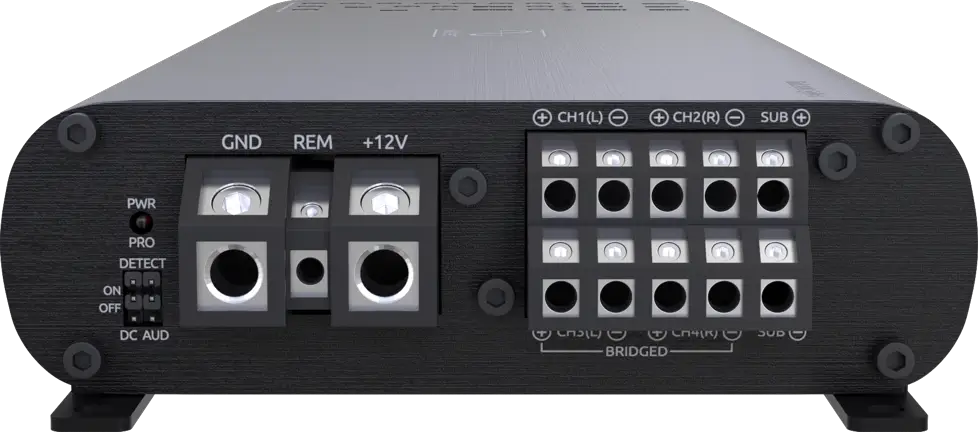

• Build and connections: Locking detachable high-level speaker terminals; 4 gauge power/ground terminals; professional-grade panel mount RCAs; compact aluminum chassis with detachable mounting tabs. Real-world: secure, durable connections and straightforward installation in tight spaces.
• 40V input capability: Accepts up to 40V input signals. Real-world: greater resilience to high-level transients and diverse signal environments without clipping.

Benefits: In a typical multi-channel install, the link1000.5plus powers front and rear speakers with clean 2-ohm headroom while the dedicated bridged sub channel delivers strong bass without needing an external processor. Built-in bass processing and crossovers provide precise filtering and bass shaping, reducing the need for additional gear. Adaptive OEM load detection, Start/Stop compatibility, and auto turn-on simplify integration with modern vehicles, while the compact chassis and versatile inputs make it a flexible centerpiece for a high-performance, all-in-one system.
