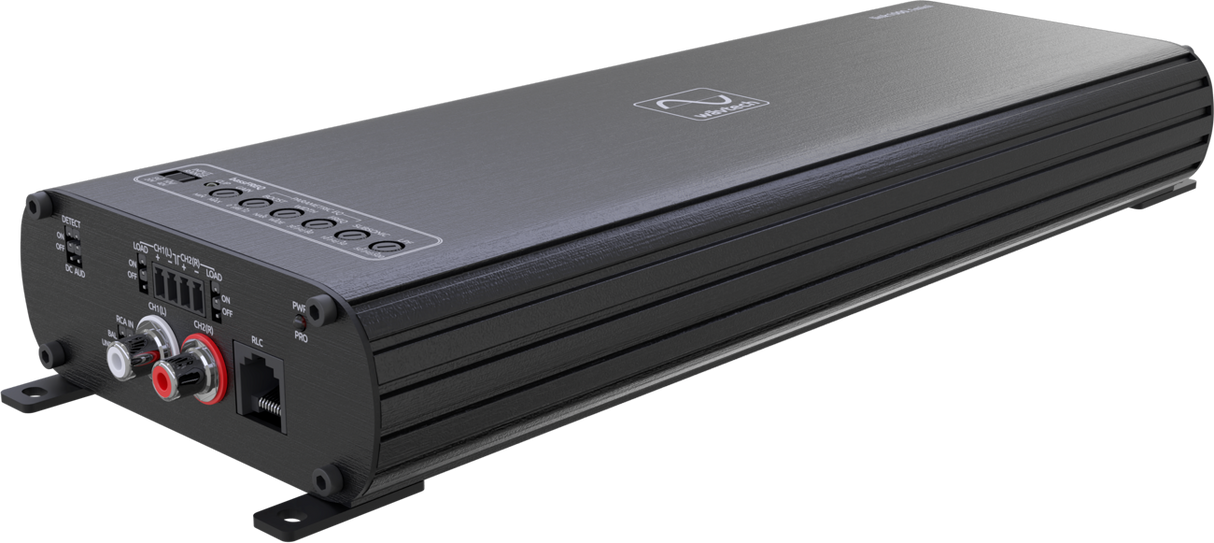

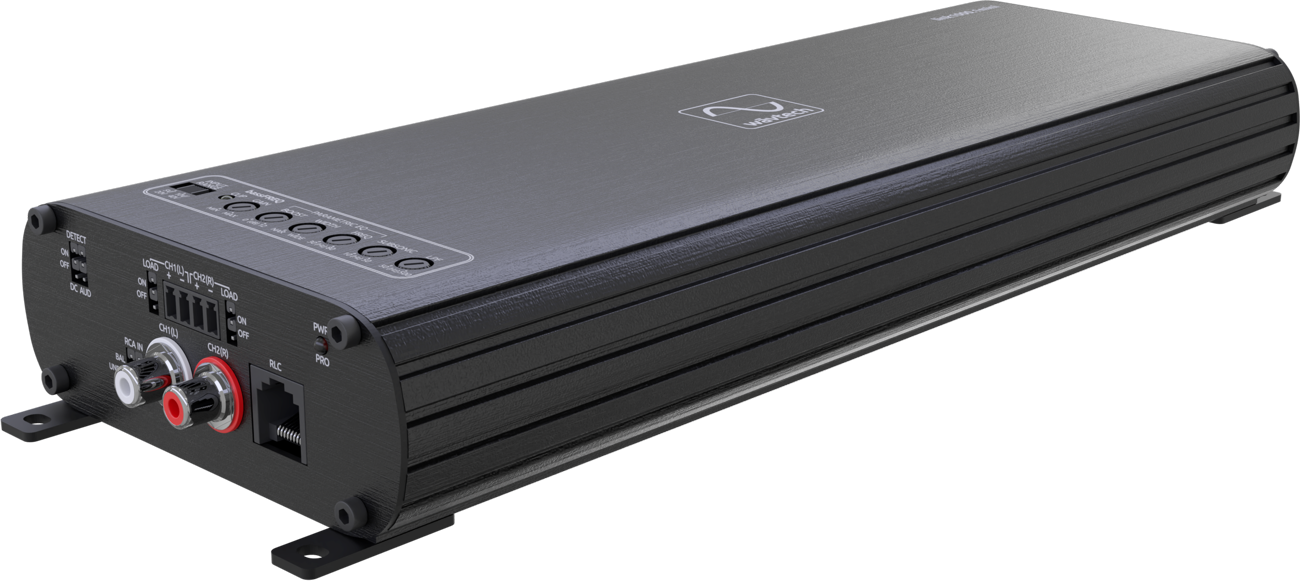

Wāvtech link1000.1mini 1,000 Watt Monoblock Amplifier

The link1000.1mini is the most powerful amplifier in the Wāvtech mini series, delivering 1000 watts RMS at 2 ohms in a compact 12.2” x 4.5” x 1.65” chassis—one of the smallest 1000W RMS amplifiers available today. It uses adaptive loading technology to connect easily with both factory and aftermarket head units.

• 1000 Watt Mono Amplifier: 600 watts x 1 @ 4 ohms; 1000 watts x 1 @ 2 ohms, giving substantial headroom for demanding subwoofer systems.
• Compact chassis: 12.2” x 4.5” x 1.65” footprint, enabling installation in tight automotive spaces while delivering full bass capability.
• bassFREQ Bass Processor w/Parametic EQ: integrates a 24dB per octave crossover and an adjustable parametric EQ for precise bass shaping tailored to your subwoofers.
• Variable Low-Pass Crossover (-24dB/oct): concentrates bass energy to the subwoofers and reduces unnecessary high-frequency content from the amp.
• Variable Subsonic Filter (-24dB/oct): removes ultra-low frequencies that can strain subs and amplify vent noise, improving clarity and control.
• Remote Level Control (RLC) w/ Optional linkRC: front-seat adjustment of subwoofer output for quick fine-tuning during install or in-car listening sessions.
• Adaptive OEM Load Technology: supports connection to both OEM and aftermarket head units for flexible integration.

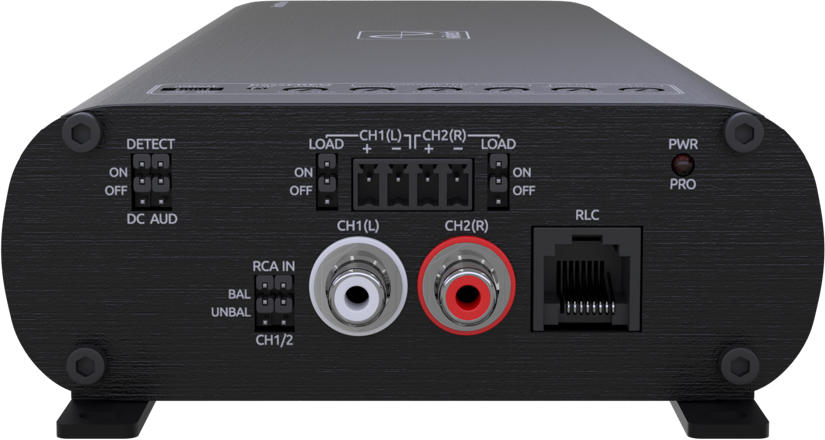

• 40V Input Capability and Differential Balanced Inputs: wide input tolerance with noise rejection for clean signal transfer.
• Variable Gain Adjustment w/ Clip LED: dial in exact input sensitivity while monitoring for distortion, ensuring clean power delivery.
• Auto Turn-On via DC-Offset or Audio Signal Detect: simplifies wiring by enabling automatic activation without a dedicated turn-on lead.
• Start/Stop System Compatible: compatible with modern vehicles that use engine shut-down signals, ensuring reliable operation.
• Active Thermal Management: manages heat under high-demand bass to maintain performance and reliability.

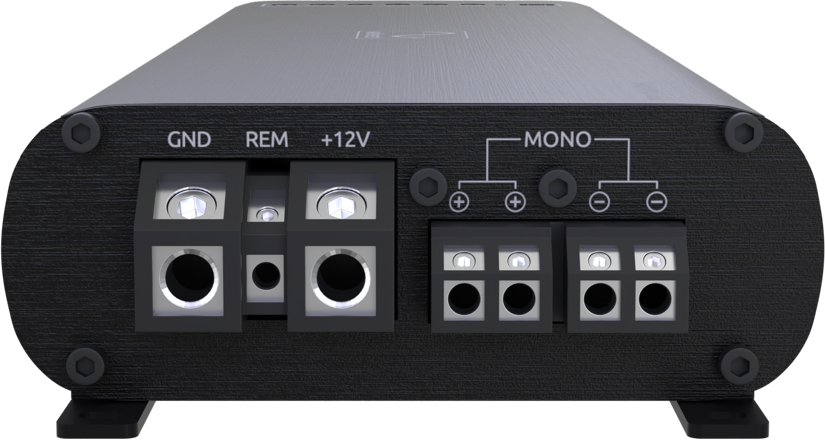

• Locking Detachable Hi-Level Speaker Terminals: secure high-level connections that resist vibration and loosening.
• 4 Gauge Power/Ground Terminals: supports robust power delivery and grounding for high-current operation.
• Professional Grade Panel Mount RCA’s: durable, OEM-grade connectivity for clean signal paths.
• Compact Aluminum Chassis w/ Detachable Mounting tabs: sturdy construction with flexible mounting options for installation versatility.

The link1000.1mini is designed for subwoofer-focused builds in real-world cars where space is at a premium but bass performance cannot be compromised. Its high-power capability at 2 ohms, together with bass processing and flexible integration features, makes it well-suited to demanding bass installs that need precise tuning and reliable, year-long operation.
