Soundqubed HDX4.2 Series 12" Subwoofer 4" DVC 4,000 Watts RMS D2/D4
Soundqubed HDX4.2 Series 12" Subwoofer 4" DVC 4,000 Watts RMS D2/D4 - Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Soundqubed HDX4.2 Series 12" Subwoofer 4" DVC 4,000 Watts...
Description
Description

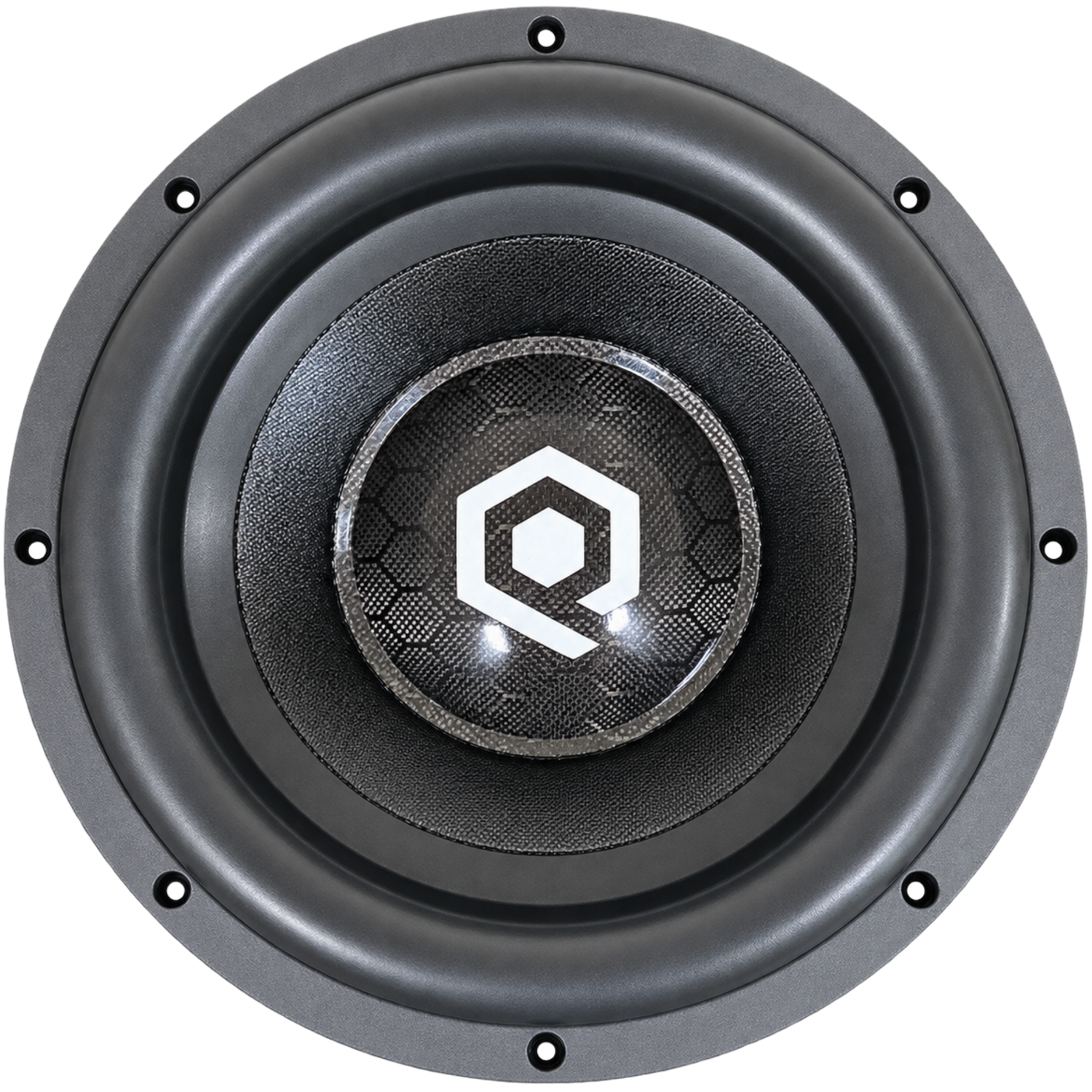

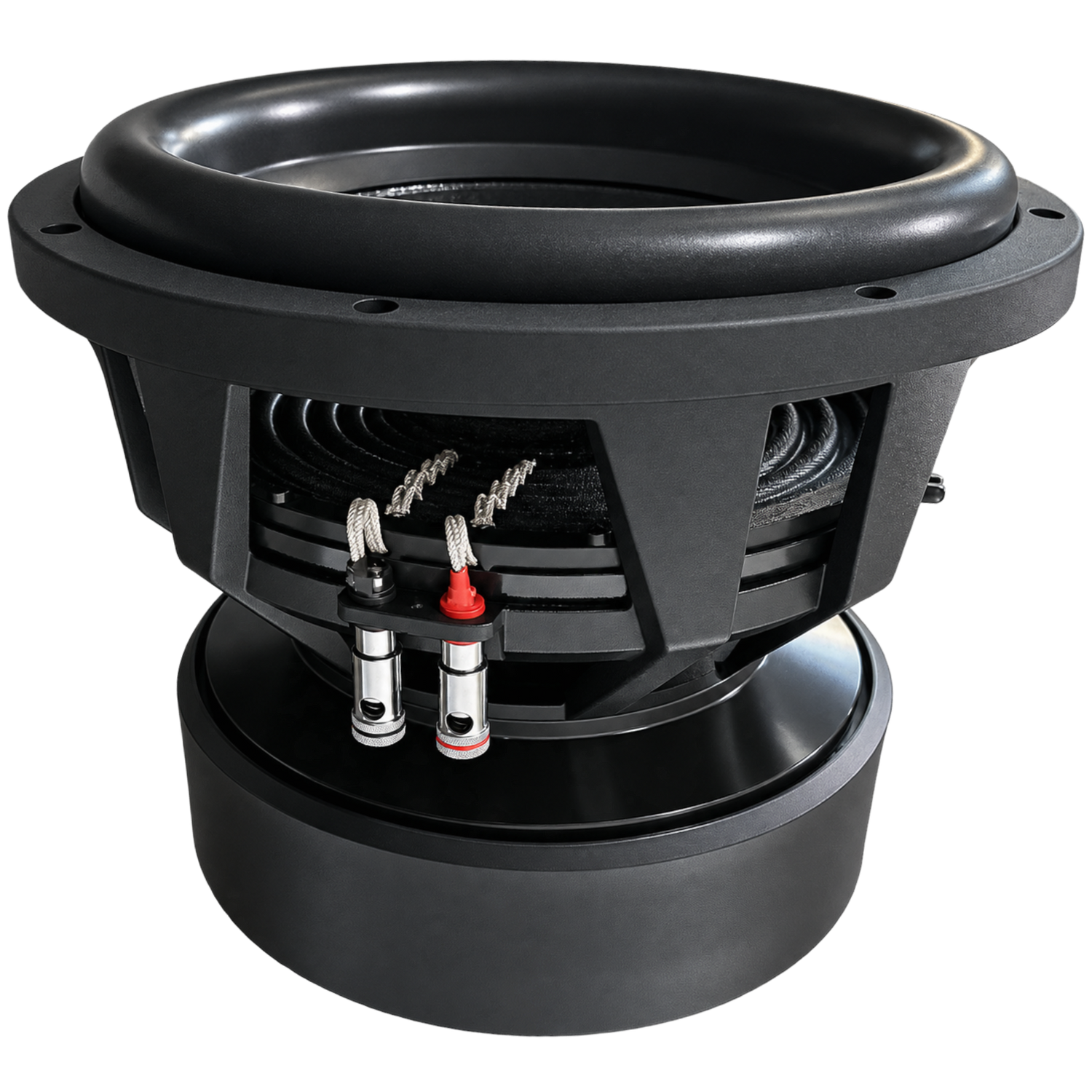

SoundQubed HDX4.2-12 — 4,000W RMS Competition-Grade 12" Subwoofer
The SoundQubed HDX4.2 Series 12" subwoofer is the pinnacle of SoundQubed's competition subwoofer lineup — a professional-grade, high-output 12-inch driver built for SPL competitors and serious builders who demand maximum power, extreme excursion, and uncompromising thermal endurance in a compact footprint. Rated at 4,000 watts RMS and 8,000 watts peak, the HDX4.2-12 is powered by a 402 oz magnet, a 4-inch diameter voice coil with a 70mm coil length, and a motor assembly engineered for extreme linear excursion. Available in Dual 2 Ohm (D2) and Dual 4 Ohm (D4) configurations, this sub wires cleanly into virtually any high-power mono block amplifier setup — whether you're building a daily SQL system or a full-tilt SPL competition build.
With an Xmax of 23mm (±) and Xmech of 47mm (±), the HDX4.2-12 delivers massive linear cone travel for a 12-inch driver, producing authoritative sub-bass extension down to a free-air resonance (Fs) of 34.4 Hz (D2) / 35.6 Hz (D4). The 530 cm² cone area (SD) and optimized Thiele-Small parameters make this woofer a powerhouse in a properly tuned ported enclosure, delivering the kind of output that competes with subs twice its size.
Why Choose the SoundQubed HDX4.2-12?
- 4,000W RMS / 8,000W Peak Power: One of the highest power-rated 12" subwoofers on the market — built to handle extreme amplifier output without flinching.
- 402 oz Magnet Assembly: Massive motor force delivers exceptional BL (15.8 N/A D2 / 21.7 N/A D4) for precise, controlled cone movement at high excursion levels.
- 4" Voice Coil, 70mm Coil Length: Extended coil length maximizes gap interaction for superior thermal management and sustained high-power performance.
- 23mm Xmax / 47mm Xmech: Exceptional linear and mechanical excursion for a 12" driver — deep, authoritative bass without bottoming out.
- Dual 2 Ohm & Dual 4 Ohm Available: Wire D2 to 1Ω or 4Ω, wire D4 to 2Ω or 8Ω — maximum flexibility for any amplifier's stable impedance load.
- Fs of 34.4–35.6 Hz: Tuned for deep sub-bass reproduction — ideal for ported enclosures targeting 32–38 Hz tuning frequencies.
- Ported Enclosure Optimized: Recommended ported volume 1.75–2.75 ft³ and sealed 1.0–1.75 ft³ — versatile enough for any build style.
- 84.9–85.1 dB Sensitivity: Efficient enough to get loud on moderate amplifier power while scaling up cleanly with high-wattage amps.
Amplifier & Enclosure Recommendations
The HDX4.2-12 is designed to be paired with a high-output mono block amplifier capable of delivering 4,000W RMS or more at the wired impedance load. For the D2 (Dual 2 Ohm) variant, wire the coils in parallel for a 1Ω final load or in series for 4Ω. For the D4 (Dual 4 Ohm) variant, wire in parallel for 2Ω or in series for 8Ω. Most high-power Class D mono amps are stable at 1Ω, making the D2 the most common choice for single-sub builds.
For enclosures, a ported box tuned to 32–38 Hz in the 1.75–2.75 ft³ range will maximize SPL output and low-frequency extension. For tighter, more accurate SQL bass, a sealed box in the 1.0–1.75 ft³ range provides excellent transient response and cone control.
Electro Acoustic Specifications & Thiele Small Parameters
| Specification | HDX4.2-12D2 | HDX4.2-12D4 |
|---|---|---|
| Woofer Size | 12" | 12" |
| RMS Power | 4,000 W | 4,000 W |
| Peak Power | 8,000 W | 8,000 W |
| Magnet Weight | 402 oz | 402 oz |
| Coil Diameter | 4 in | 4 in |
| Coil Length | 70 mm | 70 mm |
| Fs | 34.4 Hz | 35.6 Hz |
| Impedance | 2+2 Ohm | 4+4 Ohm |
| QMS | 3.82 | 3.71 |
| QES | 0.47 | 0.50 |
| QTS | 0.42 | 0.44 |
| VAS | 30.8 L | 29.4 L |
| Le | 1.05 mH | 1.71 mH |
| η (No) | 0.20% | 0.18% |
| CMS | 0.07 mm/N | 0.07 mm/N |
| Sensitivity (1W/1M) | 84.9 dB | 85.1 dB |
| BL | 15.8 N/A | 21.7 N/A |
| Xmax (±) | 23 mm | 23 mm |
| Xmech (±) | 47 mm | 47 mm |
| SD | 530 cm² | 530 cm² |
Mounting Dimensions
| Model | A | B | C | D |
|---|---|---|---|---|
| HDX4.2-12D2 | 325 mm / 12.8" | 290 mm / 11.42" | 260 mm / 10.24" | 233 mm / 9.17" |
| HDX4.2-12D4 | 325 mm / 12.8" | 290 mm / 11.42" | 260 mm / 10.24" | 233 mm / 9.17" |
Enclosure Suggestions
| Enclosure Type | HDX4.2-12 D2/D4 |
|---|---|
| Sealed Enclosure | 1.0–1.75 ft³ |
| Ported Enclosure | 1.75–2.75 ft³ |
Frequently Asked Questions
What amplifier do I need for the SoundQubed HDX4.2-12?
You need a mono block amplifier rated at 4,000W RMS or more at your wired impedance. The D2 wired to 1Ω is the most common pairing. Look for a high-current Class D mono amp stable at 1Ω for best results.
Should I choose the D2 or D4 version?
Choose D2 (Dual 2 Ohm) if your amplifier is stable at 1Ω (parallel) or 4Ω (series) — this is the most common configuration. Choose D4 (Dual 4 Ohm) if your amp is stable at 2Ω (parallel) or you need an 8Ω final load (series).
What size box does the HDX4.2-12 need?
For ported, use 1.75–2.75 ft³ tuned to approximately 32–38 Hz for maximum SPL and deep bass extension. For sealed, use 1.0–1.75 ft³ for tight, accurate bass.
Can this subwoofer handle daily use or is it competition-only?
The HDX4.2-12 is built for both. Its 4" voice coil and 402 oz motor handle sustained high-power daily use with ease, while its 4,000W RMS rating makes it a serious SPL and SQL competition contender.
