Soundqubed HDB2.2 Series 12" Subwoofer 2" DVC 400 Watts RMS D2/D4

SoundQubed HDB2.2-12 — 12" Subwoofer | 400W RMS | Dual 2 or Dual 4 Ohm

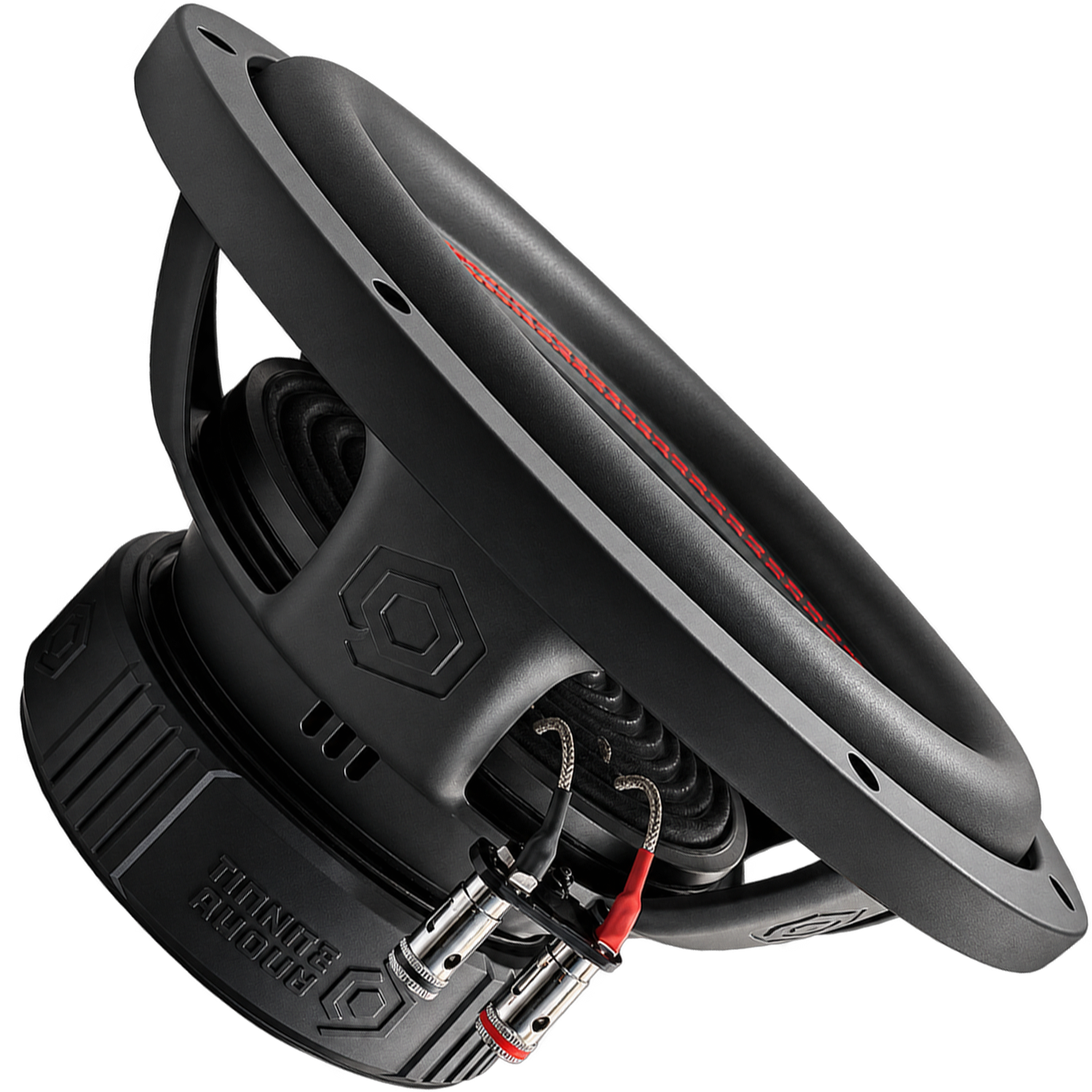

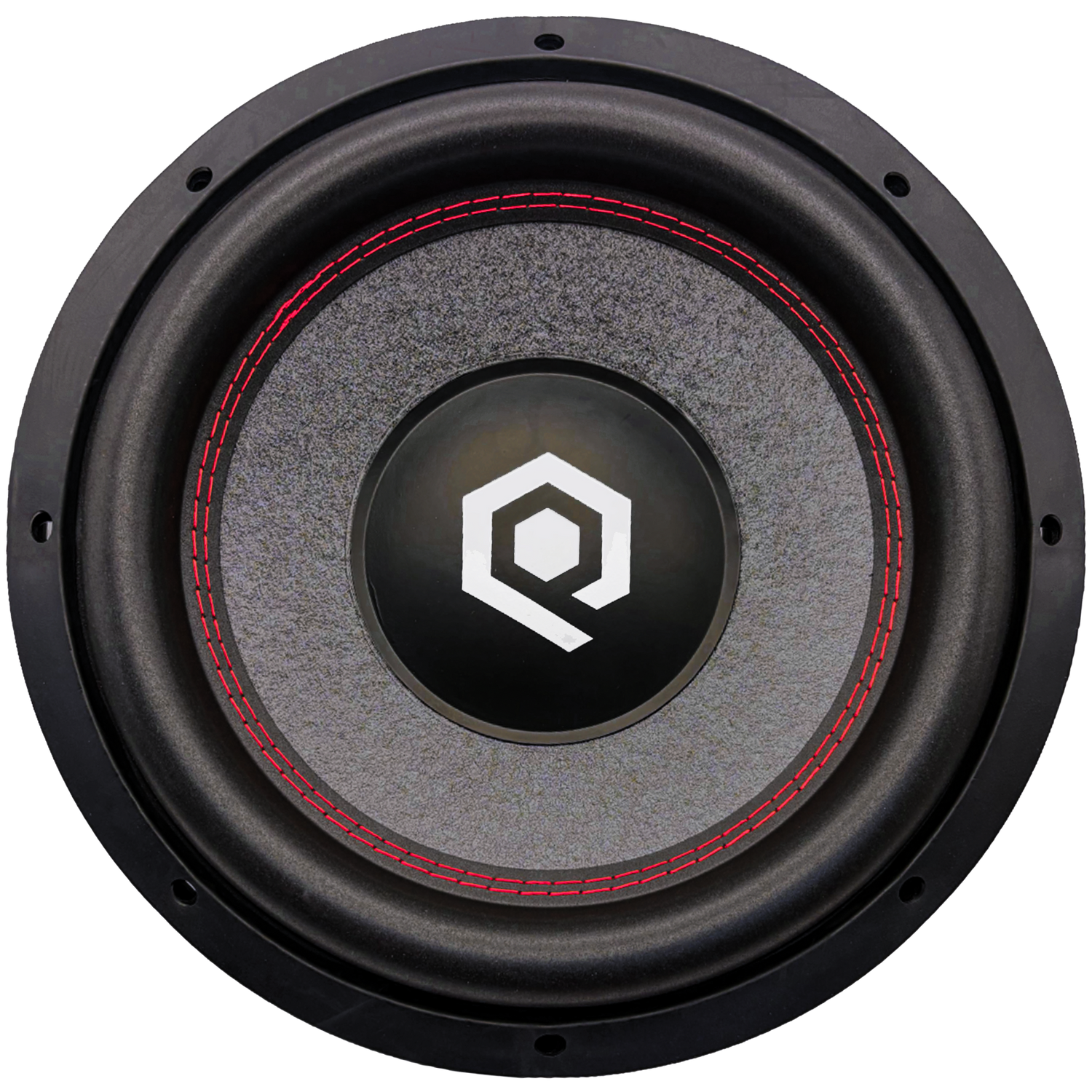

The SoundQubed HDB2.2-12 is a full-size 12" subwoofer built for enthusiasts who want deep, authoritative bass at an accessible price point. Rated at 400W RMS / 800W Peak, this driver delivers the kind of ground-shaking low-end you expect from a 12" platform — with a resonant frequency as low as 29.7 Hz (D2) that reaches into true sub-bass territory. With sensitivity of 84.8 dB (D2) / 85.2 dB (D4), the HDB2.2-12 is one of the most efficient drivers in its class, delivering impressive output even with modest amplifier power.

The motor assembly features a 68 oz magnet and a 2" dual voice coil wound to 28mm, providing solid thermal management and dependable power handling for daily use. The 10mm Xmax (18mm Xmech) delivers controlled linear excursion for clean bass at moderate output levels, while the massive 515 cm² cone area (SD) moves serious air for deep, room-filling sub-bass. Available in Dual 2 Ohm and Dual 4 Ohm configurations, the HDB2.2-12 wires to 1Ω, 2Ω, or 4Ω to match a wide range of mono amplifiers.

The HDB2.2-12 performs beautifully in sealed enclosures from 1.0–1.5 ft³ for tight, accurate bass, or ported boxes from 1.8–3.0 ft³ for maximum output and deep low-frequency extension. Whether you’re building a budget-friendly daily driver system, a clean SQL build, or a first competition setup, the HDB2.2-12 delivers real performance at a price that makes sense. Pair it with a 200–400W RMS mono amplifier for best results.

Why Choose the SoundQubed HDB2.2-12?

• 400W RMS / 800W Peak Power Handling — Right-sized power for daily driver and budget SQL builds with a full 12" platform.
• 68 oz Magnet Structure — Solid motor delivering reliable BL force and controlled cone movement for consistent daily performance.
• 2" Dual Voice Coil (28mm Wind) — Dual coil design provides wiring flexibility and improved heat dissipation for sustained daily use.
• 10mm Xmax / 18mm Xmech — Controlled linear excursion for clean, accurate bass at everyday listening levels.
• 29.7 Hz Resonant Frequency (D2) — Exceptionally low Fs for a budget 12", reaching deep into sub-bass territory for full, authoritative low-end.
• 84.8–85.2 dB Sensitivity — Among the highest sensitivity ratings in its class — delivers impressive output with modest amplifier power.
• 515 cm² Cone Area (SD) — Massive piston area moves serious air for deep, room-filling sub-bass output.
• SoundQubed HDB2.2 Series Value — Quality construction and real-world performance at an accessible price point that won’t break the budget.

Amplifier & Enclosure Recommendations

Amplifier Pairing: The HDB2.2-12 is rated at 400W RMS, so target a mono amplifier delivering 200–400W RMS at your chosen final impedance. The Dual 2 Ohm variant wires to 1Ω (parallel) or 4Ω (series). The Dual 4 Ohm variant wires to 2Ω (parallel) or 8Ω (series). For most daily builds, wiring the D2 to 2Ω or the D4 to 2Ω gives you the best balance of power and amplifier stability. A 300–400W RMS mono block at 2Ω is the sweet spot for this driver.

Enclosure: For sealed installs, target 1.0–1.5 ft³ net internal volume for tight, accurate bass with excellent transient response — ideal for rock, country, and acoustic genres. For ported builds, use 1.8–3.0 ft³ net with a port tuned to 28–38 Hz for maximum output and deep low-frequency extension — the go-to for hip-hop, EDM, and bass-heavy content. The HDB2.2-12’s low 29.7 Hz Fs and high sensitivity make it especially rewarding in a well-built ported enclosure.

Full Specifications — T/S Parameters

Mounting Dimensions

Enclosure Suggestions

Frequently Asked Questions

Q: What amplifier should I pair with the HDB2.2-12?
A: Target a mono amplifier rated at 200–400W RMS at your final impedance. Wire the D2 to 1Ω or 4Ω, or the D4 to 2Ω or 8Ω. A 300–400W RMS mono block at 2Ω is the sweet spot for most daily and SQL builds.

Q: What’s the difference between the D2 and D4 versions?
A: Both handle the same power and share identical physical specs. The D2 (Dual 2 Ohm) wires to 1Ω or 4Ω; the D4 (Dual 4 Ohm) wires to 2Ω or 8Ω. Choose based on your amplifier’s stable impedance rating. Note the D2 also has a slightly lower Fs (29.7 Hz vs 30.4 Hz) for marginally deeper extension.

Q: What box size does the HDB2.2-12 need?
A: Sealed: 1.0–1.5 ft³ for tight, accurate bass. Ported: 1.8–3.0 ft³ tuned to 28–38 Hz for maximum output and deep extension. The large ported range gives you flexibility to build for your specific vehicle and listening preferences.

Q: Is this sub good for daily use or competition?
A: The HDB2.2-12 is an excellent daily driver sub and a solid entry point for budget SQL builds. Its 29.7 Hz Fs, 85 dB+ sensitivity, and 515 cm² SD make it one of the most capable budget 12" drivers available — delivering output and extension that punches well above its price class.
