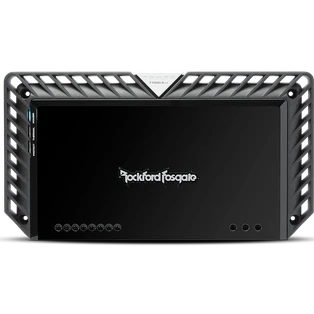

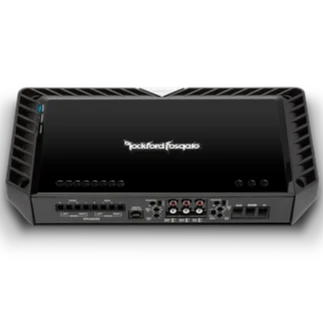

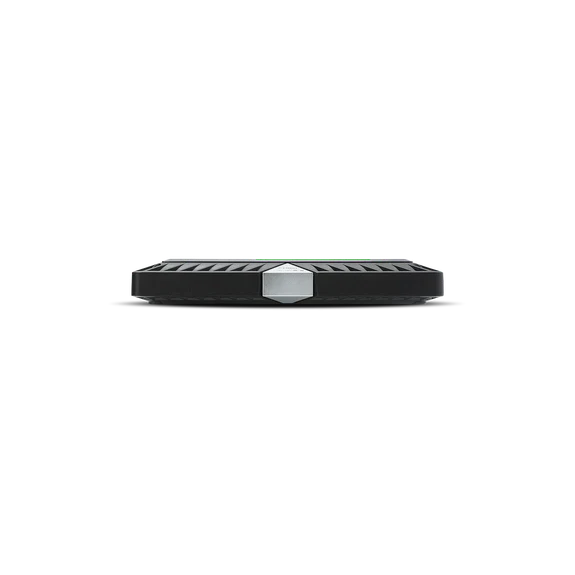

Rockford Fosgate Power Series T1000-4AD 4-Channel Amplifier

Name: Rockford Fosgate Power Series T1000-4AD 4-Channel Amplifier
Brand: Rockford Fosgate
Price: 1099.99 USD
Availability: InStock

$1,099.99

Shipping calculated at checkout.

Description

The T1000-4ad combines sound quality characteristics of Class-A designs with efficiency of a Class-D in one remarkable package. Superior sound quality is possible through the implementation dynamic switching frequency control. The addition of Constant Power circuitry produces optimized output at a range of impedances. Rockford Fosgate created Class-bd for brute power to run low frequency subwoofers, and now Class-ad offers high fidelity in a full-range configuration.

FEATURES AT A GLANCE

MOSFET power supply
Audiophile grade speaker connections
24dB/octave crossover
2/4 channel input switch
RCA pass-thru outputs
4 Gauge power/ground connectors
2-Year Warranty
MOSFET output stage

Cta-2006 Compliant

Number of Channels

Total Power
(Sum of Rated Power)

1000 Watts RMS

Rated Power
(RMS Continuous Power)

250 Watts x 4 @ 4-Ohm
250 Watts x 4 @ 2-Ohm
250 Watts x 4 @ 1-Ohm
500 Watts x 2 @ 4-Ohm Bridged
500 Watts x 2 @ 2-Ohm Bridged

Dynamic Power
(PVC/PowerCube®)

270 Watts x 4 @ 4-Ohm 0° Res
327 Watts x 4 @ 2-Ohm 0° Res
365 Watts x 4 @ 1-Ohm 0° Res
619 Watts x 2 @ 4-Ohm Bridged
654 Watts x 2 @ 2-Ohm Bridged

Bridgeable

Yes

Frequency Response

20Hz to 20kHz +/-1dB

Input Sensitivity

150 mV to 5 V

Circuit Topology Class

Class AD

Efficiency (average)

84.1% @ 4-Ohm
81.6% @ 2-Ohm
81% @ 1-Ohm

Total Harmonic Distortion (THD+Noise)

4-Ohm: <1.0%
2-Ohm: <1.0%

Signal Input

Front Channels: 1 RCA pair
Rear Channels: 1 RCA pair
Input Switch: 2CH / 4CH

Signal Output

1 RCA pair

Tone Controls

Front Channels:
Treble: 0dB to +12dB @ 12kHz
Bass: 0dB to +18dB @ 45Hz

Rear Channels:
Treble: 0dB to +12dB @ 12kHz
Bass: 0dB to +18dB @ 45Hz
Function depends upon crossover setting (LP/AP/HP)

Crossover Controls

Front Channels:
High-Pass (HP): 50Hz-500Hz @ 24dB/octave Butterworth
Low-Pass (LP): 50Hz-500Hz @ 24dB/octave Butterworth

Rear Channels:
High-Pass (HP): 50Hz-500Hz @ 24dB/octave Butterworth
Low-Pass (LP): 50Hz-500Hz @ 24dB/octave Butterworth

Remote Controls

Optional Remote PEQ
(overrides rear channel built-in Punch EQ)

Visual Indicators

Power (Blue LED)
Thermal (Red LED)
Protect (Yellow LED)

Power Wire Gauge

4 AWG

Power Input Connector

Block

Speaker Wire Gauge

8 AWG to 16 AWG

Speaker Output Connector

Block

Cooling

Convection

Heatsink

Operating Voltage

9 - 16 VDC

Recommended Fuse
(not included)

150 A

Average Current Draw (13.8V Music)

60 A

Max. Current Draw (13.8V Sinewave)

120 A

Suggested Alternator

75 A

Included In The Box

Dimensions (H x W x D)

2.14 x 8.14 x 14.91 (in)
5.42 x 20.68 x 37.86 (cm)

Shipping Weight

14.45 Lbs. (6.55 Kg.)
