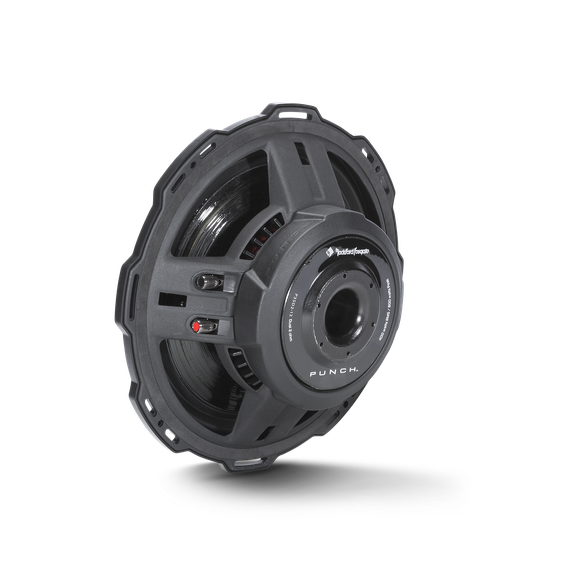

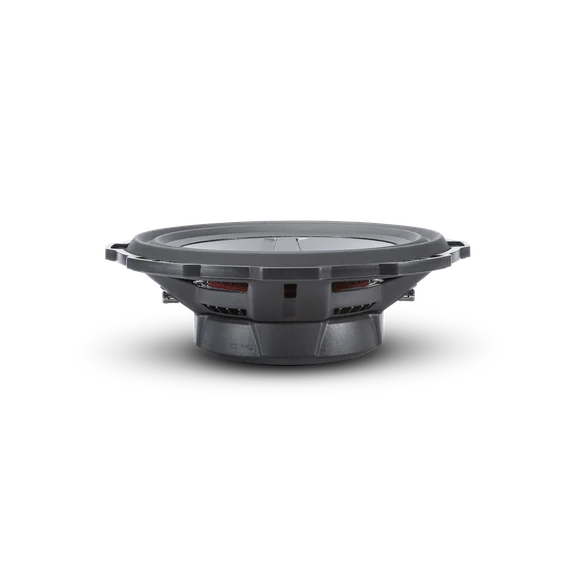

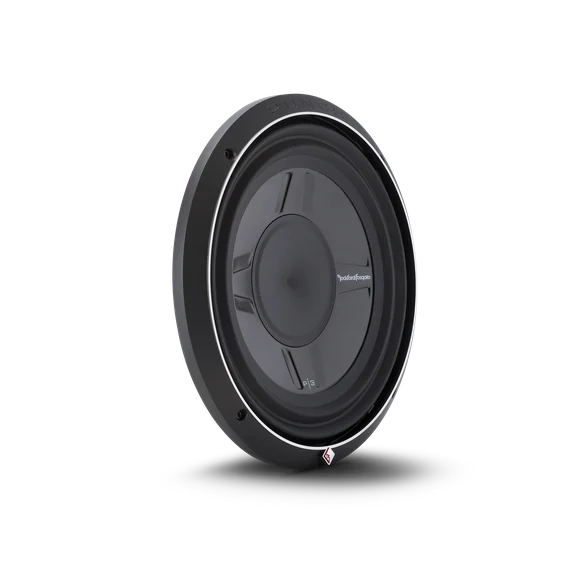

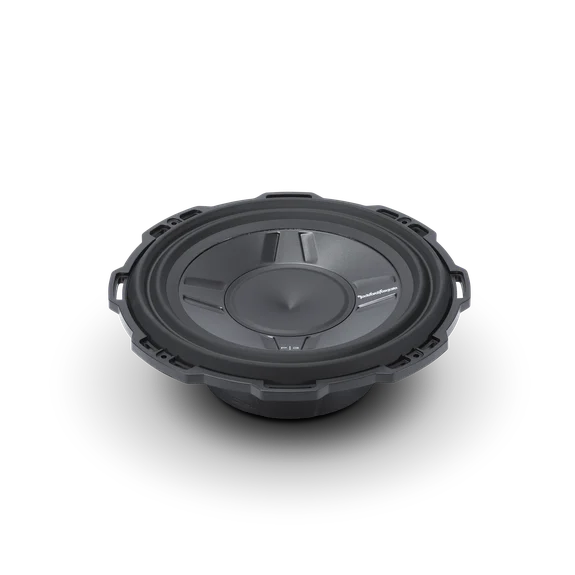

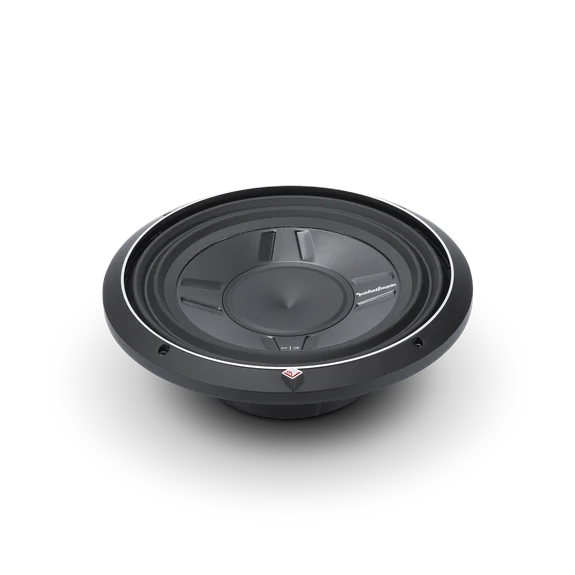

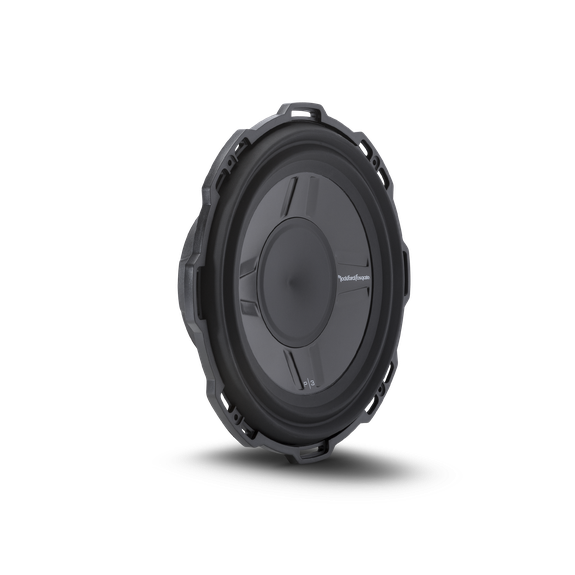

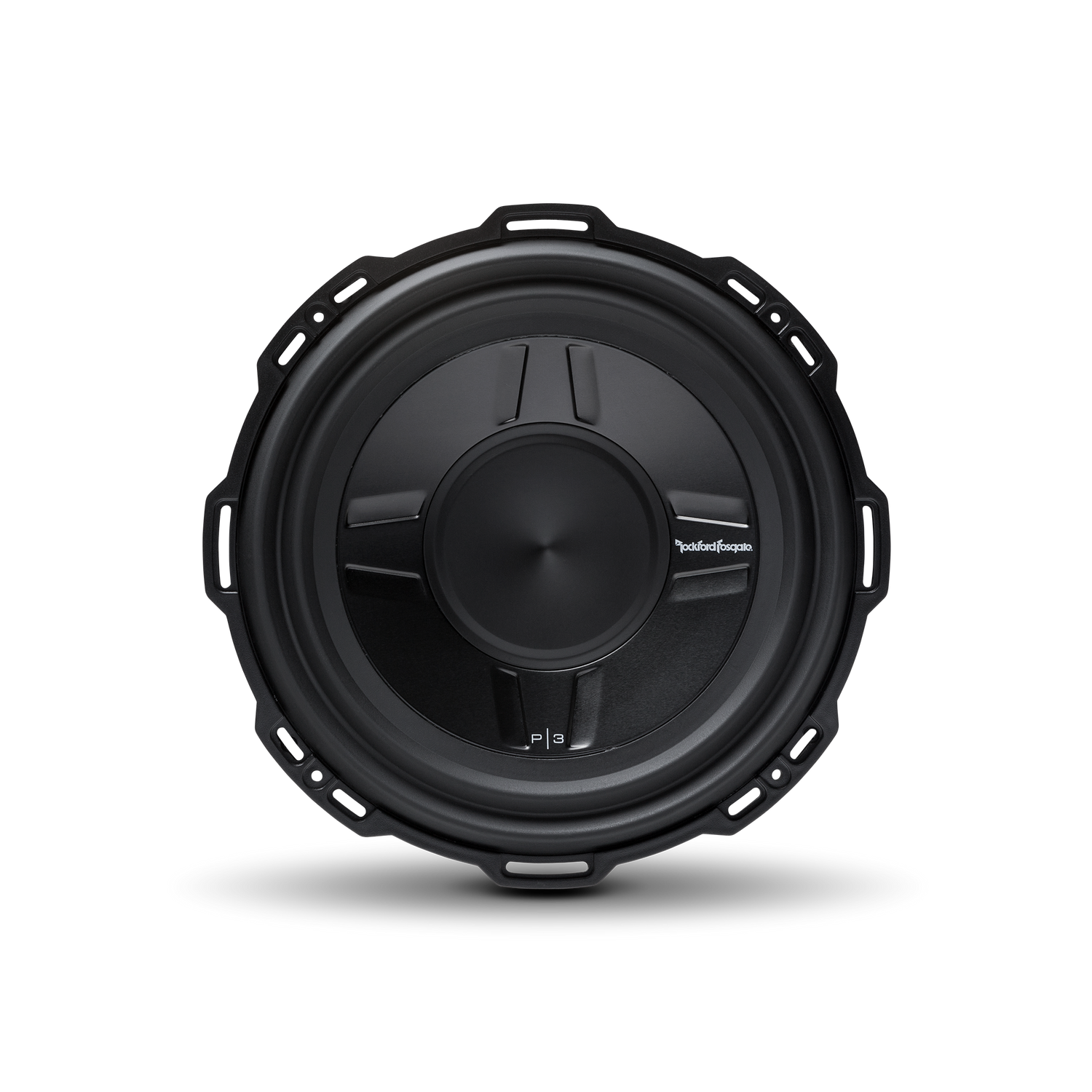

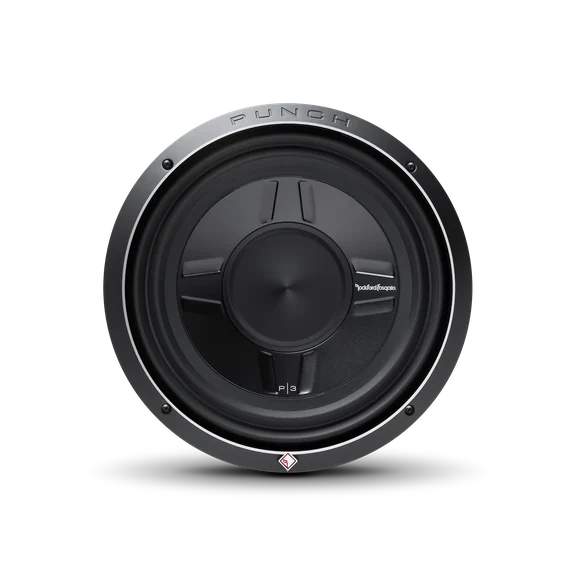

Rockford Fosgate Punch Series P3SD2/4-12 12" Shallow DVC Subwoofer

The Rockford Fosgate P3S 12" shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. Shallow woofers are specifically designed for spaces where a traditional woofer cannot be used.

FEATURES AT A GLANCE

• 1 Year Warranty
• M-Roll Santoprene™ surround
• Anodized aluminum cone and dustcap
• Shallow Motor Assembly
• StampCast basket with integrated spider venting
• Optimized for both sealed and vented enclosures
• Dual linear spider with embedded 16 AWG tinsel leads
• Diamond cut cast aluminum trim ring with optional grille

Power Handling (Watts RMS)

400 Watts RMS
800 Watts Max

Size

12"

Nominal Impedance

Dual 4/2-Ohm

Speaker Connector

Dual 10 AWG Compression

Magnet Weight (oz)

51 oz. (1.45 kg.)

Voice Coil Diameter

2.5" (65.5 mm)

Shipping Weight

13.25 Lbs. (6.01 kg.)

SPL (dB @ 1w/1m)

85

Cutout Diameter

11.22 in. (285.0 mm)

Woofer Displacement

0.086 cu. ft. (2.45 Liters)

Fs (Hz)

34

Qts

0.67

Vas (Liters)

35.3

Qes

0.75

Qms

6.60

Xmax (mm)

8.4

Mounting Depth

3.65 in. (92.5 mm)

CEA-2031 Compliant

Re (Ohms)

3.40

Le (mH)

2.8

Sd (cm²)

500

Subwoofer Type

Shallow

Voice Coil Type

Dual Voice Coil

Sealed Box Volume (Vb)

1.0 cu. ft. (28.3 Liters)

Vented Box Volume (Vb)

1.25 cu. ft. (35.3 Liters)
