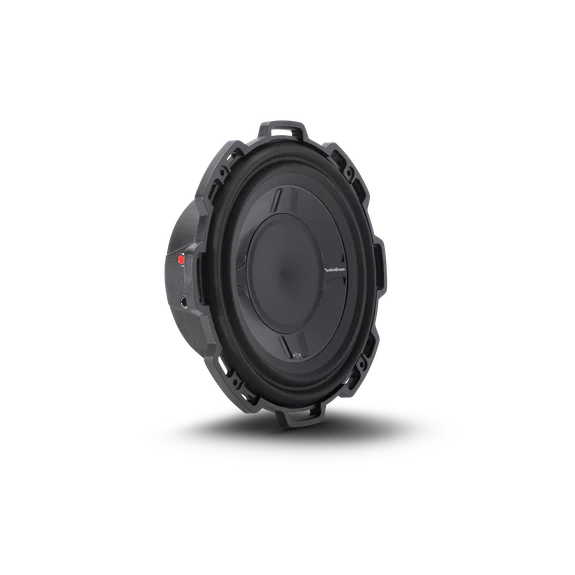

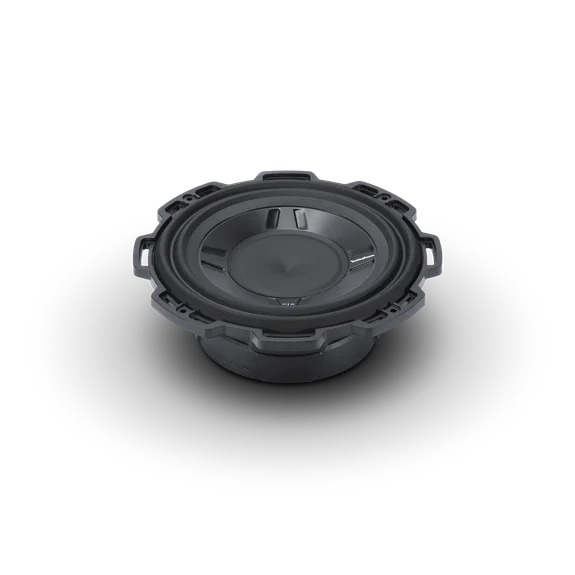

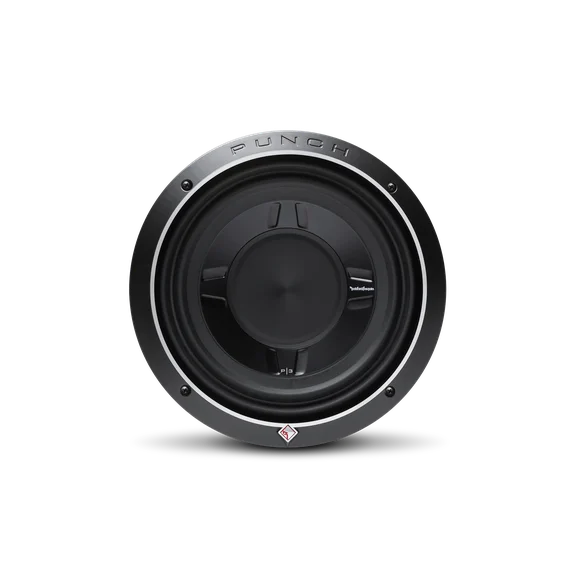

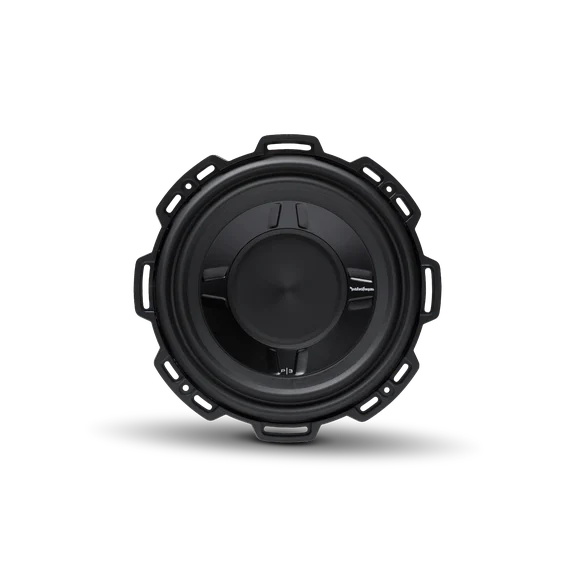

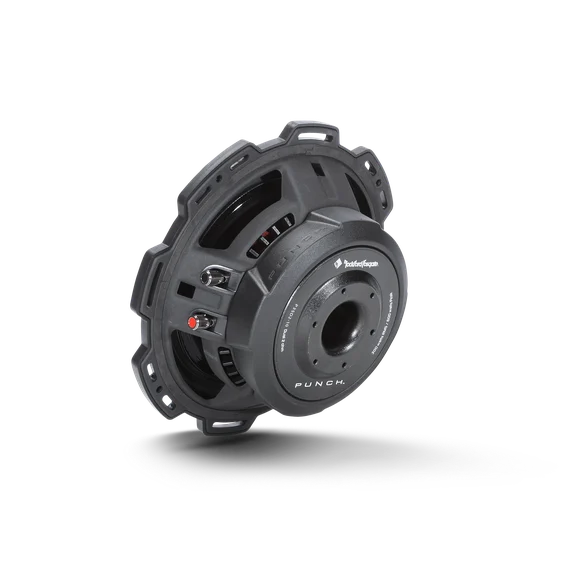

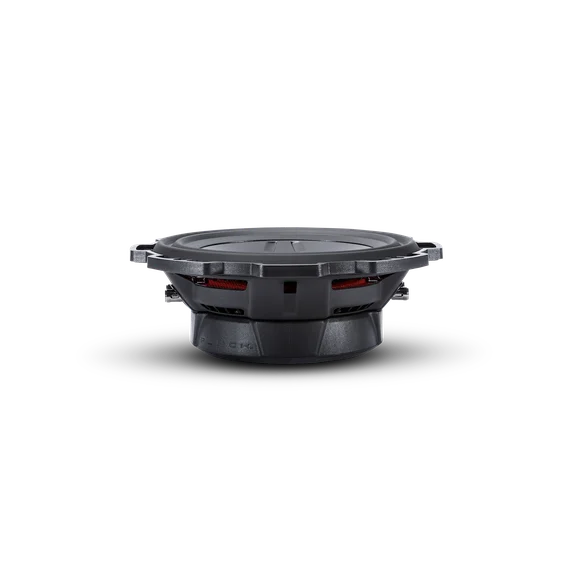

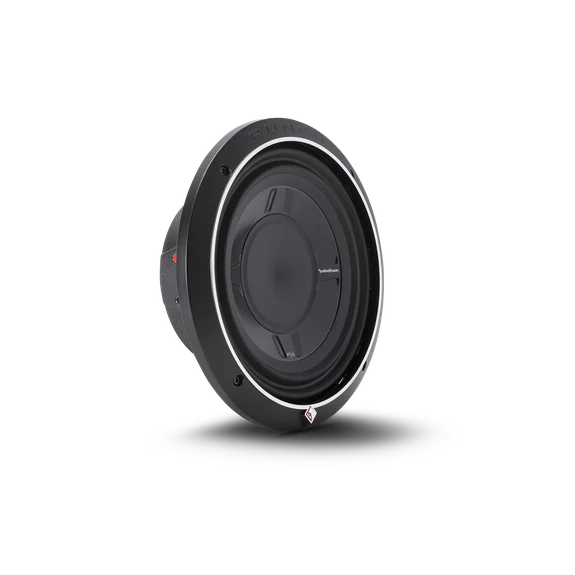

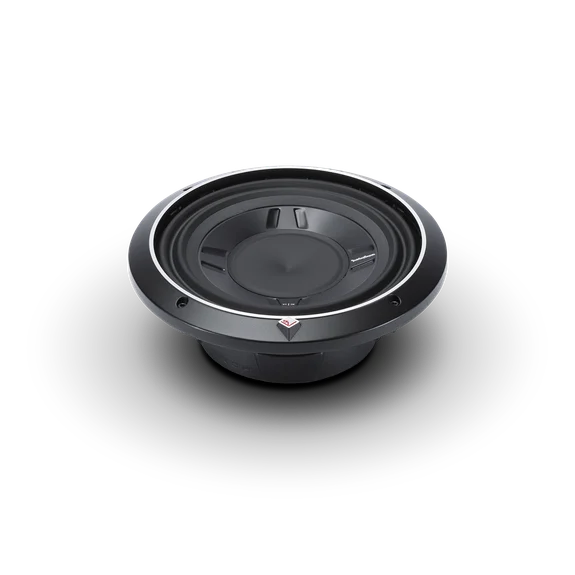

Rockford Fosgate Punch Series P3SD2/4-10 10" Shallow DVC Subwoofer

The Rockford Fosgate P3S 10" shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. Shallow woofers are specifically designed for spaces where a traditional woofer cannot be used.

FEATURES AT A GLANCE

• 1 Year Warranty
• M-Roll Santoprene™ surround
• Anodized aluminum cone and dustcap
• Shallow Motor Assembly
• StampCast basket with integrated spider venting
• Optimized for both sealed and vented enclosures
• Dual linear spider with embedded 16 AWG tinsel leads
• Diamond cut cast aluminum trim ring with optional grille

Vas (Liters)

14.3

Power Handling (Watts RMS)

300 Watts RMS
600 Watts Max

Fs (Hz)

40

Qes

0.71

Qms

6.20

Cutout Diameter

9.06 in. (230.0 mm)

CEA-2031 Compliant

Sd (cm²)

333

Xmax (mm)

8.4

Subwoofer Type

Shallow

Voice Coil Type

Dual Voice Coil

Sealed Box Volume (Vb)

0.5 cu. ft. (14.1 Liters)

Vented Box Volume (Vb)

1.0 cu. ft. (28.3 Liters)
