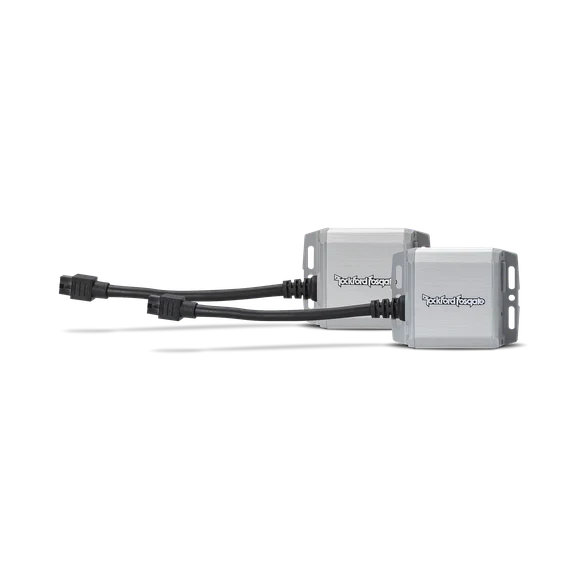

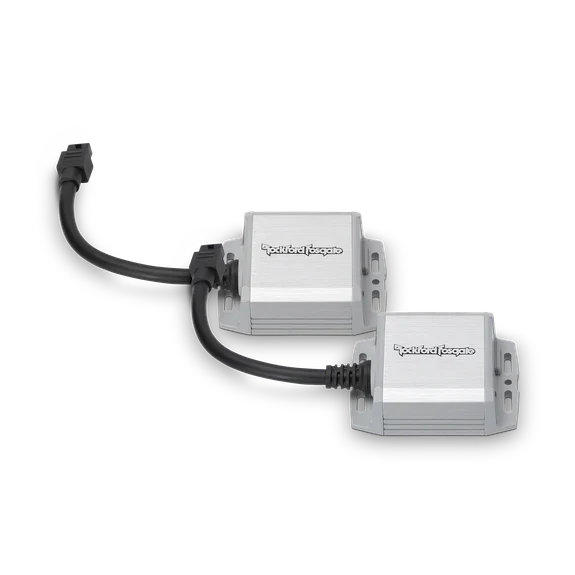

Rockford Fosgate Punch PM100X1 100 Watt Monoblock Amplifier (pair)

Rockford Fosgate Punch PM100X1 is a 1-channel monoblock amplifier that uses patent-pending BTL technology to pull up to 100W of dynamic power from a standard head unit, while keeping the radio load safe and unobtrusive. Sold in pairs (left/right) for multi-channel installs, it’s built for OEM or aftermarket upgrades where space is at a premium.

• 1 Channel / Monoblock design: single-channel amplifier; sold in pairs for left/right channel pairing.
• Dynamic Power (PVC/PowerCube®): 61W @ 4Ω and 109W @ 2Ω, showing higher output capability as load impedance lowers and demand increases.
• Rated Power RMS: 60W x 1 @ 4Ω and 100W x 1 @ 2Ω, providing clear guidance on steady-state performance at common speaker impedances.
• BTL Powered "FreeLoad" Technology (US 9,438,181 B1): patent-backed topology that leverages both DC and AC signals to generate power, enabling high output without taxing the head unit.
• Harvests B+ and Audio Signal From Standard Head Unit Speaker Outputs: integrates power and signal directly from the radio’s speaker outputs to drive the amplifier.
• Extruded Aluminum Heat Sink: robust, lightweight cooling surface to manage thermal load in confined installations.

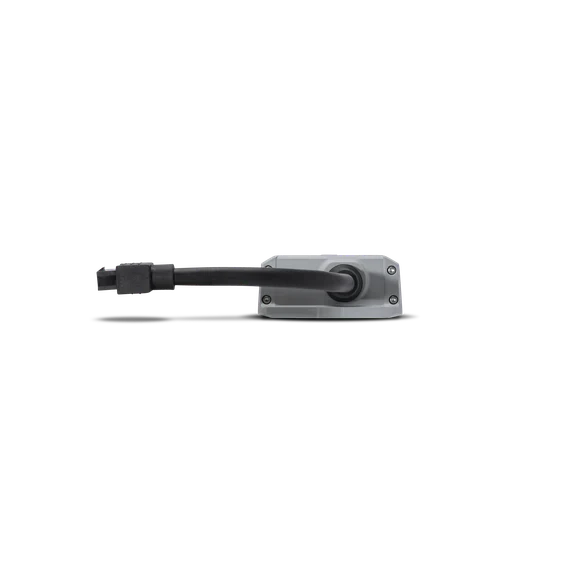

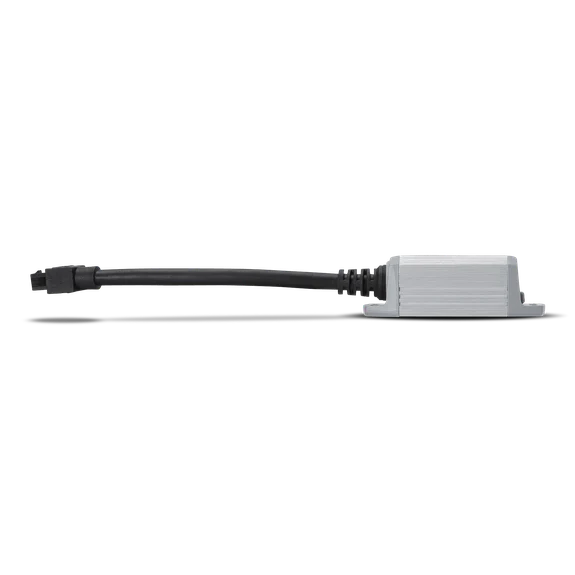

• Pig Tail Connectivity: easy-to-route wiring with simple installation in tight spaces.
• Thermal Protection, Short Circuit & Over Voltage Protection: safeguards the amp and system under fault or abuse conditions.
• CEA-2006 Compliant & CE Compliant: meets industry standards for performance reporting and safety.
• Small Stealth Package: compact form factor suitable for dash, door, or other discreet locations.

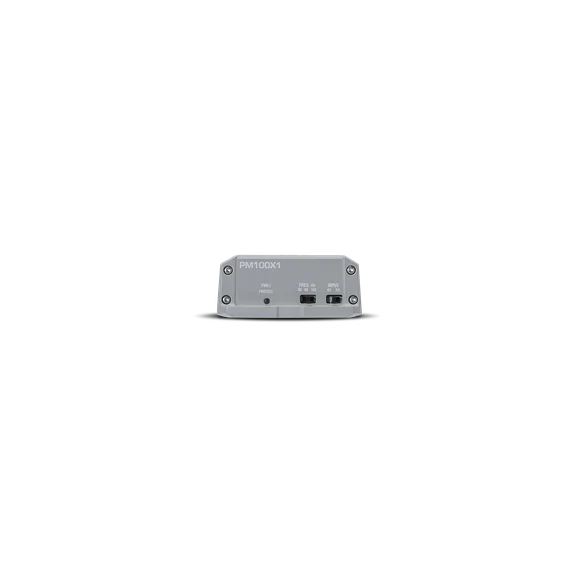

• 60/80/100 Hz Selectable 12dB/Oct HP Butterworth Crossover: user-selectable high-pass filtering to protect speakers and tailor bass response.
• Optional B+ Connection for Non-Standard Speaker Outputs: allows connection to non-standard radio outputs when needed.
• Muted Turn-On: silent activation to prevent pops when powering up the system.
• IPX6 Rated: moisture resistance suitable for installations where humidity or spray exposure is possible.
• Sold in Pairs (Left/Right): packaged as a two-unit set to support stereo or dual-channel configurations.
• 2-Year Warranty: standard warranty coverage for peace of mind.

Benefits: In a vehicle build, the PM100X1 pairs with a head unit’s output to deliver meaningful, dynamic power without forcing a larger amplifier or extra power wiring. Its 2Ω capability and 60W RMS at 4Ω (100W RMS at 2Ω) give you ample headroom for demanding sub or mid-bass applications while keeping the radio circuitry safe from overload. The selectable high-pass crossover helps tailor bass frequencies to your speaker setup, and the compact, stealth-friendly package makes it easy to hide in dash or door panels. The B+ optional connection and pig tail wiring simplify installations where non-standard outputs or compact routing is required, and the IPX6 rating supports moisture-prone environments. All of this is wrapped in Rockford Fosgate’s reliability framework with thermal and fault protections and CE/CEA-2006 compliance.
