Rockford Fosgate Punch P3V2-65 6-1/2" 3-Way Component Speaker System
Rockford Fosgate Punch P3V2-65 6-1/2" 3-Way Component Speaker System is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Rockford Fosgate Punch P3V2-65 6-1/2" 3-Way Component Speaker ...
Description
Description
The family of P3 PUNCH speakers were engineered to fit and built to put you in control. Featuring a true 3-way speaker system, it delivers a precise and immersive audio experience. Three independent drivers ensure every frequency range is reproduced with exceptional clarity and accuracy. A larger cone area, precision-tuned tweeter configurations, and ultra-durable materials deliver relentless output and uncompromising reliability.
Auto Fit Architecture: Everything was engineered to fit. A re-designed frame, removable motor cover, mounting holes, and speaker diameter were all engineered to ensure seamless integration into today’s modern vehicles. Our factory location mounting flanges provide a flexible yet precise alignment for drop-in integration into most factory mounting locations.
Superior Flexibility: The Multi-Configuration Crossover Chassis (M.C.3) breaks down into separate units, giving you total freedom to route and wire your setup your way. Every detail has been carefully considered, from frame geometry to mounting holes and diameter all to ensure a seamless fit in most modern vehicles and to make installation as smooth and adaptable as possible.
Performance Driven: Powered by our advanced VAST 2.0™ technology, the PUNCH series delivers a 25% increase in cone area, resulting in maximum output and deeper, more impactful bass. The inverted dome tweeter ensures a precise high-frequency range, so every note comes through with clarity and accuracy. Rated at 75W RMS and 150W peak, PUNCH speakers deliver the output you demand, loud, clean, and relentless.
Built to Last: Every component. Every material. Chosen for strength. Built for the long haul. From reinforced polymer baskets to Santoprene™ surrounds and Nomex® spiders, every part of the PUNCH speaker is engineered to be a workhorse. No matter how hard you drive them, the class-leading construction delivers relentless performance that lasts.
Engineered to Fit. Built to Perform.
The P3 PUNCH offers high-fidelity performance in a premium OEM replacement. The P3 speakers are 3-way component systems for vehicles equipped with a separate tweeter, midrange, and woofer. These are for drivers who want it all. Precision detail, powerful midrange, and accurate lows.

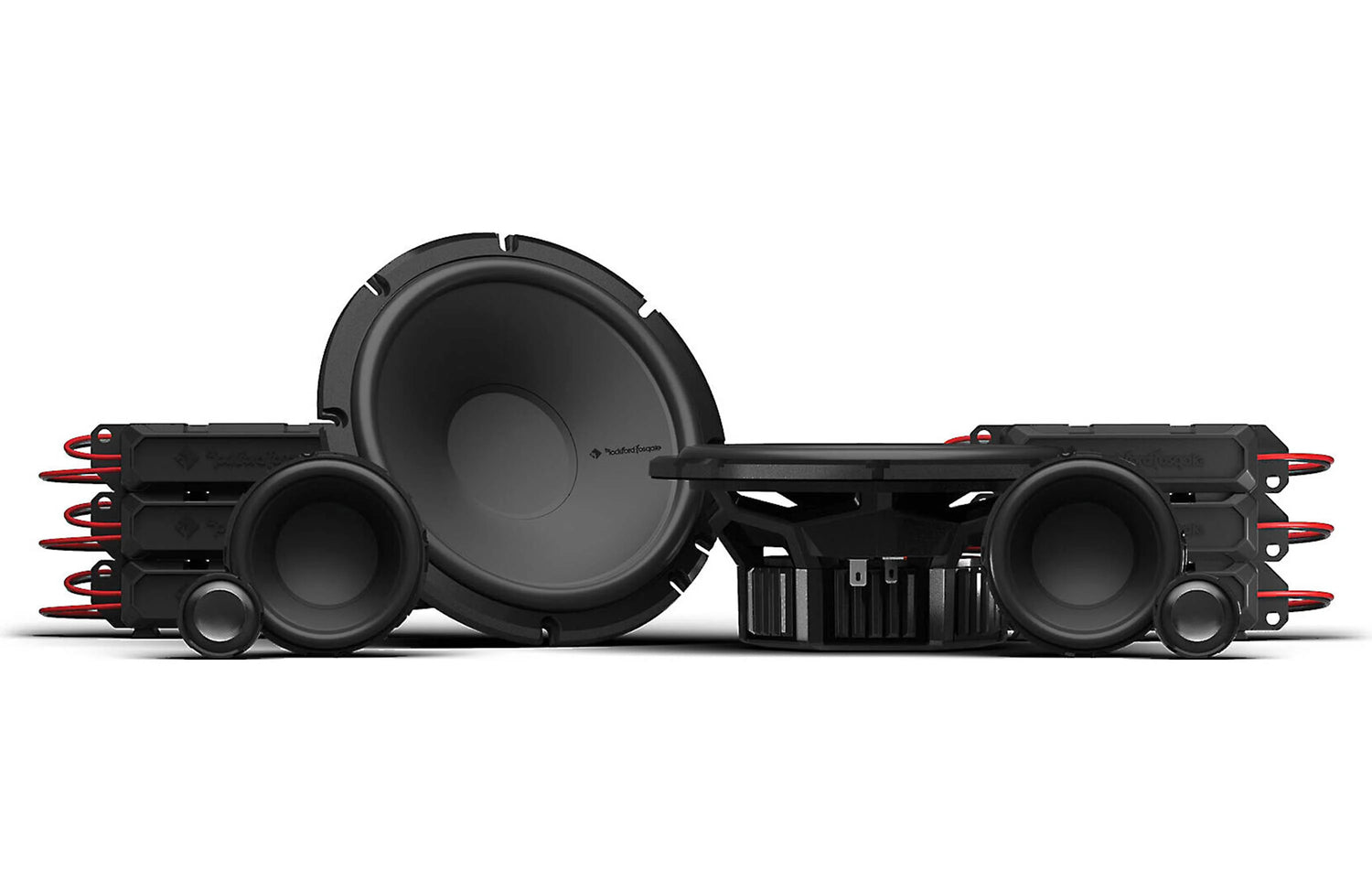

Kit Includes:
• (2) 3/4" 4Ω Tweeters
• (2) 2.5" 4Ω Midrange

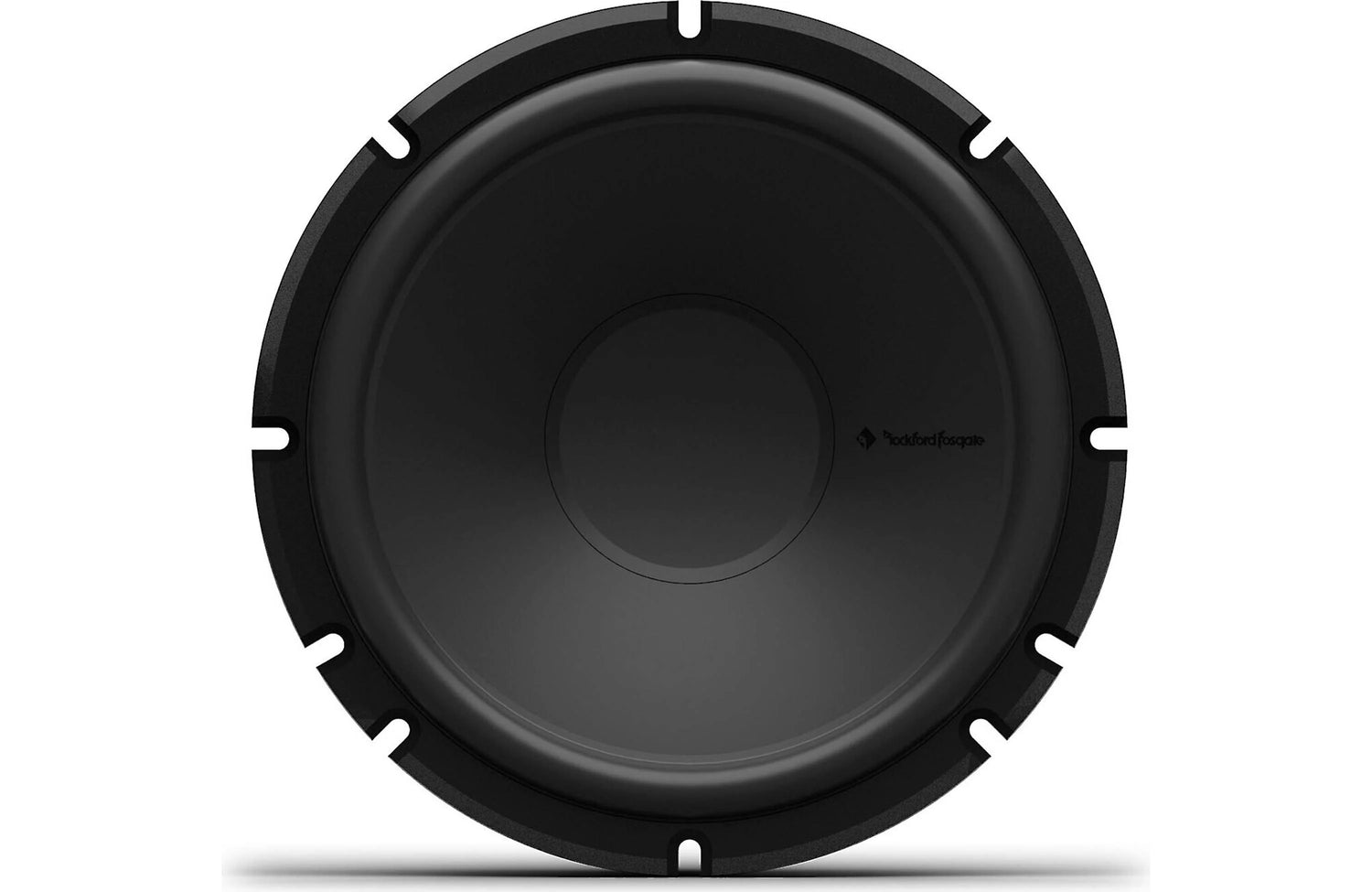

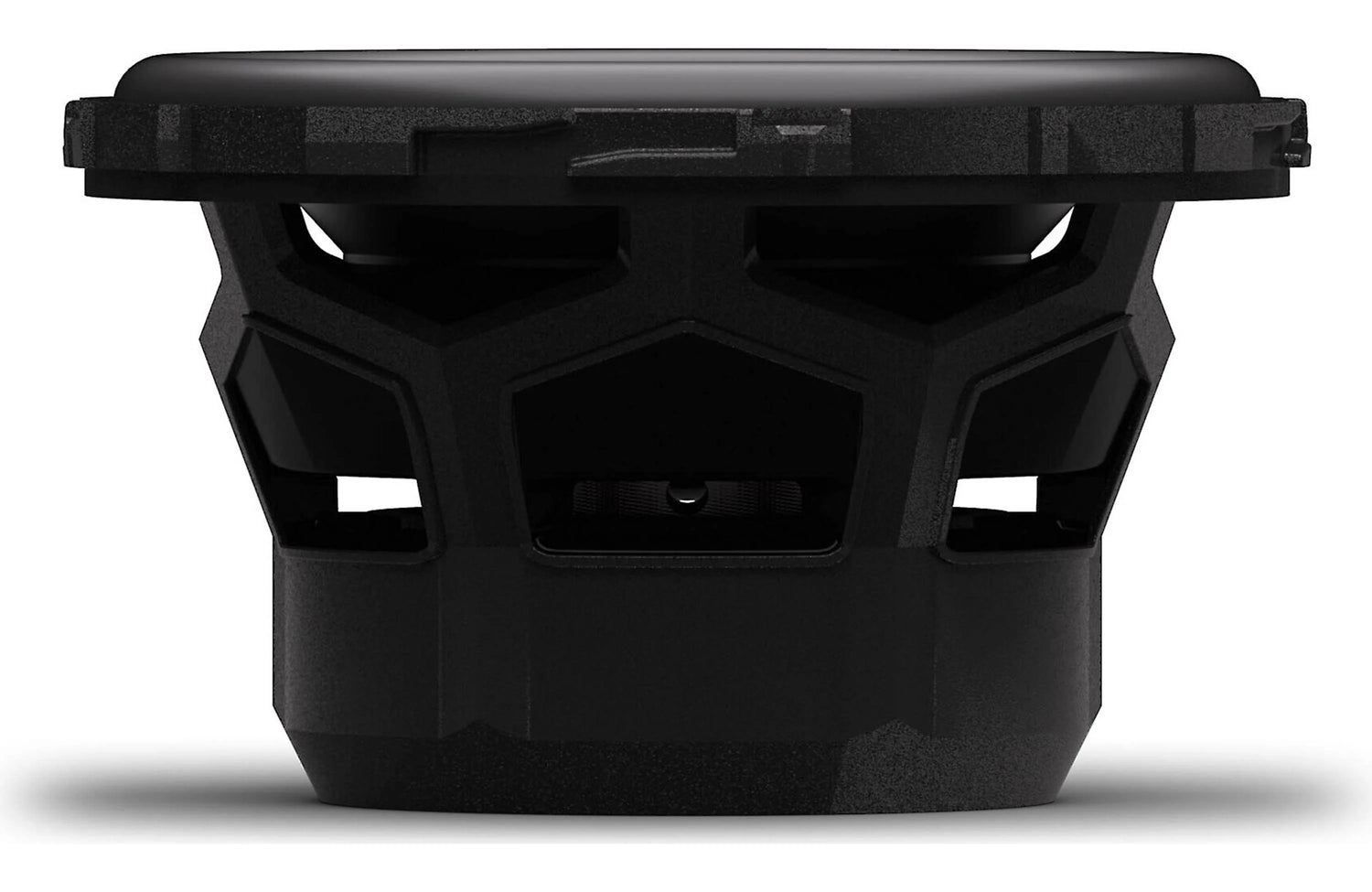

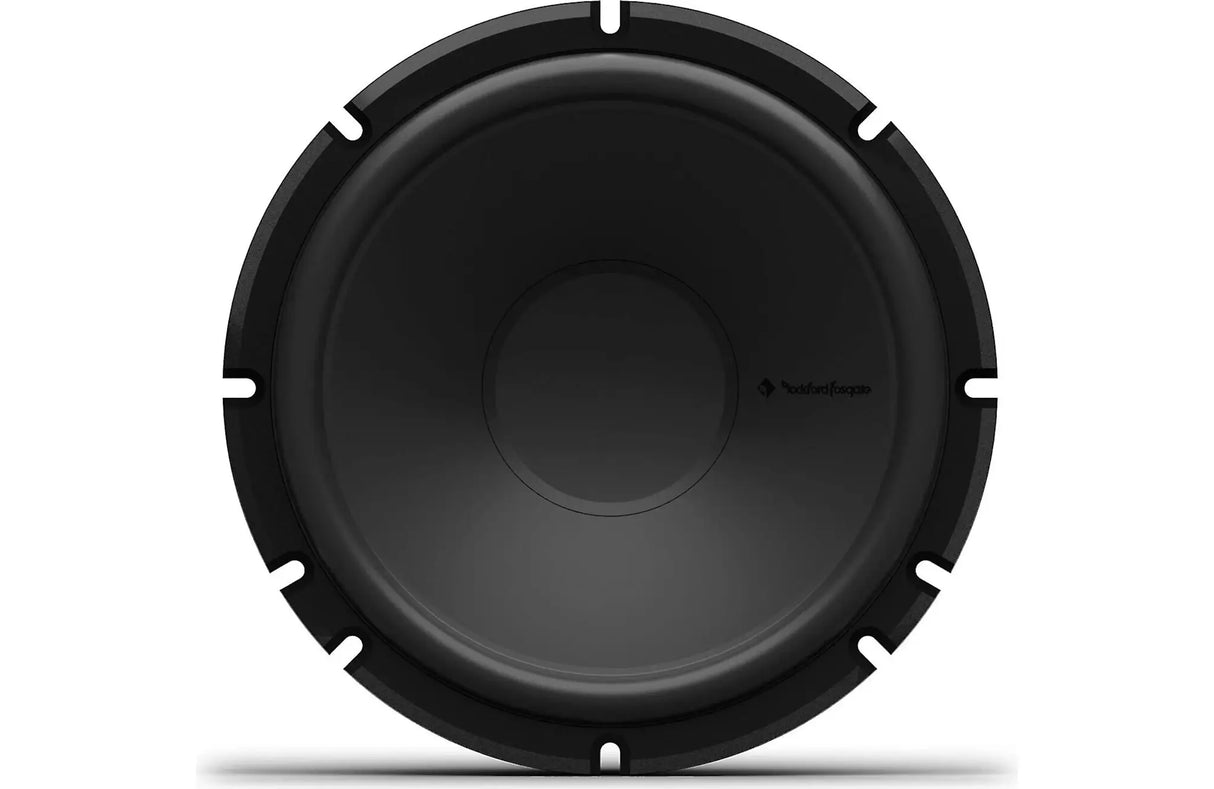

• (2) 6.5" 4Ω Woofers
• (6) Crossovers (2x TWT/MID/WFR)
• (2) OEM Adaptors
• Installation Hardware
FEATURES AT A GLANCE
- 3-way component system with discrete woofer, midrange, and tweeter
- 3/4” (19 mm) Tetolon® inverted dome tweeter for reliable performance under stress

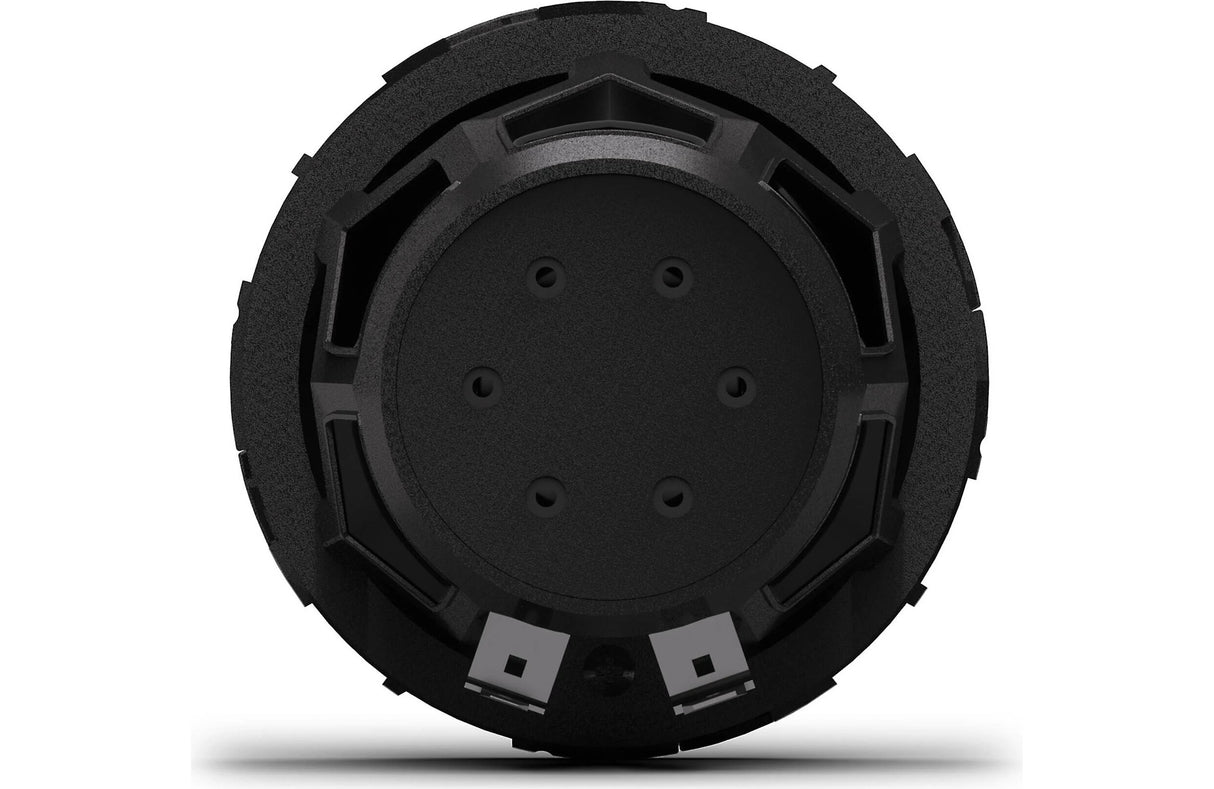

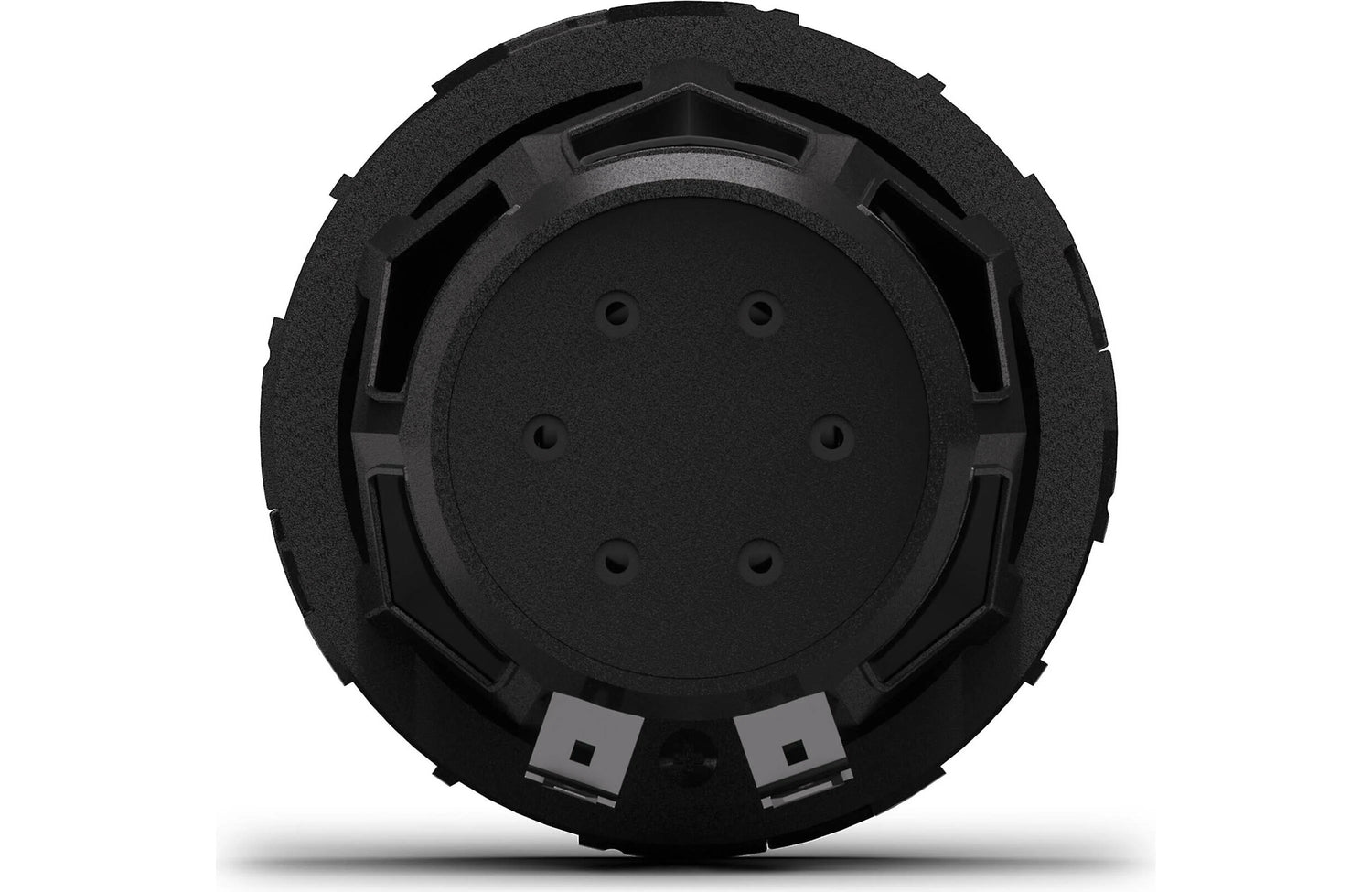

- P3V2-25 Punch P3 2.5” 3-Way Component Midrange
- Co-molded surround and cone body chemically bonded for high durability
- Santoprene™ half-roll surround for low distortion and unmatched fatigue resistance

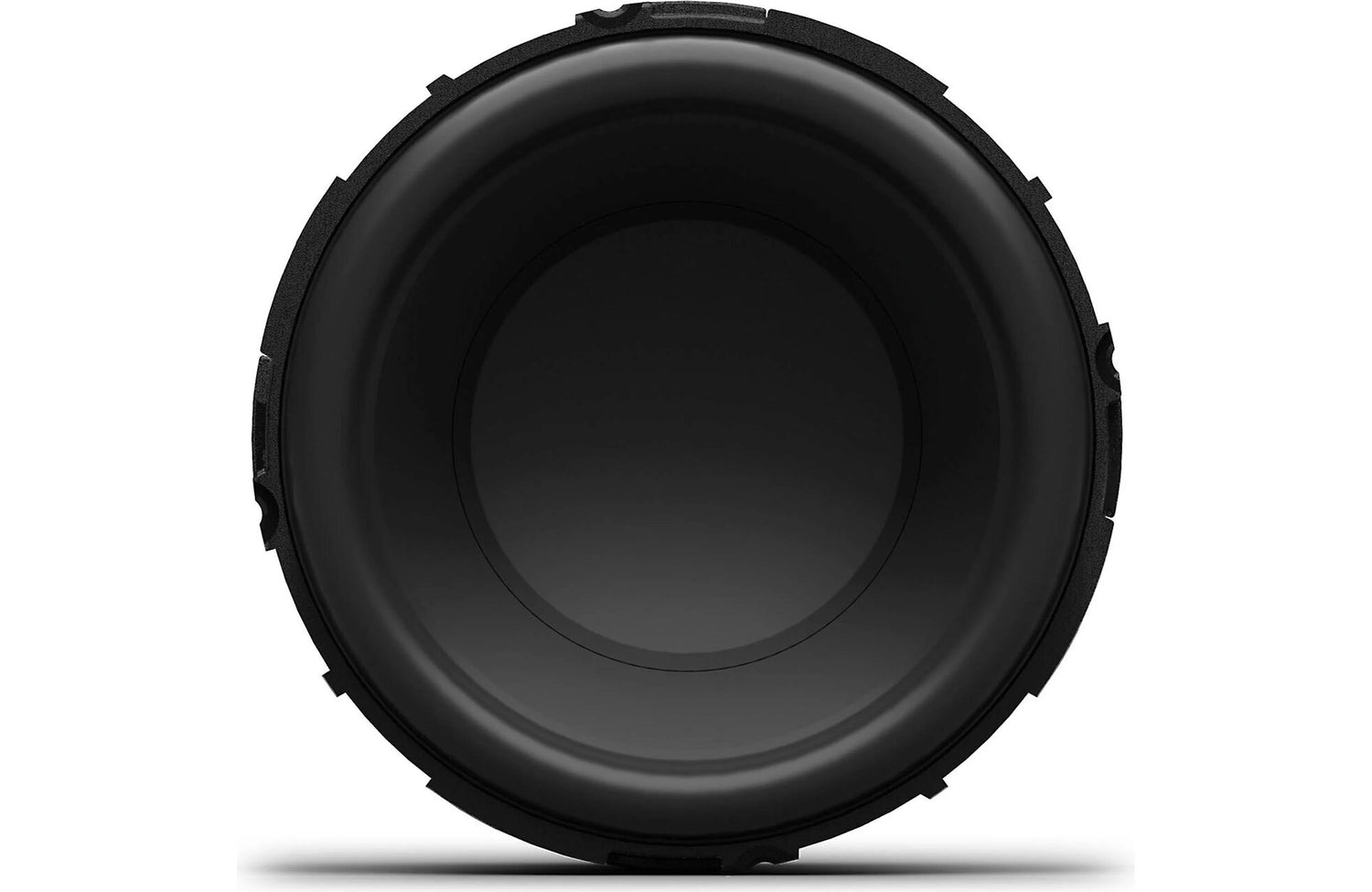

- 20-40% Mica reinforced Polypropylene curvilinear cone for enhanced rigidity and sonic quality
- Flush-mount threaded tweeter cup fits 3/8" thick panels using 1.5" hole-saw cutout

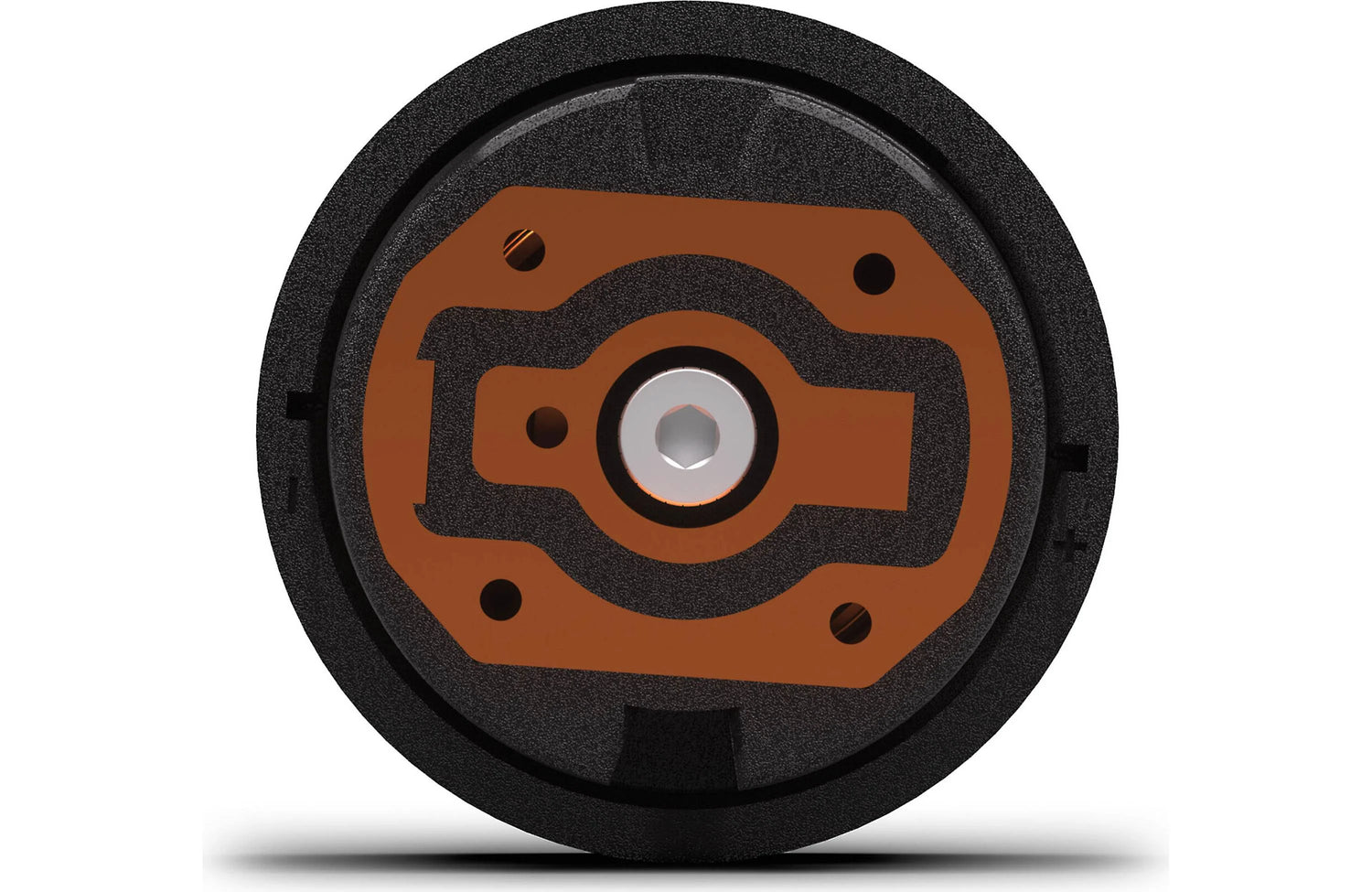

- Surface/flush tweeter cups use copper spring contacts for front-side servicing (tool included)

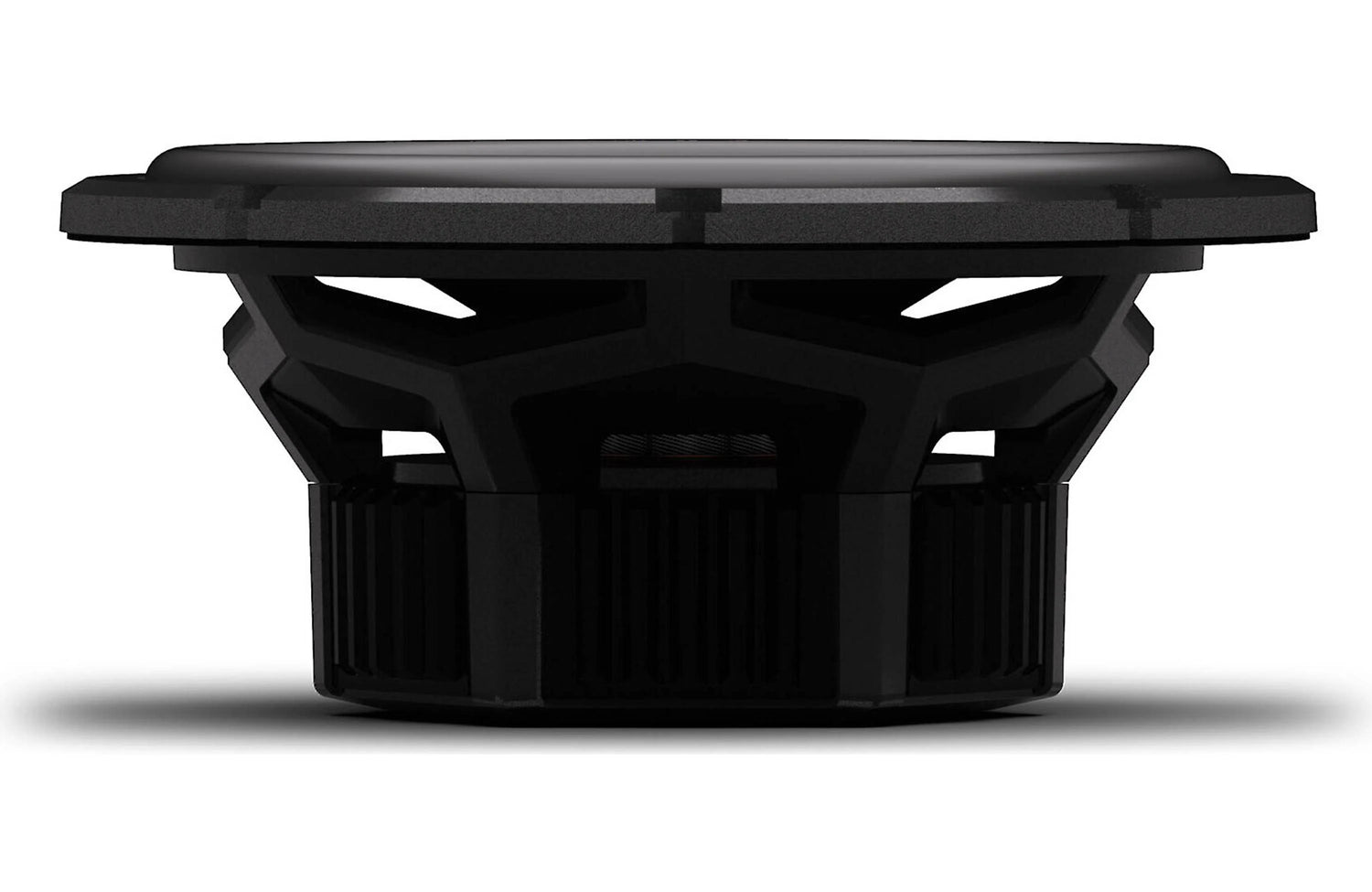

- 15% glass-fiber reinforced PA66 injected molded composite basket
- Updated mounting flanges for direct fitment in new vehicles
- Fatigue and tear resistant linear Nomex® spider
- Co-molded basket terminals for secure connectivity
- Ultra-flexible braded tinsel leads securely stitched to spider
- Vented Kapton® voice coil former for excellent heat dissipation
- Overhung voice coil ensures consistent magnetic flux for less speaker distortion
- High strength Y35 ferrite motor structure (5mm larger over previous generation)

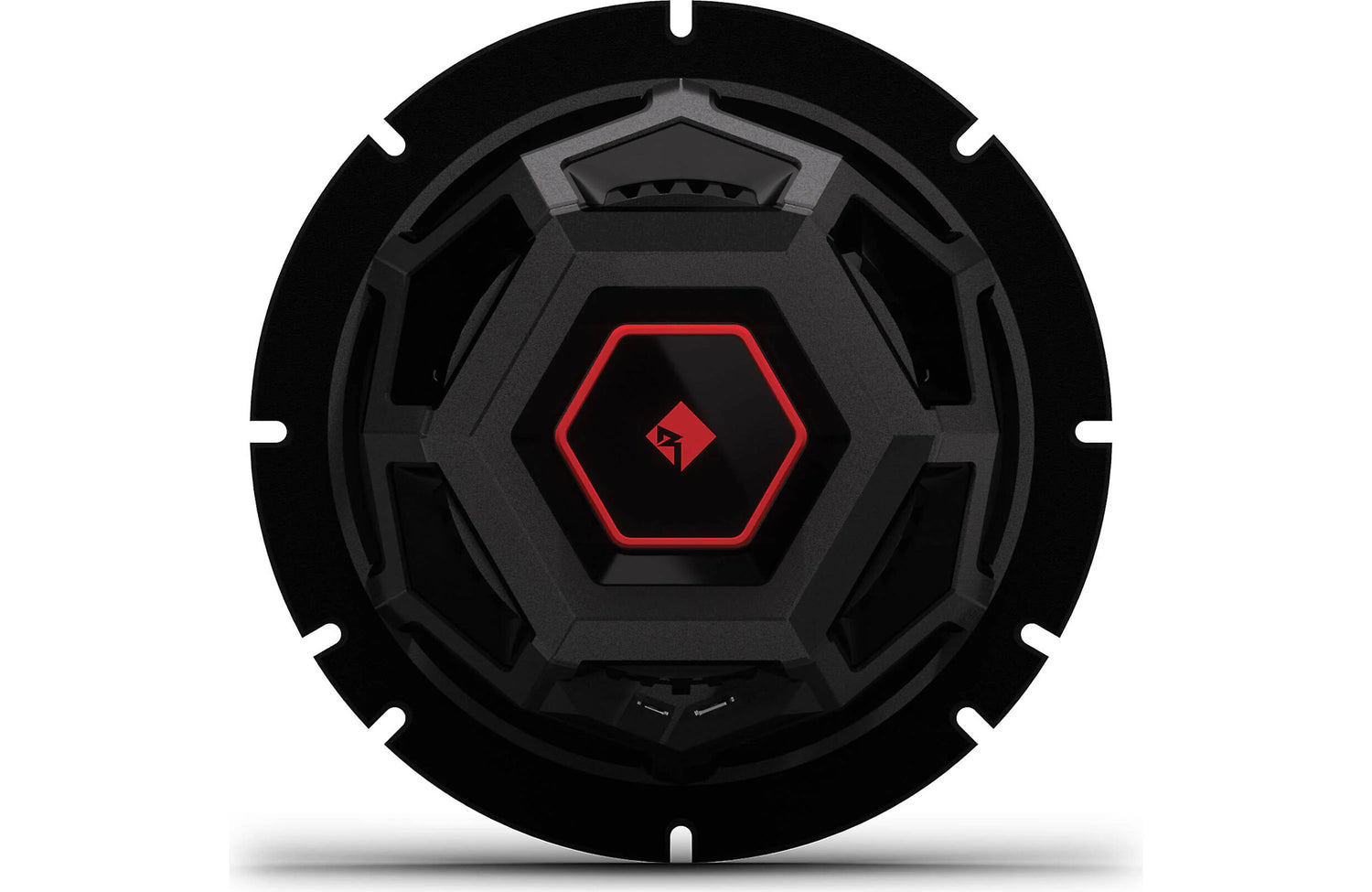

- Removable motor cover for fitment in tight applications

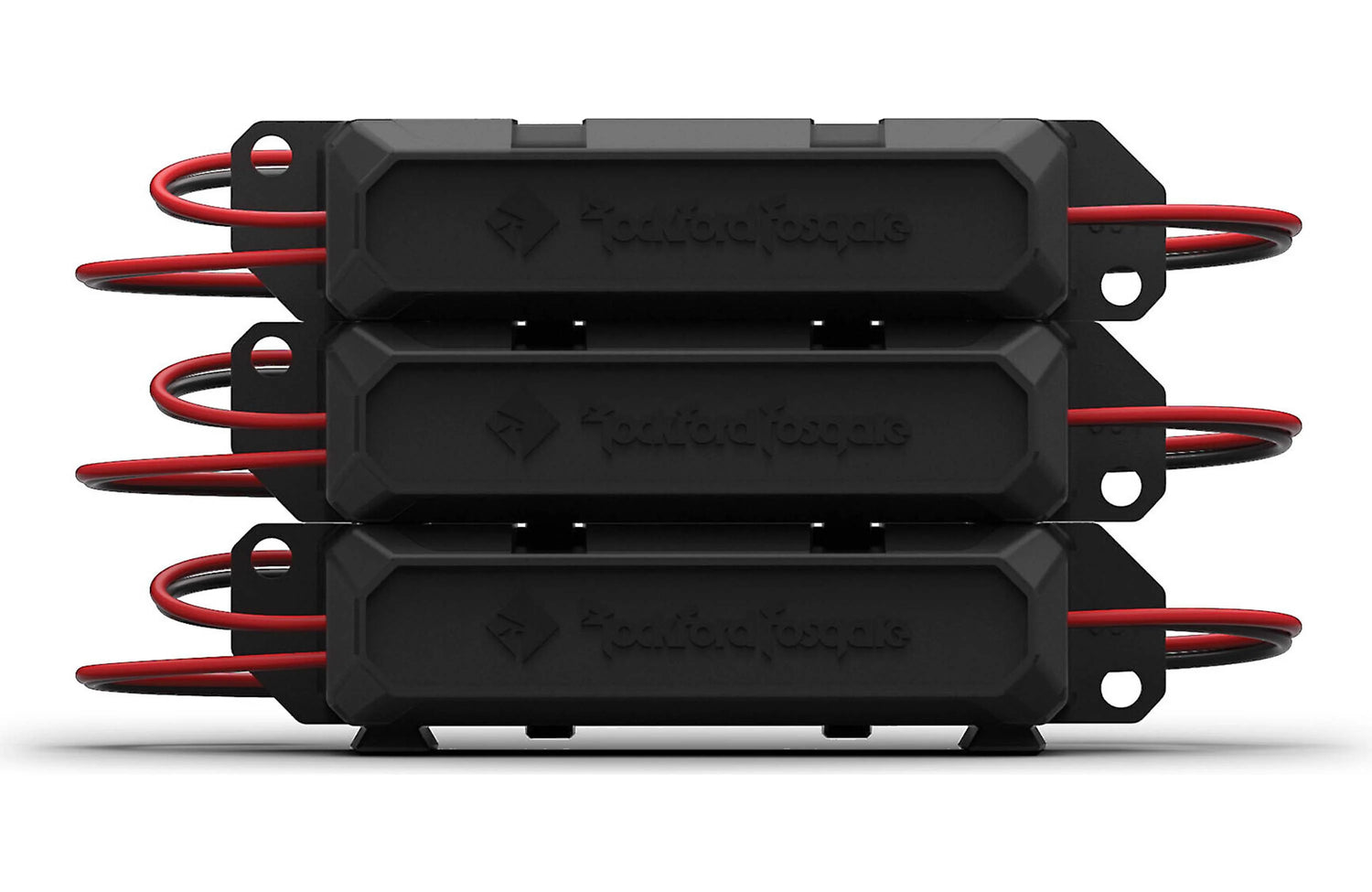

- External 12dB/octave High-Pass crossover with -3dB tweeter attenuation
- External 6dB/octave Band-Pass crossover
- External 6dB/octave Low-Pass crossover
- 2-pin micro-Molex crossover connection that are secured using screws or zip ties
- Includes mounting hardware
- Includes cut-out template
- Grilles sold separately
- Sold in pairs (2 each)
- 2-Year Warranty
(Nominal Diameter)
(Nominal Diameter)
(Nominal Diameter)
(Nominal Diameter)
(Ohms)
(Hz)
(in/mm)
• HP 9kHz @ 12dB/octave (external)
• Attenuation: 0dB or -3dB (external)
MIDRANGE:
• BP 600Hz - 6kHz @ 6dB/octave (external)
MIDRANGE BASS BLOCKER:
• —
WOOFER:
• LP 1.2kHz @ 6dB/octave (external)
(dB @ 1W/1M)
(2.83V/1M)
(Watts RMS)
150 Watts RMS
(Twist-Lock Adaptor)
(Twist-Lock Adaptor)
(With Motor Cover)
(No Motor Cover)
(2) 2.5” 4Ω Speakers
(2) 6.5” 4Ω Speakers
(2) FLWR Twist-Lock Adaptors (multi)
(1) 2.5” Speaker Cutout Template
(1) 6.5” Speaker Cutout Template
(2) Flush-Mount Tweeter Cups
(2) Surface-Mtg Tweeter Cups
(1) Tweeter Removal Tool
(2) Passive Xover (Tweeter)
(2) Passive Xover (Midrange)
(2) Passive Xover (Woofer)
(10) 18” Crossover Wiring Ext.
(4) Self-Tap Phillips #4x16mm (Tweeter)
(4) Self-Tap Phillips #8x32mm (Mid)
(8) Self-Tap Phillips #8x32mm (Woof)
(12) Self-Tap Phillips #8x20mm (Xover)
(6) Zip Ties 4.8 mm x 350 mm
(4) 18 AWG Red/Black Speaker Wire, 205 mm
(6) 18 AWG (–) Female Crimp Spade (.187”)
(6) 18 AWG (+) Female Crimp Spade (.250”)
(12) 18 AWG Crimp Butt
