Rockford Fosgate Infotainment Source Unit for Select 2014-2023 Harley-Davidson Models PMX-HD14

Rockford Fosgate PMX-HD14 Infotainment Source Unit for 2014–2023 Harley-Davidson

The Rockford Fosgate PMX-HD14 is a purpose-built, plug-and-play digital media receiver for select 2014–2023 Harley-Davidson models. It drops in using OEM electrical connectors — no flashing required — and delivers class-leading features including Apple CarPlay®, Street Party Mode™, CB and wireless headset connectivity, and optimized DSP presets tuned specifically for Rockford Fosgate H-D stage kits.

Includes both Street Glide (Batwing) and Road Glide (Sharknose) trim bezels in the box. Verify fitment using the compatibility chart before purchasing.

Key Features

• Apple CarPlay® built in — music, navigation, and apps from your iPhone
• Street Party Mode™ — broadcast audio up to 100 ft. to up to 8 additional PMX-HD14 units simultaneously

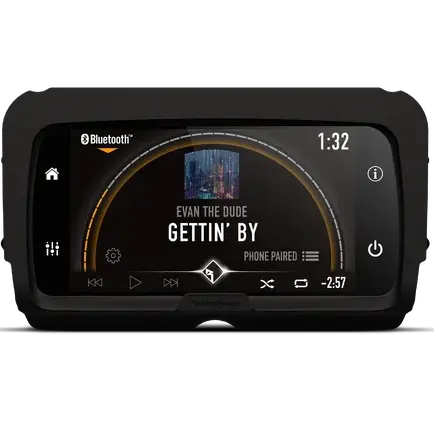

• 7" full-color TFT touchscreen — glove-friendly capacitive multi-touch
• 14-band graphic EQ with optimized DSP presets for all 2014+ Rockford Fosgate H-D stage kits
• Built-in DSP with subwoofer control
• Retains factory thumb control functionality
• Works with wired intercom headsets on Ultra models (requires push-to-talk interface)
• Works with wireless headsets and OEM CB (WHIM & CB modules required)
• Digital AM/FM/Weatherband tuner with presets
• SiriusXM-Ready® (requires SXV300 tuner, sold separately)
• Bluetooth® 5.0 with A2DP wireless audio streaming
• USB input with 1.5A charging (32GB max, Type A)
• AUX input
• Software updatable via USB
• Multi-region radio frequencies
• 2-year warranty

Specifications

• Output Power: 25W x 4 @ 4Ω RMS / 50W x 4 @ 2Ω MAX (CEA-2006, ≤1.0% THD+N)
• Pre-Amp Outputs: 6 (Left/Right) — 4.0V RMS Front & Rear
• Output Impedance: <500Ω
• Display: 7" Color TFT
• EQ: 14-band Graphic
• Frequency Response: 20Hz–20kHz
• Bluetooth: 5.0
• Apple CarPlay: Yes | Android Auto: No
• SiriusXM®: Yes (SXV300 required)
• USB Max Capacity: 32GB | USB Charging: 1.5A (Type A)
• AUX Input Sensitivity: 800mV–4V
• Street Party Mode: Broadcast 100 ft. max / 8 radios max
• Playback: MP3, WMA, FLAC, DRM, USB
• Operating Voltage: 9–16V DC
• Source Zones: 1 | Audio Zones: 1

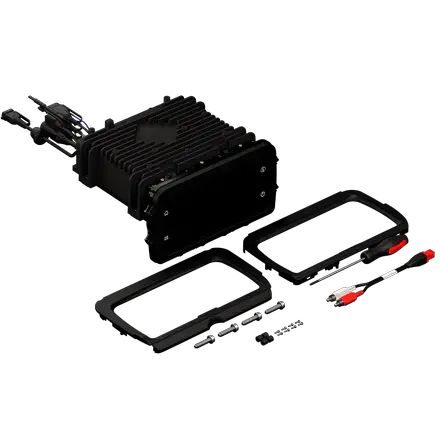

In the Box

• (1) Road Glide (Sharknose) trim bezel
• (1) Street Glide (Batwing) trim bezel
• (8) Trim panel screws
• (1) Mini Phillips screwdriver for trim bezel
• (4) Radio chassis mount screws
• (8) Rubber sleeves for radio chassis screws
• *Antenna not included
