Rockford Fosgate Digital Media Receiver for Select 1998-2013 Harley-Davidson Models PMX-HD9813

Rockford Fosgate PMX-HD9813 Digital Media Receiver for 1998–2013 Harley-Davidson

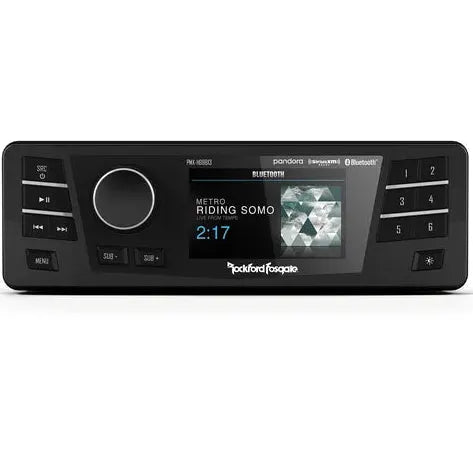

The Rockford Fosgate PMX-HD9813 is a direct-replacement digital media receiver built for select 1998–2013 Harley-Davidson motorcycles. Plug-and-play installation uses OEM electrical connectors — no cutting, no additional wiring required — and retains factory thumb controls. Features 4-volt clip-free pre-amp outputs, Bluetooth streaming, SiriusXM-Ready capability, and a 3" full-color display with day/night modes.

Compatibility note: Not compatible with factory amplified systems, CB, Intercom, rear volume controls, rear speakers on 1998–2005 Ultras, or factory-equipped satellite radio systems. Systems requiring rear speaker-line outputs need an additional harness (RFK-HD9813 or 1130-72997-01, sold separately). Estimated install time: 1 hour.

Fitment

• 2006–2013 Harley-Davidson Street Glide®
• 1998–2013 Harley-Davidson Road Glide®
• 1998–2013 Harley-Davidson Electra Glide®

Key Features

• Plug-and-play with OEM electrical connectors — no cutting or flashing required
• Retains factory thumb control functionality
• Bluetooth® 3.0+EDR with A2DP 1.3 wireless audio streaming
• SiriusXM-Ready® (requires SXV300 tuner, sold separately)
• Pandora® Internet Radio control
• Digital AM/FM tuner with presets
• 3" full-color TFT display with day/night mode (960x240, 380 nits)
• 7-band graphic EQ + PEQ
• Selectable HP/LP/AP crossover with 12/24 dB/octave slope
• Independent subwoofer level control (Sub-Out: 60–120Hz variable)
• USB input with 1.5A charging (USB 2.0, 32GB max, FAT32)
• AUX input
• Voltage gauge with low voltage warning
• Compatible with PMX-BTUR remote control
• Software updatable via USB
• Multi-region radio frequencies
• 2-year warranty
• *Antenna not included

Specifications

• Output Power: 25W x 4 @ 4Ω RMS / 50W x 4 @ 2Ω MAX (CEA-2006, ≤1.0% THD+N)
• RCA Output Voltage: 4V Max (Front, Rear, Sub)
• Output Impedance: <500Ω
• Channel Separation: >50dB (RCA & High-Level)
• SNR: RCA 2V >85dB / High-Level (CEA-2006) >75dB
• Frequency Response: 20Hz–20kHz
• Operating Voltage: 9.5–16V DC
• Idle Current: <2A
• Display: 3" Color TFT, 960x240, 380 nits, 120° view angle
• Bluetooth: 3.0+EDR, A2DP 1.3
• USB: 2.0, 1.5A charging, 32GB max
• Supported Formats: MP3, WMA
• AM Range: 530–1710kHz | FM Range: 87.9–107.9MHz
• Faceplate Dimensions: 2.7" x 8.4" x 0.7" (68.4 x 213 x 17.1mm)
• Chassis Dimensions: 2.5" x 8.2" x 7.5" (63.5 x 209.3 x 191mm)
• Shipping Weight: 4.75 lbs (2.15 kg)
