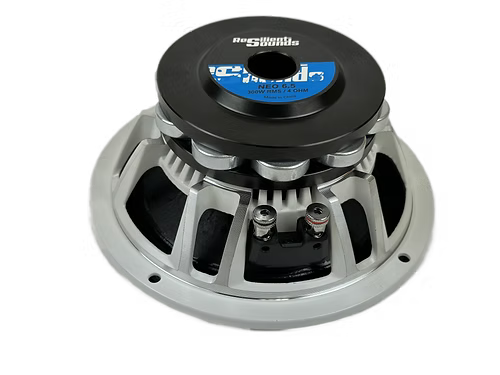

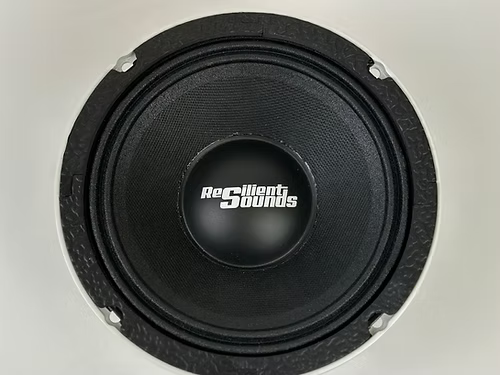

Resilient Sounds RS NEO 6.5" Pro Audio Midrange Loudspeaker (single)

The Resilient Sounds RS NEO 6.5" Pro Audio Midrange Loudspeaker (single) is a 6.5-inch, neodymium-magnet midrange driver designed for demanding car audio installs, offering 96.5 dB sensitivity and a 135 Hz–12.5 kHz response with up to 600 W max power.

• Nominal Diameter: 6.5” (165 mm) – Provides a compact yet capable midrange footprint suitable for tight door panels or kick panels without sacrificing excursion.
• Max Power Handling: 600 W – Indicates peak transient capability for dynamic musical passages when paired with a suitable amplifier.
• RMS Power Handling: 300 W – Defines continuous power capability, guiding amplifier power choices for stable, distortion-free playback.
• Frequency Response: 135 Hz–12.5 kHz – Covers upper bass through treble, making this a dedicated midrange driver in a multi-driver system.
• Nominal Impedance: 4 Ω – Affects how the driver loads with an amplifier, influencing damping and required amplifier current delivery.
• Sensitivity: 96.5 dB – Higher sensitivity means more output for a given input power, improving perceived loudness in a standard car-habitat space.
• Voice Coil Diameter: 2" – A larger voice coil supports better heat dissipation and control at higher excursion levels.
• Magnet: Neodymium – Lighter magnet material reduces motor weight, aiding transient response and enabling a more compact assembly.
• Voice Coil Wire: CCAW – Copper-clad aluminum wire lowers weight while preserving electrical performance.
• Equivalent Volume (Vas): 2.75 L – Helps determine suitable enclosure volume for intended acoustic loading.
• Free Air Resonance (Fs): 138 Hz – Natural resonant point that influences crossover design and in-car tonal balance.
• Electrical Q Factor (Qes) / Total Q (Qts): 0.35 / 0.34 – Combined with Vas and Sd to define damping and control within a system.
• Cone Area (Sd): 136.8 cm² – Larger cone area contributes to midrange output and dispersion characteristics.
• Mechanical Mass (Mms): 12.66 g – Moving mass affects dynamic response and required amplifier damping.
• DC Resistance (Re): 3.2 Ω – Impedance at rest, influencing power delivery and amplifier load.
• Mounting Diameter / Cutout / Depth: Overall 6.69" (210 mm); Front Mount Cutout 5.90" (186 mm); Depth 2.73" (79 mm) – Clear mounting footprint for install planning in doors or panels.

Benefits: The RS NEO 6.5" excels as a dedicated midrange in a multi-driver system, delivering detailed mid and high frequencies with ample headroom (up to 600 W max, 300 W RMS) and a practical 4 Ω load for compatible amplifiers. Its neodymium magnet and 2" voice coil support solid transient response and thermal stability in a compact package, while the 6.69" overall diameter and 5.90" cutout give installers a concrete, repeatable fit within typical midrange locations. The supplied Thiele-Small values guide enclosure sizing and crossover integration for cohesive in-car performance.
