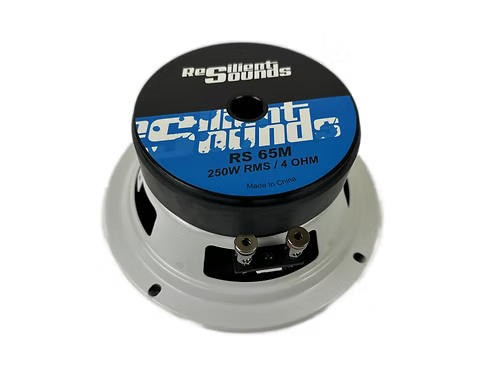

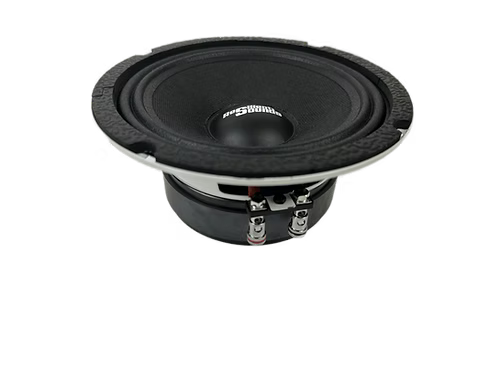

Resilient Sounds RS 65M 6.5" Pro Audio Midrange Loudspeaker (single)

RS 65M is a 6.5-inch pro-audio midrange loudspeaker designed for high-demand car installs, delivering up to 500 W peak (250 W RMS) with a 135 Hz–13 kHz bandwidth for focused vocal and instrument reproduction.

• Nominal Diameter: 6.5" (165.1 mm) — standard midrange footprint that fits typical 6.5" openings and aligns with common enclosure and crossover designs.
• Max Power Handling: 500 W — peak capability that supports dynamic program content when paired with proper crossover and system design.
• RMS Power Handling: 250 W — continuous power tolerance, guiding amplifier choice and long-term reliability.
• Frequency Response: 135 Hz – 13 kHz — covers upper bass through the high midrange and into the treble, shaping midrange presence in a multi-way setup.
• Nominal Impedance: 4 Ω — defines the electrical load seen by the amp and affects damping and overall efficiency of the system.
• Sensitivity: 94 dB — higher efficiency means more output per watt, influencing how you configure the front stage with available amplification.
• Voice Coil Diameter: 1.5" — larger coil enhances heat dissipation and power handling in the midrange band for steadier performance under demanding content.
• Mounting Footprint: Overall Diameter 6.57" (167 mm); Front Mount Baffle Cutout 5.64" (143 mm); Mounting Depth 2.67" (68 mm) — install space and depth requirements to plan door or panel integration.

In a high-performance car audio build, RS 65M serves as the dedicated midrange in a multi-way front stage or as part of a three-way system, pairing with appropriate woofer and tweeter to cover the full spectrum. Its 4 Ω impedance and 94 dB sensitivity inform amplifier selection and system efficiency, while the ferrite magnet and 1.5" voice coil support robust power handling to maintain midrange detail under dynamic music. The shallow mounting depth and defined cutout dimensions help ensure a clean, fit-for-purpose installation in a variety of doors and panels.
