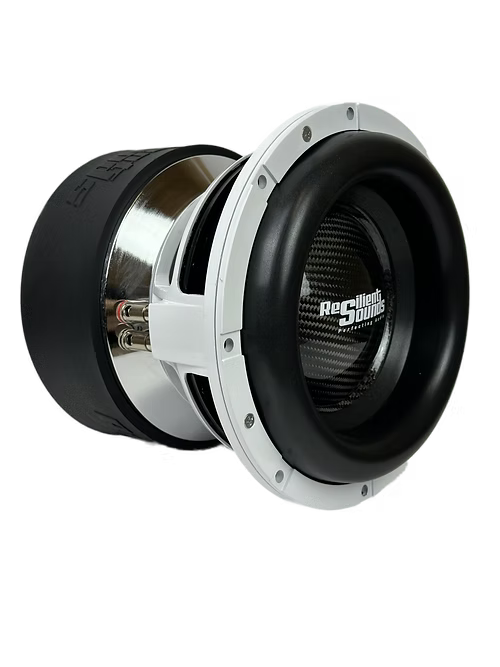

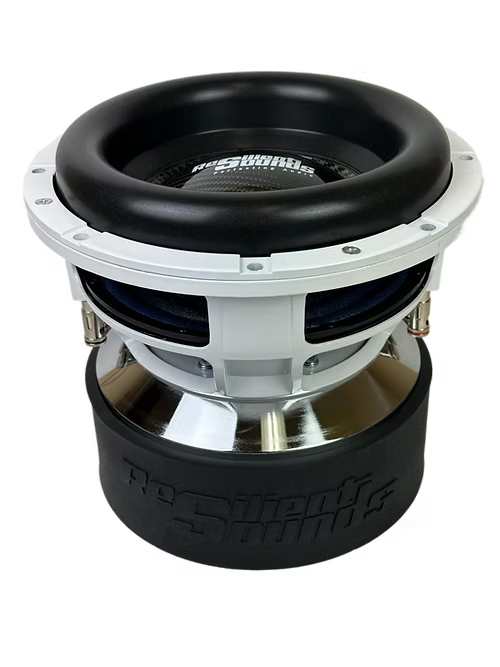

Resilient Sounds Platinum V2 Series 10" Subwoofer

Resilient Sounds Platinum V2 Series 10" Subwoofer is a high-excursion driver built for demanding car audio systems, delivering strong bass control and high output thanks to an XL triple stacked motor and a 3” 8-layer coil.

• XL TRIPLE STACKED MOTOR: Provides increased magnetic force and control for high-excursion bass, enabling stronger, more linear cone travel under demanding power.
• 20% LONGER 3” 8-LAYER COIL: More coil length increases displacement and improves thermal handling during extended output, reducing compression and keeping bass consistent.
• BL^2/RE INCREASED UP TO 50%: Higher BL^2/RE indicates stronger motor efficiency, translating to tighter, louder bass at higher power on Platinum V2 versus earlier versions.
• 8.5” SPIDER PACK WITH INSULATED DUAL LEADS: Robust suspension and dual leads improve control of cone movement and minimize unwanted movement at high excursion.
• CARBON FIBER CONES AND DUST CAPS: Standard on Platinum line, providing higher stiffness for improved transient response and reduced distortion.
• NAV HIGH ROLL TOOLED SURROUNDS: Enhanced surround geometry supports aggressive cone movement with precise return, boosting low-end control.
• CAST ALUMINUM FRAME: Rigid, thermally conducive chassis that resists flex and aids heat dissipation during demanding bass requests.
• XMAX 35MM: Signals substantial maximum linear excursion, contributing to deep, impactful bass performance.
• POWER HANDLING: Conservatively rated at 2,500 RMS / 5,000 Watts for sustained, high-output operation.
• TRIM RING MOUNTING NOTES: For mounting on Resilient Sounds V2 trim rings, use hex head screws to avoid flaring and potential trim ring cracking.
• ENCLOSURE SPECIFICATIONS: Box specs specify 1.5–2.25 cu ft per sub, tuning 28–33 Hz, port area 12–16 in² per cu ft, mounting depth 9.125", cutout 9.25", and displacement 0.22 cu ft.

The Platinum V2 10" excels in ported installations that target mid- to low-30 Hz tuning, delivering deep extension with controlled excursion. Its robust motor and reinforced frame support high-power multi-sub builds, while the carbon fiber cone maintains fast transients and minimal distortion under demanding playback. Ensuring correct enclosure size and proper trim ring mounting helps maximize performance and reliability in real-world installs.
