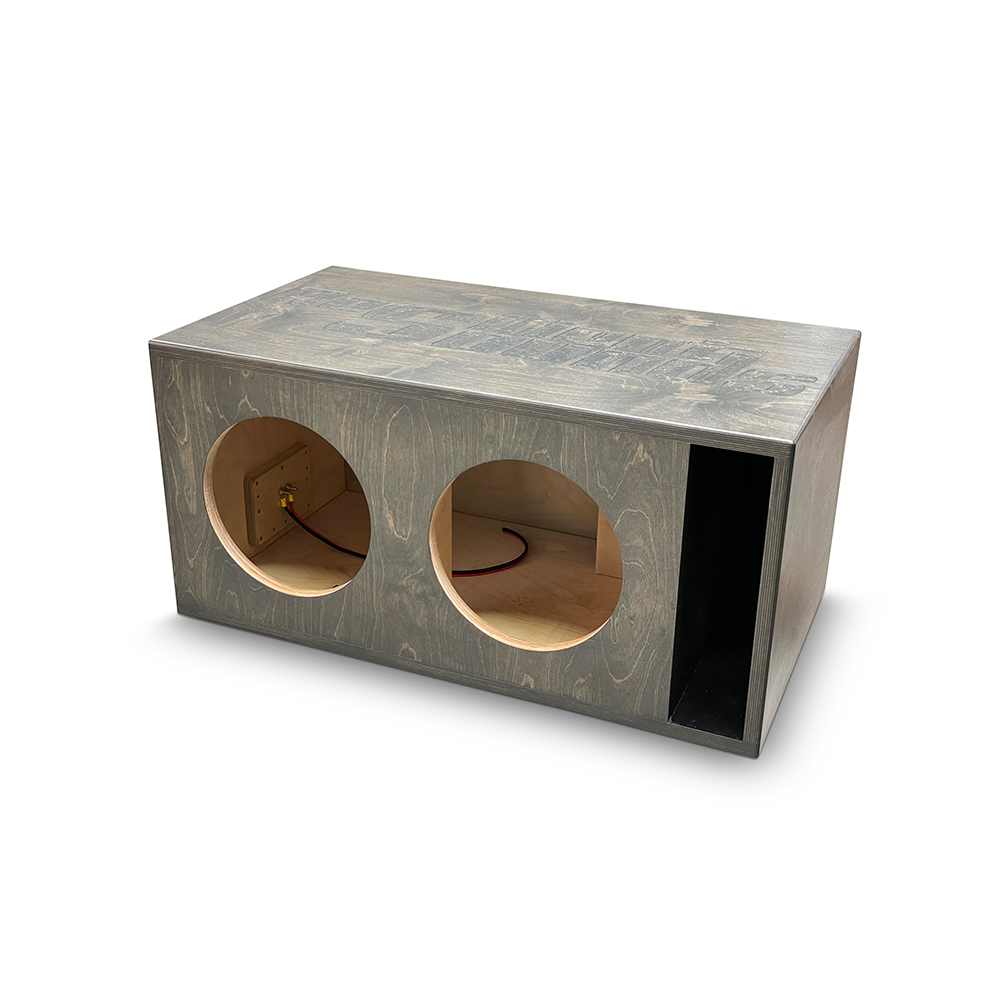

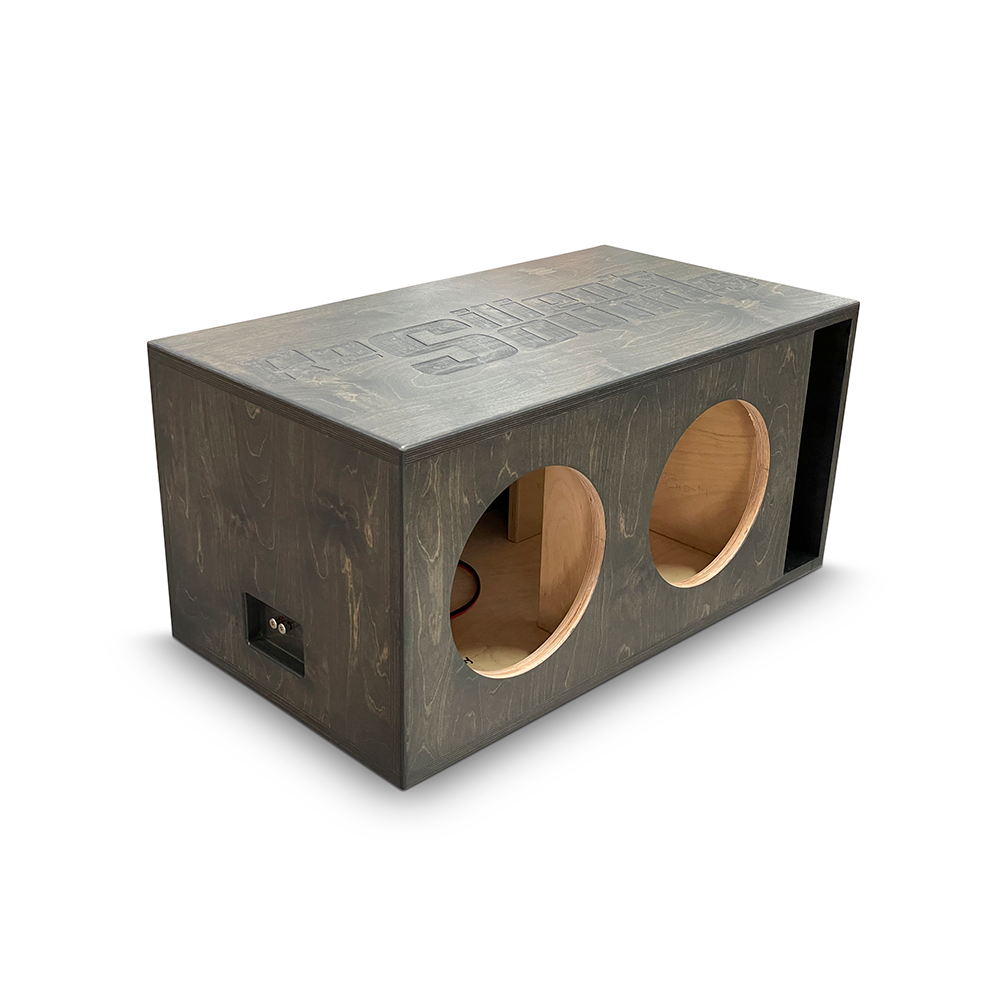

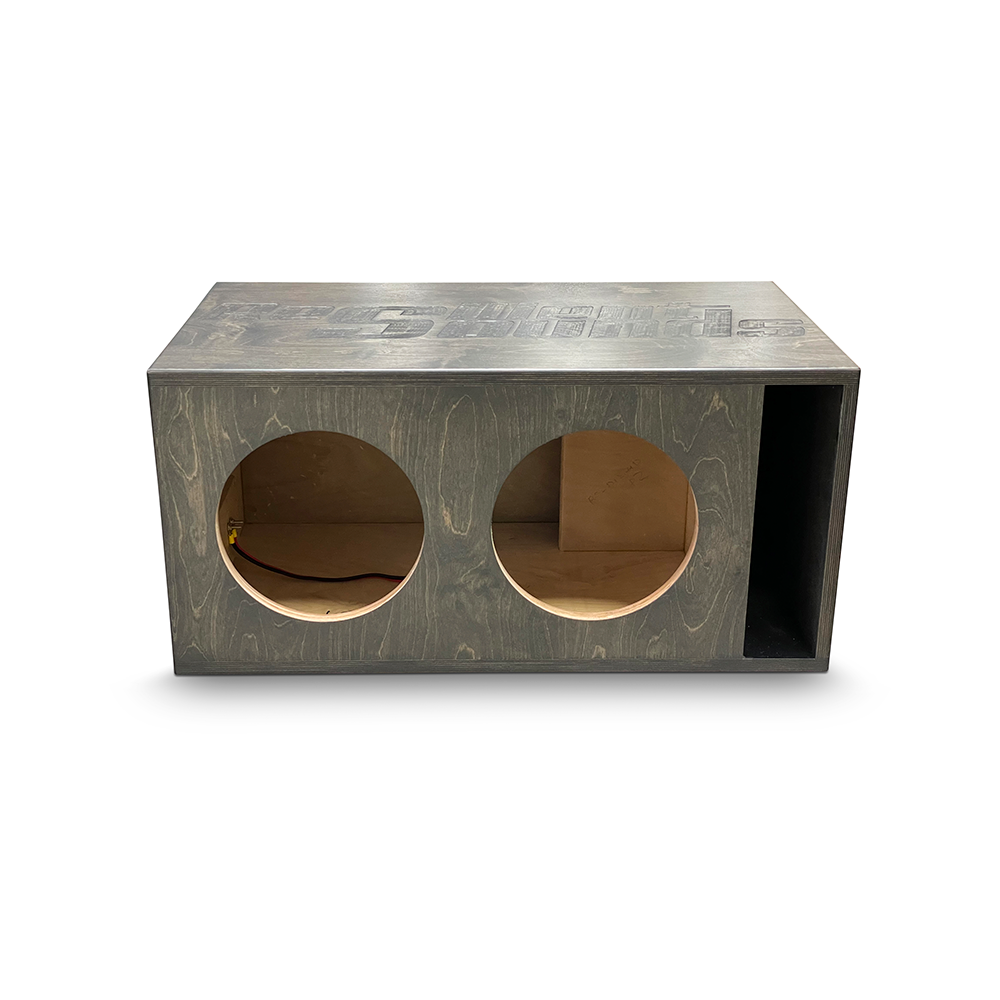

Resilient Sounds Dual 12" Platinum v2 Ported Enclosure

Engineered for the Resilient Sounds Platinum v2 12" sub, this Dual 12" Ported Enclosure delivers deep, controlled bass with 4.5 cu ft of airspace tuned to 32 Hz.

• Net Volume: 4.5 cubic feet of internal airspace helps the Platinum v2 12" achieve deeper bass with crisp control over cone movement.
• Tuning: 32 Hz target frequency sets the enclosure’s port resonance for extended low-end output while maintaining accuracy at higher listening levels.
• Port Area: 65.0 sq in provides sufficient air flow for the tuned frequency, reducing port chuff and maintaining steady bass response under power.
• Port Size: 16.0" x 4.063" rectangular port geometry chosen to support the 32 Hz tuning within the enclosure dimensions.
• Cutout: 11.175" diameter mounting opening matches the 12" Platinum v2 sub for secure, precise seating.
• Construction: 1" (24mm) Russian Baltic Birch with 17 plies yields high rigidity and minimal panel flex under high excursion.
• Front Baffle: 1" (24mm) thick front baffle enhances rigidity and seal integrity for better low-frequency control.
• Center Bracing: 1" (24mm) center baffle brace adds stiffness to resist panel flex during deep bass transients.
• Finish: Carbon gray stain with polyurethane topcoat provides a durable, show-quality appearance.

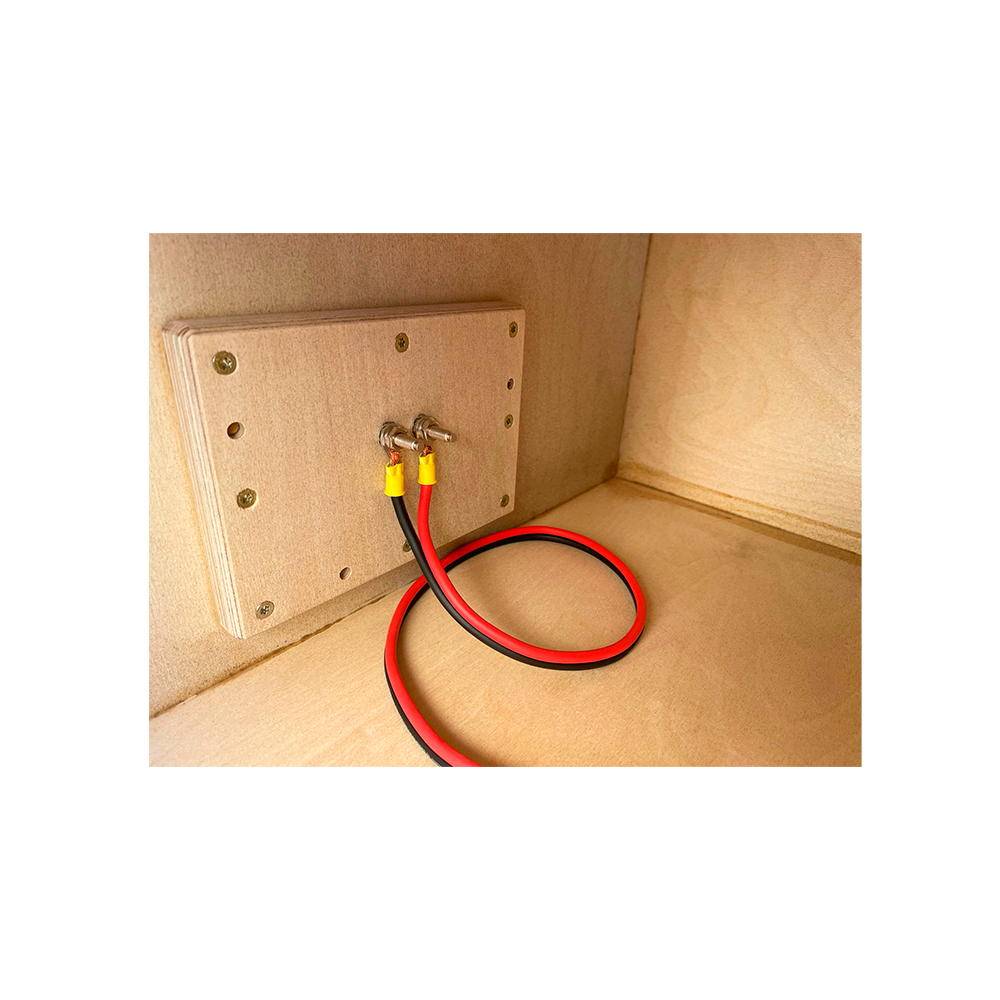

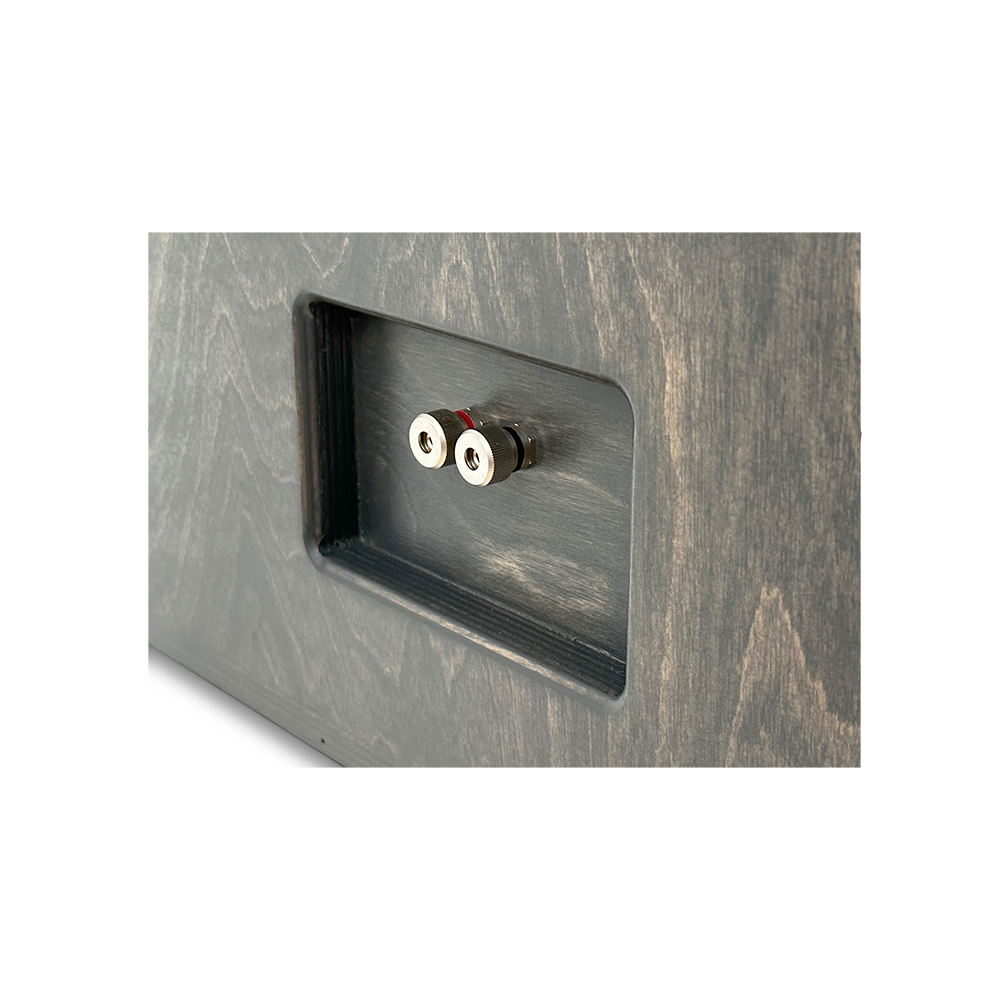

• Wiring: Pre-wired 10ga OFC with metal binding post simplifies installation and ensures solid, low-resistance connections.
• Power Handling: High power systems compatible, designed to sustain strong amplification without enclosure flex.
• Dimensions: Height 18.0", Width 37.0", Depth 21.0"—sized for trunk or cargo-area installations with room to spare for wiring.
• Handcrafted in the USA: Built by hand in the United States, reflecting meticulous craftsmanship and quality control.
• Exterior Look: Zero visible screw holes on the exterior for a clean, premium appearance.
• Glue Bond: Fully glued with Titebond III to ensure airtight integrity and long-term durability.
• Lead Time: Built to order; ships in 2-3 weeks. All sales final.

This enclosure is designed to live behind a trunk or rear cargo area panel, pairing with the Platinum v2 12" sub to deliver deep bass with tight control. The rigid Baltic Birch construction, heavy front baffle and center brace minimize panel flex under high power, preserving accurate woofer motion. Pre-wired wiring and exterior-free screws simplify installation and deliver a premium, clean look in a finished vehicle interior. Built to order in the USA, it combines craftsmanship with performance-specific tuning for real-world, high-performance car audio builds.
