Kenwood - DMX4710S 6.8" Multimedia Receiver with wired Apple CarPlay and Android Auto

The Kenwood DMX4710S 6.8" Multimedia Receiver delivers wired Apple CarPlay and Android Auto, Android Mirroring, built-in Bluetooth, a 6-channel preamp output, 13-band EQ with digital time alignment, and broad OEM integration via iDatalink Maestro RR, RR2, SW, and Metra Axxess — all in a double-DIN, no-disc multimedia receiver with a 6.8" WSVGA capacitive touchscreen and shortened chassis depth. At $299.99, the DMX4710S is Kenwood's feature-rich digital media receiver for enthusiast installers who need OEM integration flexibility, Android Mirroring, and a clean no-disc install.

The DMX4710S stands out in its class with three key advantages. First, its OEM integration compatibility is the broadest in this price range — supporting iDatalink Maestro RR, RR2, and SW modules plus Metra Axxess, giving installers maximum flexibility for retaining factory features across a wide range of vehicle platforms. Second, Android Mirroring via the free "Mirroring OA for KENWOOD" app allows Android smartphone users to display and control their phone's screen on the head unit via USB and Bluetooth — accessing any app on a large display with impressive sound quality. Third, the 6-channel preamp output (front, rear, subwoofer) at 2.5V provides clean signal routing for a full 3-amp system without a separate signal processor. The 6.8" WSVGA capacitive touchscreen (1024x600 resolution) delivers sharp, responsive touch control. Apple CarPlay and Android Auto connect via USB for full smartphone integration with voice control. Bluetooth supports hands-free calling via the built-in microphone and audio streaming. The 13-band graphic EQ with digital time alignment provides precise sound tuning. The shortened chassis depth simplifies installation in vehicles where standard-depth head units won't fit. No CD or DVD drive — a clean, modern digital-only design. SiriusXM-Ready with a separately purchased tuner. 1-year parts and labor warranty.

The DMX4710S is the ideal head unit for enthusiast builds requiring broad OEM integration compatibility across multiple module types, Android Mirroring for Android users, and a 6-channel preamp output for a multi-amp system. Contact us at Trinity Car Audio for iDatalink Maestro and Metra Axxess module compatibility for your specific vehicle and complete system design guidance.

Why Choose the Kenwood DMX4710S?

• Broadest OEM Integration Compatibility: Supports iDatalink Maestro RR, RR2, and SW plus Metra Axxess — maximum flexibility for retaining factory features across the widest range of vehicle platforms.
• Android Mirroring: Display and control your Android smartphone on the head unit screen via USB + Bluetooth using the free "Mirroring OA for KENWOOD" app — access any app on a large display.
• Wired Apple CarPlay & Android Auto: Full smartphone integration via USB — calls, navigation, and music with Siri or Google Assistant voice control.
• 6-Channel Preamp Output: Front, rear, and subwoofer preouts at 2.5V — clean signal routing for a complete 3-amp system without a separate signal processor.
• 13-Band EQ + Digital Time Alignment: Precise sound tuning tools for enthusiast builds — 13-band graphic EQ plus digital time alignment for speaker distance correction.

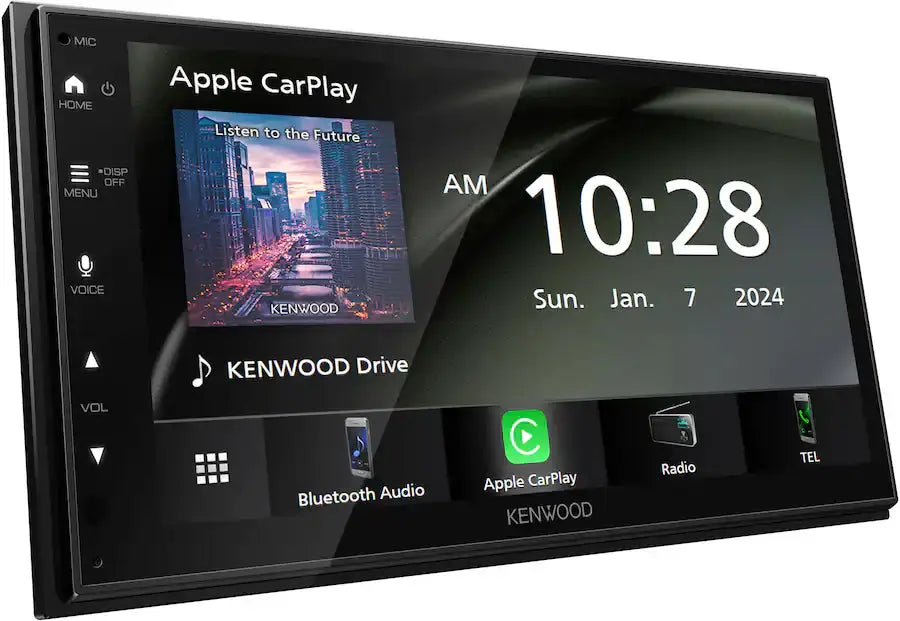

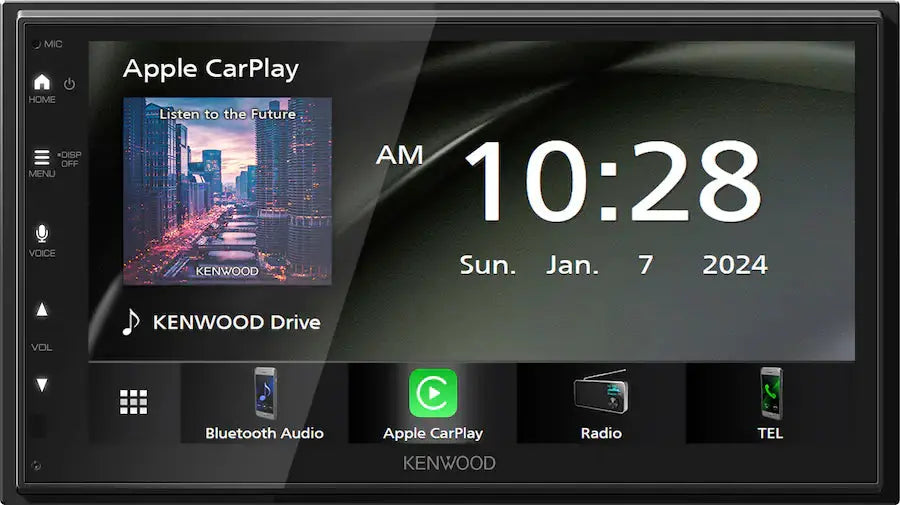

• 6.8" WSVGA Capacitive Touchscreen: 1024x600 resolution with responsive capacitive touch — sharp, detailed display for navigation, media, and backup camera feeds.

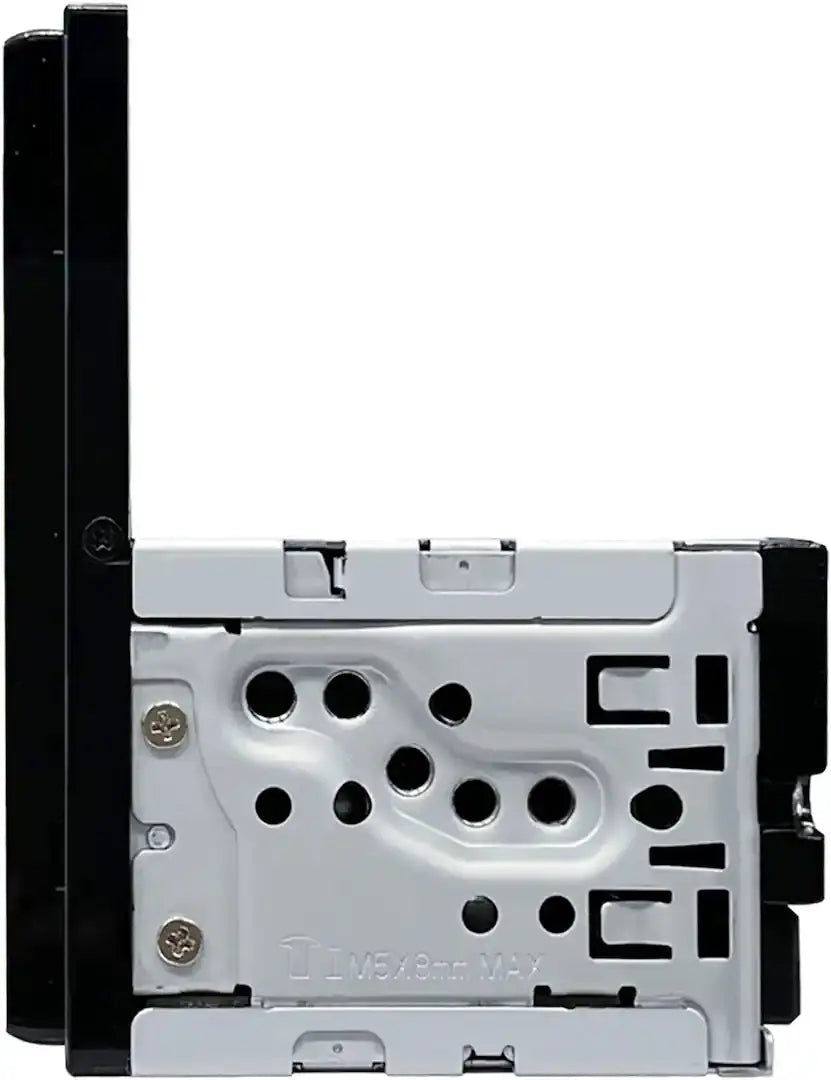

• Shortened Chassis Depth: Simplified installation in vehicles where standard-depth head units won't fit — easier cable management and cleaner installs.
• No-Disc Design: Clean, modern digital-only receiver — no CD/DVD drive means a more compact chassis and a streamlined install.

Installation & Compatibility Notes

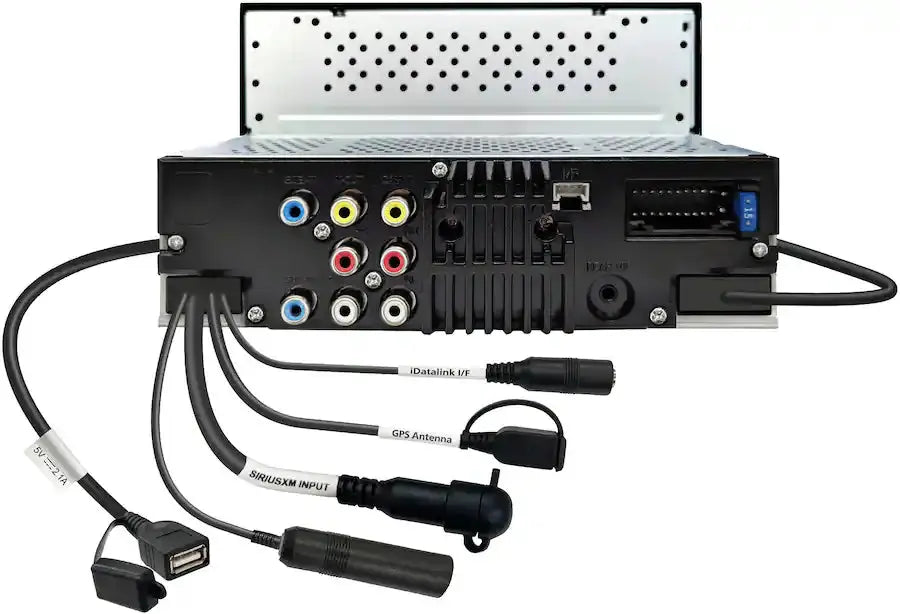

The DMX4710S is a standard double-DIN (2-DIN) head unit — fits any vehicle with a double-DIN dash opening. OEM integration modules (iDatalink Maestro RR, RR2, SW, or Metra Axxess) are sold separately — contact us at Trinity Car Audio for the correct module and harness for your vehicle. Steering wheel control is retained via the compatible OEM integration module. Backup camera input is included (1 camera input, composite video). Apple CarPlay and Android Auto require USB connection — wireless CarPlay/Android Auto is not supported. Android Mirroring requires the free "Mirroring OA for KENWOOD" app and USB + Bluetooth connection — parking brake must be engaged to use this feature. Built-in microphone for hands-free calling — no external microphone included. Remote control not included. SiriusXM-Ready — tuner sold separately. 1-year parts and labor warranty.

Full Specifications

Frequently Asked Questions

Q: Does the DMX4710S support wireless CarPlay or Android Auto?
A: No — the DMX4710S supports wired Apple CarPlay and Android Auto via USB only. Contact us at Trinity Car Audio for wireless CarPlay/Android Auto head unit alternatives.

Q: What OEM integration modules are compatible with the DMX4710S?
A: The DMX4710S is compatible with iDatalink Maestro RR, RR2, and SW modules, as well as Metra Axxess — the broadest OEM integration compatibility in its class. Contact us at Trinity Car Audio for the correct module for your specific vehicle.

Q: How does Android Mirroring work on the DMX4710S?
A: Install the free "Mirroring OA for KENWOOD" app on your Android smartphone, then connect via USB and Bluetooth. Your phone's screen is displayed on the head unit and can be controlled from both the screen and your phone. Note: parking brake must be engaged to use this feature.

Q: Does the DMX4710S have a CD or DVD player?
A: No — the DMX4710S is a digital media receiver with no optical disc drive. Media playback is via USB or Bluetooth streaming. This allows for a more compact chassis and a cleaner install.
