JVC KW-M590BT Digital Media Receiver featuring 6.8" Capacitive Touch Monitor / Apple CarPlay® / Android Auto™ / USB Mirroring / Bluetooth® / 13-Band EQ / Short Chassis

The JVC KW-M590BT Digital Media Receiver brings a 6.8" WSVGA capacitive touchscreen, wired Apple CarPlay and Android Auto, built-in Bluetooth, USB mirroring, a 13-band graphic EQ, and time alignment to the double-DIN format — all in a short-chassis design that installs cleanly in vehicles where rear depth is limited. At $279.99, the KW-M590BT delivers the core smartphone integration and sound tuning features that enthusiast installers and daily drivers demand, without the premium price of wireless CarPlay/Android Auto units.

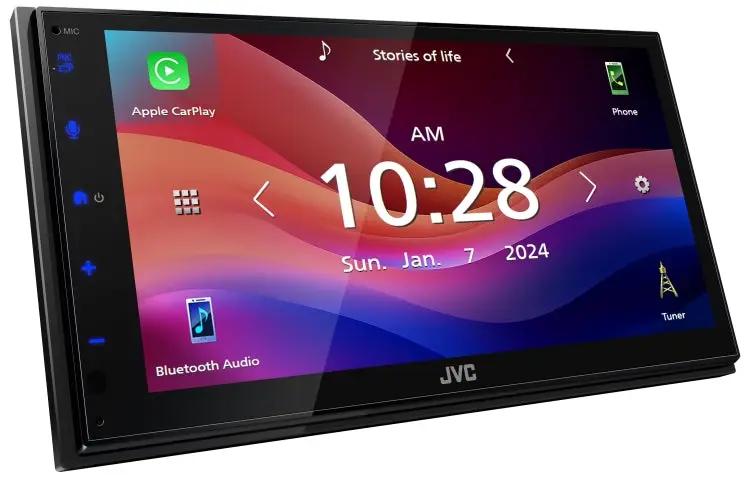

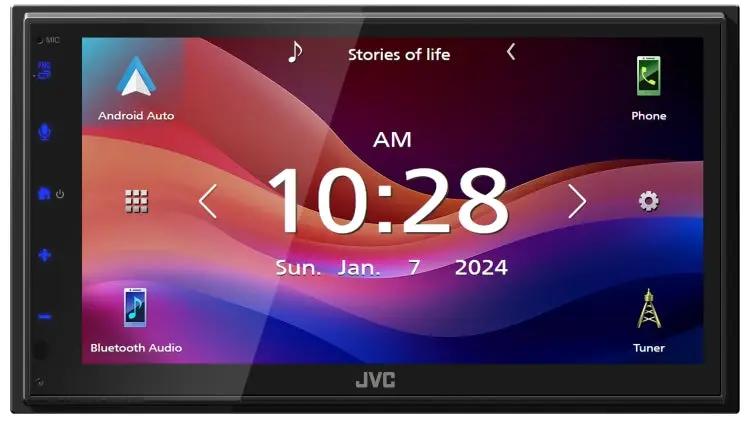

The centerpiece of the KW-M590BT is its 6.8" WSVGA LCD display — approximately 1.6x higher resolution than conventional WVGA displays, delivering sharper text, more detailed color gradients, and a more refined visual experience for navigation, media, and backup camera feeds. The capacitive touchscreen responds to lighter contact with greater accuracy than resistive panels, and supports gesture touch control for intuitive swipe-based operation. Apple CarPlay and Android Auto connect via USB, giving iPhone and Android users full smartphone integration for calls, navigation, and music with voice control through Siri or Google Assistant. USB Mirroring via the MirrorApp+ app allows compatible Android and iPhone devices to mirror their full screen to the head unit display, enabling apps like Waze, YouTube, and Instagram. Bluetooth connectivity supports hands-free calling via HFP 1.8 (HD Voice), audio streaming via A2DP/AVRCP 1.6, phone book access (PBAP), and voice dialing. The 13-band graphic EQ with 7 presets plus 3 user memories and time alignment give you precise control over your system's sound. Power output is 50W x 4 max / 22W x 4 full bandwidth with 2 preouts + dedicated subwoofer output (2.5V, 10k ohms). The short chassis design (86mm depth) simplifies installation in tight dash locations. The rear USB port supports 2.1A high-current charging.

The KW-M590BT is an ideal head unit for enthusiast builds pairing a 4-channel amplifier with a dedicated subwoofer — the 2 preouts + sub output configuration covers front/rear and subwoofer channels cleanly. Steering wheel control compatibility is retained via a third-party adapter (sold separately). Backup camera input is included. Contact us at Trinity Car Audio for installation guidance and compatible steering wheel control adapters for your specific vehicle.

Why Choose the JVC KW-M590BT?

• 6.8" WSVGA Capacitive Touchscreen: 1.6x higher resolution than conventional WVGA displays — sharper text, more detailed visuals, and responsive capacitive touch with gesture control.

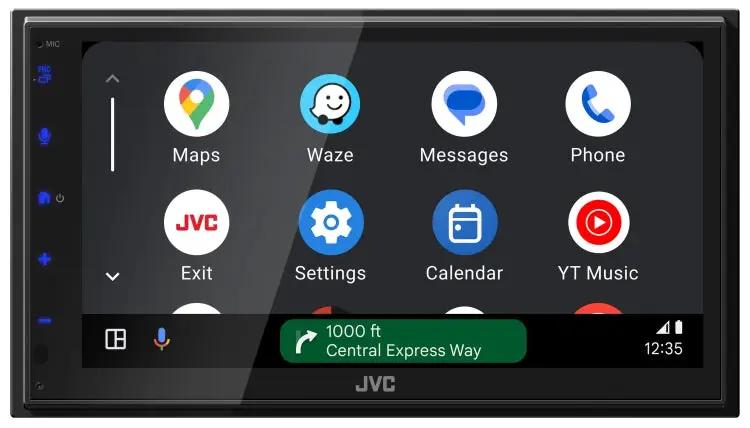

• Wired Apple CarPlay & Android Auto: Full smartphone integration for calls, navigation, and music via USB — voice control through Siri or Google Assistant.
• USB Mirroring (MirrorApp+): Mirror your Android or iPhone screen to the head unit display via USB — access Waze, YouTube, Instagram, and more with touch control from both screen and phone.
• 13-Band Graphic EQ + Time Alignment: Precise sound tuning tools for enthusiast builds — 13-band EQ with 7 presets + 3 user memories, plus time alignment for speaker distance correction.
• Bluetooth HFP 1.8 + AVRCP 1.6: HD Voice hands-free calling, audio streaming, phone book access, voice dialing, and full music browsing by folder and song name.

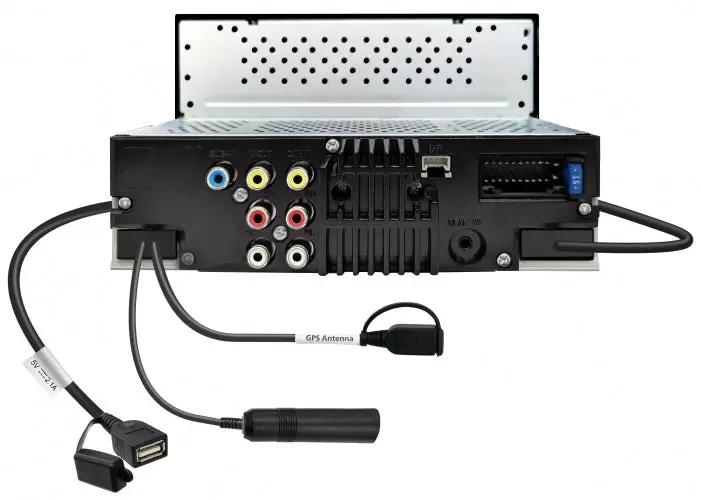

• 2 Preouts + Dedicated Sub Output: 2.5V preouts for front/rear amplifier channels plus a dedicated subwoofer output with level and frequency control — clean signal routing for amplified systems.

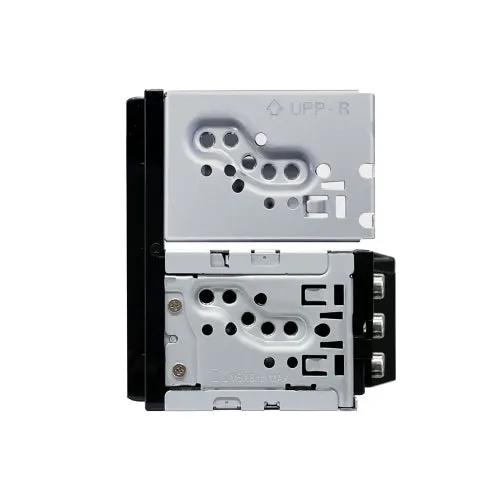

• Short Chassis Design: 86mm rear depth simplifies installation in vehicles where standard-depth head units won't fit — easier cable management and cleaner installs.
• 2.1A High-Current USB Charging: Rapidly charge compatible smartphones via the rear USB port while connected for CarPlay or Android Auto.

Installation & Compatibility Notes

The KW-M590BT is a standard double-DIN (2-DIN) head unit — fits any vehicle with a double-DIN dash opening. Steering wheel control functions are retained via a compatible third-party adapter (sold separately — contact us at Trinity Car Audio for the correct adapter for your vehicle). Backup camera input is included — compatible with standard RCA composite video cameras. Apple CarPlay and Android Auto require USB connection — wireless CarPlay/Android Auto is not supported on this model. The optional RM-RK259 wireless remote control is available separately.

Full Specifications

Frequently Asked Questions

Q: Does the KW-M590BT support wireless CarPlay or Android Auto?
A: No — the KW-M590BT supports wired Apple CarPlay and Android Auto via USB only. If wireless CarPlay/Android Auto is required, contact us at Trinity Car Audio for alternative head unit recommendations.

Q: Will the KW-M590BT fit my vehicle?
A: The KW-M590BT fits any vehicle with a standard double-DIN (2-DIN) dash opening. The short chassis design (86mm depth) also makes it compatible with vehicles where standard-depth head units won't fit. Contact us at Trinity Car Audio with your year, make, and model to confirm fitment and identify any required installation accessories.

Q: Can I retain my factory steering wheel controls?
A: Yes — the KW-M590BT is steering wheel remote control ready. A compatible third-party adapter (sold separately) is required to retain factory steering wheel control functions. Contact us at Trinity Car Audio for the correct adapter for your vehicle.

Q: How many amplifier channels can I connect to the KW-M590BT?
A: The KW-M590BT has 2 preouts (front/rear) plus a dedicated subwoofer output — supporting a 4-channel amplifier for front and rear speakers plus a mono amplifier for a subwoofer. Pre-output level is 2.5V at 10k ohms. Contact us at Trinity Car Audio for amplifier pairing recommendations.
