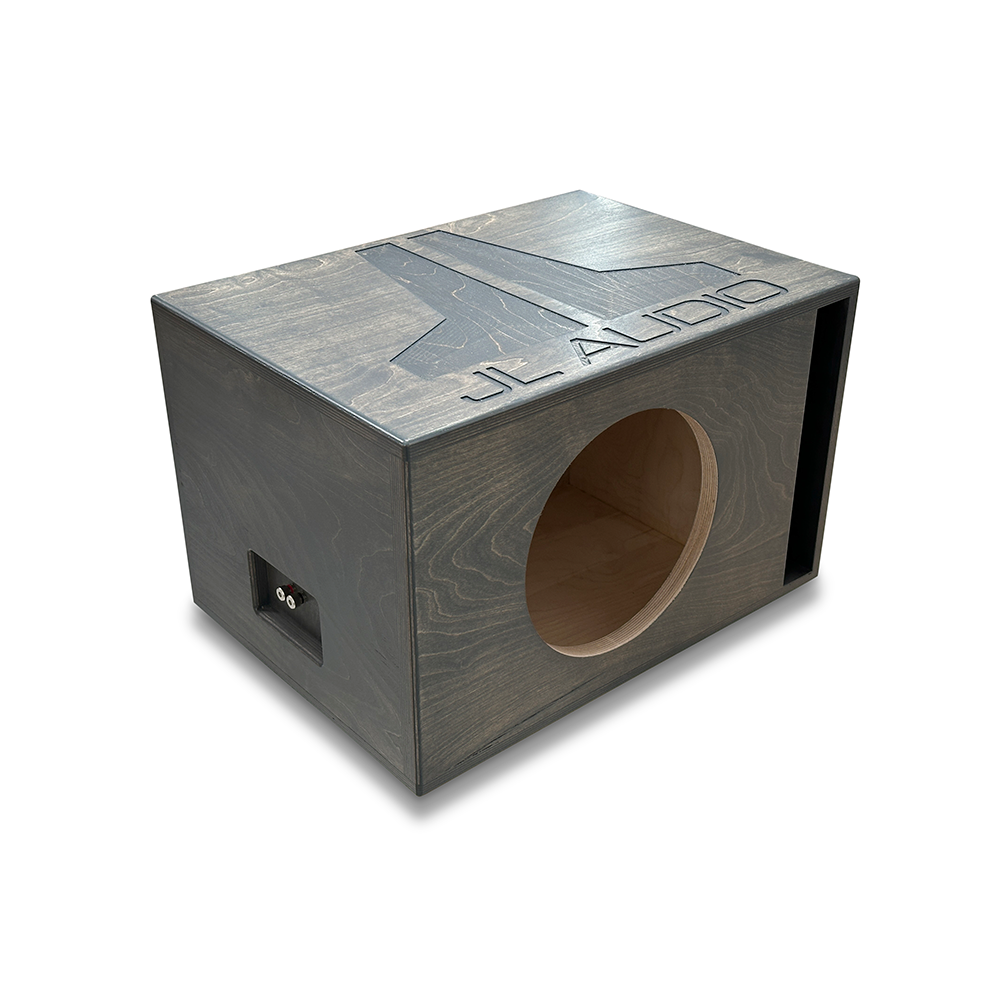

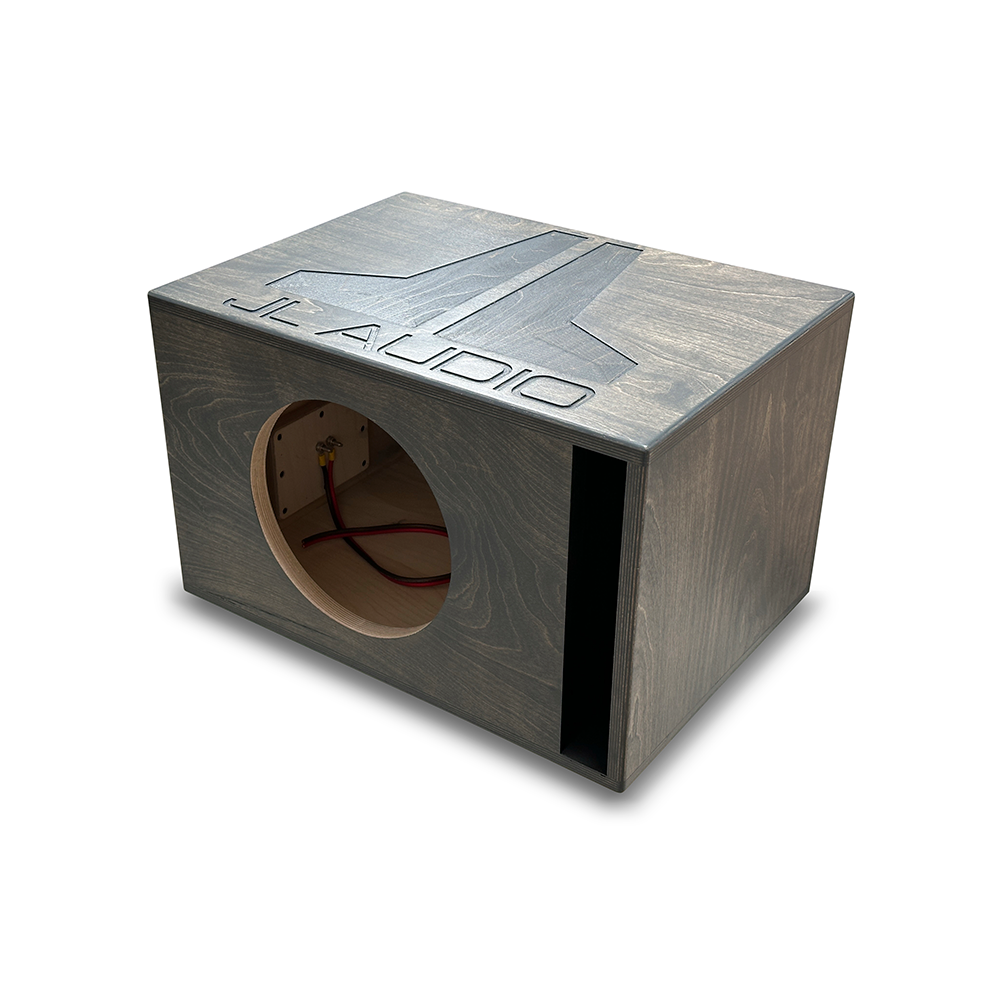

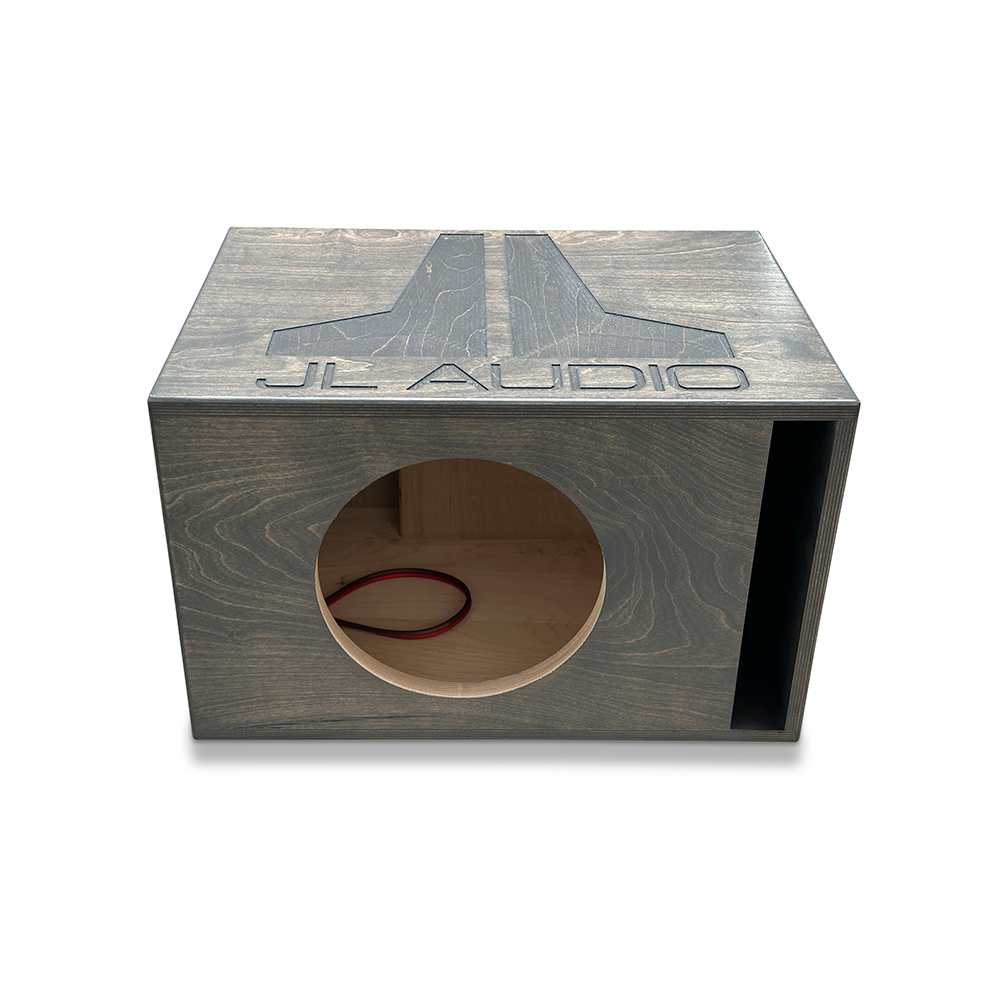

JL Audio Single 10" W7 Ported Enclosure

Engineered specifically for the JL Audio W7 10" subwoofer, this 1.5 cubic feet ported enclosure is tuned to 33 Hz to deliver deep, controlled bass with the W7’s performance in mind.

• Net Volume: 1.5 cubic feet of internal airspace to support the low-end output the W7 10" is capable of, providing a solid foundation for deep bass.
• Tuning: 33 Hz alignment to extend low-frequency response while maintaining predictable behavior under high power.
• Port Area: 21.88 sq in vent area that facilitates airflow at the tuned frequency for sustained bass output.
• Port Size: 12.503" x 1.75" rectangular port opening for consistent airflow and enclosure tuning.
• Cutout: 8.74" cutout diameter to fit the W7 10" mounting requirements.
• Construction: 3/4" (18 mm) Russian Baltic Birch with 13-ply count for rigidity and durable enclosure walls.
• Baffle: Front baffle is 1" (24 mm) thick with 17-ply construction to help maintain panel stability at high output.
• Finish: Carbon gray stain with polyurethane topcoat for a durable, showroom-ready exterior.

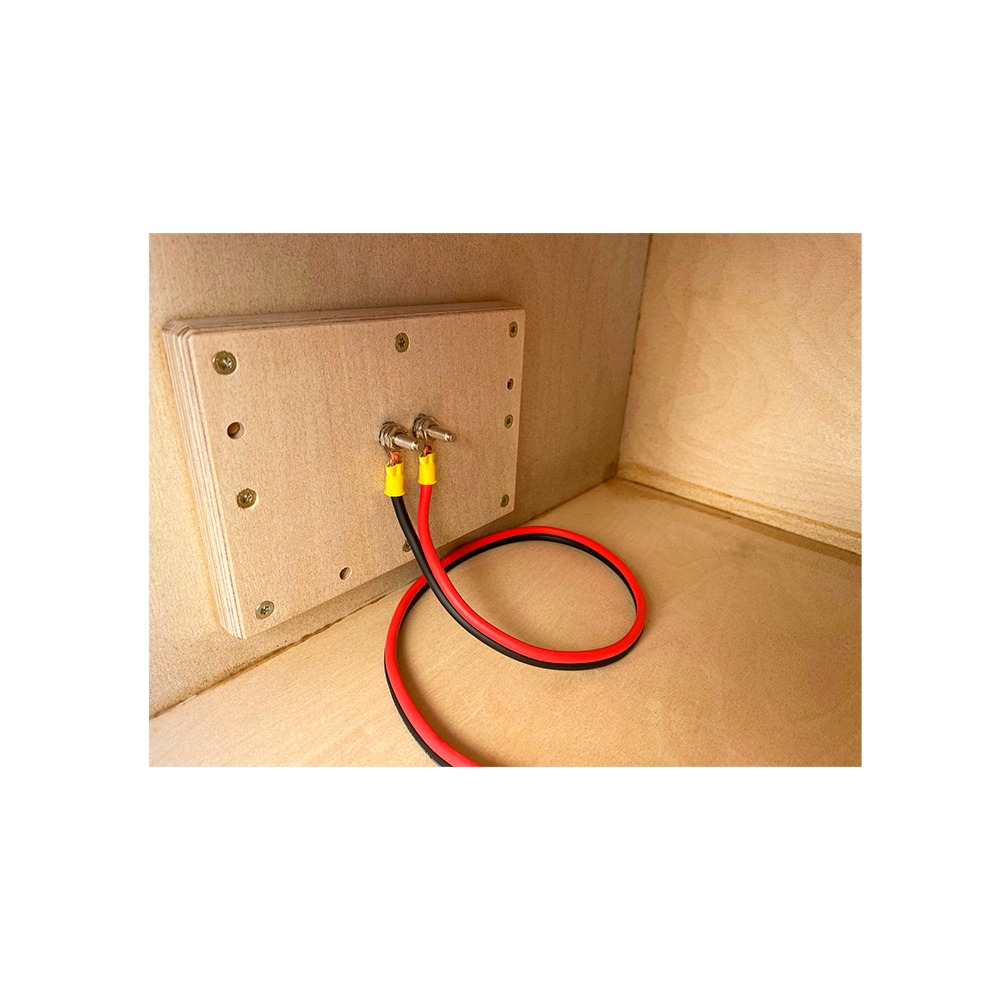

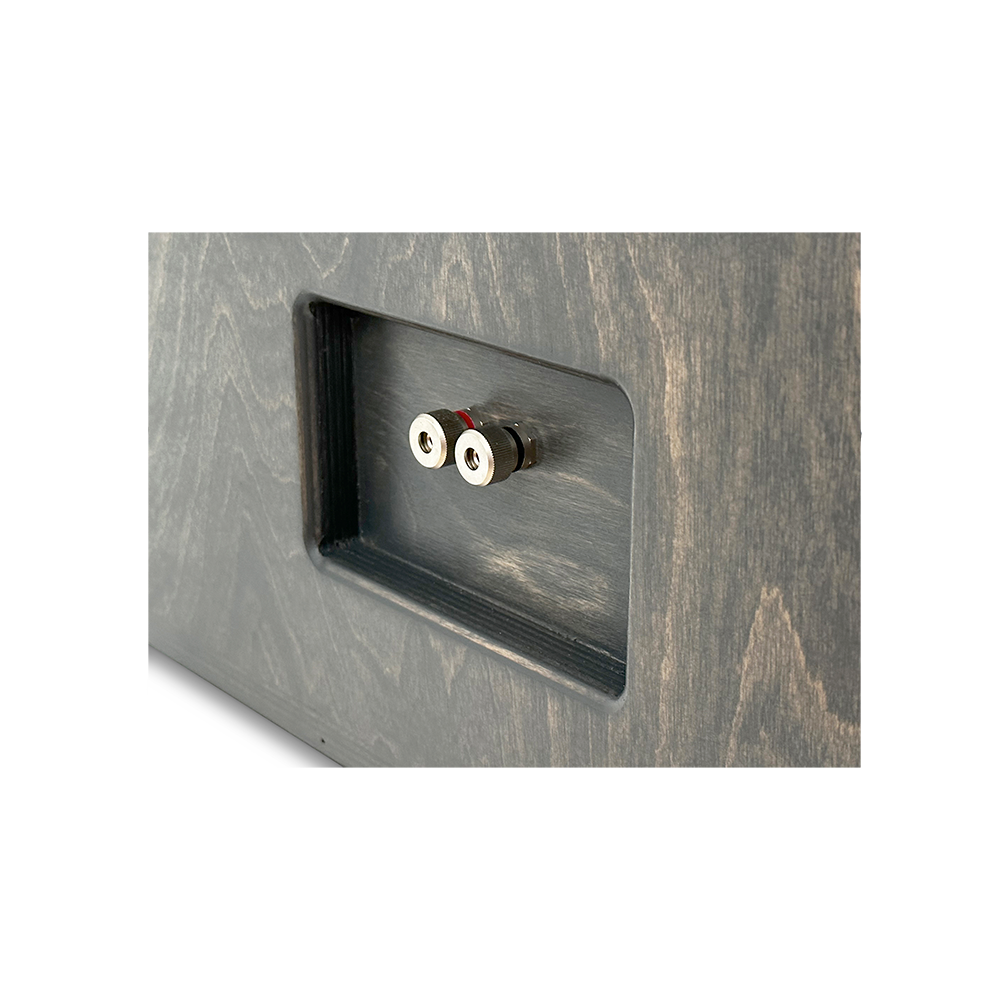

• Wiring: Pre-wired 10ga OFC with metal binding post for straightforward installation and solid terminal connection.
• Power Rating: Up to 1750W RMS, accommodating high-power W7 applications within the enclosure’s designed airspace and tuning.
• Dimensions: Height 14.0", Width 21.625", Depth 16.0" for planning trunk fit and mounting clearance.
• Handcrafted in the USA: Built by hand in the United States with attention to detail and a clean, show-quality exterior.
• Airtight integrity: Fully glued with Titebond III to promote airtight performance and long-term durability.
• Exterior finish and aesthetics: Zero visible screw holes on the exterior for a clean, professional look in any install.
• Ready to install: Arrives wired and ready to wire up your subwoofer—no additional modifications required.
• Lead Time: Built to order; ships in 2-3 weeks.

In a real car audio install, this enclosure provides a purpose-built, tuned airpath for the W7 10" sub, with durable Baltic Birch construction and a thick front baffle to support stable bass under high output. The pre-wired harness and binding posts simplify wiring, while the hand-built USA craftsmanship and airtight Titebond III glue ensure long-term durability and a clean, show-quality appearance in your vehicle trunk or cargo area.
