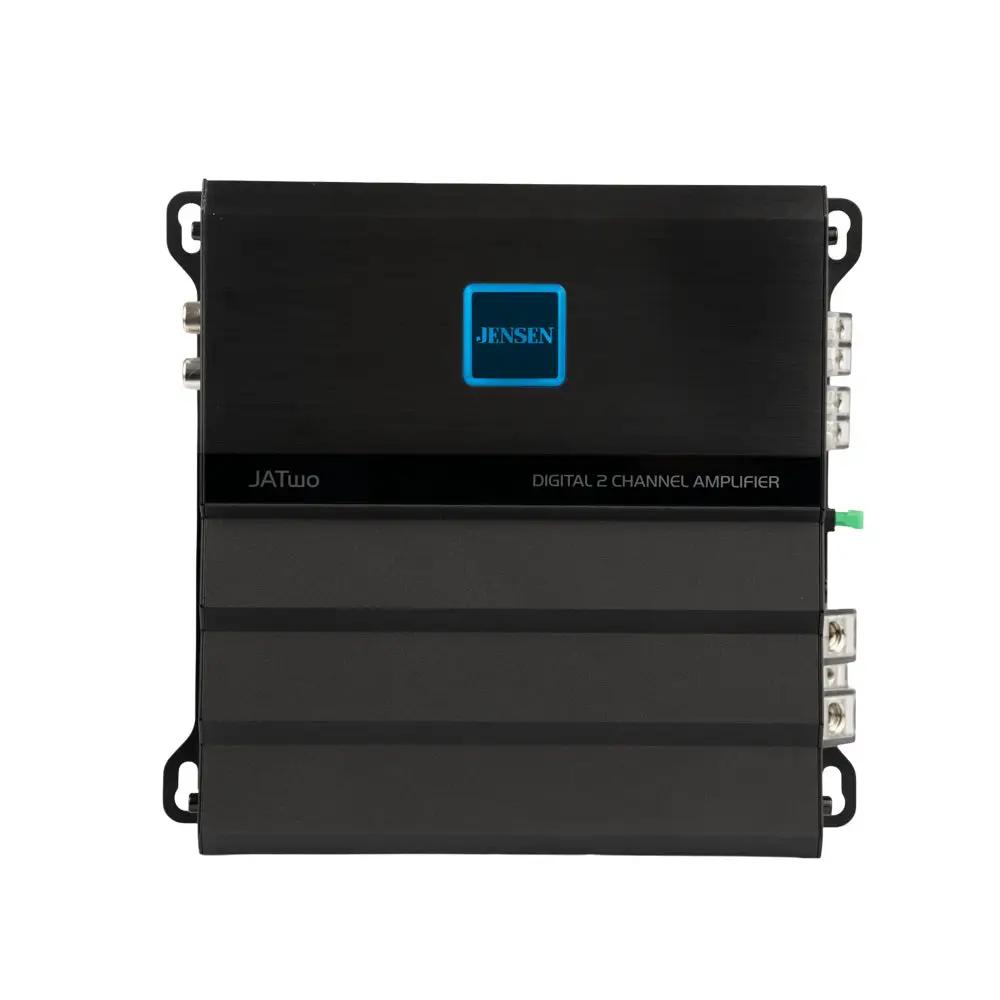

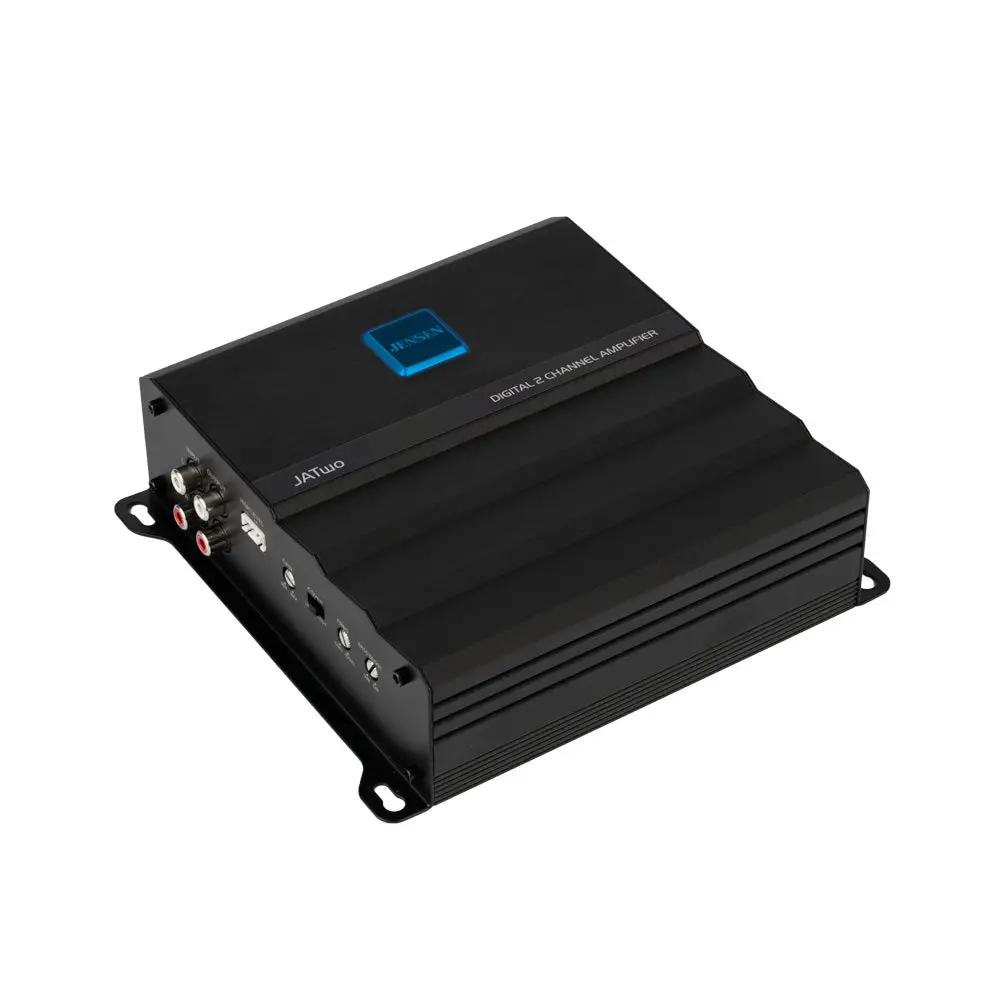

Jensen JATwo Amplifier 2-Channel MOSFET Amp
Description
Description
Upgrade your vehicle's audio system with the high-efficiency Jensen JATwo 2-Channel Class D MOSFET Amplifier. Engineered to deliver clean, dynamic power up to 530 Watts, this compact powerhouse provides exceptional audio clarity and maximum volume while keeping thermal levels low in tight vehicle spaces.
Featuring flexible high-level speaker wire and low-level RCA inputs, the JATwo seamlessly integrates into any existing aftermarket or factory stereo setup. With integrated variable crossovers, bass boost tuning, and 2-Ohm stereo stability, you achieve customized, powerful acoustic output tailored to your sound preferences.
Key Features
| Brand | Jensen |
| Model | JATwo |
| Series | Apex Series |
| Amplifier Class | Class D Digital |
| Channels | 2 |
| Peak Power Output | 530 Watts |
| RMS Power Output (4 Ohms) | 125 Watts x 2 |
| RMS Power Output (2 Ohms) | 215 Watts x 2 |
| RMS Power Output (Bridged 4 Ohms) | 445 Watts x 1 |
| Frequency Response | 20 Hz – 20 kHz |
| Signal-to-Noise Ratio | 87 dBA |
| Total Harmonic Distortion (THD+N) | <0.12% |

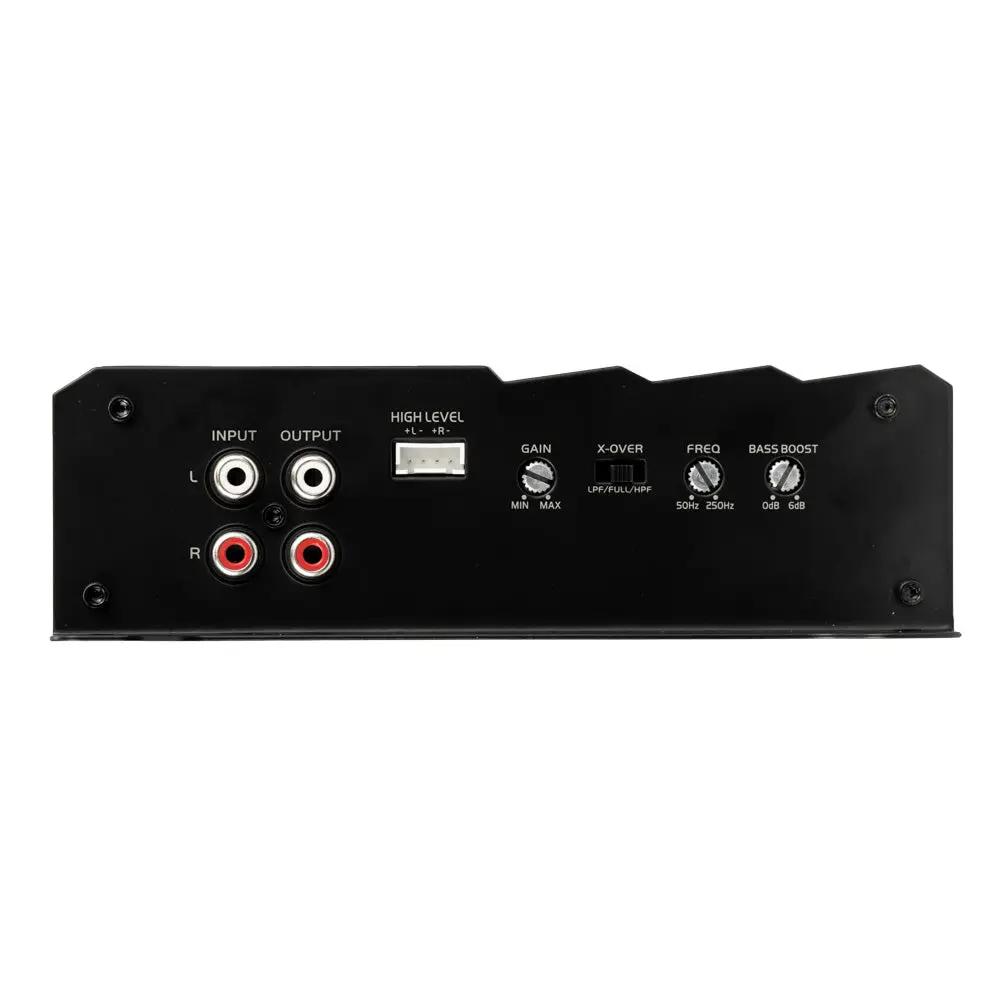

| Audio Inputs | High Level (Speaker Wire), Low Level (RCA) |
| Variable Gain | 300 mV – 6 V |
| Bass Boost | 0–6 dB @ 45 Hz |
| Crossover | Adjustable HPF/LPF/Full Range (50 Hz – 250 Hz) |
| Fuse Rating | 20A x 3 |
| Recommended Power/Ground Wire | 8 AWG |
| Recommended Speaker Wire | 12 AWG |
| Dimensions | 17.2 cm x 16.6 cm x 5.1 cm |
| Weight | 1.8 kg |
Highlights
- Peak Power: This amplifier reaches a max dynamic power of 530 Watts.
- Compact Design: The compact design allows for convenient installation.
- Efficient Power Output: The JATwo amplifier features a class D design for improved longevity and high efficiency power output.
- Easy Connection: The amplifier includes RCA inputs for connection to stereo systems.
Compatibility
Compatible with standard 12V automotive electrical systems, accepting both high-level OEM speaker inputs and aftermarket low-level RCA audio inputs.
Warranty
4-year limited warranty when registered within 60 days of purchase.Downloads
