Jensen 1 Channel MOSFET Amplifier – JAOne 1,310 Watts RMS @ 1 Ohm
Jensen 1 Channel MOSFET Amplifier – JAOne 1,310 Watts RMS @ 1 Ohm is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Jensen 1 Channel MOSFET Amplifier – JAOne 1,310 Watts RMS @ 1 Ohm
Description
Description

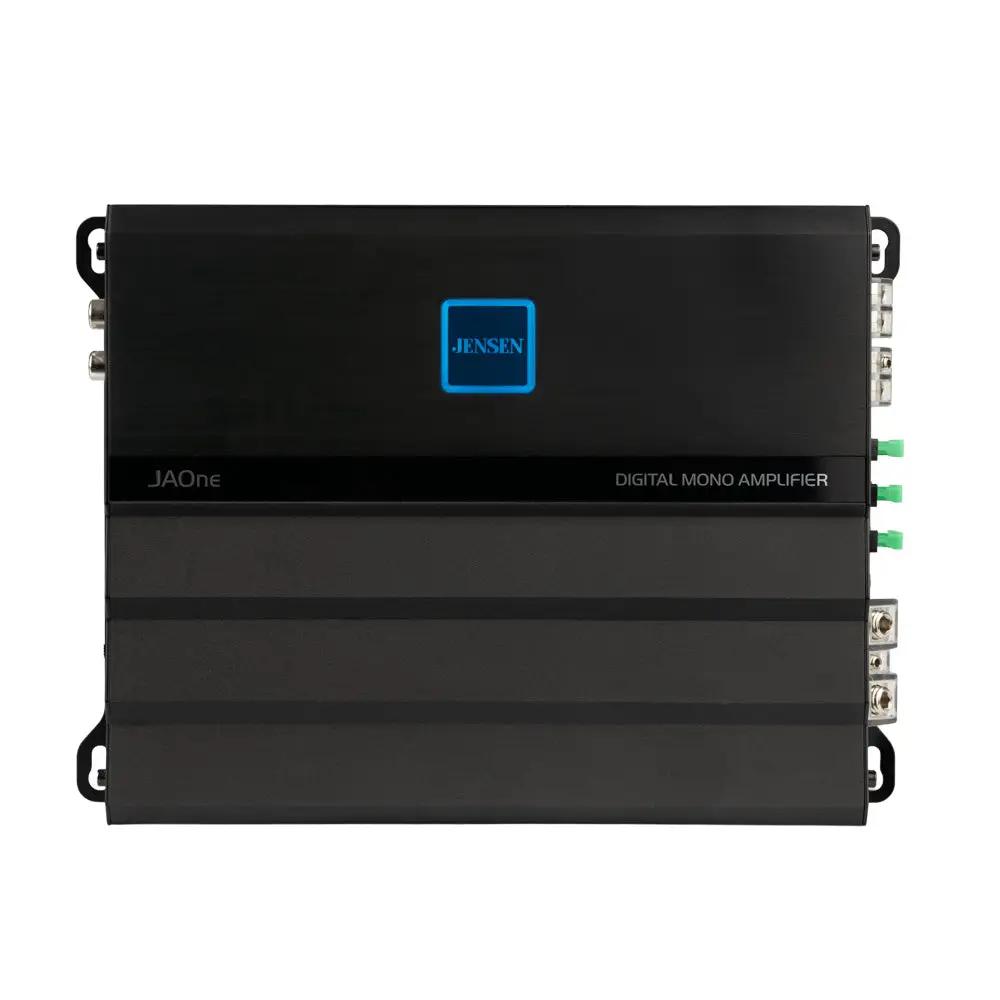

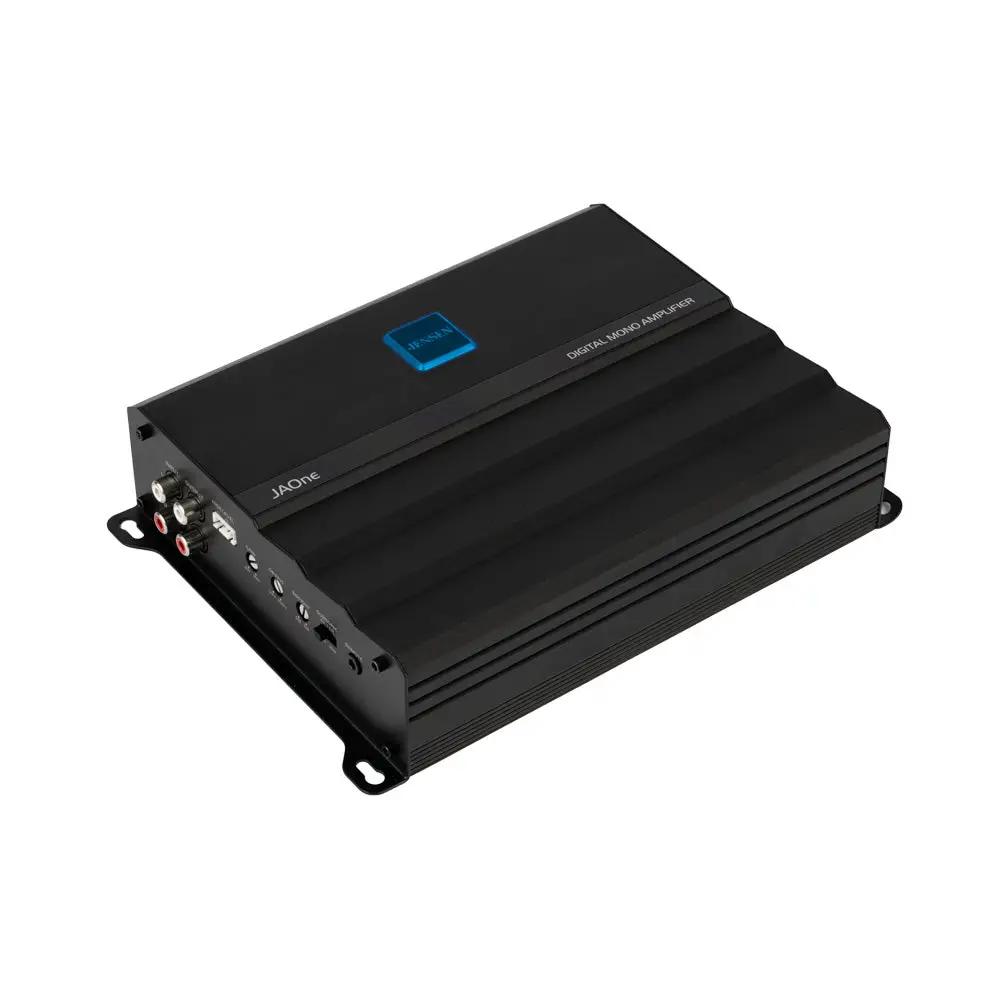

The Jensen JAOne Apex Series 1-channel MOSFET amplifier delivers pure audio performance with high-efficiency Class D digital circuitry. Engineered to run cool even in tight spaces, it pushes up to 1,525 Watts of peak dynamic power for robust, high-volume bass and audio clarity.
Its compact form factor allows for convenient, non-intrusive installation in any vehicle audio setup. Equipped with high-level speaker wire and low-level RCA inputs, adjustable low-pass crossover, and variable bass boost, it integrates seamlessly into your car stereo system.
Key Features
| Brand | Jensen |
| Model | JAOne |
| Series | Apex Series |
| Amplifier Class | Class D Digital |
| Channels | 1 Channel (Mono) |
| Maximum Peak Power | 1525 Watts |
| Continuous Power Output (RMS) | 500W RMS @ 4 Ohms, 870W RMS @ 2 Ohms, 1310W RMS @ 1 Ohm |
| Total Dynamic Power | 1000 Watts |
| Speaker Impedance | 1, 2, or 4 Ohm |
| Audio Inputs | High Level (Speaker Wire), Low Level (RCA) |
| Crossover | Adjustable low-pass crossover (50 Hz – 150 Hz) |
| Frequency Response | 20 Hz – 250 Hz |
| Gain Adjustment | Variable 200 mV – 6 V |
| Bass Boost | Variable boost at 45 Hz (0–6 dB) |
| Signal to Noise Ratio | 90 dBA |
| Total Harmonic Distortion (THD+N) | <0.04% at 1 Watt RMS |
| CTA-2006-D Certification | Certified |
| Fuse Rating | 20A x 3 |
| Recommended Power/Ground Wire | 8 AWG |
| Recommended Speaker Wire | 12 AWG |
| Dimensions | 5.1 cm x 14.3 cm x 20.9 cm (H x D x W) |
| Weight | 2.2 kg |
Highlights
- High-efficiency Class D digital mono amplifier design
- Reaches up to 1,525 Watts maximum dynamic peak power
- Compact dimensions for easy, non-intrusive installation in tight spaces
- Flexible connectivity with RCA low-level and high-level speaker inputs
- Adjustable low-pass crossover (50 Hz – 150 Hz) and variable bass boost
Compatibility
Compatible with standard 12V automotive audio systems, supporting 1 Ohm, 2 Ohm, and 4 Ohm speaker impedance configurations with RCA or speaker-level wiring.
Warranty
4-year limited warranty when registered within 60 days of purchase.Downloads
