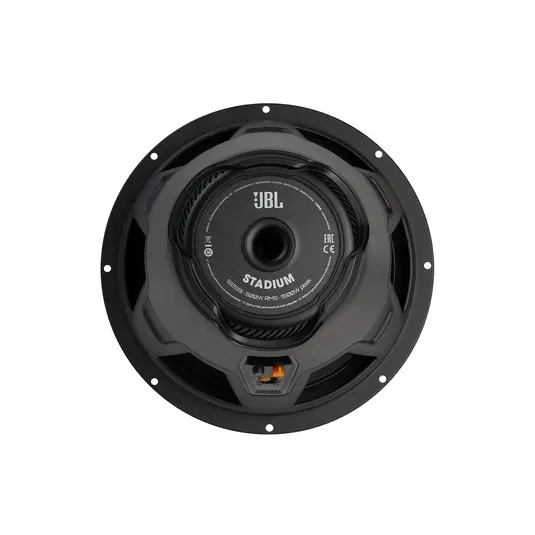

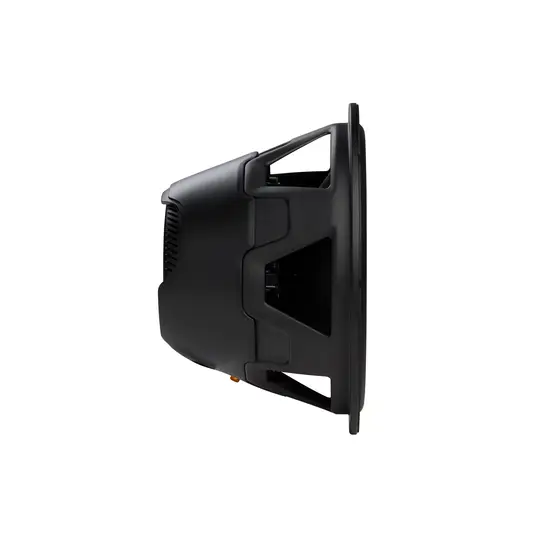

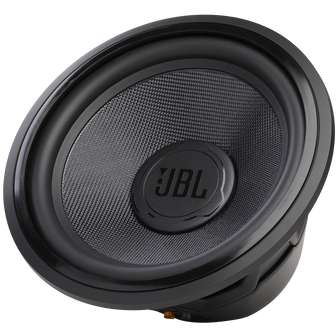

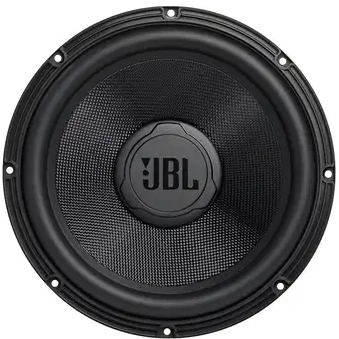

JBL Stadium 122SSI 12" Component Subwoofer

The JBL Stadium 122SSI 12" Component Subwoofer delivers 500W RMS / 1,500W peak power with a frequency response reaching down to 25Hz — and its exclusive Selectable Smart Impedance (SSI™) technology lets you switch between 2 ohms and 4 ohms to match your amplifier's optimal output impedance. One subwoofer, two impedance options, maximum amplifier compatibility. This is Stadium Series engineering applied to the low end.

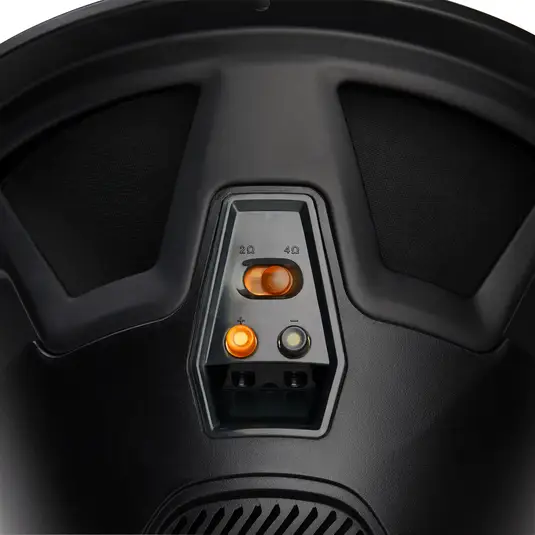

The SSI™ system is the headline feature: a built-in impedance selector lets you configure the sub at 2 ohms for maximum power output from a high-current amplifier, or 4 ohms for cleaner, more efficient operation with amplifiers that perform best at higher impedance loads. No rewiring, no separate DVC configurations to manage — just flip and go. The 2" (50mm) aero-cooled voice coil uses moving air to dissipate heat during high-output operation, keeping thermals low and performance consistent even during extended high-volume listening. Sensitivity reaches 92dB at 2.83V for strong output efficiency. Frequency response spans 25Hz to 175Hz, covering everything from infrasonic sub-bass rumble to upper bass punch. The integrated push terminals accept up to 8 AWG speaker wire for low-resistance current delivery at high power levels. Cutout diameter is 28.5cm with an 18.0cm mounting depth — fits most standard 12" enclosures.

Pair the Stadium 122SSI with a mono amplifier rated 400–500W RMS at your chosen impedance — the JBL Club A5055's 500W RMS sub channel at 2 ohms is a natural match. Use a ported enclosure tuned to 30–35Hz for maximum low-frequency extension and output, or a sealed enclosure for tighter, more accurate bass. Ideal for daily listening, SQL (Sound Quality Listening), and enthusiast builds where both output and accuracy matter.

Why Choose the JBL Stadium 122SSI?

• SSI™ Selectable Smart Impedance: Switch between 2 ohms and 4 ohms to match your amplifier's optimal output impedance — no rewiring, no separate DVC configurations.
• 2" Aero-Cooled Voice Coil: Moving-air cooling keeps thermals low during high-output operation for consistent performance and long-term reliability.
• 500W RMS / 1,500W Peak Power Handling: Serious headroom for high-powered mono amplifiers without distortion or thermal compression.
• 92dB Sensitivity: Efficient design delivers strong bass output without taxing your amplifier.
• 25Hz – 175Hz Frequency Response: Deep infrasonic extension down to 25Hz — you'll feel it as much as hear it.
• 8 AWG Terminal Compatibility: Integrated push terminals accept up to 8 AWG wire for low-resistance, high-current delivery at rated power.
• Stadium Series Engineering: Built to the same standards as JBL's flagship Stadium Series speakers — consistent sonic character across the full system.
• Broad Amplifier Compatibility: 2 or 4 ohm operation means it works with virtually any mono amplifier on the market.

Amplifier & Enclosure Recommendations

Pair the Stadium 122SSI with a mono amplifier rated 400–500W RMS at your chosen impedance. At 2 ohms, the JBL Club A5055's 500W RMS sub channel is a perfect match. At 4 ohms, any quality mono amp rated 300–500W RMS will work well. For enclosures: a ported box tuned to 30–35Hz maximizes low-frequency extension and output — ideal for hip-hop, EDM, and bass-heavy music. A sealed enclosure delivers tighter, more accurate bass with better transient response — ideal for rock, jazz, and SQL listening. Set your amplifier's low-pass crossover at 80Hz and subsonic filter at 25Hz for ported enclosures. Use 4-gauge power and ground wire to your amplifier, and 8 AWG or heavier speaker wire from amp to sub.

Full Specifications

Frequently Asked Questions

Q: How does the SSI™ Selectable Smart Impedance work?
A: The Stadium 122SSI has a built-in impedance selector that lets you configure the subwoofer at either 2 ohms or 4 ohms. Select 2 ohms to maximize power output from a high-current amplifier, or 4 ohms for cleaner, more efficient operation. No rewiring or separate DVC wiring configurations required — just select your impedance and connect.

Q: What amplifier pairs best with the Stadium 122SSI?
A: A mono amplifier rated 400–500W RMS at your chosen impedance is ideal. At 2 ohms, the JBL Club A5055's 500W RMS sub channel is a natural match. At 4 ohms, any quality mono amp rated 300–500W RMS will work well. Contact us at Trinity Car Audio for a specific amp recommendation based on your system goals.

Q: What enclosure type should I use with the Stadium 122SSI?
A: A ported enclosure tuned to 30–35Hz maximizes low-frequency extension and output — ideal for bass-heavy music genres. A sealed enclosure delivers tighter, more accurate bass with better transient response — ideal for SQL listening and music accuracy. Contact us at Trinity Car Audio for specific enclosure volume and tuning recommendations.

Q: Should I choose Dual 2 Ohm or Dual 4 Ohm?
A: Choose based on your amplifier's optimal output impedance. If your amp puts out its rated power at 2 ohms, select the 2-ohm configuration for maximum power transfer. If your amp is rated at 4 ohms, select the 4-ohm configuration for cleaner, more efficient operation. When in doubt, contact us at Trinity Car Audio and we'll match you to the right configuration for your amp.
