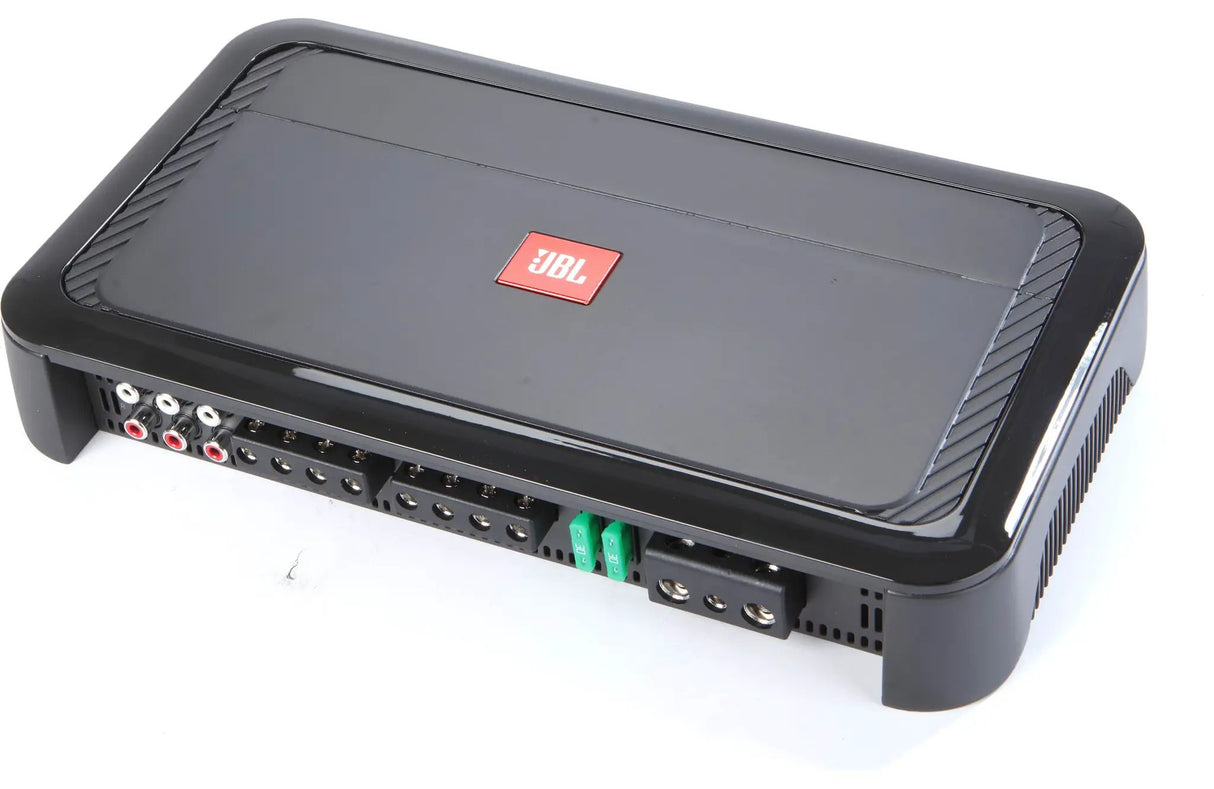

JBL Club A754 Club Series 4-Channel Amplifier

The JBL Club A754 is a four-channel amplifier built for serious car audio enthusiasts, delivering 75W RMS per channel at 4Ω and up to 200W RMS when bridged into 4Ω for sub duty. Its Class D design prioritizes efficiency so your electrical system isn’t taxed during demanding listening sessions.

• Output power (4/2Ω and bridged): 75W RMS x 4 @ 4Ω; 100W RMS x 4 @ 2Ω; 200W RMS x 2 bridged @ 4Ω (4Ω stable in bridged mode). Practical effect: strong front/rear performance with headroom, plus a bridged pair to drive a sub for integrated bass.
• Class D design: Class D design means it won't put a huge load on your vehicle's electrical system.

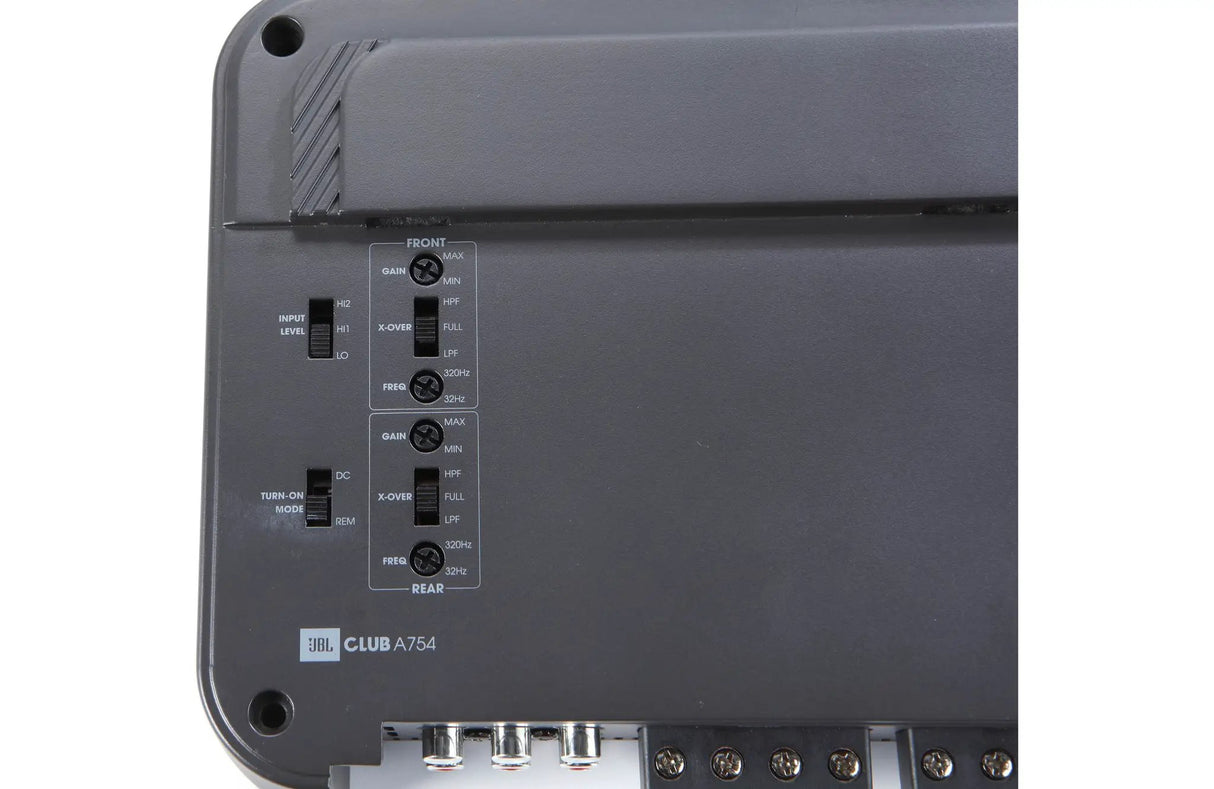

• Independent high- and low-pass filters: Front and rear channels each have adjustable high- and low-pass filters (32–320 Hz, 12 dB/octave) to tailor crossover points to your speakers or sub.

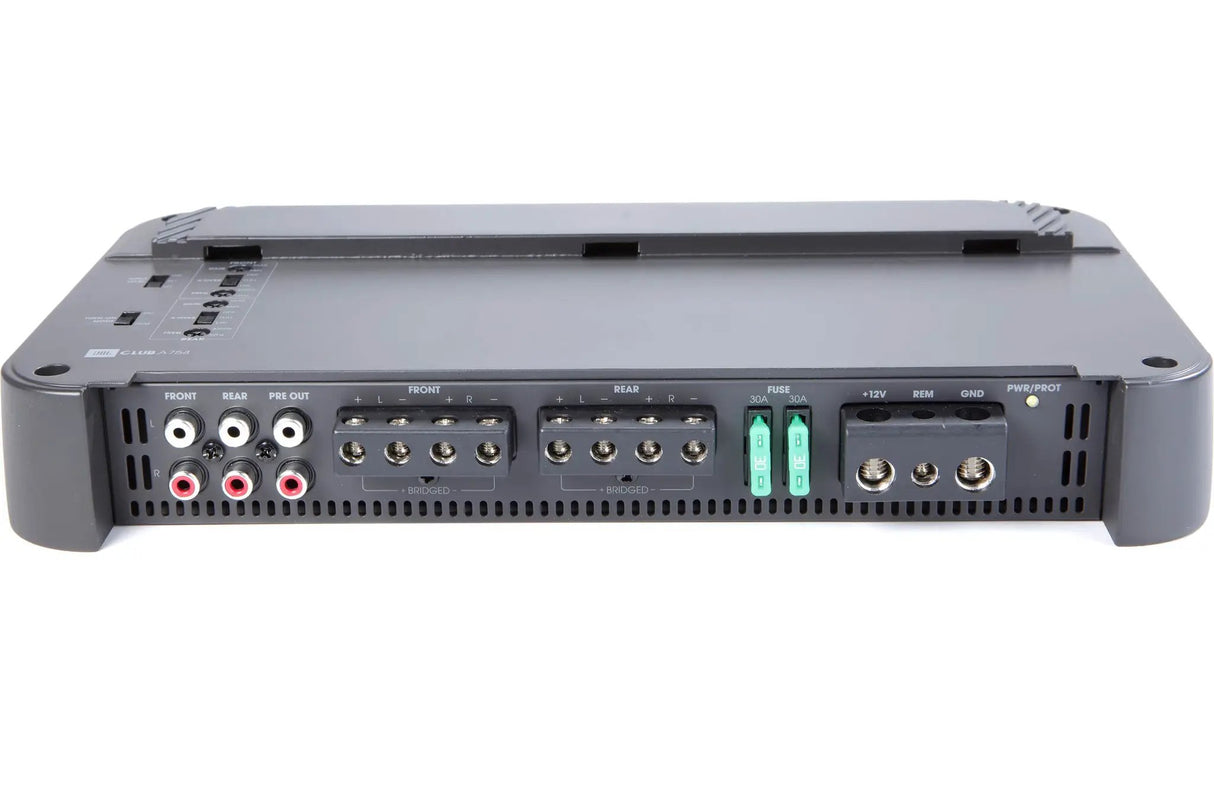

• Inputs and turn-on: Speaker-level inputs and signal-sensing turn-on enable easy integration with factory radios or non-factory head units.
• High-level input adapters: Bare wire to RCA adapters included for high-level input.
• Preamp outputs and wiring: Preamp outputs; wiring and hardware are not included with the amplifier.
• Power and installation: 8-gauge power and ground leads recommended for proper installation and reliability.
• Dimensions: 12-1/2"W x 2"H x 7"D — compact footprint suitable for under-seat or trunk mounting.
• Warranty: 1-year warranty from JBL.

In a typical build, the A754 powers front and rear speakers with clear, controlled dynamics at 4Ω, while two bridged channels can drive a sub for tight, integrated bass. The adjustable crossovers let you dial in the exact blend between speakers and sub without external processors. Factory radio integration is straightforward thanks to speaker-level inputs and signal-sensing turn-on, and the included high-level adapters keep wiring tidy. With a compact size and recommended 8 AWG power/ground, it’s a straightforward upgrade for a performance-focused, multi-channel install.
