Hifonics ZD-3350.1D ZEUS DELTA 3300 Watt Mono Block Amplifier
Description
Description
The Hifonics ZD-3350.1D ZEUS DELTA mono block amplifier delivers up to 3350 watts of high-efficiency Class D power in a compact footprint. Engineered with a Pulse Width Modulated MOSFET power supply and Simpatico coil design, it ensures stable current levels and minimal heat generation across all impedance loads.

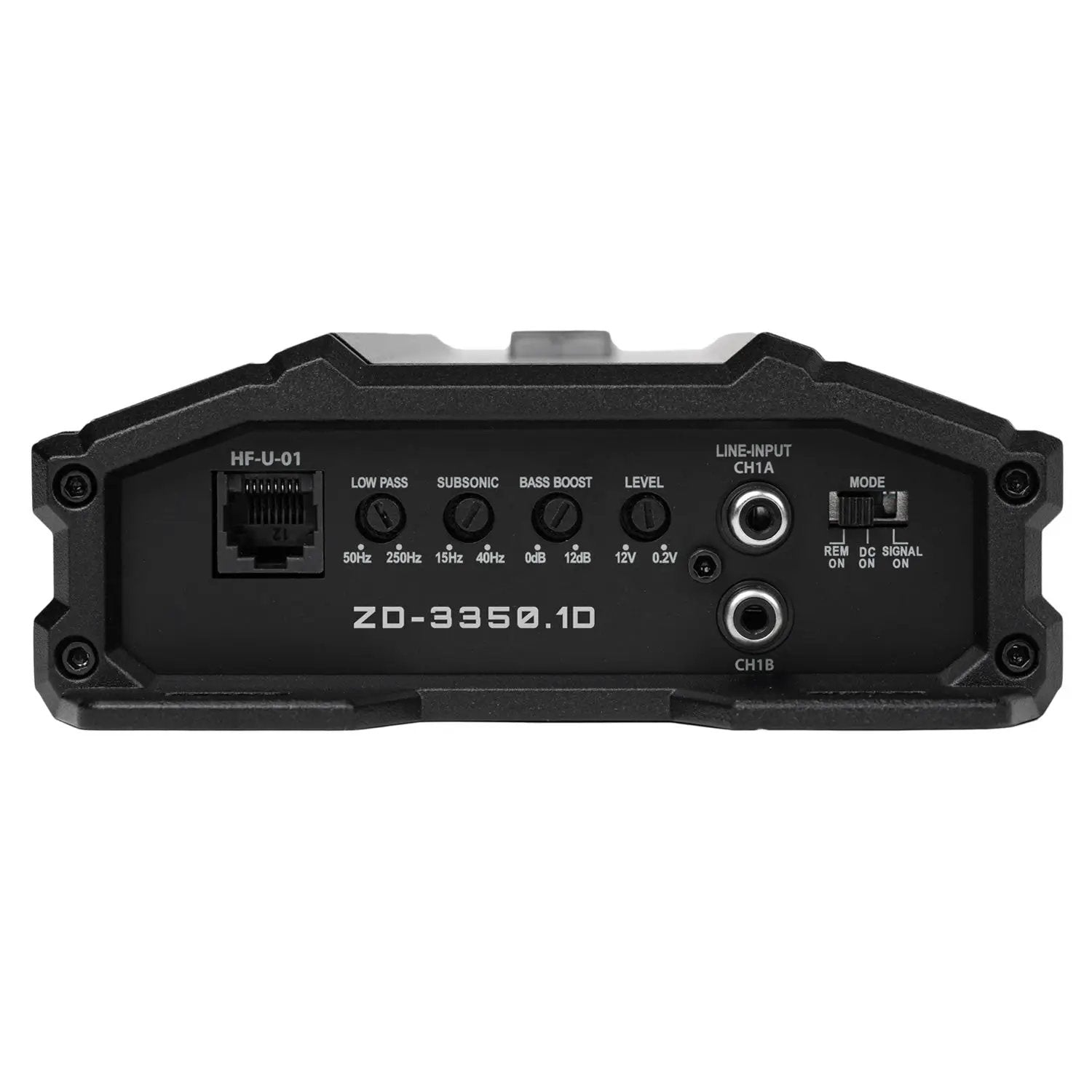

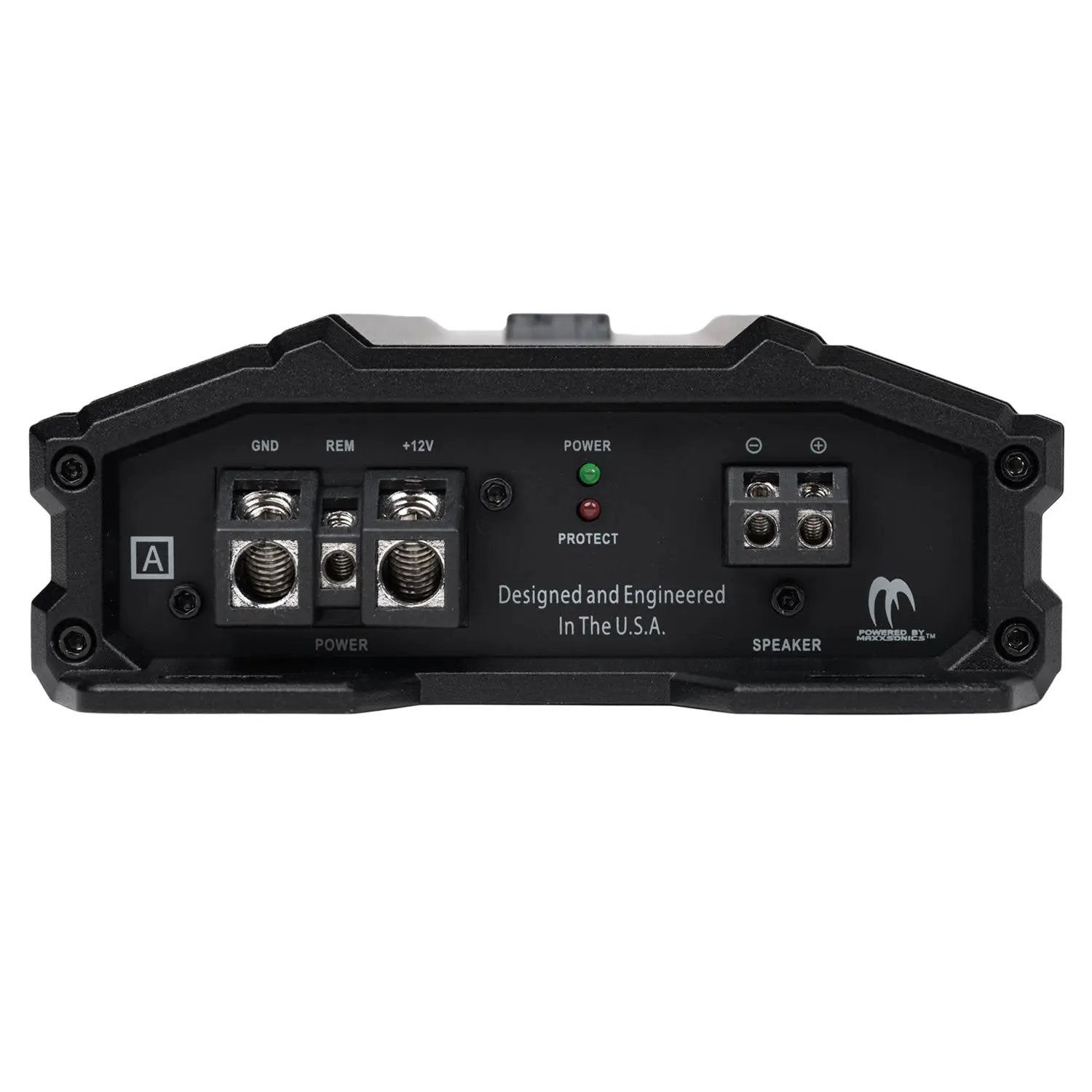

Equipped with an onboard electronic crossover, variable subsonic filter, and built-in bass boost control, this amplifier enables precise acoustic tailoring for subwoofers. High-temperature, nickel-plated RCA inputs and secure angled molded connection terminals provide clean wire management and erosion-resistant connectivity.
Advanced LED diagnostic circuitry actively monitors overload and short circuits, while integrated DC signal sensing offers automatic turn-on capabilities directly through source unit inputs. An included bass remote allows for convenient real-time level adjustments from the driver's seat.
Key Features
| Brand | Hifonics |
| Series | ZEUS DELTA |
| Model | ZD-3350.1D |
| Product Type | Mono Block Amplifier |
| Amplifier Class | Class D |
| Total Channels | 1 |
| Max Power | 3350 W |
| Power Output @ 1 Ohm | 1 x 3350 W |
| Power Output @ 2 Ohms | 1 x 1675 W |
| Power Output @ 4 Ohms | 1 x 850 W |
| Frequency Response | 15Hz - 250Hz |
| Total Harmonic Distortion (THD) | < 0.1% |
| Low Pass Crossover | 50Hz - 250Hz (12dB/octave) |
| Subsonic Filter | 15Hz - 40Hz |
| Bass Boost | 0 - 12dB |
| Variable Voltage Input | 0.2 - 6V |
| Power / Ground Terminal Gauge | 2 AWG |
| Speaker Terminal Wire Gauge | 12 AWG |
| Fusing | External 175A |
| Heatsink Material | Aluminum |
| Color | Black |
| Dimensions | 51.5 × 17.5 × 8.0 cm |
| Weight | 2.0 kg |
Highlights
- Delivers up to 3350 watts max output with high-efficiency Class D topology
- PWM MOSFET power supply with Simpatico dual coil design for stable voltage
- Variable electronic crossover, subsonic filter (15Hz-40Hz), and 0-12dB bass boost
- LED system protection circuitry for short circuit and overload diagnostics
- Includes external bass remote control
Compatibility
Universal fitment for 12V automotive audio applications requiring mono subwoofer amplification.
What's included
- Hifonics ZD-3350.1D ZEUS DELTA Mono Amplifier
- Bass Remote Control Unit
