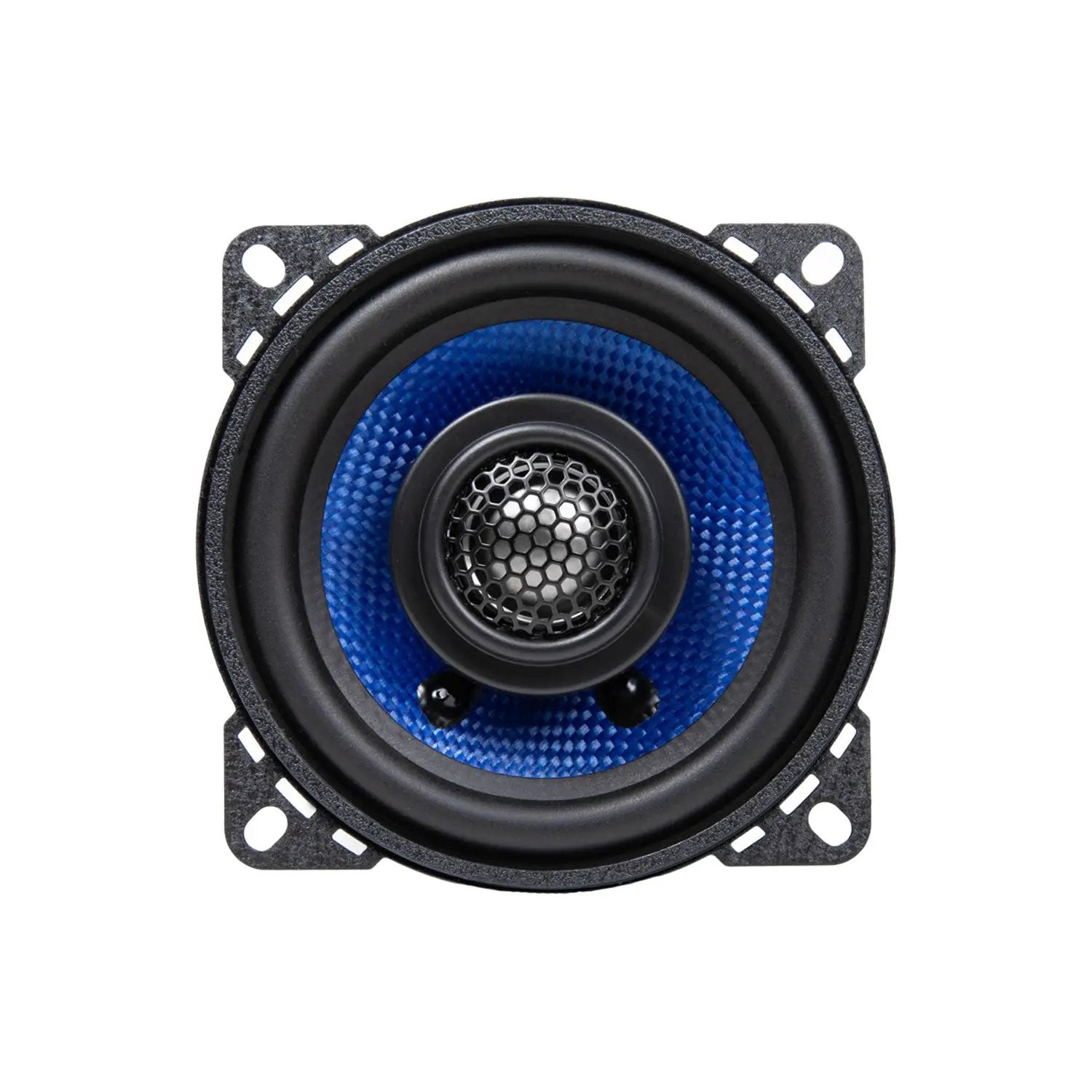

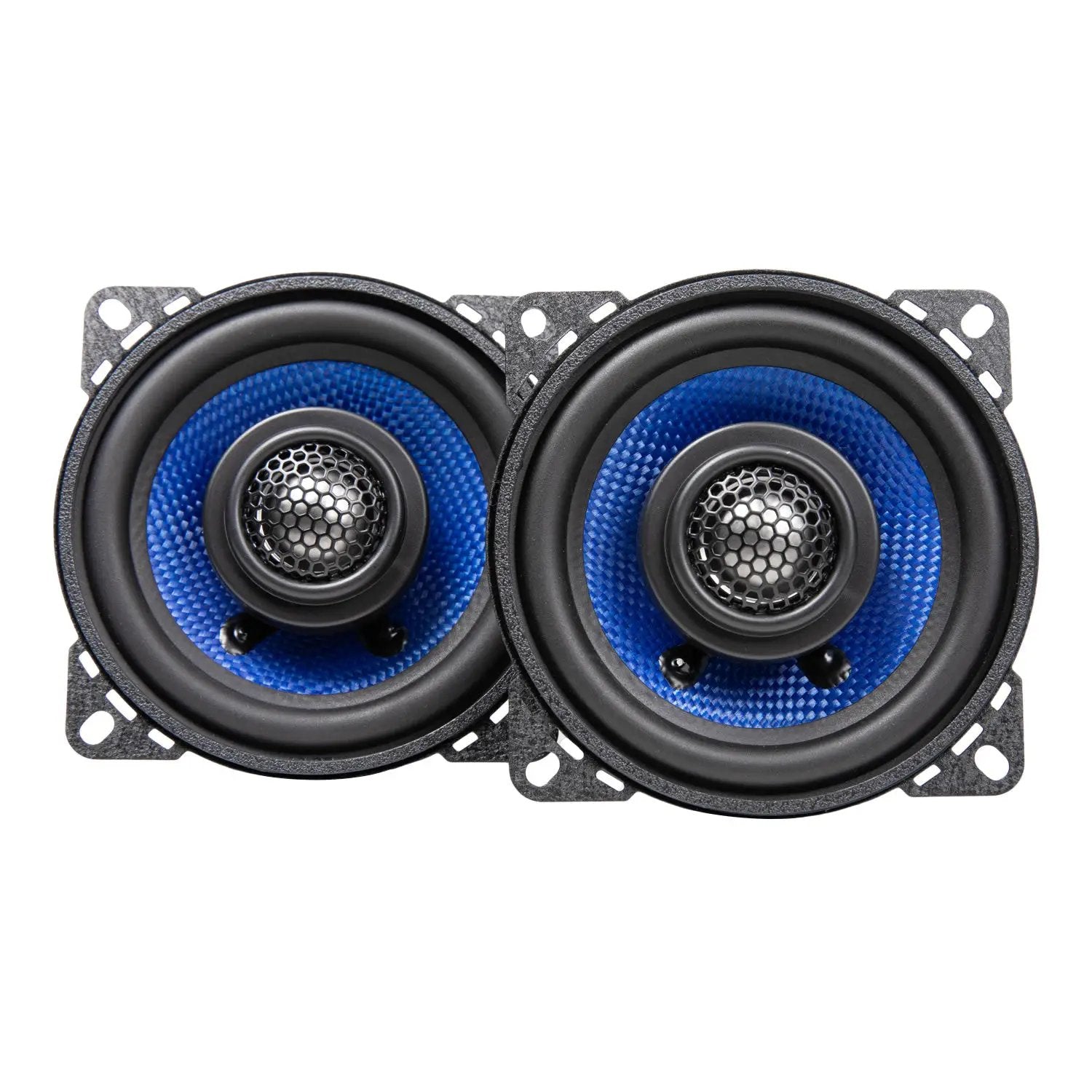

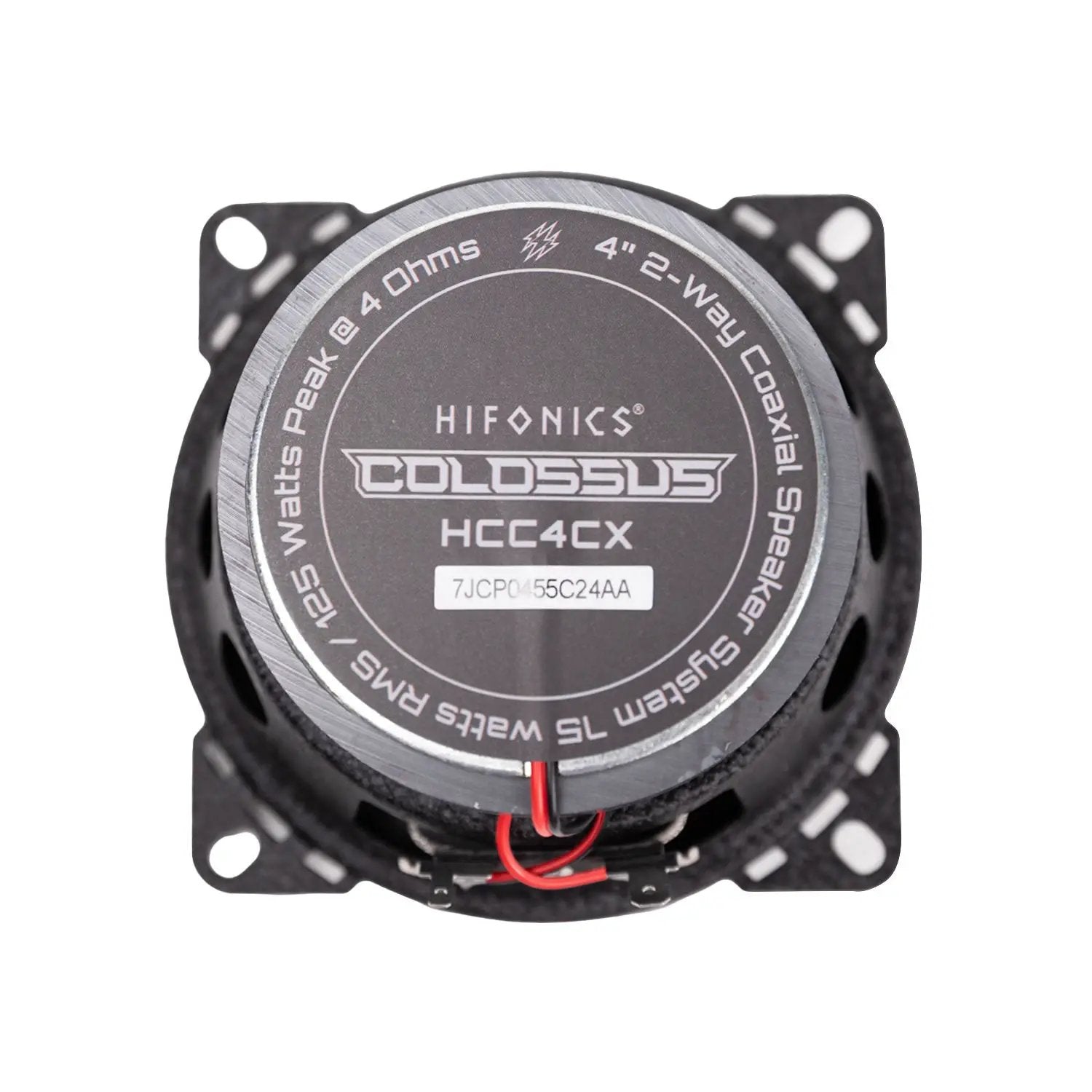

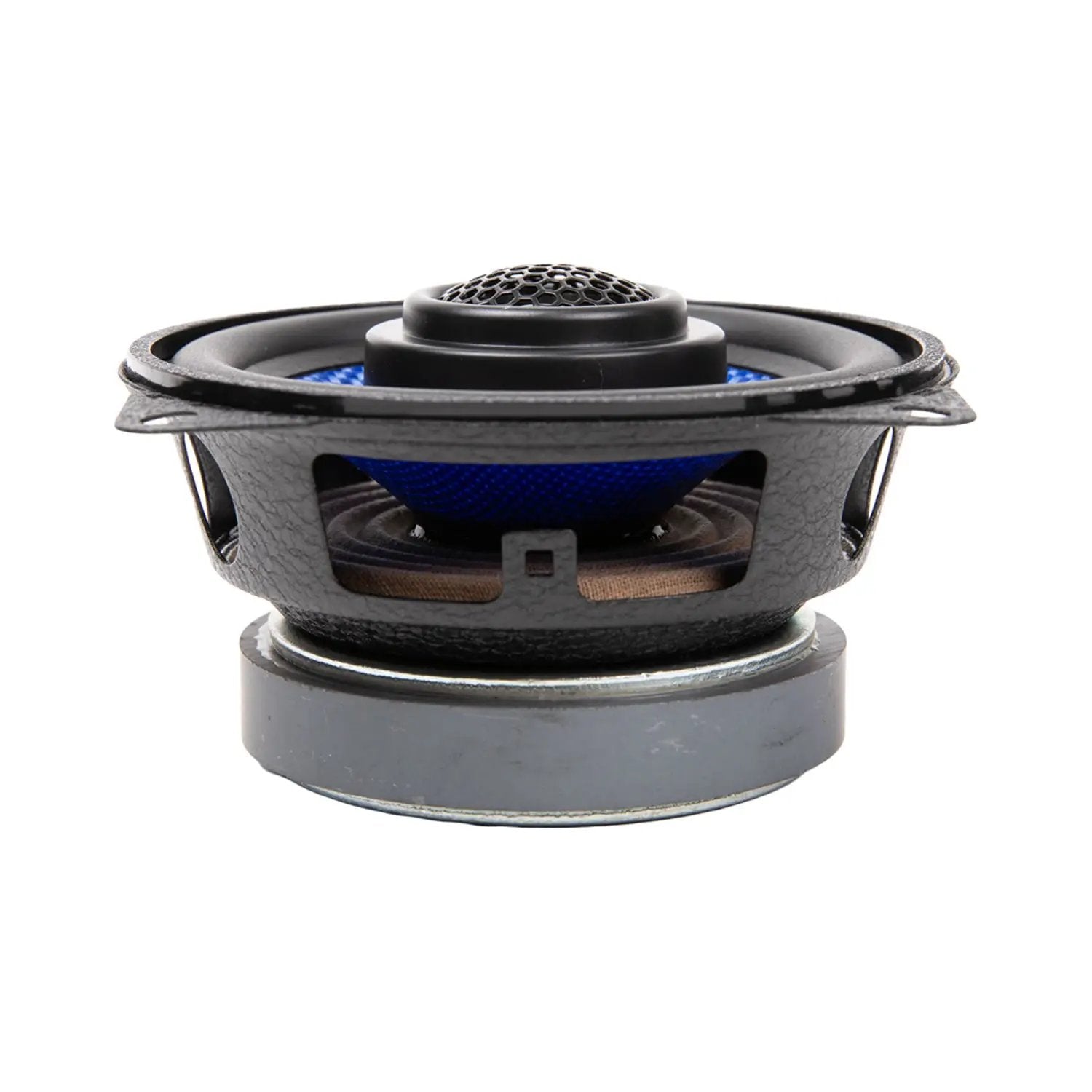

Hifonics HCC4CX COLOSSUS Classic 4 Inch Coaxial Speakers
Description
Description
The Hifonics HCC4CX COLOSSUS Classic coaxial speakers deliver clear audio reproduction and high-output sound for vehicle sound systems. Equipped with lightweight blue woven fiber cones and durable butyl rubber surrounds, they ensure fast midrange response and deep mid-bass impact.
High frequencies are handled by 1-inch aluminum dome tweeters integrated with a passive Butterworth crossover for a seamless transition across the frequency range. The Kapton voice coil former assembly and overcoil cooling system effectively dissipate heat during extended playback.
Built on an anti-resonant stamped steel basket with a compact ferrite motor, these speakers install easily behind vehicle panels or dashboards using standard spade connectors or direct soldering.
Key Features
| Brand | Hifonics |
| Series | COLOSSUS CLASSIC |
| Type | Speaker |
| Speaker Size | 4" |
| RMS Power Handling | 40 W |
| Peak Power Handling | 75 W |
| Impedance | 4 Ohms |
| Frequency Response | 80Hz - 20kHz |
| Sensitivity | 88 dB |
| Crossover Slope | 6kHz 12dB |
| Mounting Diameter / Cutout | 9.4 cm |
| Outside Diameter | 13.7 cm |
| Mounting Depth | 7.6 cm |
| Weight | 1.2 kg |
| Overall Dimensions | 30.5 × 15.2 × 7.6 cm |
| Color | Black / Blue |
| Condition | New |
| Tweeter Size | 1" |
| Cone Material | Woven Fiber |
| Surround Material | Butyl Rubber |
| Basket Material | Stamped Steel |
| Magnet Type | Ferrite |
Highlights
| Feature | Description |
|---|---|
| Tweeters | 1-inch aluminum dome tweeters deliver high output, extend frequency response, and keep music reproduction feeling natural. |
| Cone Material | Lightweight blue woven fiber cones enables faster midrange response. |
| Surround / Cone Coupling | Butyl rubber surrounds provide durability and deeper mid-bass impact. |
| Voice Coil / Former Assembly | Pure copper voice coil creates strong magnetic field with a very thin extrusion. The Kapton former assembly is lightweight and efficiently dissipates heat. |
| Spider | Epoxy infused natural fiber allows flexibility while the epoxy which gives strength during the manufacturing process. |
| Cooling System | Overcoil coolling system allows air to be exchanged over the voice coil through the spider. |
| Crossover | Passive Butterworth crossover gives smooth transition of frequencies from midrange/midbass to the tweeter element. |
| Frame | Anti-resonant stamped steel basket strengthens the whole speaker assembly with minimal harmonics or distortion from flex and ringing. |
| Motor | Ferrite magnet creates a strong magnetic field while remaining small enough to fit nearly every application. |
| Connectors | Spade connectors or solder direct for the best connection. |
| Grills | No: Typical installation mounts speakers behind a panel or dash. |
Compatibility
Universal fit designed for standard 4-inch speaker locations in vehicle doors, dashboards, or rear decks behind factory panels.
