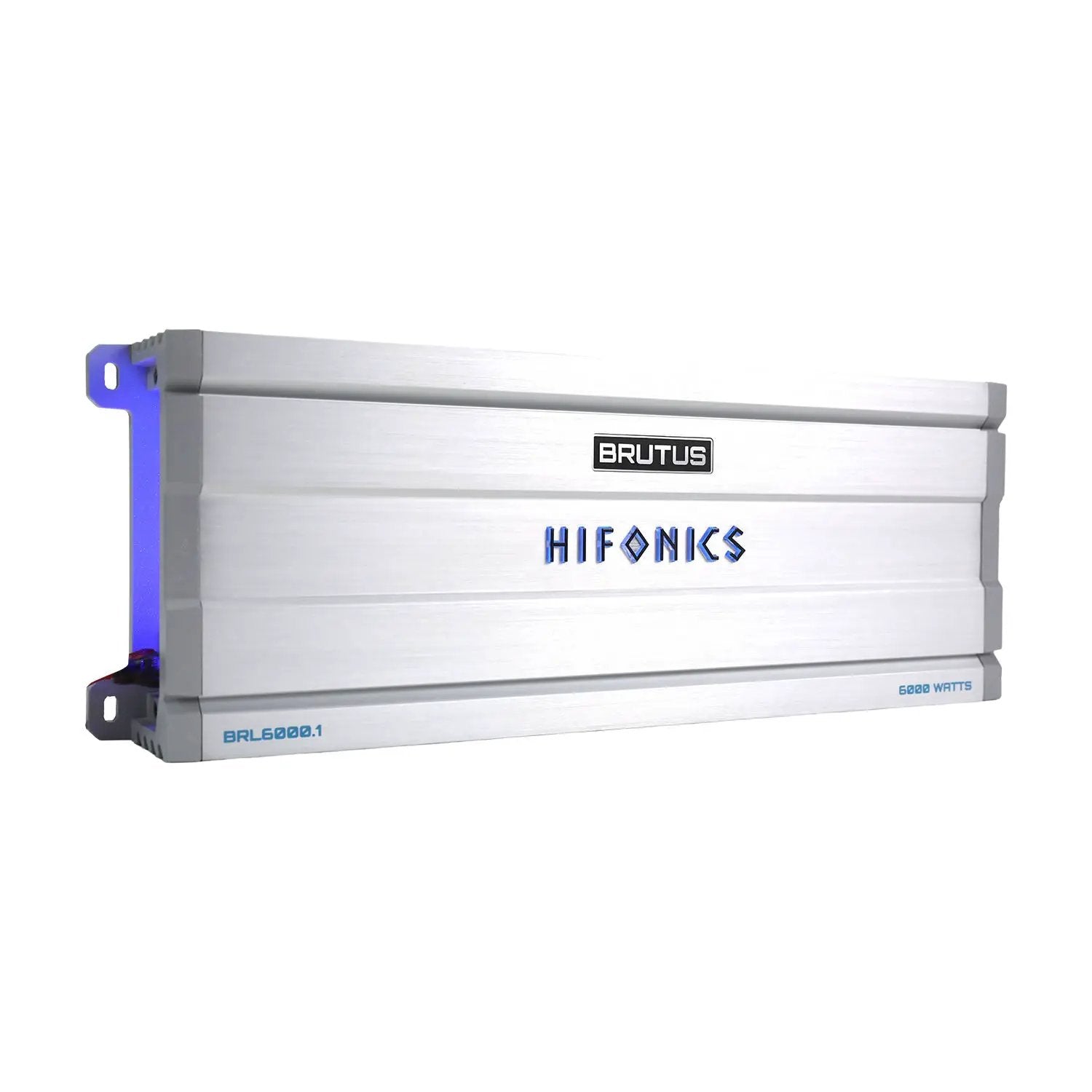

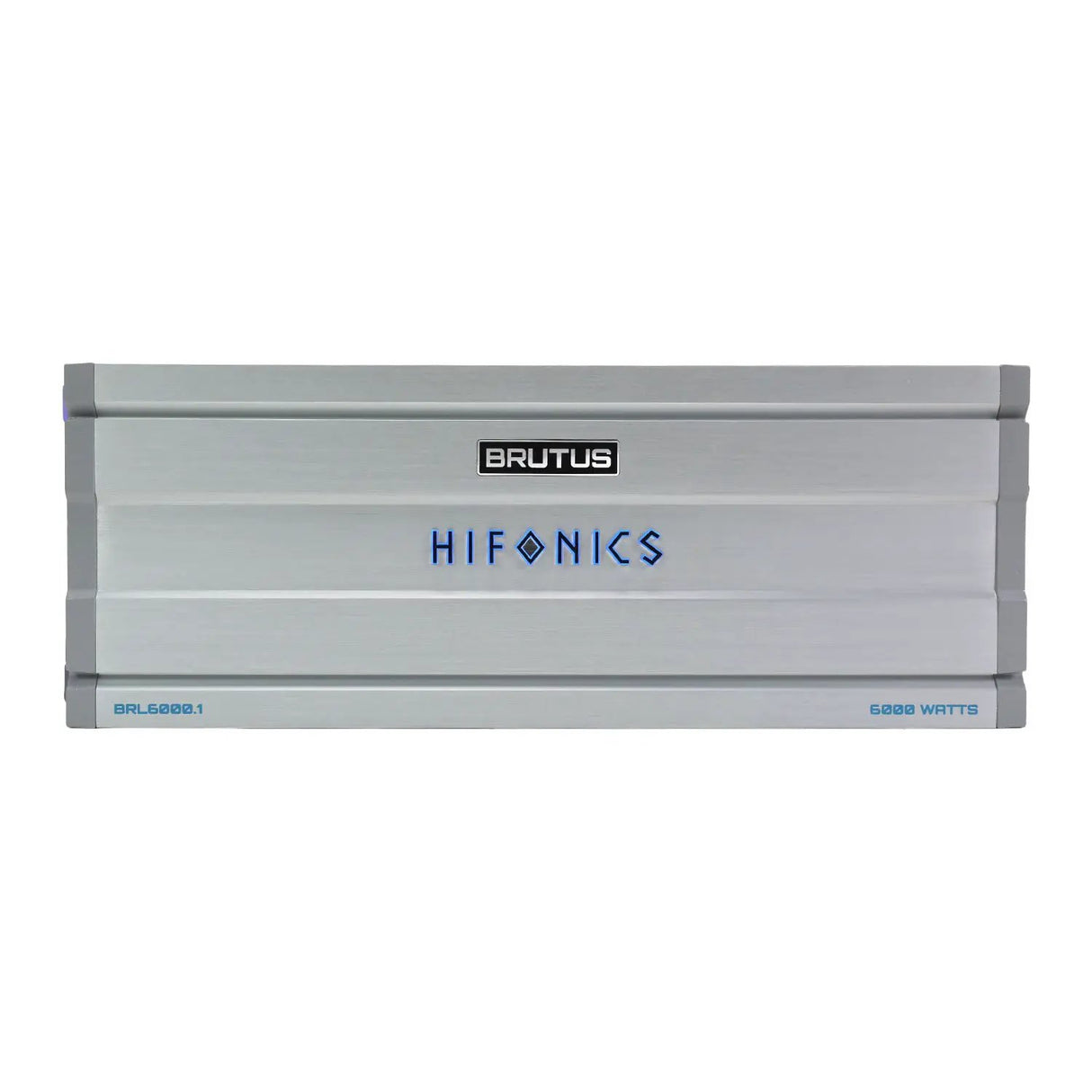

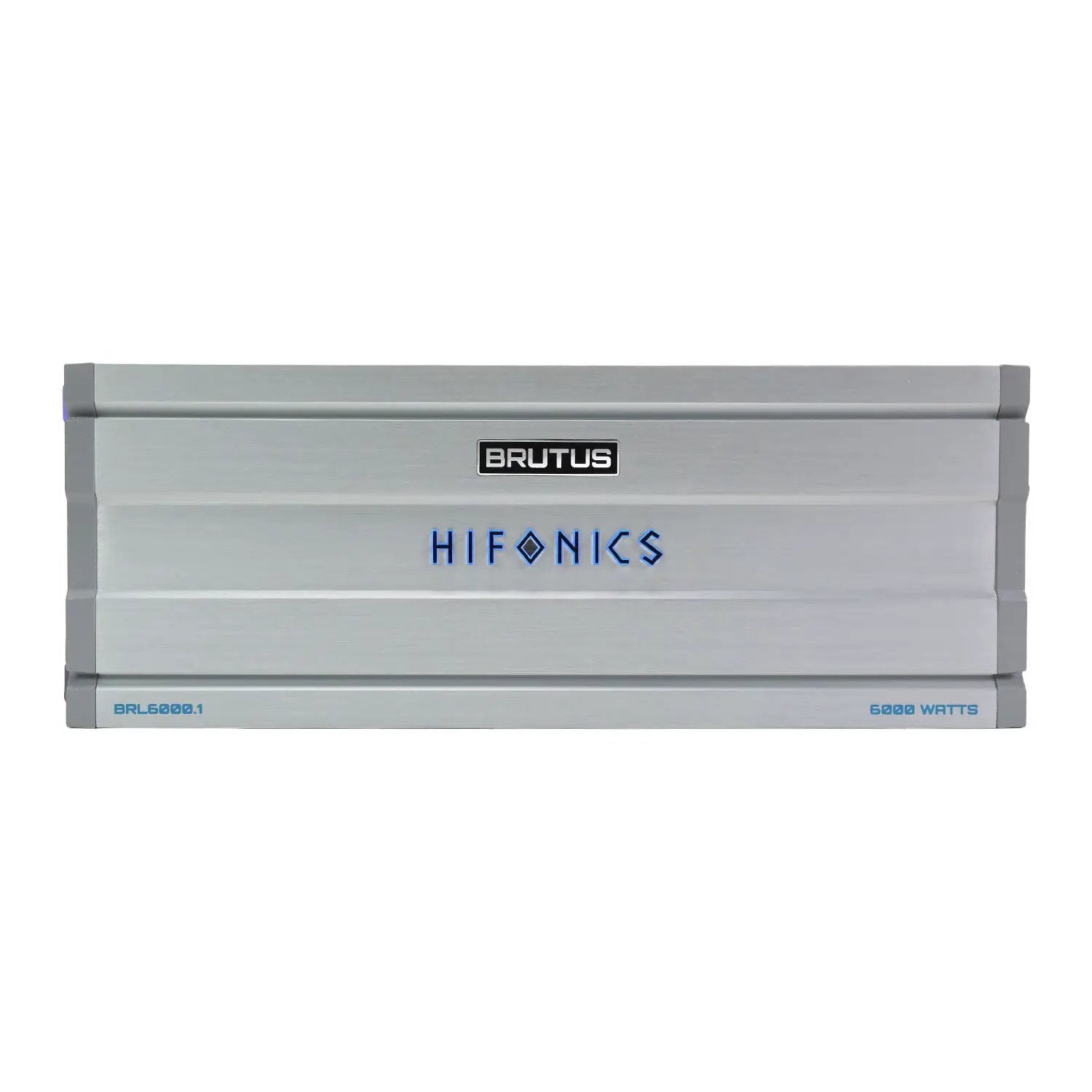

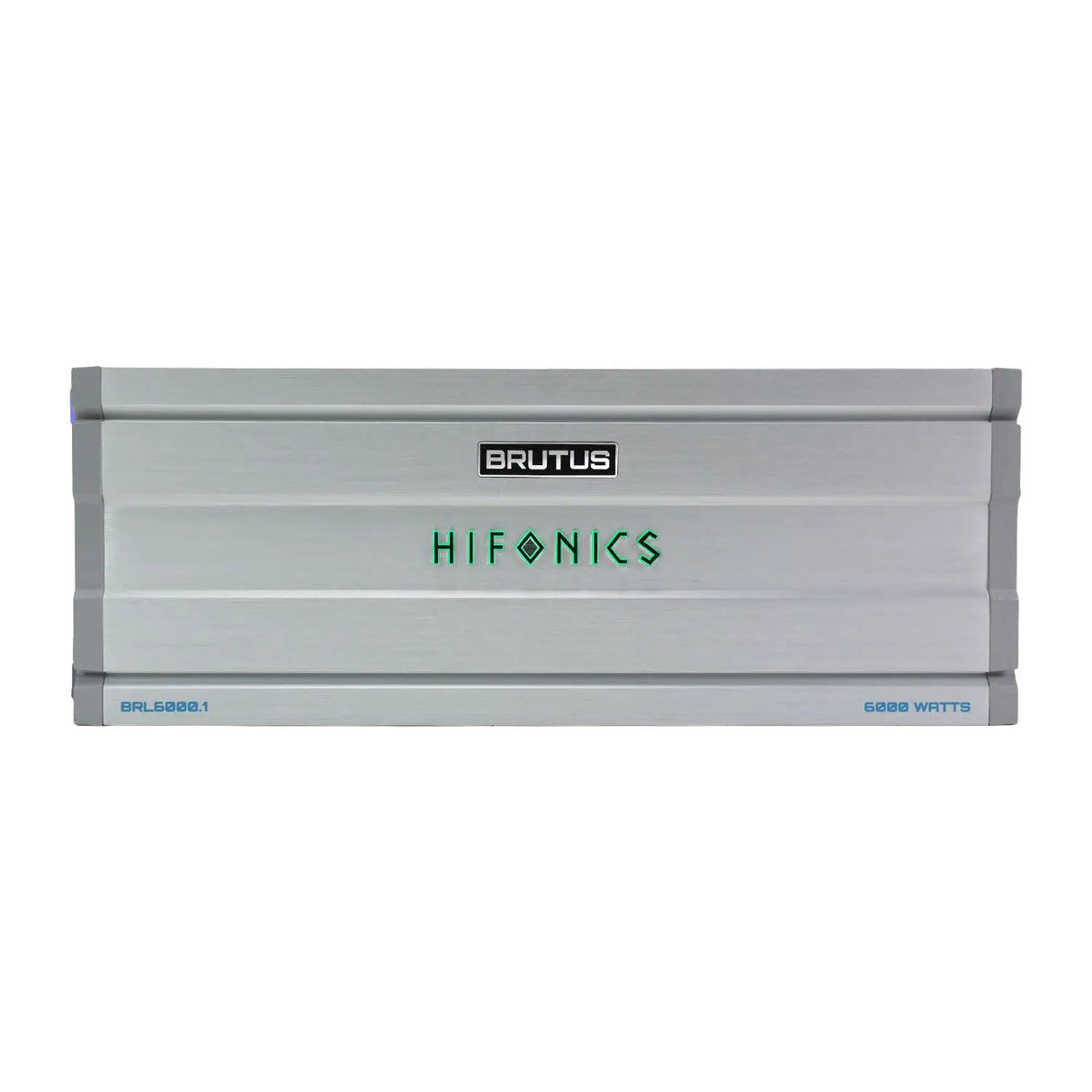

Hifonics BRL6000.1 BRUTUS BRL 6000 Watt Mono Block Amplifier
Description
Description
The Hifonics BRUTUS BRL6000.1 is an ultra-high-efficiency Super D Class mono block amplifier engineered to deliver up to 6000 watts RMS of clean output power. Built on a half-bridge topology with an iron core transformer and Ultra-Fi MOSFETs, it provides superior thermal dissipation and ultra-low EMI interference.
Equipped with a multi-layer printed circuit board and an extruded mass-loaded aluminum heat sink, this amplifier ensures reliable power management under heavy loads. Integrated triple protection circuits safeguard against over/under voltage, short circuits, overcurrent, and thermal overload.

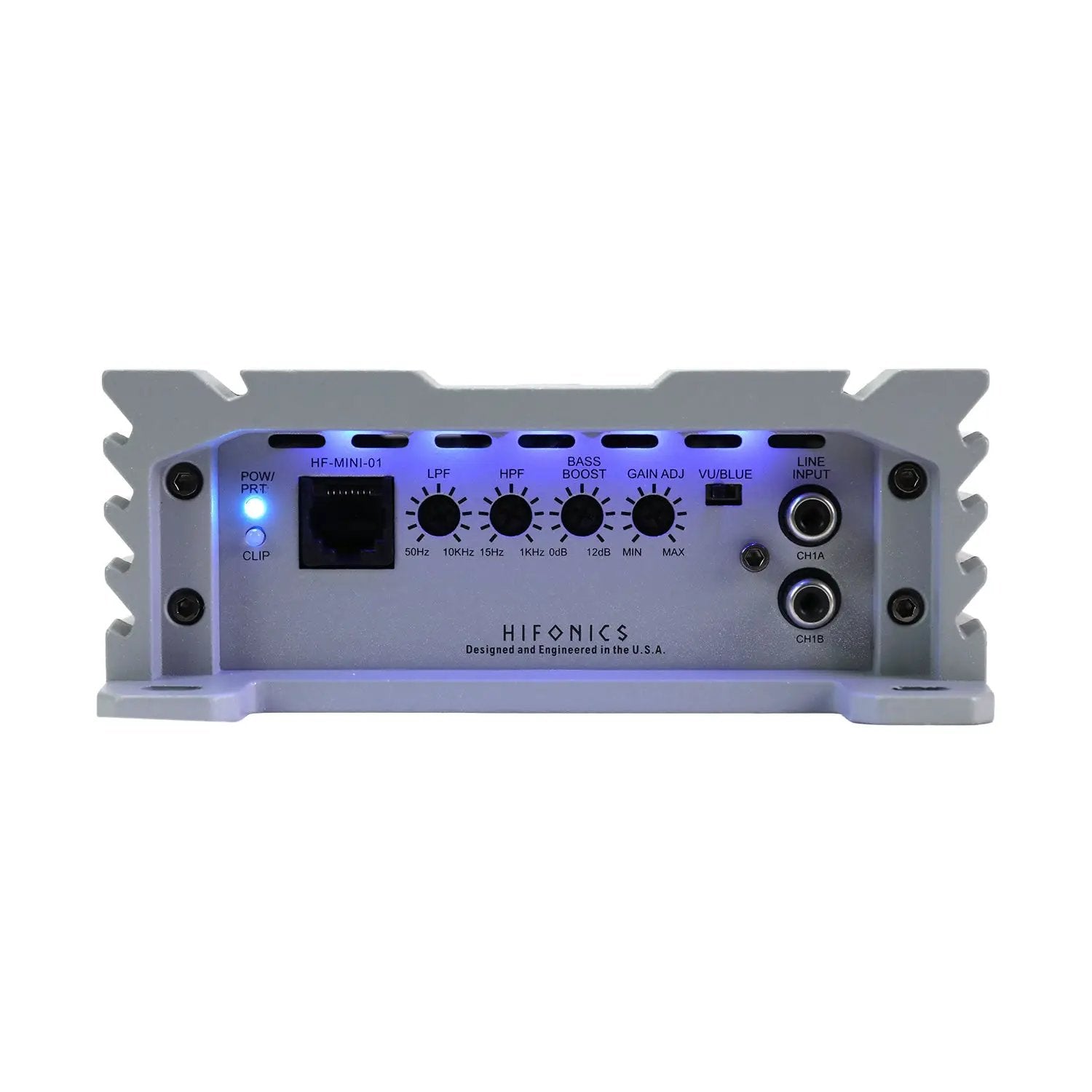

Precision sound tailoring is achieved through comprehensive variable electronic crossovers, built-in bass boost, and an included remote bass level control. The front panel features stylized illumination with switchable blue LED badging and a functional VU meter mode for visual gain adjustment.
Key Features
| Brand | Hifonics |
| Series | BRUTUS BRL |
| Model | BRL6000.1 |
| Type | Amplifier |
| Amp Class | Super D Class™ |
| Amp Total Channels | 1 |
| Amp Max Power | 6000 W |
| Amp Power @ 1 Ohm | 1 x 6000 W |
| Amp Power @ 2 Ohms | 1 x 4200 W |
| Amp Power @ 4 Ohms | 1 x 2400 W |
| Amp Frequency Response | 10Hz-10kHz |
| Amp Signal to Noise | 101dB |
| Amp Total Harmonic Distortion (THD) | < 0.5% |
| Amp Variable Voltage | 0.2-9V |
| Amp Bass Boost | 0-12dB |
| Amp Variable Low Pass Crossover | 50Hz-10KHz |
| Amp Variable High Pass Crossover | 15Hz-1KHz |
| Amp Power Terminal Wire Gauge | 0 AWG |
| Amp Speaker Terminal Wire Gauge | 12 AWG |
| Amp Fusing | External 500A |
| Item Dimensions | 41.5 × 14.6 × 5.7 cm |
| Item Weight | 3.7 kg |
| Package Dimensions | 52.7 × 18.7 × 9.2 cm |
| Package Weight | 4.2 kg |
| Color | Black |
| Condition | New |
Highlights
| Feature | Description |
|---|---|
| Ultra-High Efficient Design | A power supply design coupled with selected parts results in an ultra-high efficient amplifier. |
| Half Bridge Design | An efficient design with fewer components results in higher power output. |
| Ultra-Low EMI Design | Minimal interference with other vehicle electronic systems. |
| Mass-Loaded Heat Sink | The mass-loaded extruded aluminum heat sink results in thermal management and output performance. |
| High-End Preamplifier Circuit | Accepts a wider range of input signals. |
| RCA Inputs | Nickel-plated RCA jacks create an efficient connection that is corrosion-resistant. |
| High Tolerance Output Device | Ultra-Fi MOSFETS are designed for high output power and thermal dissipation through a proprietary coupling method. |
| Operation Mode | Mono only |
| Clean Board Construction | Multi-layer printed circuit boards (PCB) with surface mount components require fewer parts and result in a cleaner design. |
| Class / Topology | BRL amplifiers feature a Class-D chipset, making them efficient and allowing for a wide frequency range. |
| Power Supply | Iron core transformer assists in the ultra-low EMI design while providing high power. |
| Delayed Turn-On Function | Ensures compatibility with a wide range of source units to eliminate unwanted turn-on/off noises like hisses and pops. |

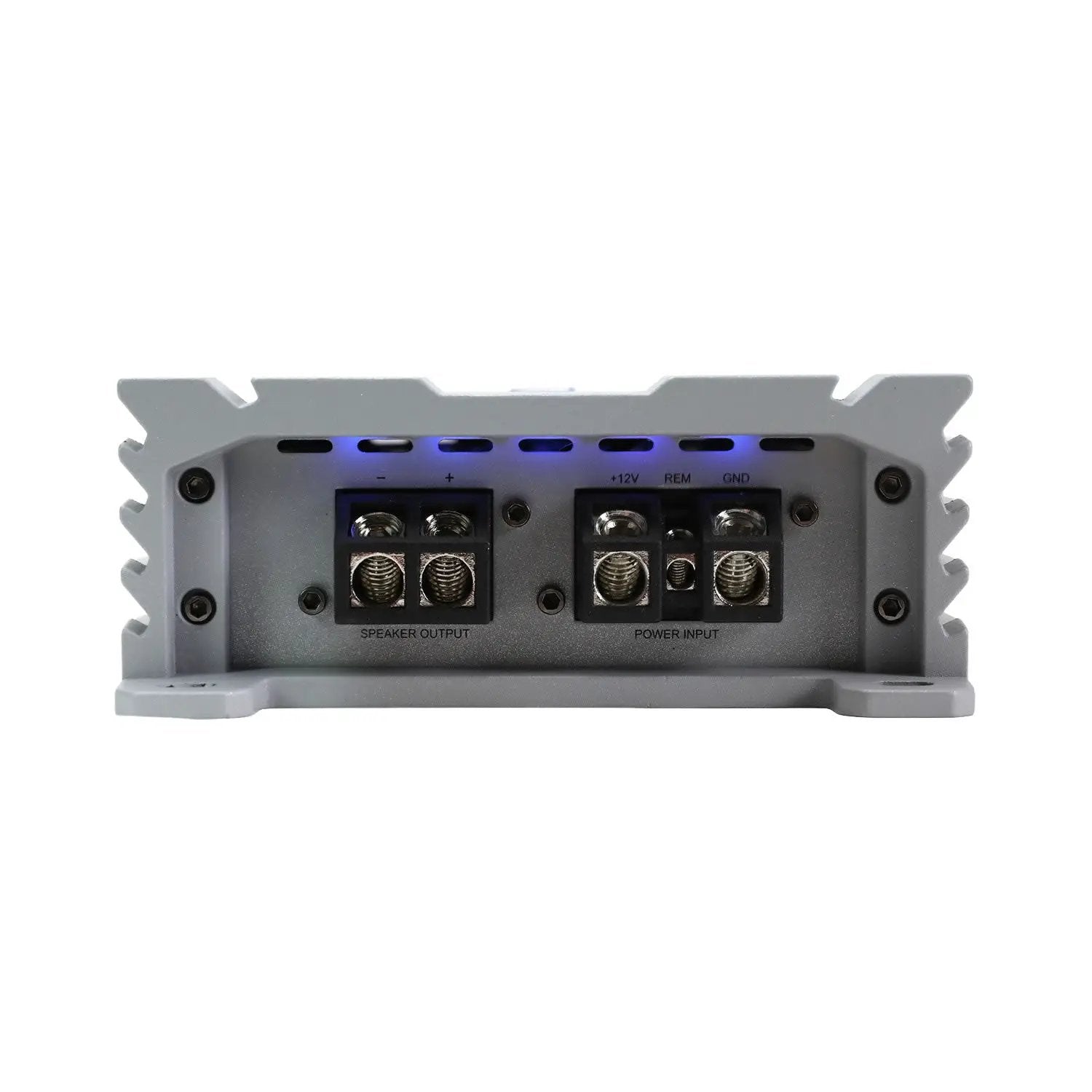

| Connection Type | Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire management profile. |

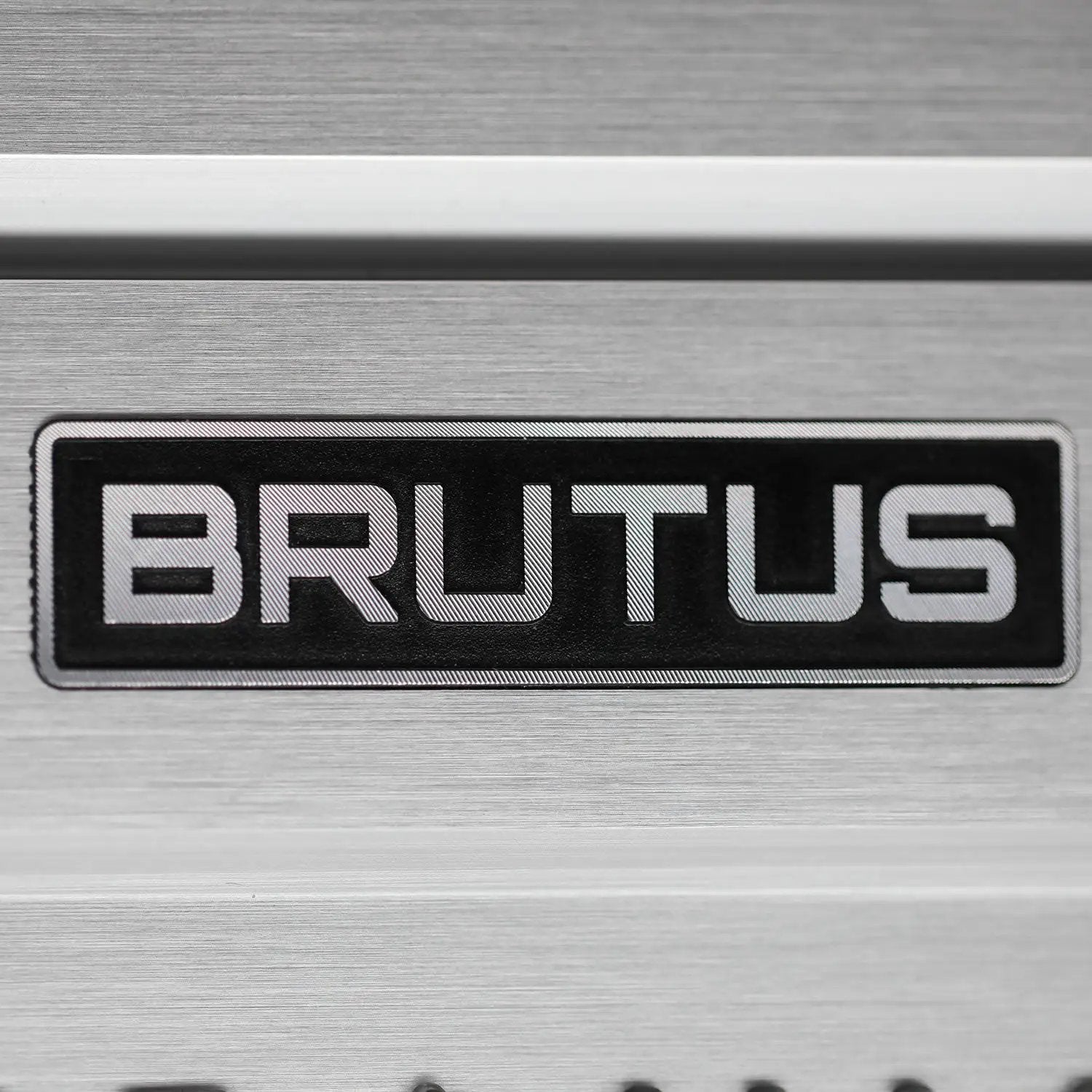

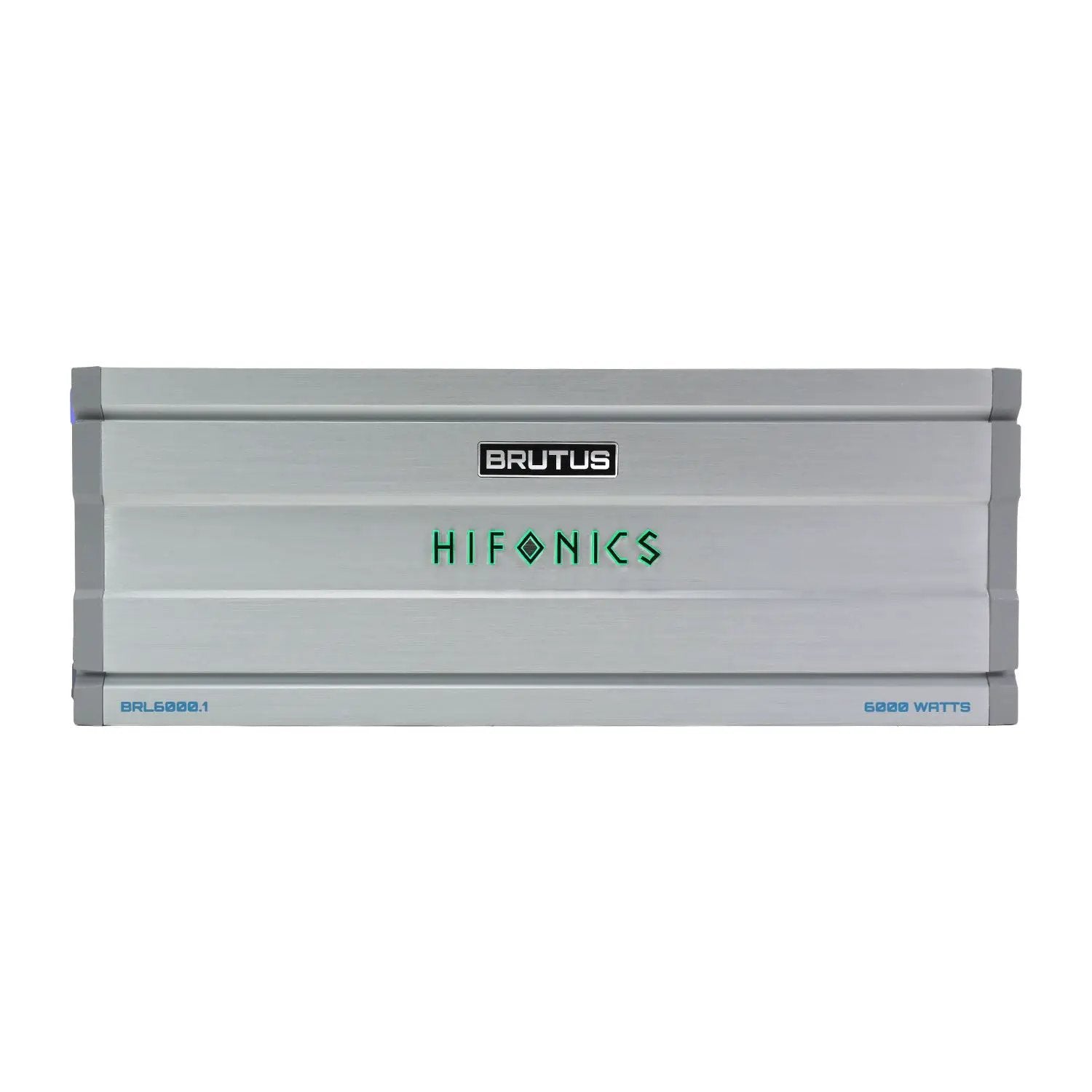

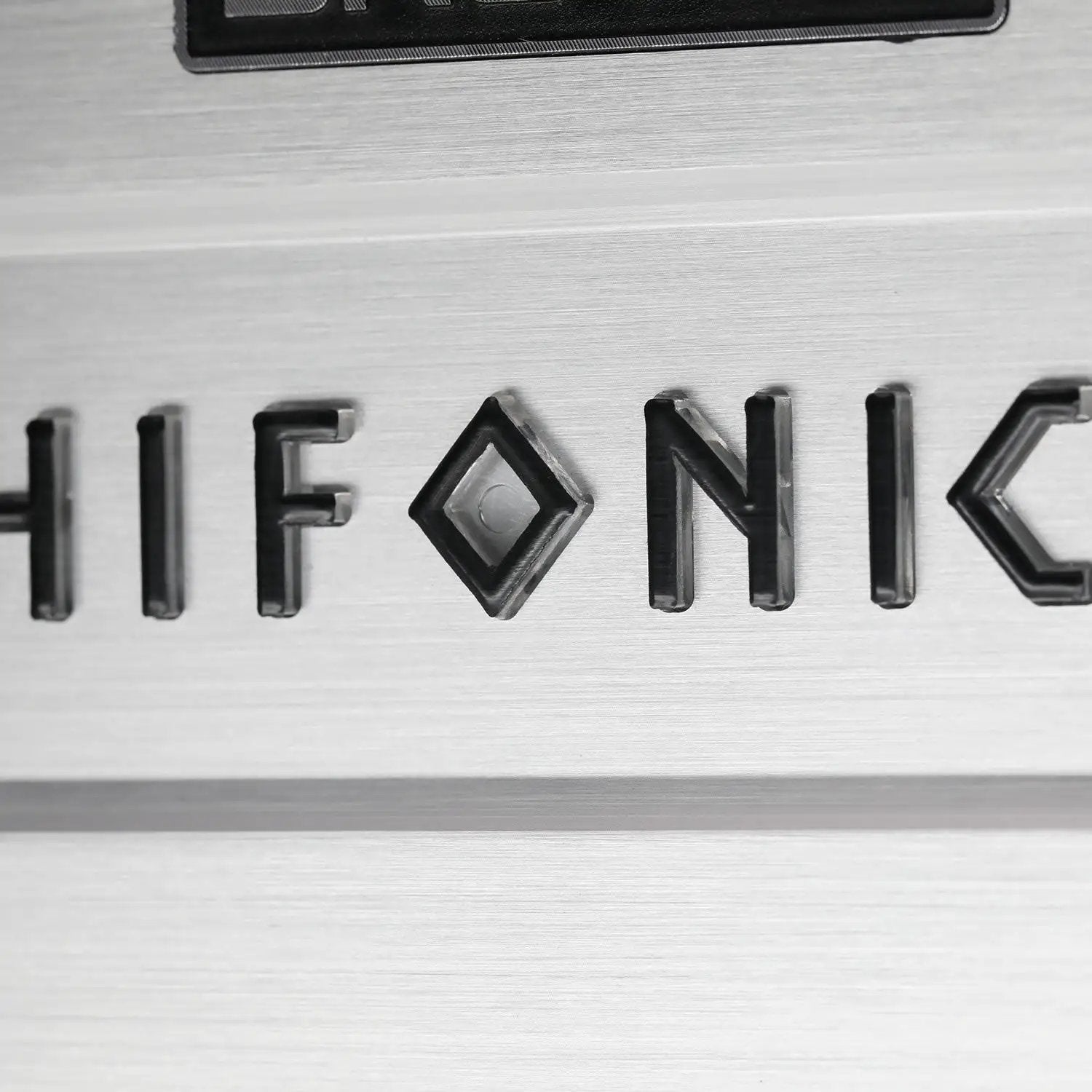

| Stylized Badging | Switch between full constant blue LED lights, VU Meter mode, or full off. When switched to VU Meter mode, the amplifier’s logo reflects the audio level, useful for gain adjustment. |
| Triple Protection Circuits | Over/under voltage, short circuit, overcurrent, and thermal protection circuits are built-in safeguards to protect the audio system and vehicle. |

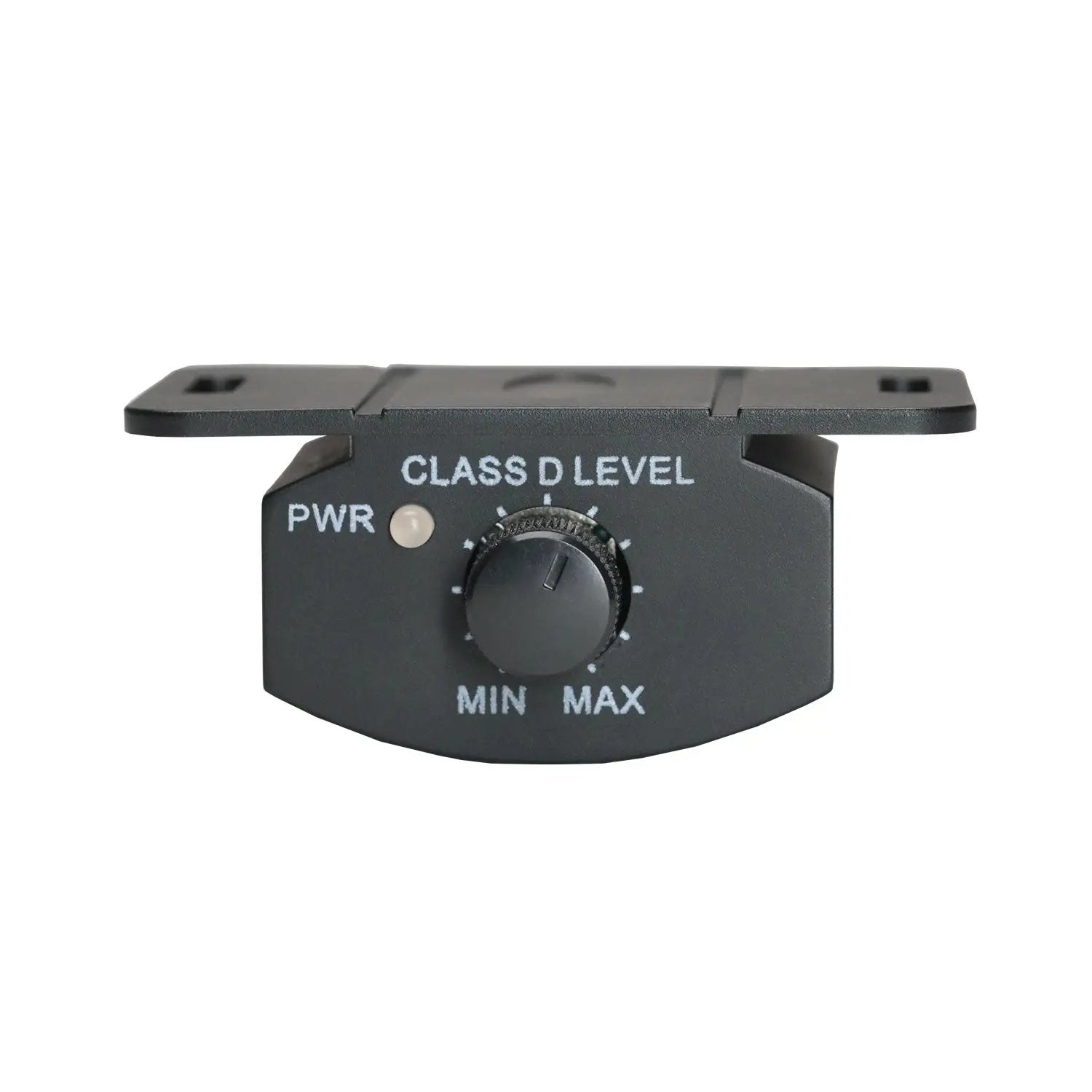

| Bass Remote Included | The included bass remote on mono models allows adjustment of the bass level relative to the setting on the amplifier’s end panel. The LED indicator light displays green when the amplifier is powered on and red if the amplifier enters protect. |
Compatibility
Universal compatibility with 12V mobile audio electrical systems and source units accepting RCA low-level inputs (0.2V to 9V).
Warranty
View/Download Quick Start Guide (13.3 MB)
What's included
- Hifonics BRUTUS BRL6000.1 Mono Amplifier

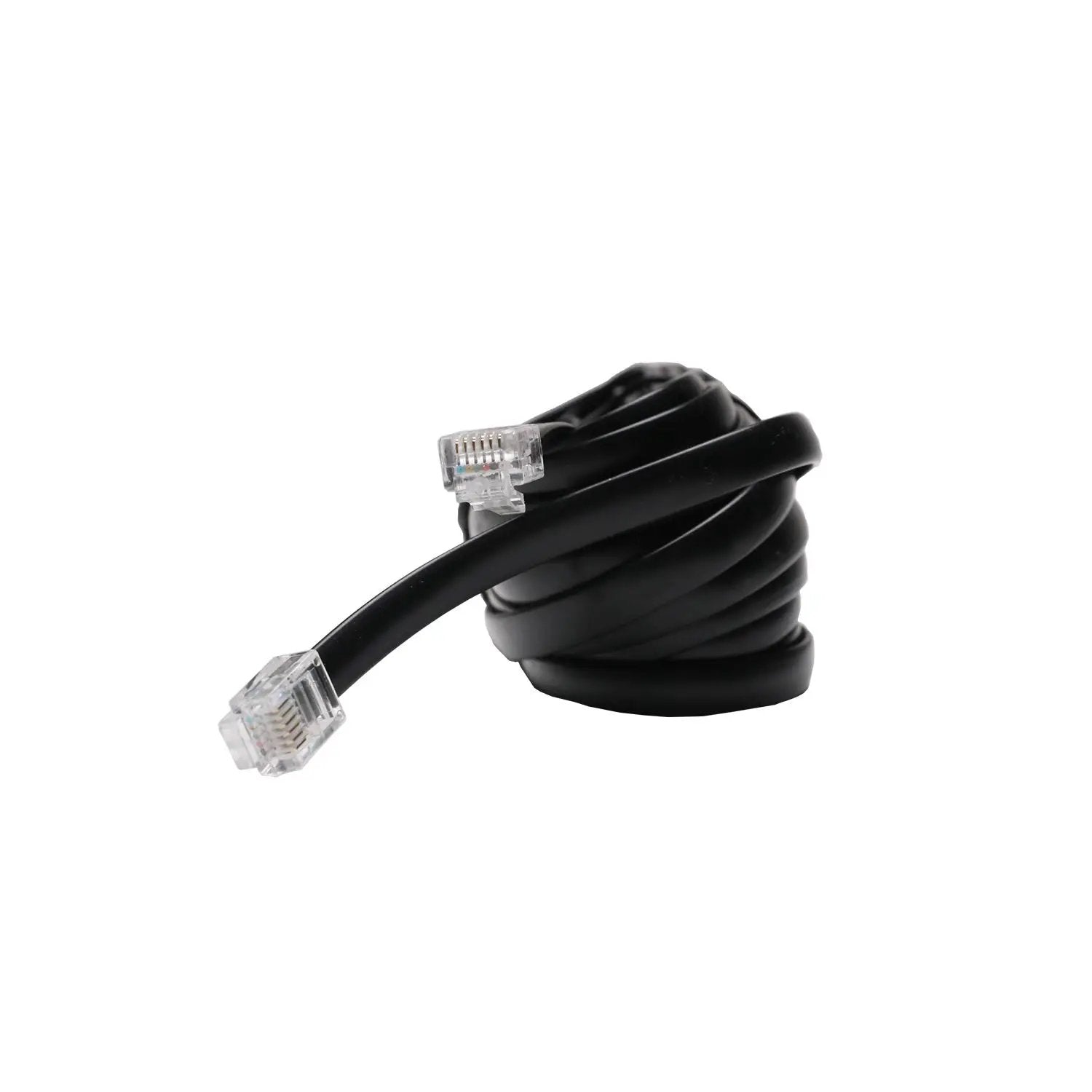

- Bass Remote Control with Cable
