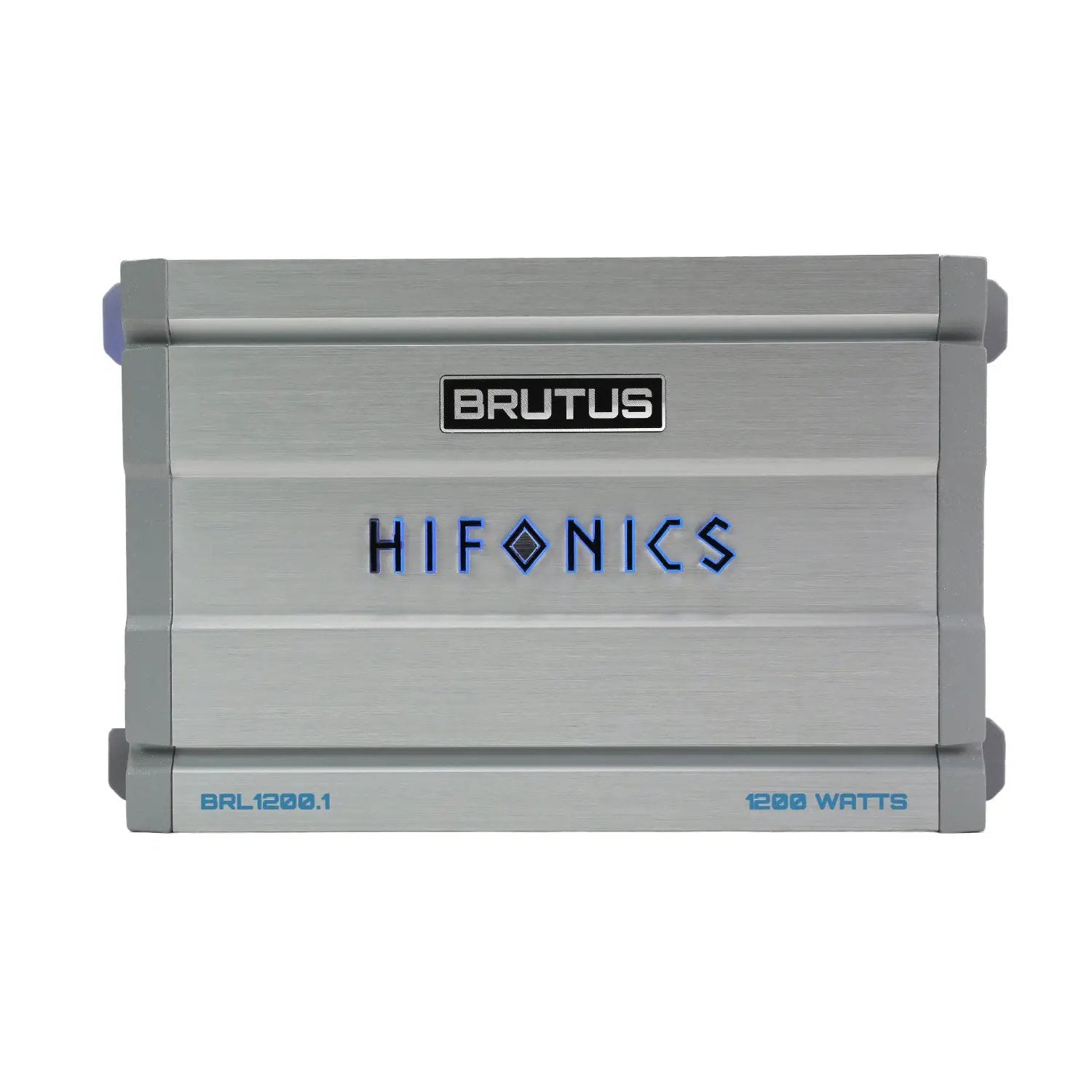

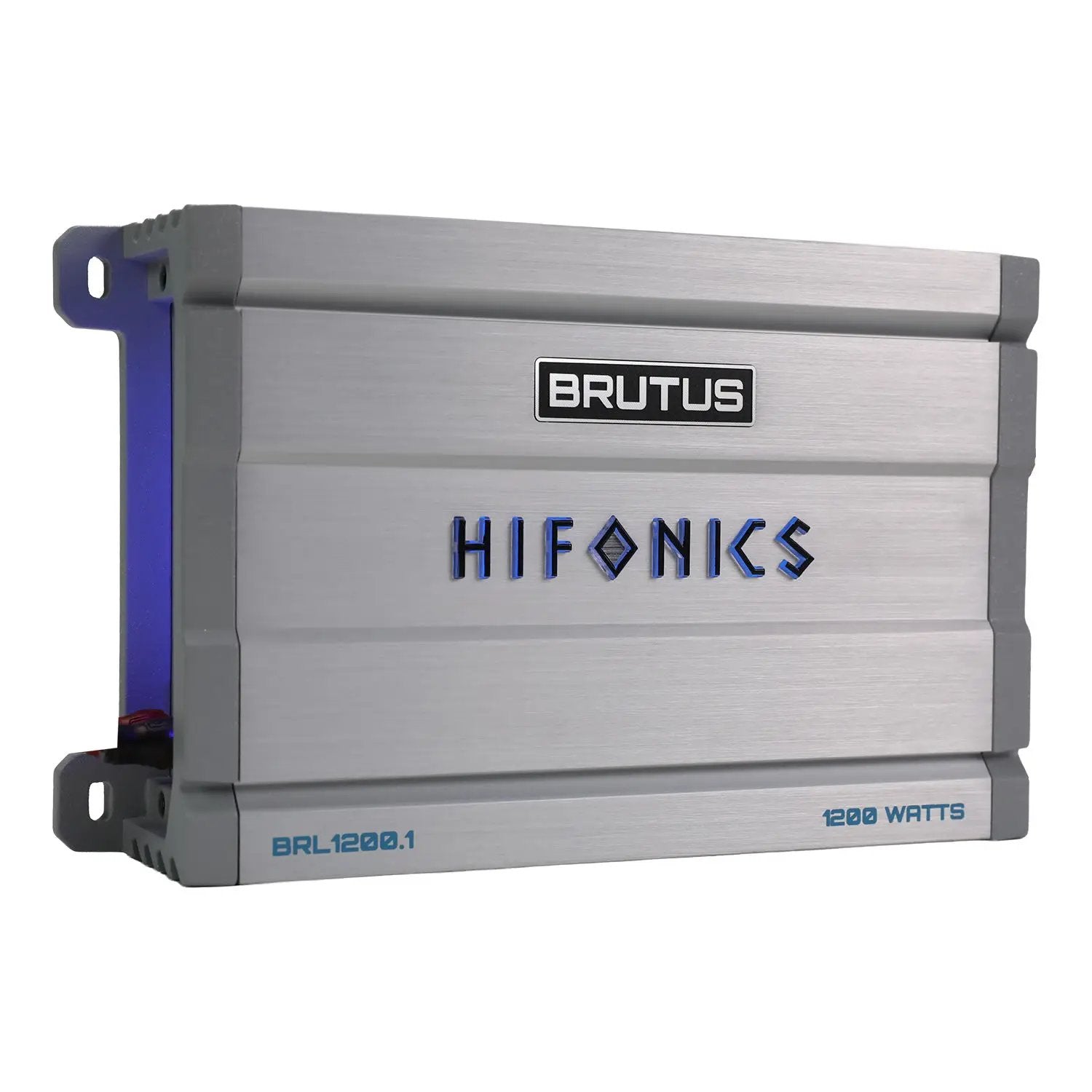

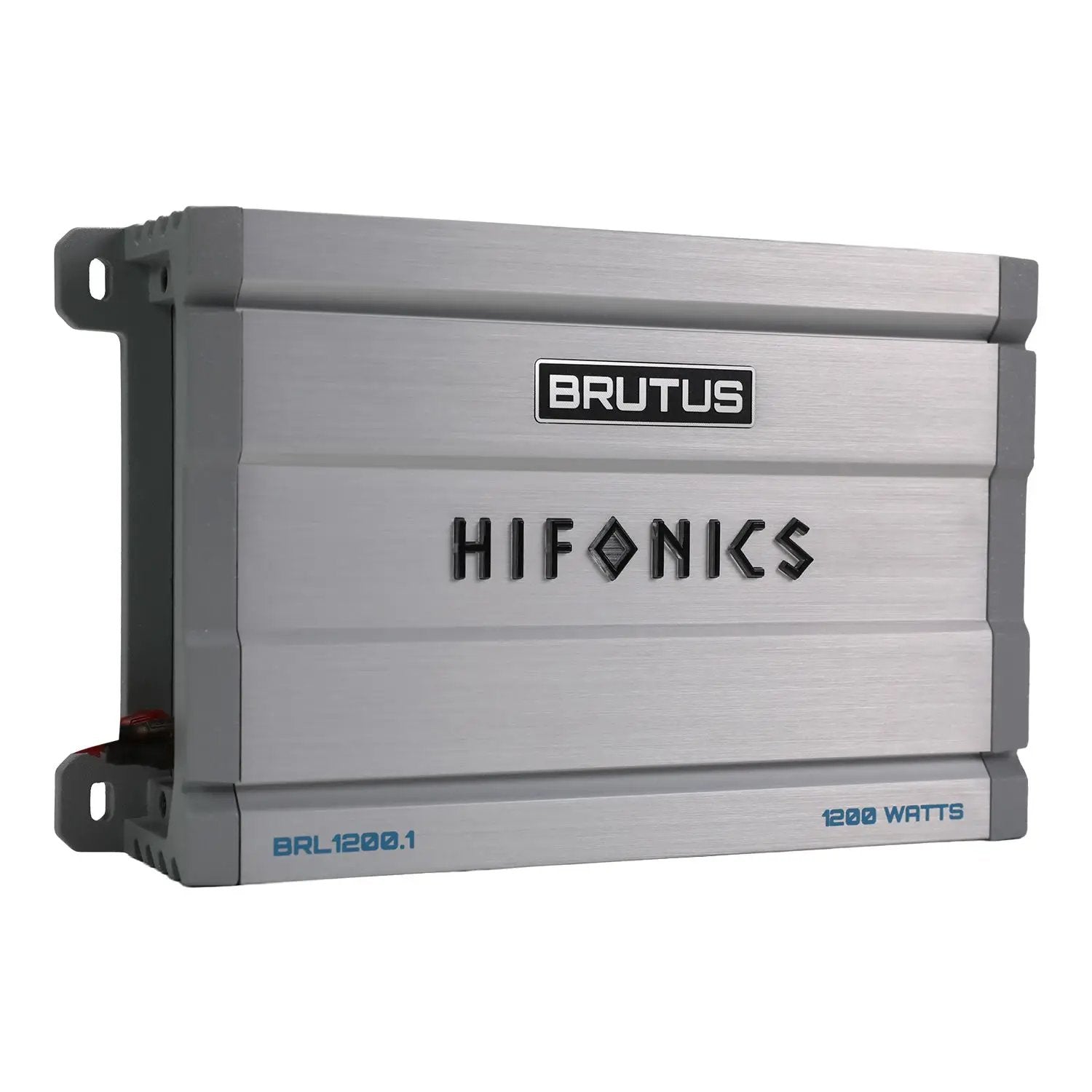

Hifonics BRL1200.1 BRUTUS BRL 1200 Watt Monoblock Amplifier
Description
Description
The Hifonics BRUTUS BRL1200.1 is a high-efficiency Super D Class mono block amplifier engineered to deliver up to 1200 watts of clean power. Featuring Ultra-Fi MOSFET power outputs and a half-bridge design, it ensures optimal electrical efficiency and robust thermal dissipation through a mass-loaded extruded aluminum heat sink.

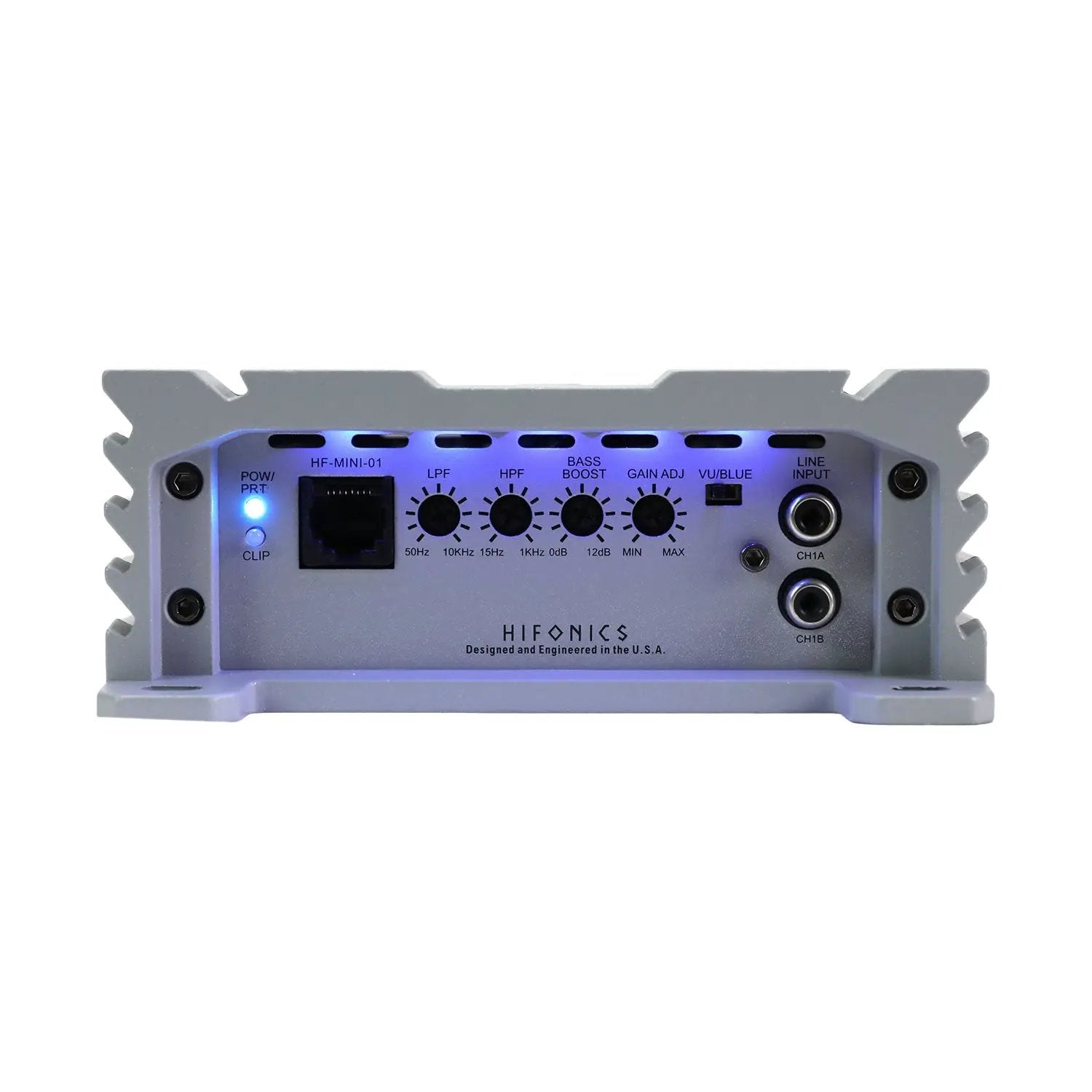

Equipped with a high-end preamplifier circuit and corrosion-resistant nickel-plated RCA jacks, this amplifier provides variable 12dB per octave electronic crossovers and an adjustable bass boost up to 12dB. Built-in multi-layer PCB construction and an iron core transformer deliver ultra-low EMI to prevent interference with vehicle electronics.
An integrated VU meter mode illuminates the illuminated logo badge to assist with visual gain adjustments during setup. Triple protection circuitry safeguards the system against over/under voltage, short circuits, overcurrent, and overheating, while the included bass remote provides convenient sub-level control from the front cabin.
Key Features
| Brand | Hifonics |
| Series | BRUTUS BRL |
| Type | Mono Block Amplifier |
| Amp Class | Super D Class™ |
| Channels | 1 |
| Max Power | 1200 Watts |
| Power Output @ 1 Ohm | 1 x 1200 Watts |
| Power Output @ 2 Ohms | 1 x 700 Watts |
| Power Output @ 4 Ohms | 1 x 400 Watts |
| Frequency Response | 10Hz-10kHz |
| Signal to Noise Ratio | 101dB |
| Total Harmonic Distortion (THD) | < 0.5% |
| Variable Voltage | 0.2-9V |
| Bass Boost | 0-12dB |
| Crossover | Variable Electronic 12dB Per Octave |
| Variable High Pass Crossover | 15Hz-1KHz |
| Variable Low Pass Crossover | 50Hz-10KHz |
| Power/Ground Terminal Wire Gauge | 2 AWG |
| Speaker Terminal Wire Gauge | 12 AWG |
| External Fusing | 150A |
| Color | Black |
| Item Dimensions | 24.8 × 14.6 × 5.7 cm |
| Item Weight | 1.9 kg |
| Package Dimensions | 35.9 × 18.7 × 9.2 cm |
| Package Weight | 2.4 kg |
Highlights
| Feature | Description |
|---|---|
| Ultra-High Efficient Design | A power supply design coupled with carefully selected parts results in an ultra-high efficient amplifier. |
| Half Bridge Design | An efficient design with fewer components results in higher power output. |
| Ultra-Low EMI Design | Minimal interference with other vehicle electronic systems. |
| Mass-Loaded Heat Sink | The mass-loaded extruded aluminum heat sink results in improved thermal management and output performance. |
| High-End Preamplifier Circuit | Accepts a wider range of input signals. |
| RCA Inputs | Nickel-plated RCA jacks create an efficient connection that is corrosion-resistant. |
| High Tolerance Output Device | Ultra-Fi MOSFETS are designed for high output power and thermal dissipation through a proprietary coupling method. |
| Operation Mode | Mono only |
| Clean Board Construction | Multi-layer printed circuit boards (PCB) with surface mount components require fewer parts and result in a cleaner design. |
| Class / Topology | BRL amplifiers feature a Class-D chipset, making them more efficient and allowing for a wide frequency range. |
| Power Supply | Iron core transformer assists in the ultra-low EMI design while providing high power. |
| Delayed Turn-On Function | Ensures compatibility with a wide range of source units to eliminate unwanted turn-on/off noises like hisses and pops. |

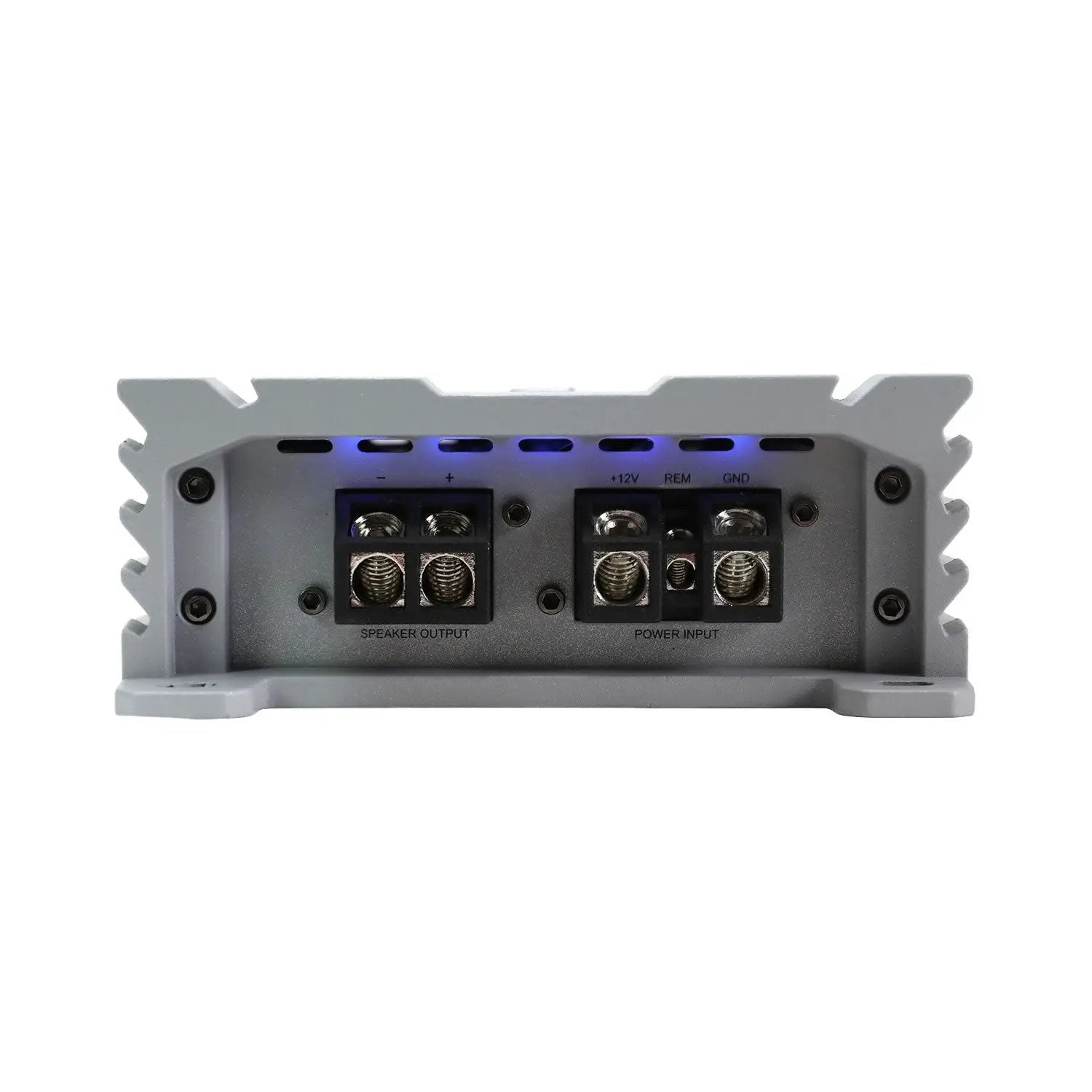

| Connection Type | Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire management profile. |

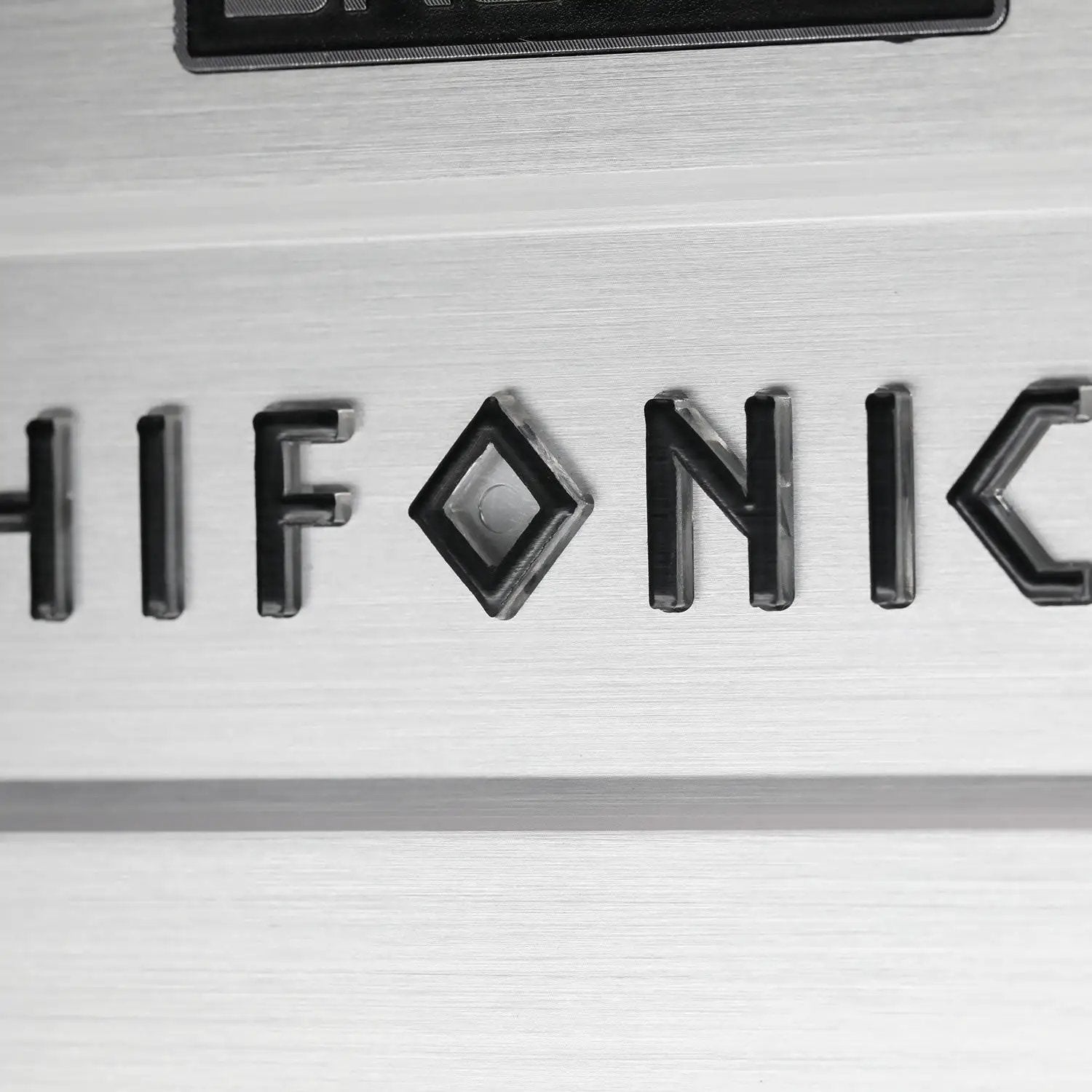

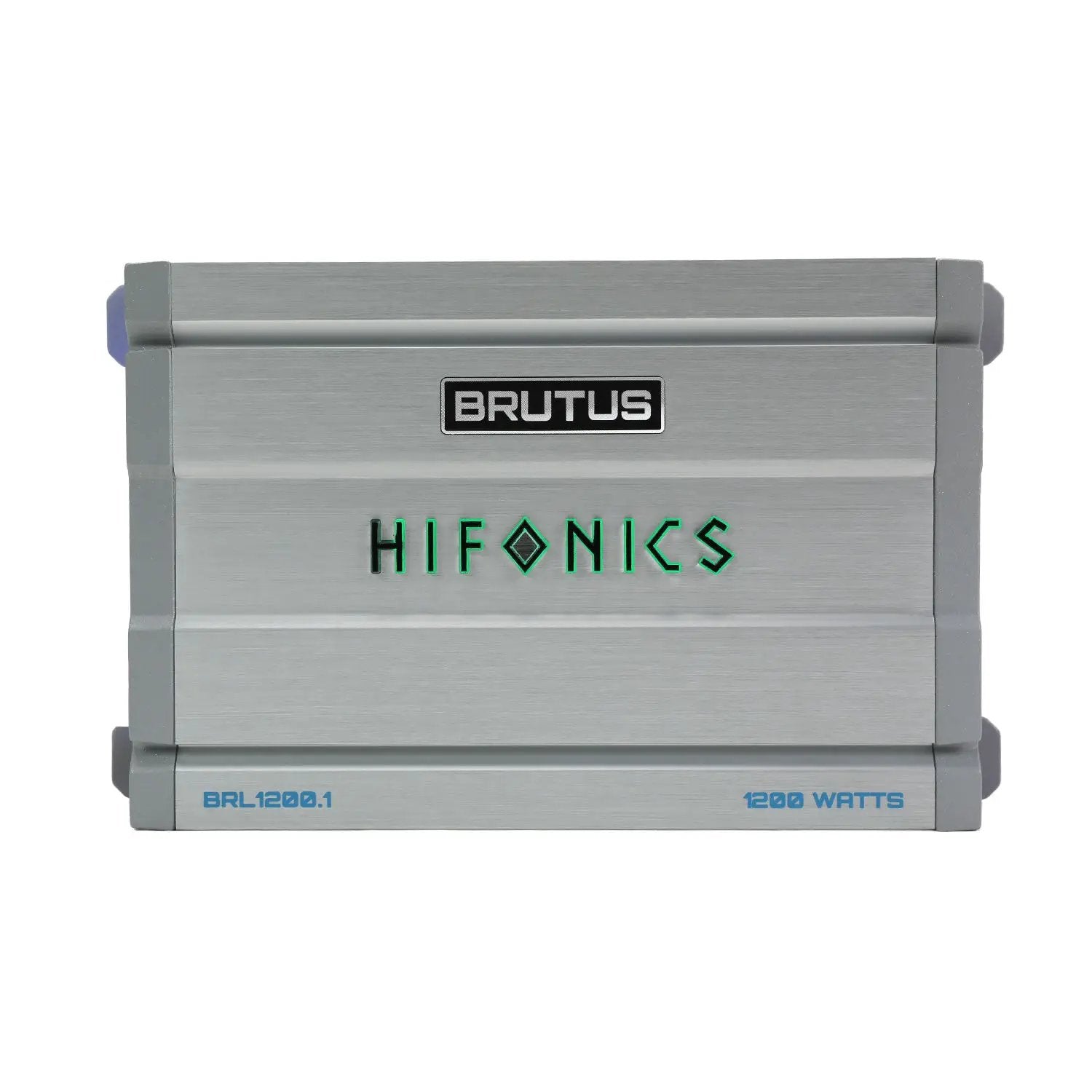

| Stylized Badging | Switch between full constant blue LED lights, VU Meter mode, or full off. When switched to VU Meter mode, the amplifier’s logo reflects the audio level, useful for gain adjustment. |
| Triple Protection Circuits | Over/under voltage, short circuit, overcurrent, and thermal protection circuits are built-in safeguards to protect the audio system and vehicle. |

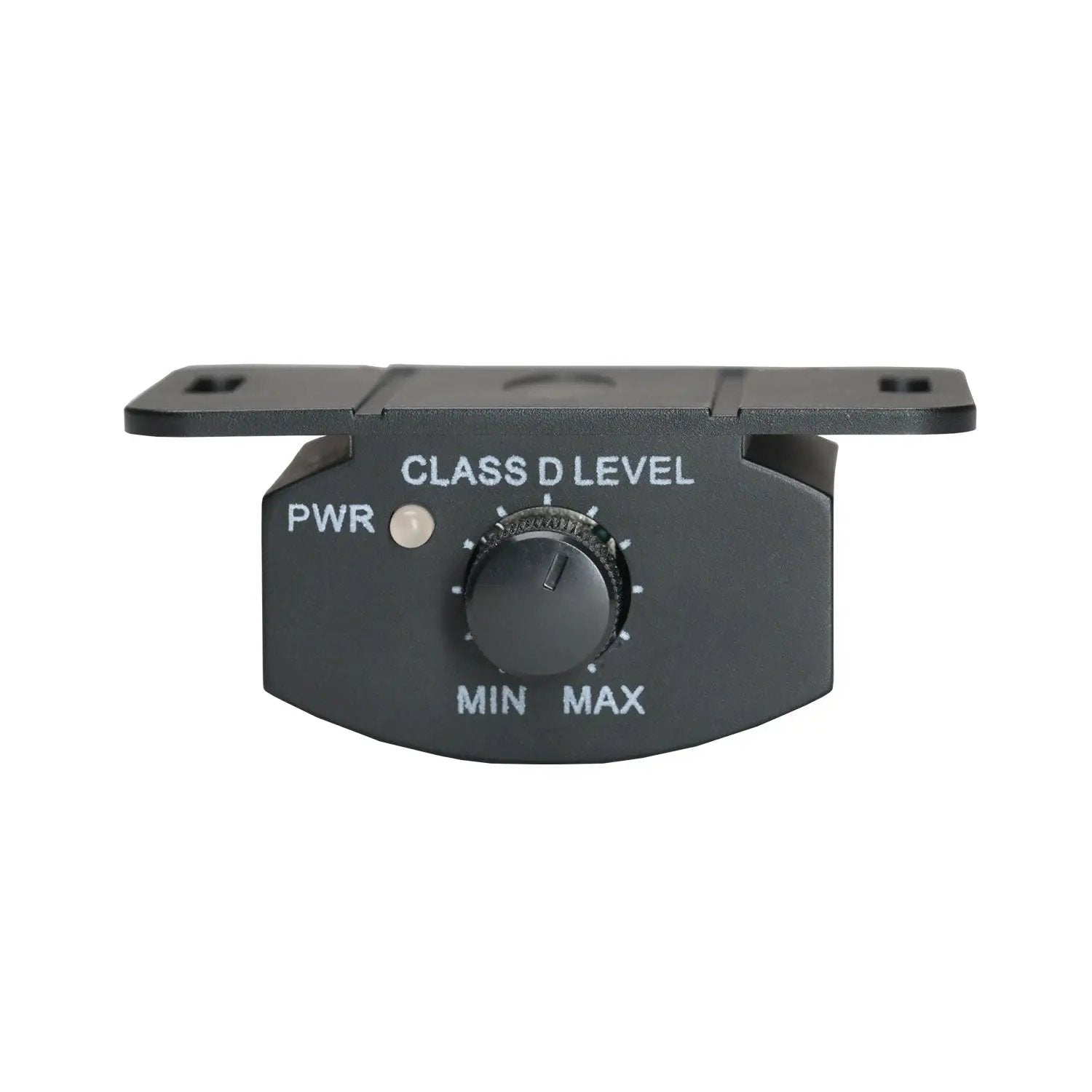

| Bass Remote Included | The included bass remote on mono models allows adjustment of the bass level relative to the setting on the amplifier’s end panel. The LED indicator light displays green when the amplifier is powered on and red if the amplifier enters protect. |
Compatibility
Universal compatibility with 12V automotive audio systems, source units, and subwoofers wired to 1 Ohm, 2 Ohm, or 4 Ohm impedances.
What's included
- Hifonics BRL1200.1 Mono Amplifier

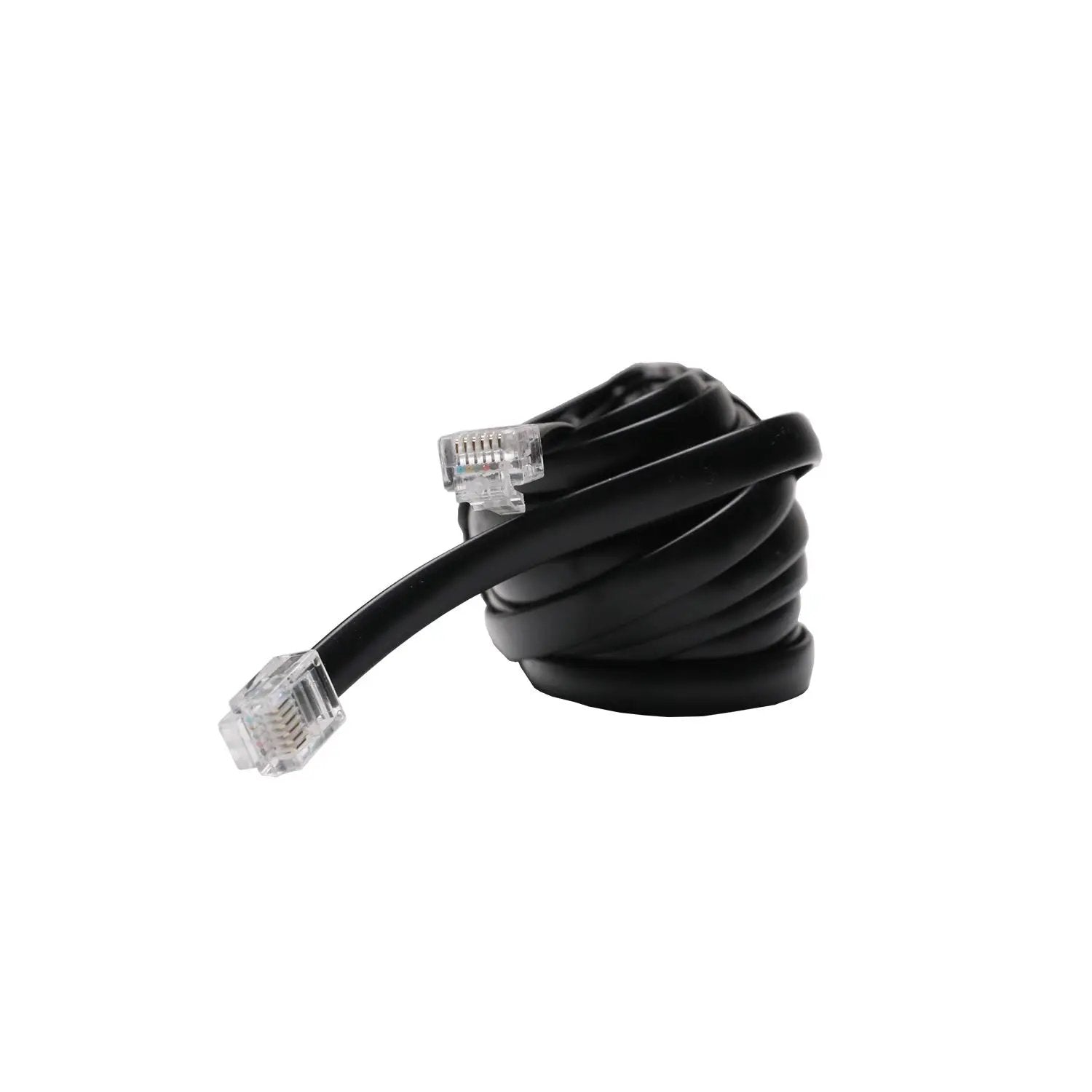

- Bass Remote Control with Cable
- Quick Start Guide
