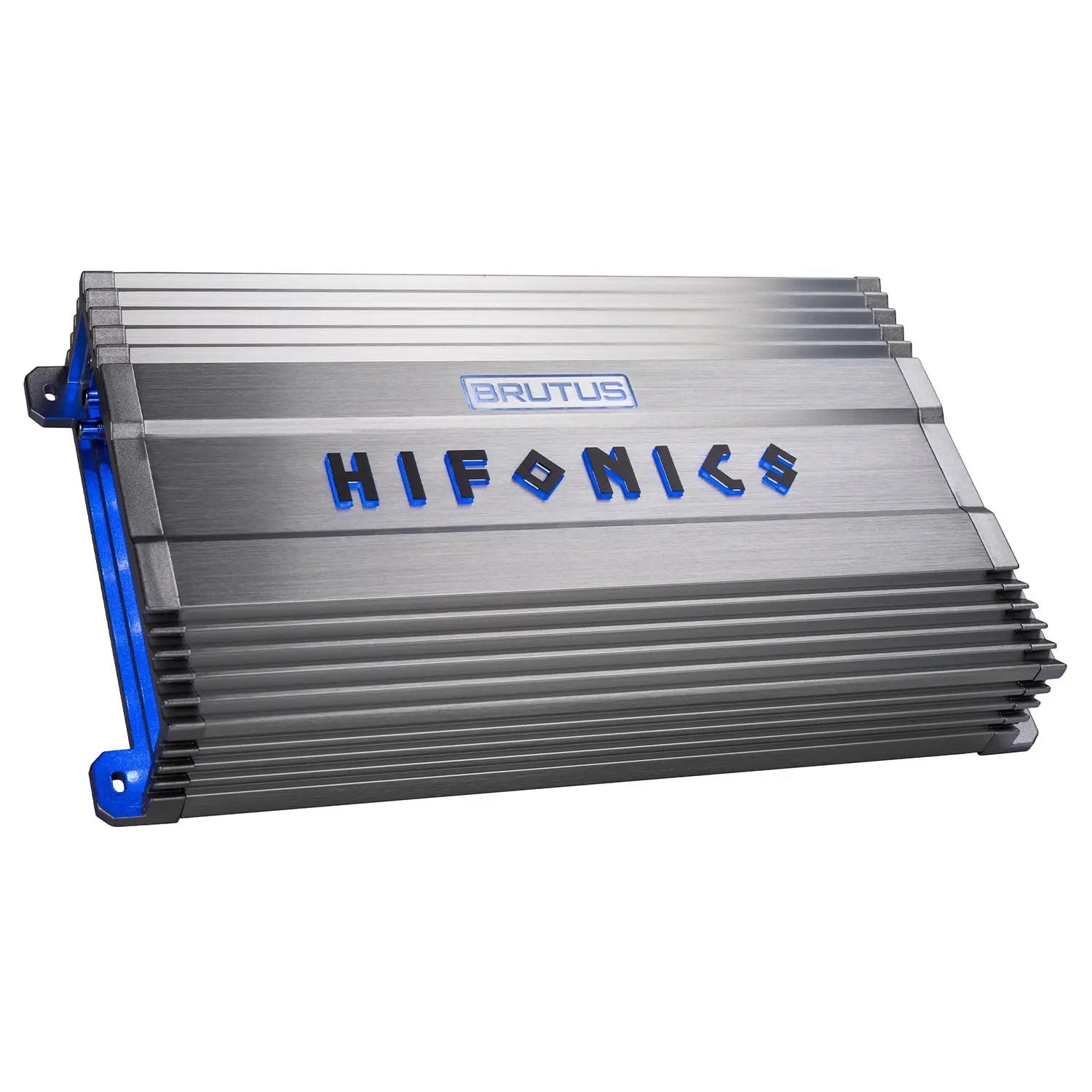

Hifonics BG-2200.1D BRUTUS GAMMA 2200 Watt Monoblock Amplifier
Description
Description
The Hifonics BRUTUS GAMMA BG-2200.1D is a dedicated mono subwoofer car audio amplifier engineered to deliver up to 2200 watts of high-efficiency output. Utilizing proprietary Super D-Class topology paired with Ultra-Fi MOSFET output devices, it ensures musical power delivery with minimal distortion and reduced operating temperatures.
Constructed with a classic aluminum heatsink and a Simpatico dual-coil Pulse Width Modulated power supply, this amplifier maintains stable voltage and prevents heat buildup during demanding operation. Heavy-duty nickel-plated connections with allen-head set screws provide secure wire termination, complemented by diagnostic LED system protection circuitry.

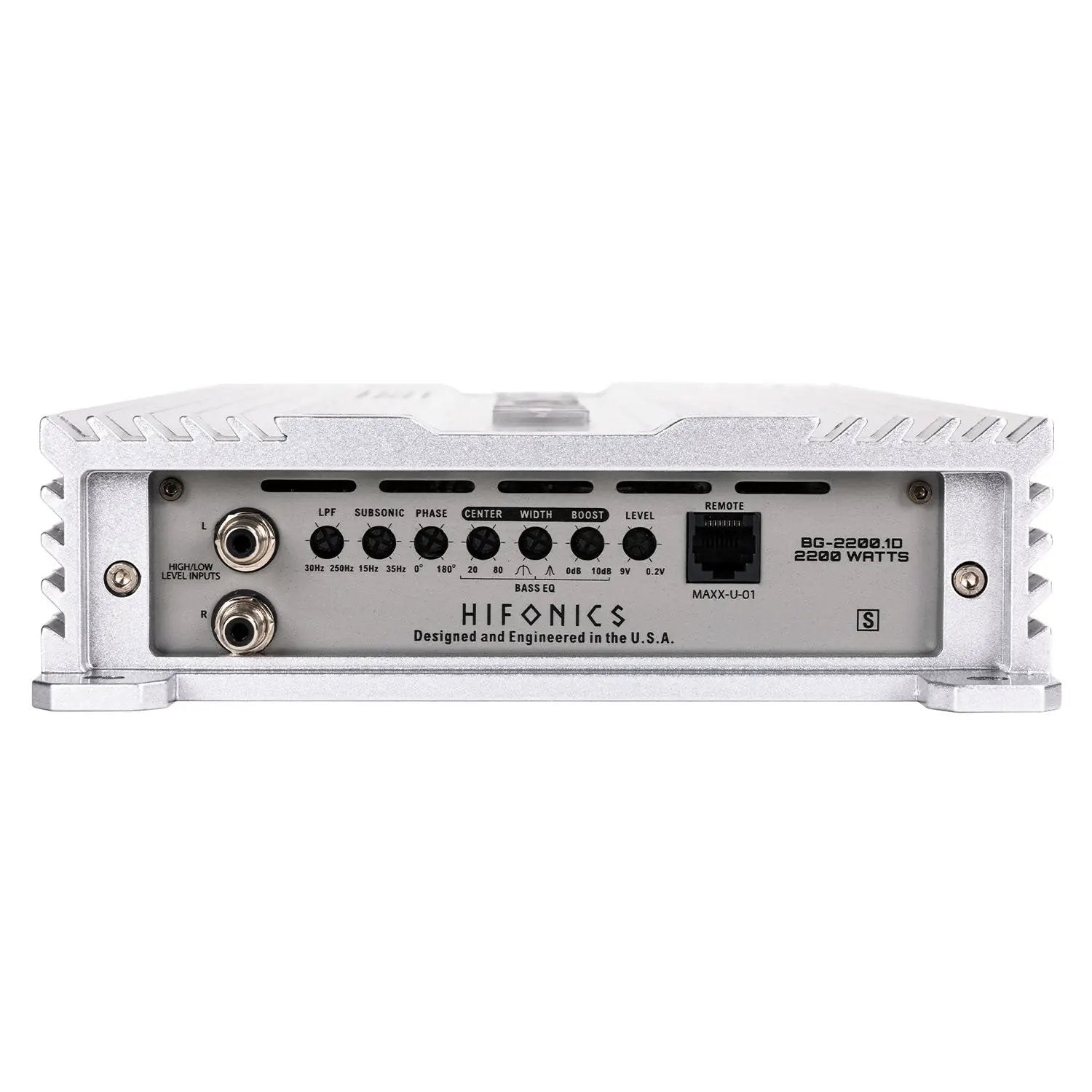

Comprehensive sound customization is achieved through onboard variable electronic crossovers, a 15Hz to 35Hz subsonic filter, 0 to 180 degree phase adjustment, and built-in bass boost. An included wired bass remote allows straightforward output control directly from within the vehicle cabin.
Key Features
| Brand | Hifonics |
| Model Number | BG-2200.1D |
| Series | BRUTUS GAMMA |
| Amplifier Class | Super D-Class® |
| Channels | 1 |
| Max Power | 2200 W |
| Power Output @ 1 Ohm | 1 x 2200 W |
| Power Output @ 2 Ohms | 1 x 1100 W |
| Power Output @ 4 Ohms | 1 x 550 W |
| Frequency Response | 10Hz-500Hz |
| Total Harmonic Distortion (THD) | < 0.1% |
| Variable Low Pass Crossover | 30Hz-250Hz (12dB/Octave) |
| Subsonic Filter | 15Hz-35Hz |
| Bass Boost | 0-10dB |
| Phase Shift | 0-180° |
| Variable Voltage Range | 0.2-9V |
| Power Terminal Wire Gauge | 2 AWG |
| Speaker Terminal Wire Gauge | 12 AWG |
| Dimensions (L x W x H) | 34.6 x 21 x 6 cm |
| Weight | 7.4 kg |
| Color Finish | Bright Silver Hairline Anodized Finish |
Highlights
| Feature | Description |
|---|---|
| Low Noise Preamplifier Circuit | Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion. |
| RCA Inputs | Nickel-plated RCA jacks create the most efficient High/Low Level audio connection and resist corrosion. |
| Operation Mode | Mono only |
| Crossover Type | Variable electronic crossovers allow for complete control of the sound. |
| Electronic Equalizer | Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. |
| Class / Topology | Super D-Class™ designs employ high-speed microprocessors with proprietary D/A conversion algorithms to efficiently control current consumption. At very high listening levels, Super D-Class circuitry results in lower distortion, higher current efficiencies and less heat than conventional D-Class amplifier designs. |
| Output Device Technology | Pro-Fi™ Output Device Technology: The Ultra-Fi™ MOSFET is designed for music production. It produces musical high power with high efficiency for cooling and minimal distortion. |
| Heat Sink | Classic aluminum design to minimize heat build up on the Ultra-Fi™ output devices. |
| Power Supply | Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices. |
| Output Connections | High temperature impact resistant nickel plated connectors with allen head set screws allow for secure termination of wire and create an erosion resistant seal. |

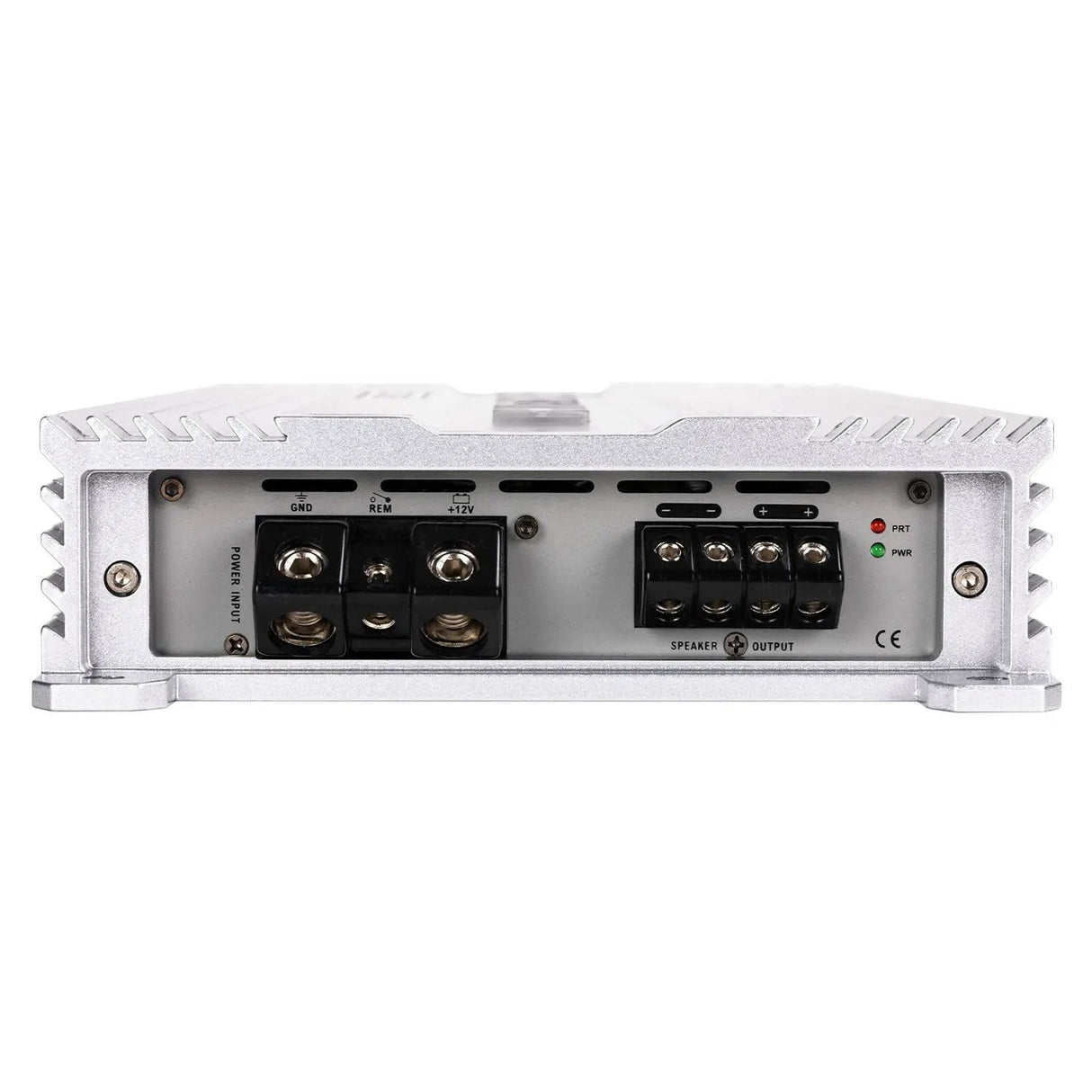

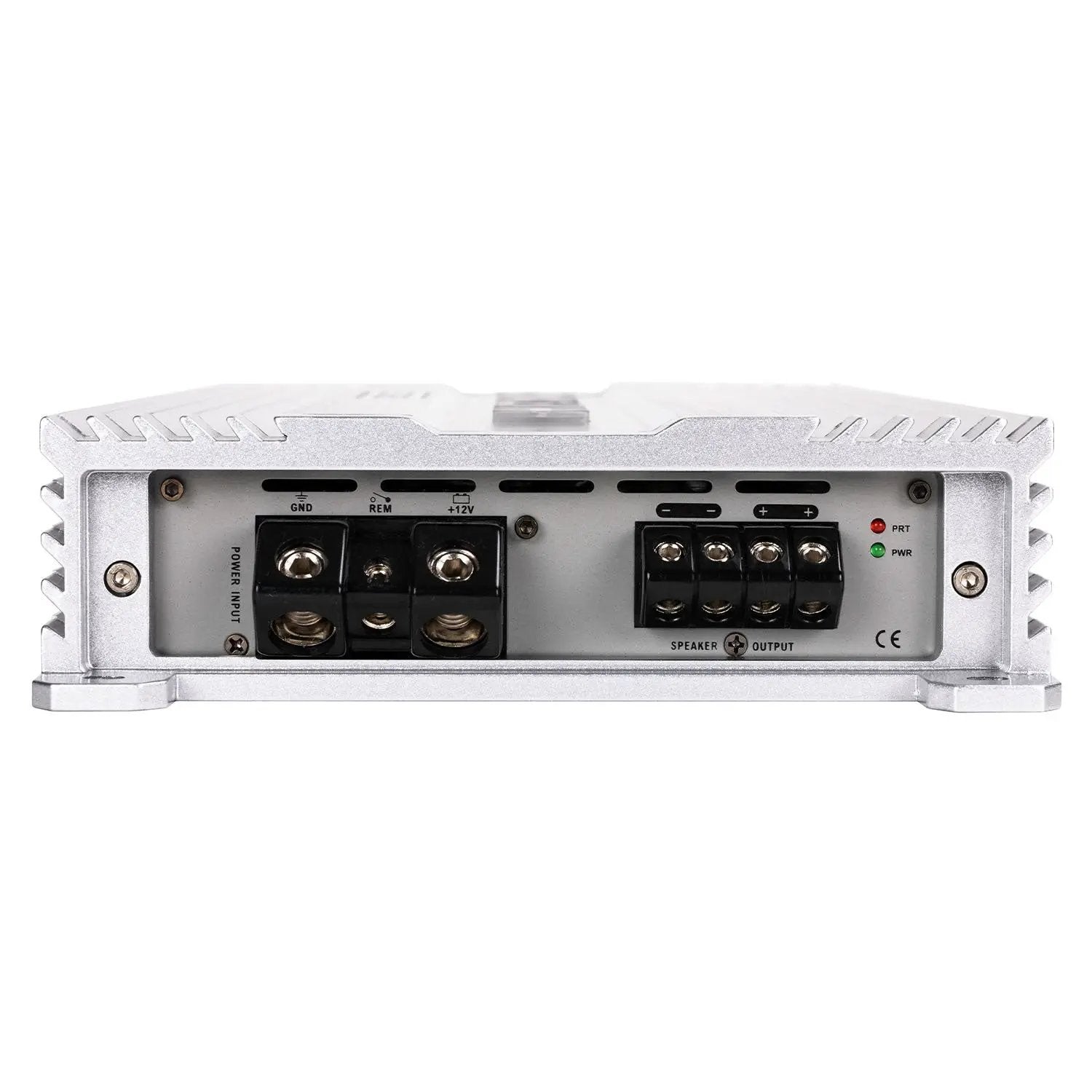

| Connection Type | Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire management profile. |
| LED System Protection Circuitry Diagnostics | Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel. |
| Bass Remote Included | Wired Bass Remote allows adjustments to bass frequencies from the control which can be mounted anywhere in the vehicle. |
| Phase Adjustment | Phase 0-180°: Bass drum attack and snap requires phase between deep frequency subwoofers and upper midbass speakers. |
Compatibility
Universally compatible with 12V automotive electrical systems and car audio source units via standard RCA line-level or speaker-level audio inputs.
What's included
- Hifonics BRUTUS GAMMA BG-2200.1D Mono Amplifier
- Wired Bass Remote Control
- Quick Start Guide
