Description
Description

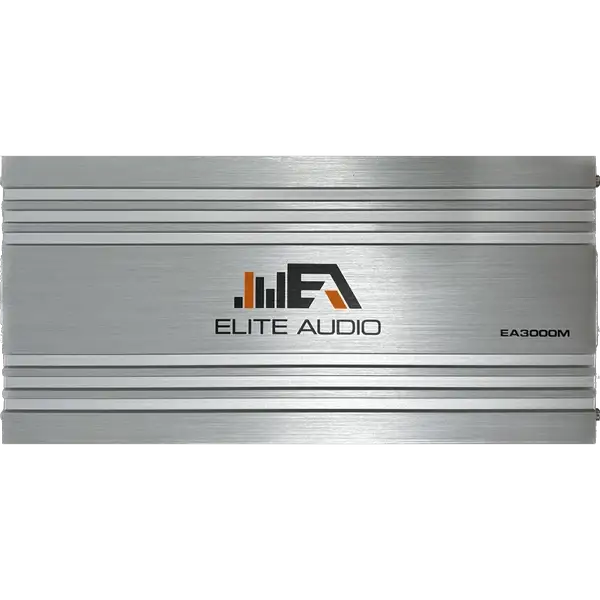

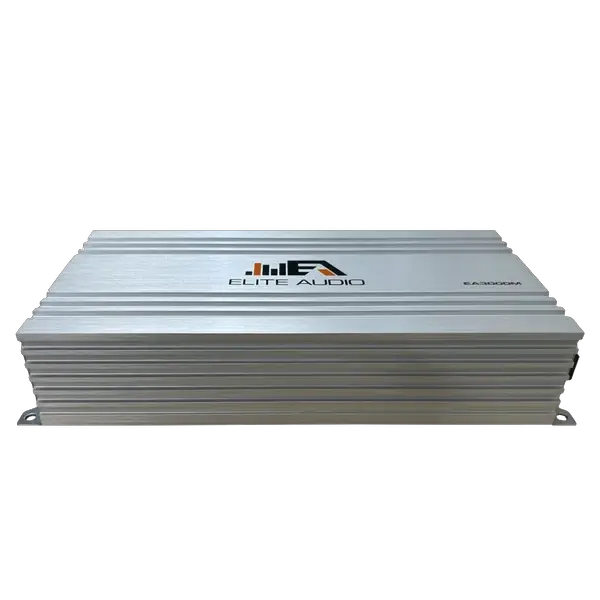

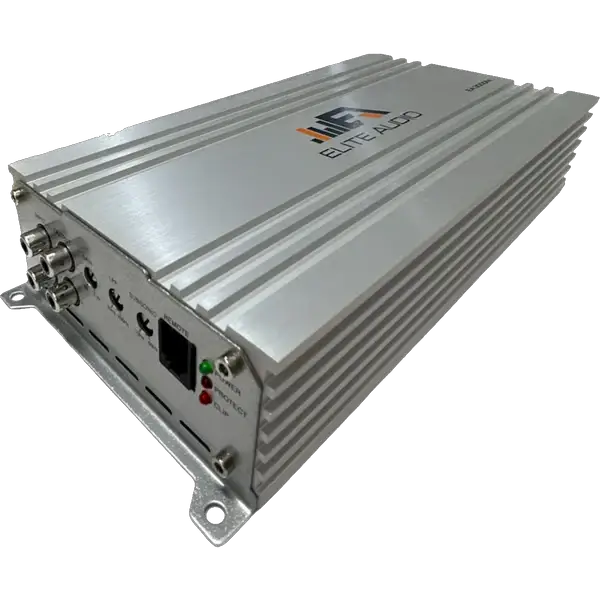

The Elite Audio EA3000M is a 1-ohm stable monoblock amplifier built for serious subwoofer applications. With 1,500 watts on tap at 1 ohm and a compact footprint, it's the perfect power plant for high-demand builds where space and output both matter.
Built to Perform
High-speed MOSFET power supplies keep the EA3000M efficient and cool under load, while high-purity copper printed boards ensure clean signal transfer from input to output. On-board clipping indication takes the guesswork out of gain setup, and 4-way protection circuitry keeps your amp — and your sub — safe. The included remote bass knob lets you adjust your low-end level right from the driver's seat.
Features
- 1 Ohm stable monoblock design
- High-speed MOSFET power supply
- On-board clipping indication

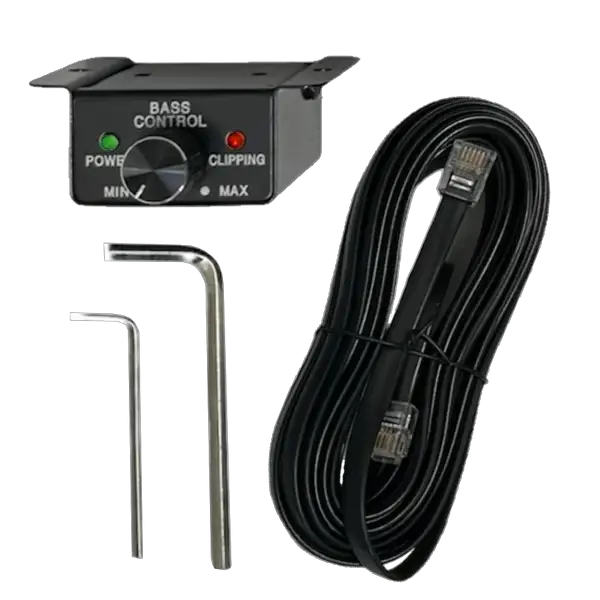

- Remote bass knob included

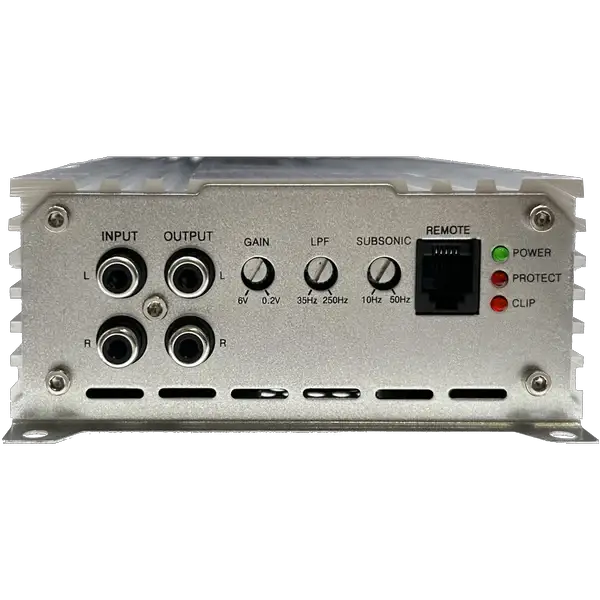

- Variable low-pass filter (35–250Hz)
- Subsonic filter (10–50Hz)
- 4-way protection circuitry
- High-purity copper printed boards
- 4 Gauge power & ground terminals
Specifications
| Power @ 4Ω | 650W x1 |
| Power @ 2Ω | 1,100W x1 |
| Power @ 1Ω | 1,500W x1 |
| Frequency Response | 10–245Hz |
| Signal to Noise Ratio | 96dB |
| Damping Factor | 160+ |
| Input Sensitivity | 0.2V–6V |
| Low Pass Filter | 35–250Hz |
| Subsonic Filter | 10–50Hz |
| Remote Gain Control | Yes |

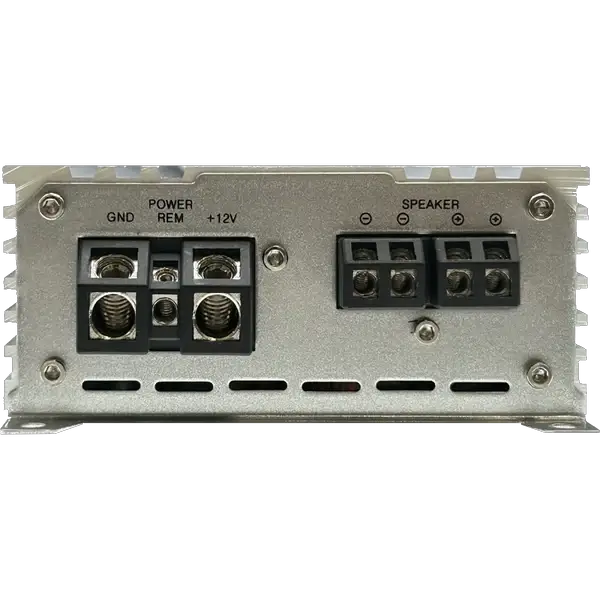

| Power & Ground Terminals | 4 Gauge |
| Operating Voltage | 9V–16V |
| External Fuse | 150A |
| Dimensions (LxWxH) | 240 x 120 x 50mm |
