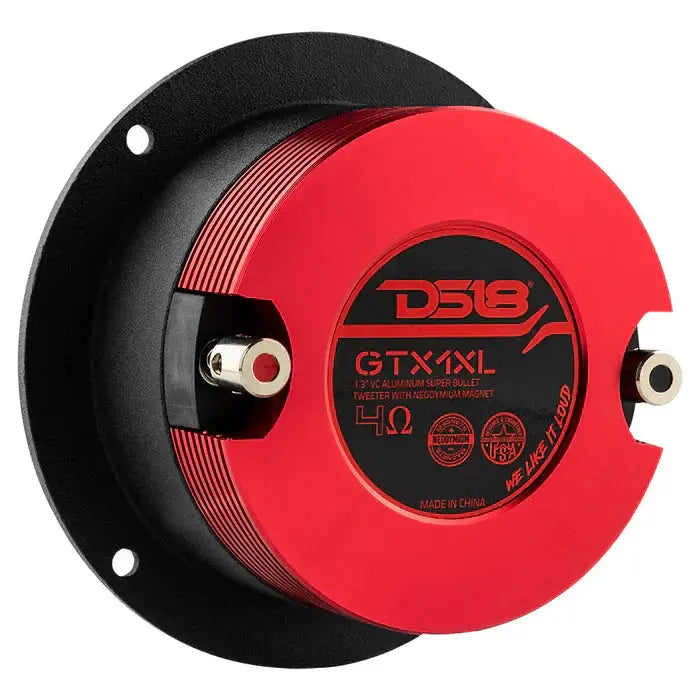

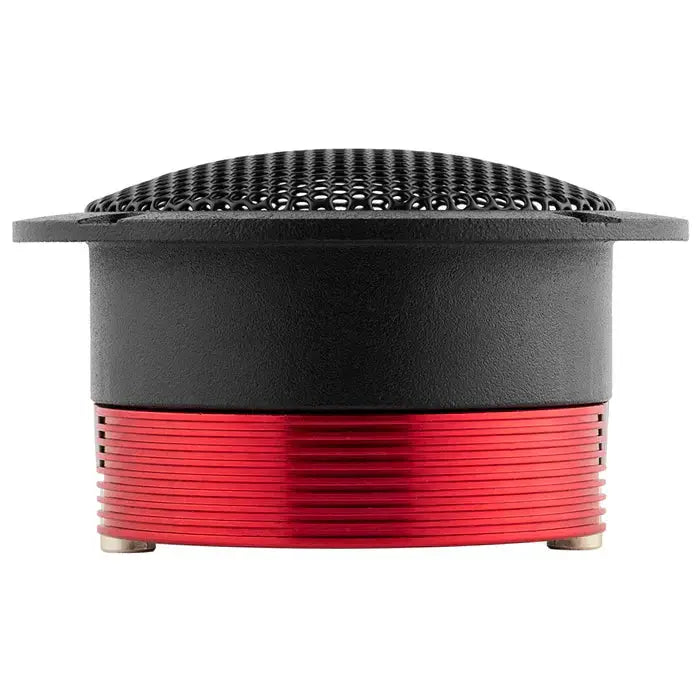

DS18 GTX1XL 3.75" Die Cast Compression Neodymium Super Bullet Tweeter 320 Watts 1.3" Titanium 4-Ohm (each)

DS18 GTX1XL is a 3.75" die-cast aluminum neodymium super bullet tweeter engineered for high-output, detail-rich treble in serious car audio builds. It delivers up to 320W peak with 100 dB sensitivity, spanning 2.5 kHz to 20 kHz for crisp, revealing highs in demanding installations.

• Nominal Diameter: 3.75" / 95mm — defines a compact but capable tweeter footprint compatible with standard 3.75" mounting spaces.
• Nominal Impedance: 4 Ohm — pairs with a wide range of amplifiers and affects how much power the driver can draw from your amp.
• AES Power Handling: 80 Watts — continuous input capability for steady, reliable high-frequency output.
• Program Power Handling: 160 Watts — dynamic headroom for musical transients before clipping.
• Peak Power Handling: 320 Watts — maximum short-term power available for loud, fast transients without damage.
• Sensitivity: 100 dB (1W/1m) — high efficiency means more output from less amplifier power, aiding system balance in multi-driver setups.
• Frequency Response: 2.5 KHz – 20 KHz — dedicated to upper-range treble with detailed articulation and shimmer on cymbals and sibilants.
• Voice Coil Diameter: 1.3" / 33.5mm — larger coil area improves heat handling and linearity during dynamic highs.
• Diaphragm Material: Aluminum — stiff, lightweight diaphragm for precise high-frequency reproduction.
• Magnet Material: Neodymium — compact, high-flux magnet contributes to strong, efficient highs in a small chassis.
• Body Material: Aluminum — rigid housing that helps minimize cabinet-induced resonances and aids durability.
• Mounting Depth: 1.73" / 44mm — shallow installation footprint facilitates integration into tight spaces.
• Front Mount Cutout: 2.95" / 73mm — required opening size for proper physical mounting accuracy.
• Weight: 1.45 oz per unit — very lightweight component suitable for multi-driver arrays.
• Disassembly/Repair: Easily disassembled and repaired on the spot within 60 seconds — supports quick field maintenance and tuning during builds.
• Mounting Versatility: Can be mounted anywhere you have space, enabling flexible soundstage design and placement choices.

In a high-performance front stage, GTX1XL acts as the precise treble driver, delivering detailed highs without excessive demand on the rest of the system. Its aluminum construction, neodymium magnet, and 4-ohm voice coil work together to maintain clarity across demanding musical transients, while the compact depth and versatile mounting options simplify integration into various vehicles. The quick-repair capability adds practical reliability for enthusiasts who push their systems and tune on the fly.
