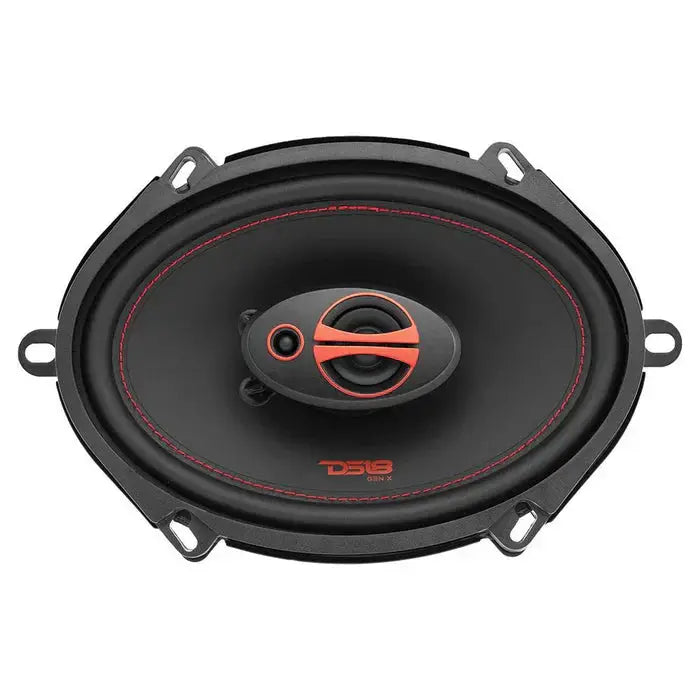

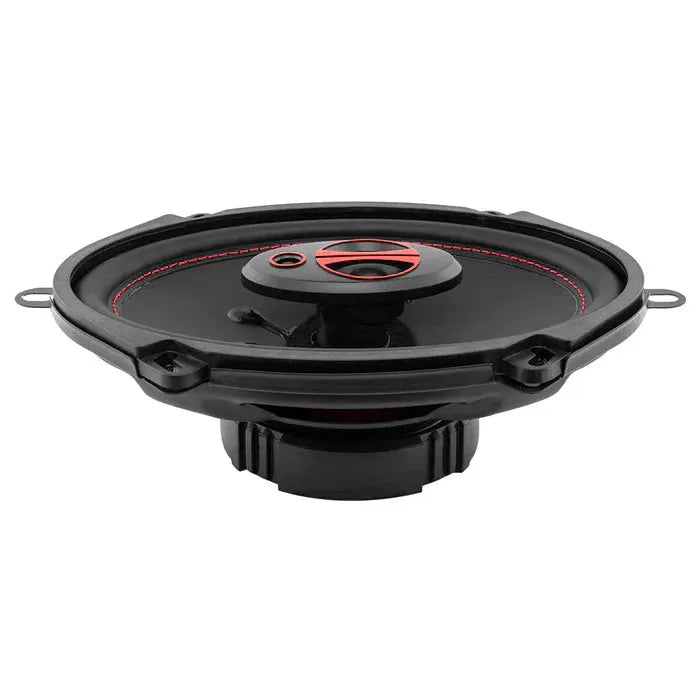

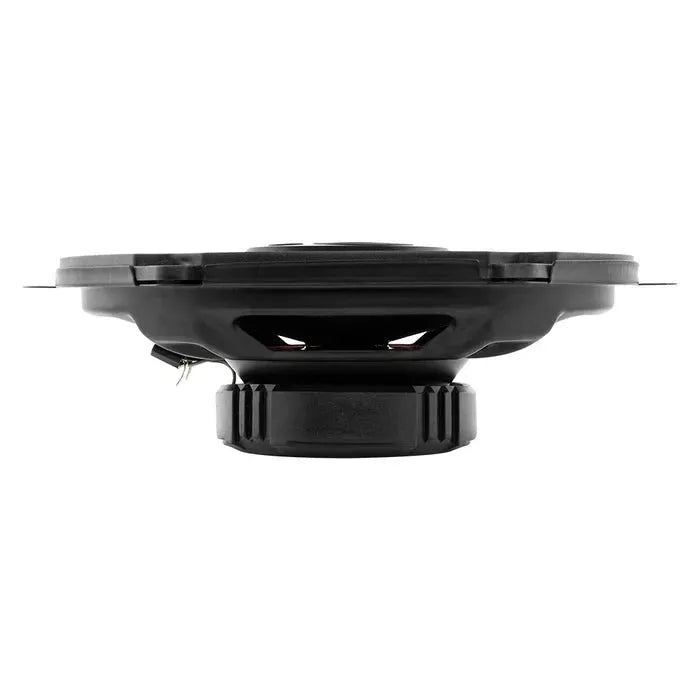

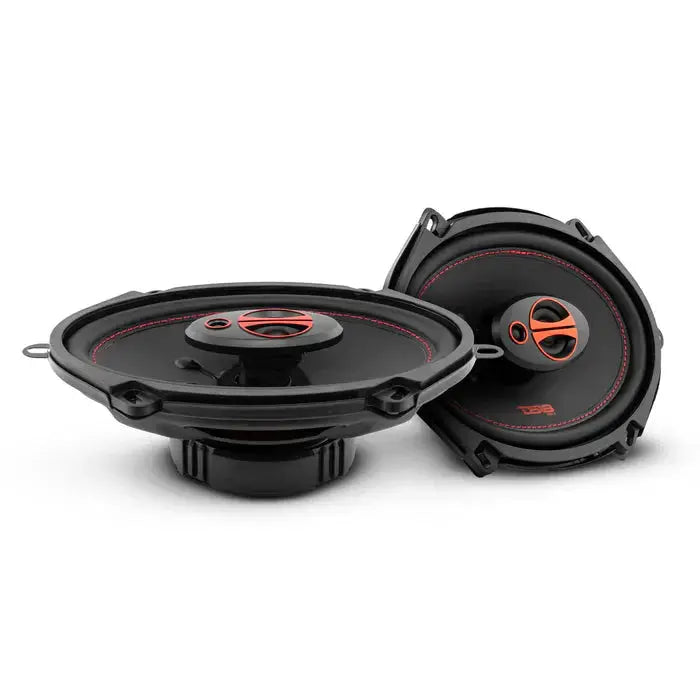

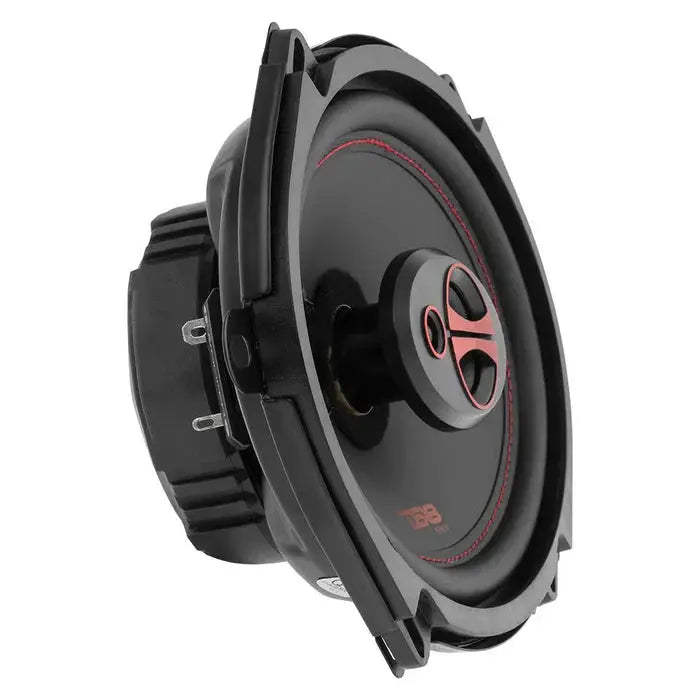

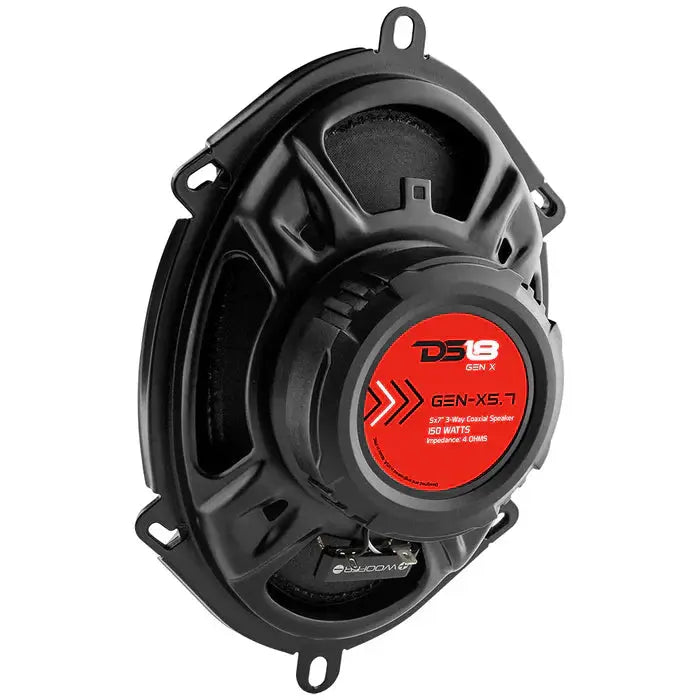

DS18 GEN-X5.7 GEN-X 5x7" 3-Way Coaxial Speakers 165 Watts 4-Ohm

DS18 GEN-X5.7 5x7" 3-Way Coaxial Speakers are built for enthusiasts seeking full-range performance in a compact 5x7" footprint, featuring a Mylar balanced-dome tweeter and rubber-edge black paper cone with mesh grills for stylish protection and clean visuals.

• Size: 5x7" — fits standard 5x7" mounting openings, enabling straightforward replacement in many vehicles.
• RMS Power: 50W — continuous power handling suitable for everyday listening without overloading the driver.
• MAX Power: 150W — peak/brief transient capability to handle louder musical moments without distortion.
• Frequency response: 78Hz - 20KHz — broad coverage from low bass up through the highs for a more complete sound without an external subwoofer.
• Impedance: 4 ohms — determines load seen by the amplifier and can influence pairing and volume with aftermarket amps.
• Sensitivity: 85dB/w/m — efficiency rating indicating how loud the speaker will be with each watt at one meter, impacting required amplifier size.
• Materials: Surround: Rubber Edge; Cone: Black Paper; Voice Coil Wire: ASV — durable construction designed for reliable excursion and heat handling.
• Voice coil size: 1" (25mm) — larger coil supports better power handling and responsiveness across the bandwidth.
• Magnet Size: 80x40x12mm — magnet dimensions contribute to motor strength and control for consistent sound reproduction.
• Tweeter Size: 28mm/9mm Mylar Dome — high-frequency driver size and material chosen for smooth top-end detail.
• Mounting depth: Top (No Grill): 64mm; Bottom: 53.8mm — installation depth options to accommodate varying dash or door panels.
• Cut-out dimension: 205x125mm (6x9") — recommended hole size for mounting in compatible openings.
• Included grills: included grills to protect your speakers as well as great looks to blend in to any vehicle.
• 2 to 4 way design: 2 to 4 way design for extreme full range quality hitting all the right frequencies.

In a car install, these GEN-X5.7 coaxials pair well with moderate-amplifier systems to deliver broad frequency coverage from a compact 5x7" footprint. The rubber-edge surrounds paired with treated paper cones provide a balance of volume, sensitivity to power, and durable performance, while the Mylar tweeter adds detail across the highs. The 4-ohm load and 50W RMS rating align with common aftermarket amps, and the included grills protect the drivers without compromising style. The mounting depth and cut-out dimensions help plan fitment in shallow or depth-constrained panels, making the GEN-X5.7 a versatile choice for compact, high-fidelity installations.
