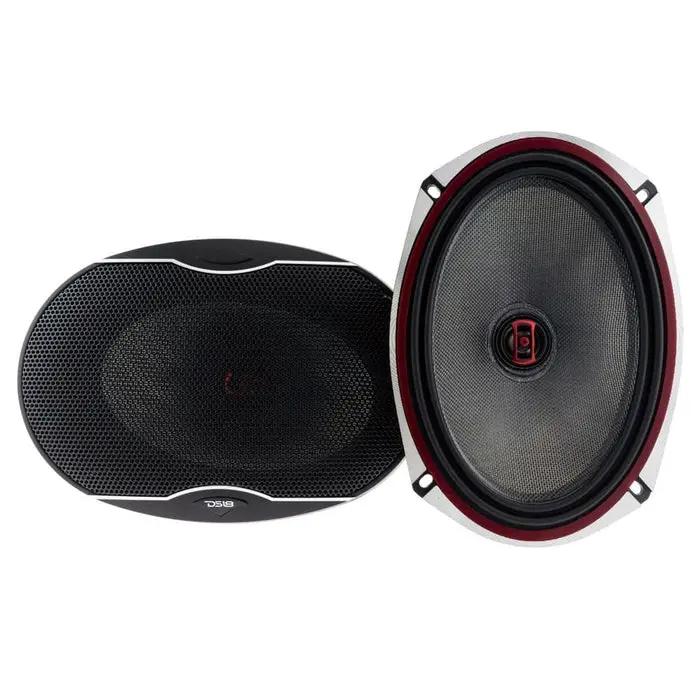

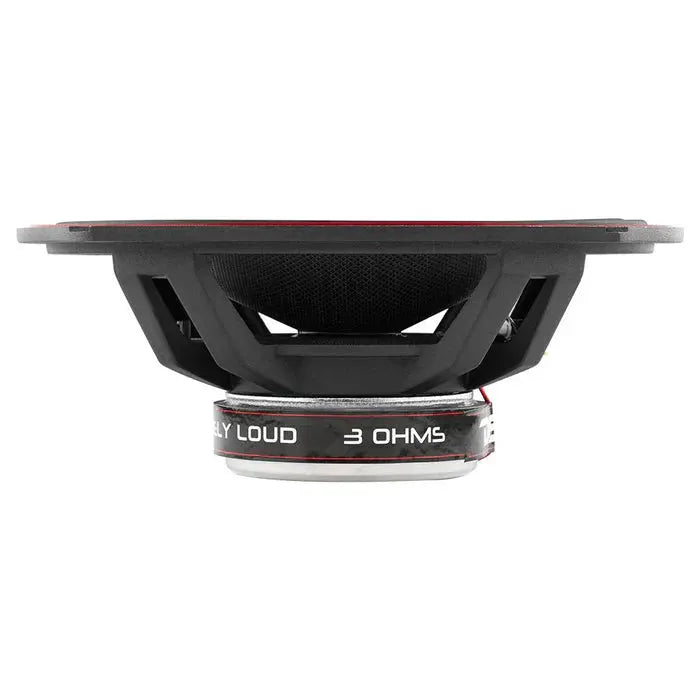

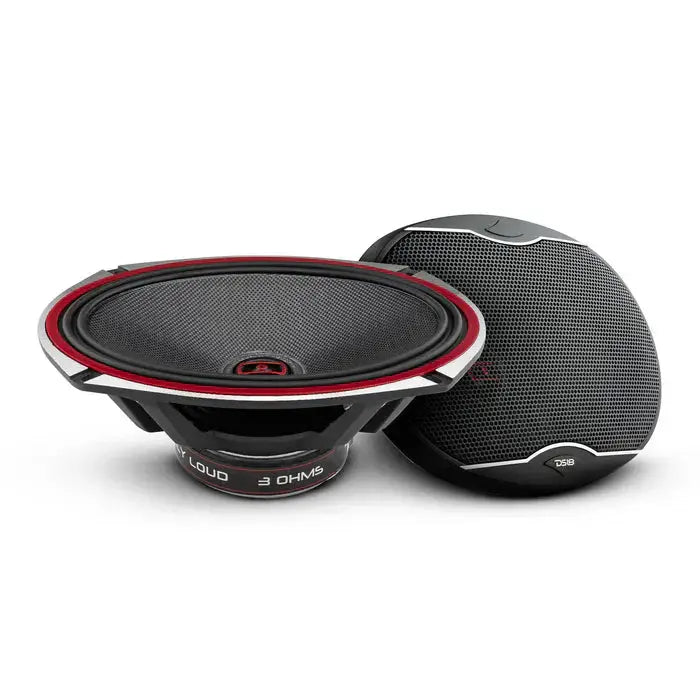

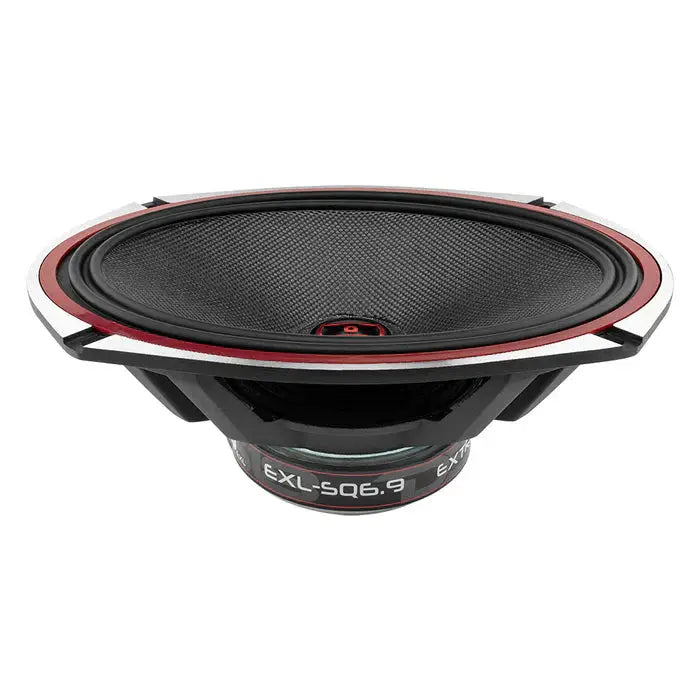

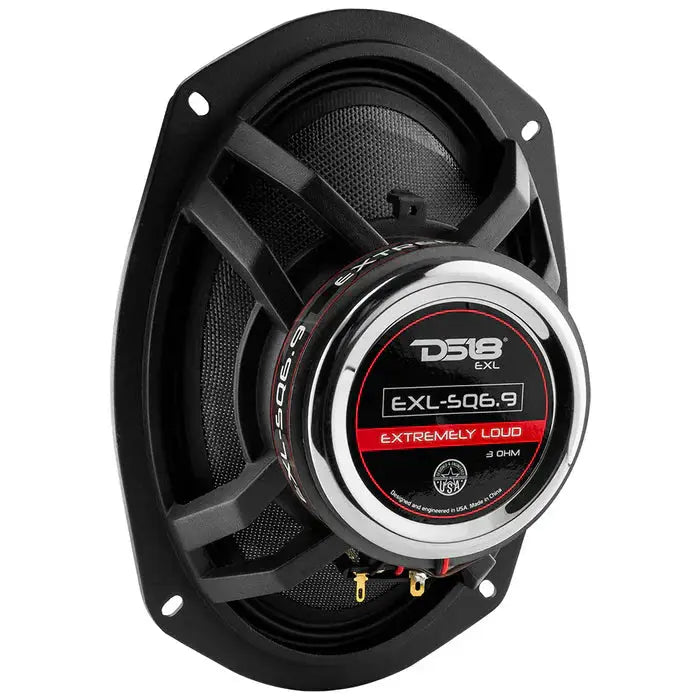

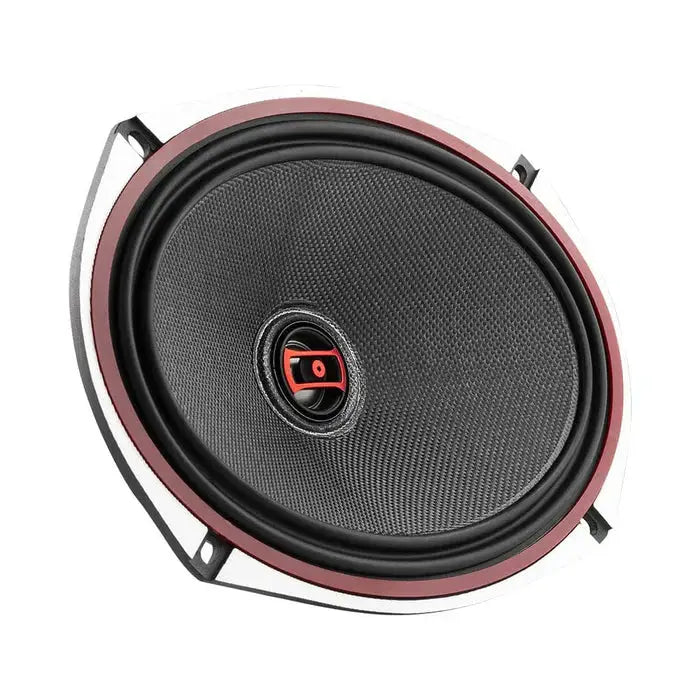

DS18 EXL-SQ6.9 EXL 6x9" 2-Way Coaxial Speaker with Fiber Glass Cone 560 Watts 3-Ohm

DS18 EXL-SQ6.9 is a 6x9" 2-way coaxial car speaker built for high-output systems, delivering full-range sound from a glass-fiber cone with a dedicated tweeter for precise highs. Its 3-ohm impedance and 160W RMS (560W max) power handling make it a strong choice for aggressive, detail-driven installations.

• 6x9" 2-Way Coaxial: built-in woofer and tweeter deliver full-range sound from a single mounting footprint.
• Impedance: 3 Ohm — low impedance eases integration with high-powered amplifiers for dynamic response.
• RMS Power: 160 Watts — continuous power handling for sustained, clean output.
• Max Power: 560 Watts — peak capability for transient musical peaks and impactful moments.
• Frequency Response: 55 Hz – 22 kHz — broad range from deep bass to extended highs for a complete soundtrack.
• Sensitivity: 90 dB / 1W / 1m — efficiency rating indicating how loud it gets with a given input.
• Tweeter: 1.14" PEI Dome — crisp high-frequency detail with fast transient response.
• Voice Coil: BASV 1.14" — coil size supports power handling and heat management for cleaner output.
• Cone Material: Glass Fiber Cone — stiff and lightweight, reduces distortion and improves accuracy.
• Magnet: Neodymium magnet — provides strong flux in a compact, efficient motor assembly.
• Magnet Material: Strontium — magnet material specified for this assembly.
• Magnet Weight: 19.8 oz — part of the motor’s mass contributing to its dynamic response.
• Surround: Rubber edge — durable surround that supports controlled cone motion.

The EXL-SQ6.9 is designed for high-powered builds where 6x9" mounting is available, offering strong midbass, clear highs, and efficient, low-distortion performance thanks to the glass-fiber cone and PEI tweeter. Its 3-ohm load and substantial power handling provide headroom for powerful amplifiers, while the lightweight motor assembly and stiff cone translate to rapid transient response and accurate musical reproduction across genres.
