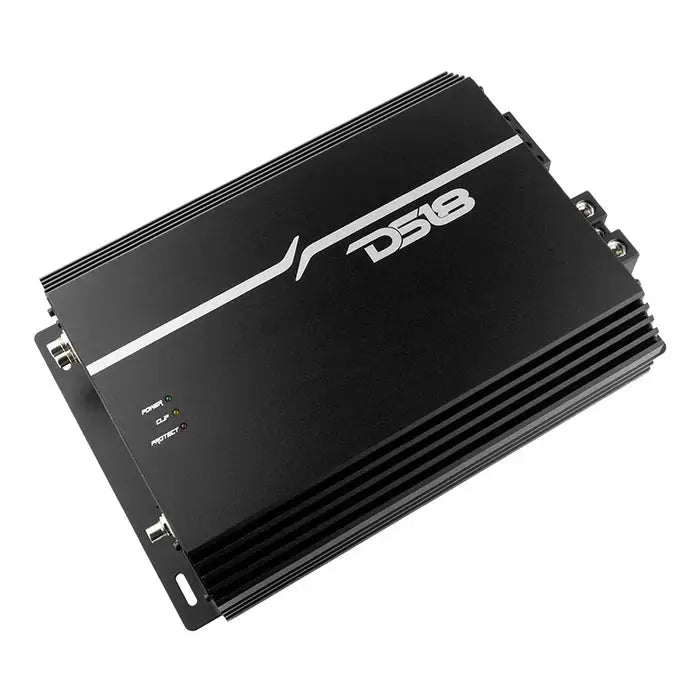

DS18 EXL-P2000X1D EXL Power 1-Channel Class D Amplifier 2000 x 1 @ 1-Ohm Watts Rms Made In Korea

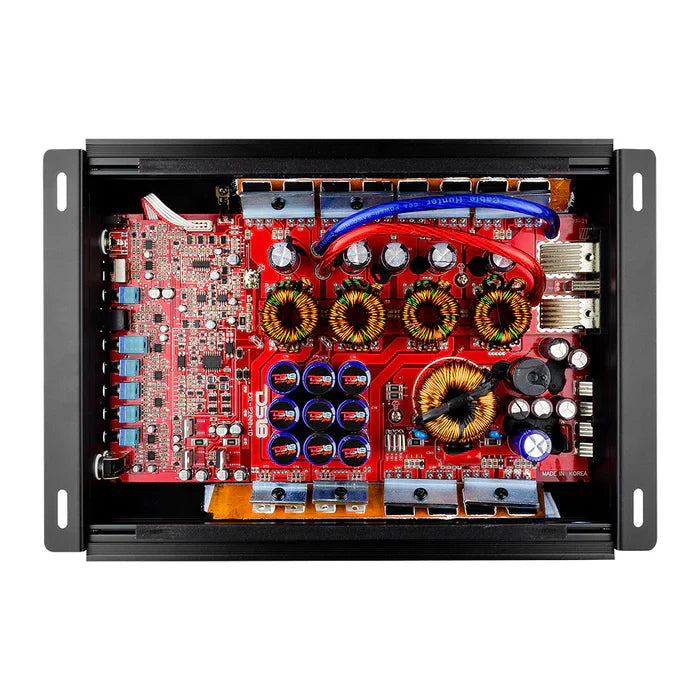

DS18 EXL-P2000X1D is a 1-channel Class D monoblock car amplifier built in Korea, engineered with optimized Korean circuitry for high-power subwoofer control and efficient cooling via a robust heatsink. It includes a bass knob and precise filters for on-car tuning and a power/clip/protect LED array for at-a-glance state awareness.

• RMS Power @ 1 Ohm: 2000W x 1 CH — Delivers peak-for-sub stability at a 1-ohm load, ideal for high-demand subwoofers with tight, controlled bass.
• RMS Power @ 2 Ohm: 1400W x 1 CH — Provides ample headroom for medium-load sub configurations while maintaining clarity.
• RMS Power @ 4 Ohm: 800W x 1 CH — Suitable for lower-impedance stability with reduced heat under lighter loads.
• Frequency Response: 15Hz–250Hz — Focused on deep sub-bass and low-frequency extension for impactful bass without excessive highs.
• Signal/Noise Ratio: > 98dB — Low noise floor helps subwoofers stay quiet when the rest of the system is silent.
• Efficiency @ 4 Ohm: > 87% — Higher efficiency means less heat under normal operation and better overall reliability.
• THD: < 0.02% — Very low distortion at rated power for cleaner bass reproduction.
• Damping Factor: 200 — Strong control of the sub’s mechanical movement, reducing woofer breakup and improving transient response.
• Low Level Input Range: 200mV–6V — Broad compatibility with common preamp outputs and head units.

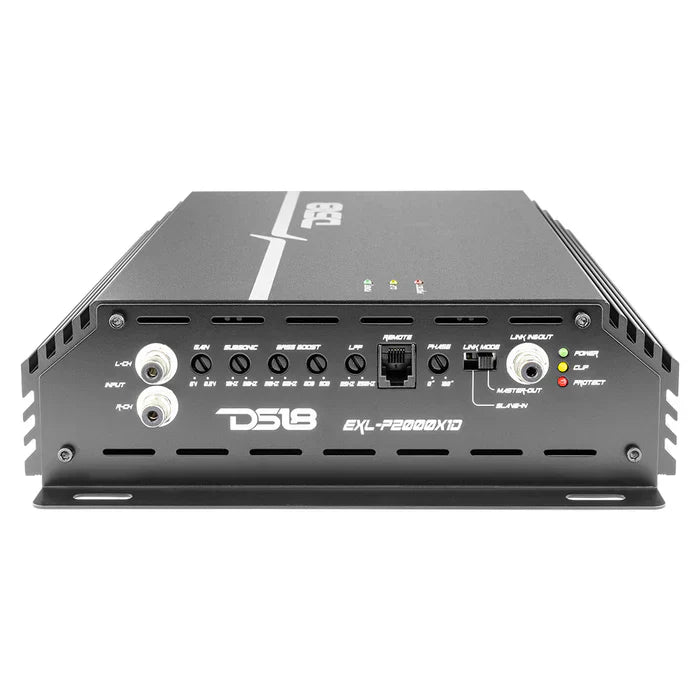

• X-Over: LPF Fixed; 35–250Hz range — Subsonic-friendly low-pass control to tailor the bass region to your enclosure and subwoofers.
• Bass Boost: 0–+9dB; 30–60Hz — Gentle boost to help tailor the sub’s low end to the vehicle’s acoustics and seating position.
• Infrasonic Filter: 10–30Hz — Helps suppress rumble and wind noise from the woofer excursion in-dash installs.
• Phase Selector: 0–180° — Aligns the sub’s phase with the rest of the system for coherent bass integration.
• Amplifier Type: Monoblock — Dedicated single-channel amp optimized for subwoofer duties.
• Subwoofer Channels: 1 CH — Focused channel for pure subwoofer amplification with dedicated controls.
• Minimum Impedance: 1 Ohm — Stable operation at low impedance, enabling robust low-end output.

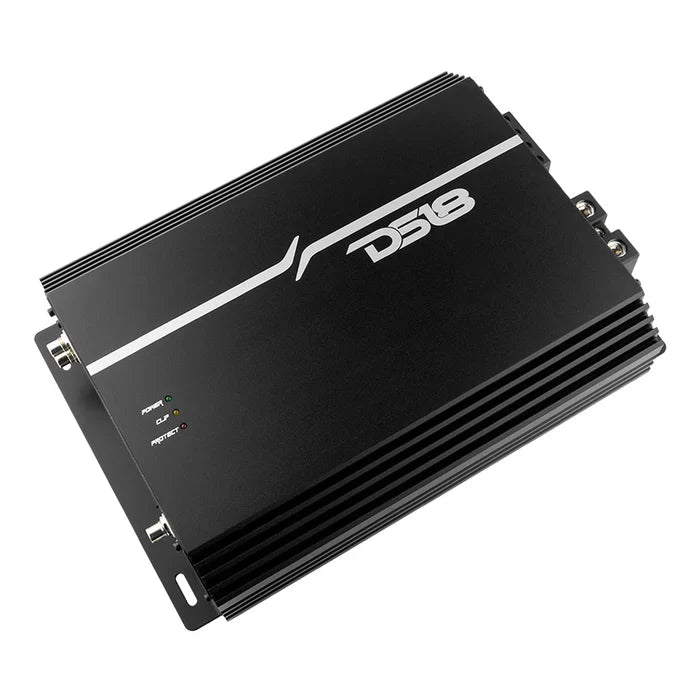

• LED Indicator: PWR / CLIP / PROTECT — Quick fault and operation status at a glance.

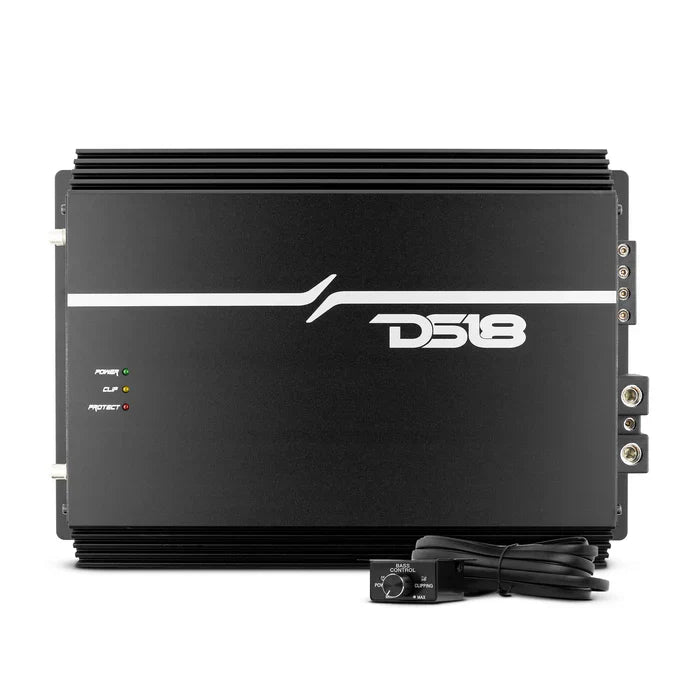

• Remote Level Control: Yes — Dash-mount control for on-the-fly level adjustments.
• Cooling: No fan — Quiet operation with a heatsink-equipped chassis for thermal management.
• Thermal Protection: Yes >75°C / 167°F — Safeguards against overheating during hard bass demands.
• Protection: Over-Load, DC Output, Short Circuit Output, Voltage Input, Clipping — Comprehensive safeguards to protect the amp and speakers.

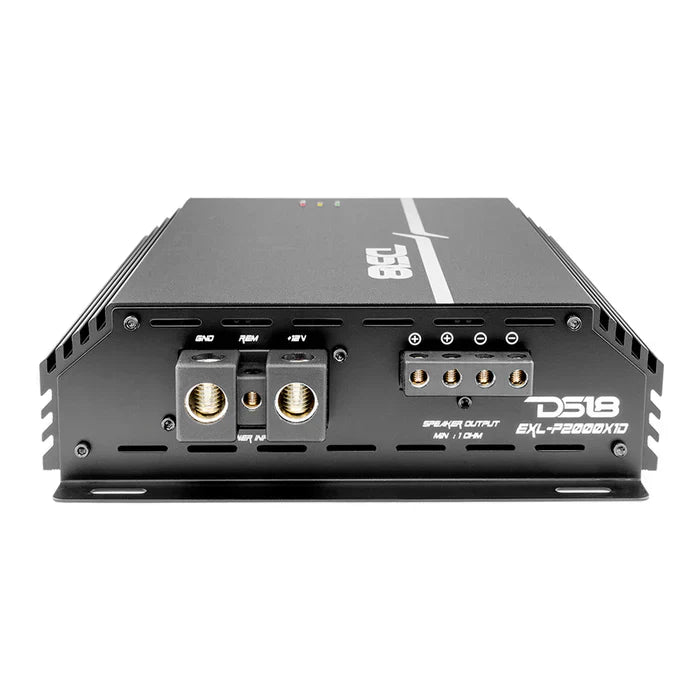

• Power Wiring: 1/0 AWG inputs for power/ground; 8 AWG speaker input terminals — Designed for high-current, low-impedance wiring in demanding installs.
• Body Color / Finish: Black — Sleek, durable exterior suitable for premium builds.
• Dimensions: 12.67 x 8.77 x 2.67 inches (L x W x H) — Compact footprint that fits common under-seat or trunk installations.
• Made In: Korea — Built to precise standards with material attention from DS18.

The EXL-P2000X1D is a purpose-built solution for serious subwoofer systems that demand high current, precise control, and reliable protection in a compact, non-audible-fan package. It pairs with large-gauge wiring, a fixed low-pass path, and on-board tuning to shape a powerful, clean bass stage in a wide range of vehicles.
