DS18 DDX6.9ML 6.9" Touchscreen Mechless Double-Din Headunit with Bluetooth, USB and Mirror Link

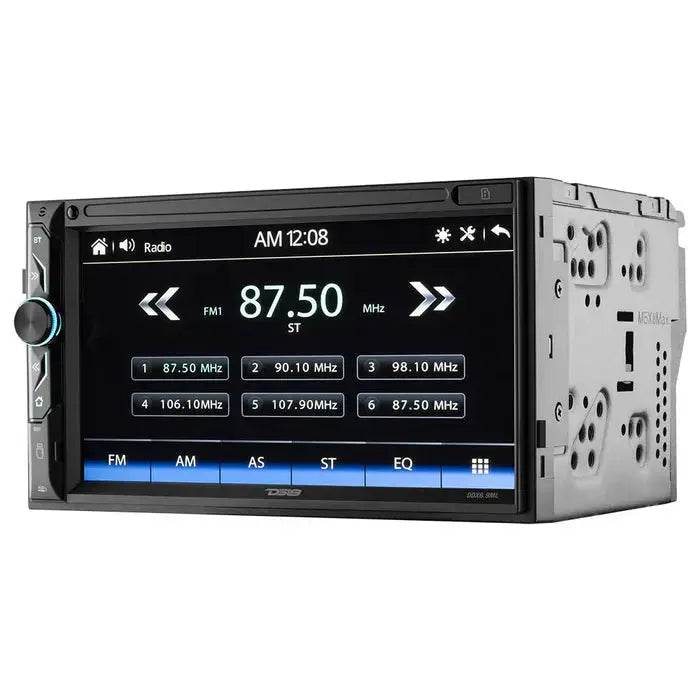

DS18 DDX6.9ML is a 6.9-inch mech-less double-DIN digital media receiver with a capacitive touchscreen, built for car-audio enthusiasts who want modern media features and smartphone mirroring in a clean dash install.

• Display: 6.9" TFT capacitive touchscreen, 1024 × 600, 16:9 format for crisp visuals and responsive control.
• Mech-Less Double-DIN: No CD drive; fits standard double-DIN dash openings with touch-based navigation.
• Power & Audio: 40W x 4 max; 15W x 4 RMS at 4 Ω; provides adequate headroom for front/rear speakers and external amplification; pre-amp outputs 4.5V (Front/Rear) and 7V (Sub).

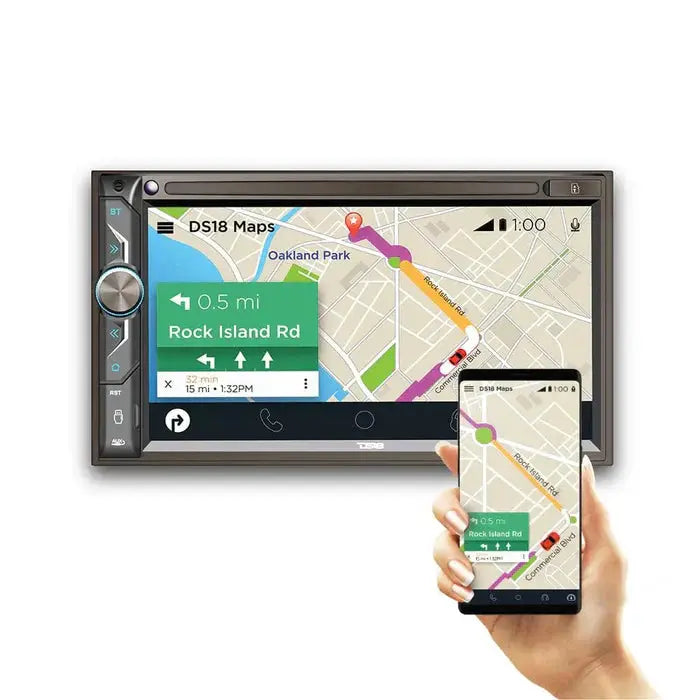

• Connectivity: Bluetooth 4.1 with audio streaming and hands-free calls; Mirror Link to mirror phone media on the head unit.
• USB & SD Media: USB/SD playback up to 64GB; supports RMVB, MPG4, AVI, MP3, WMA, JPEG, DivX; two USB ports (front and rear) with up to 1.5A supply.

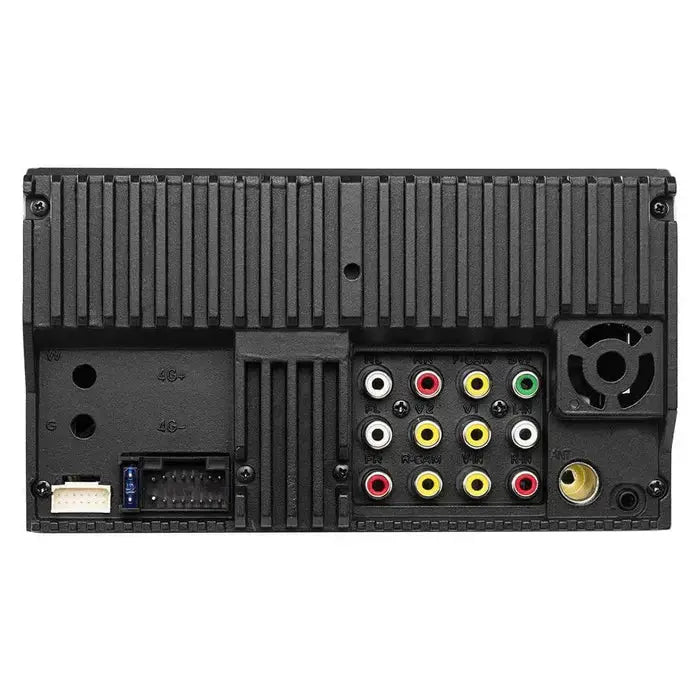

• Video & I/O: Front/Rear camera input via RCA; A/V Aux input; dual video output; supports up to 720p camera input and 1080p video playback.
• Tuner & Regions: FM 87.5–107.9 MHz; AM 530–1710 kHz; 30 preset stations; region selectable (USA, Latin, Japan, Asia, Europe, OIRT, Australia, Mid-East).
• Equalizer: 16-band EQ with center frequencies: 35Hz, 60Hz, 80Hz, 120Hz, 160Hz, 250Hz, 320Hz, 400Hz, 600Hz, 800Hz, 1kHz, 3kHz, 5kHz, 8kHz, 12.5kHz, 16kHz.
• Physical & Power Specs: Chassis 178 × 100 × 165 mm; bezel 170 × 96 × 5 mm; weight 820 g; rated power 14.4V DC (10.8–15V operation); max current 10A.
• Display & Environment: 6.9" display; operating temperature −20°C to 60°C (−4°F to 140°F).

The DS18 DDX6.9ML is designed to integrate smartphone media and modern playback into a single, feature-rich head unit. With Mirror Link and Bluetooth, two USB ports for convenient media and charging, and wide media format support up to 64GB, it offers a flexible foundation for a clean, capable car audio upgrade. The 4.5V front/rear and 7V sub pre-out levels, plus a 16-band EQ and region controls, give you meaningful control when tuning for your vehicle and listening space.
