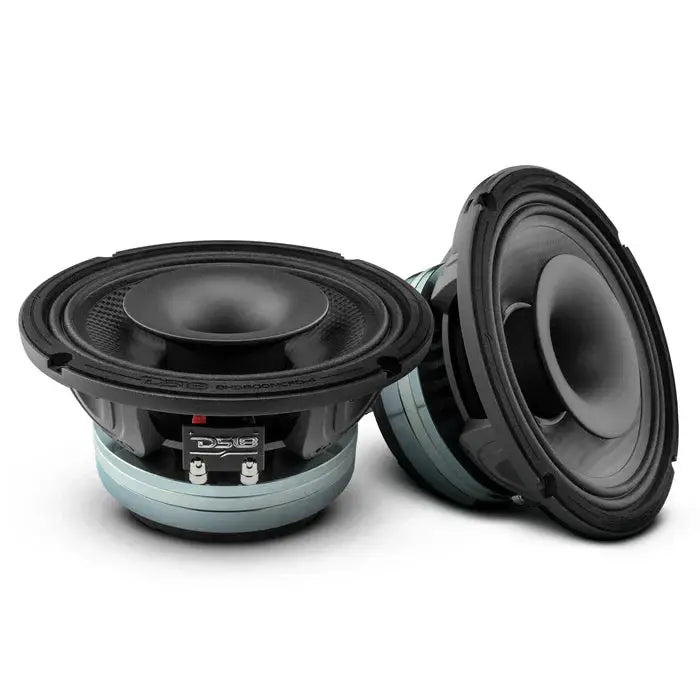

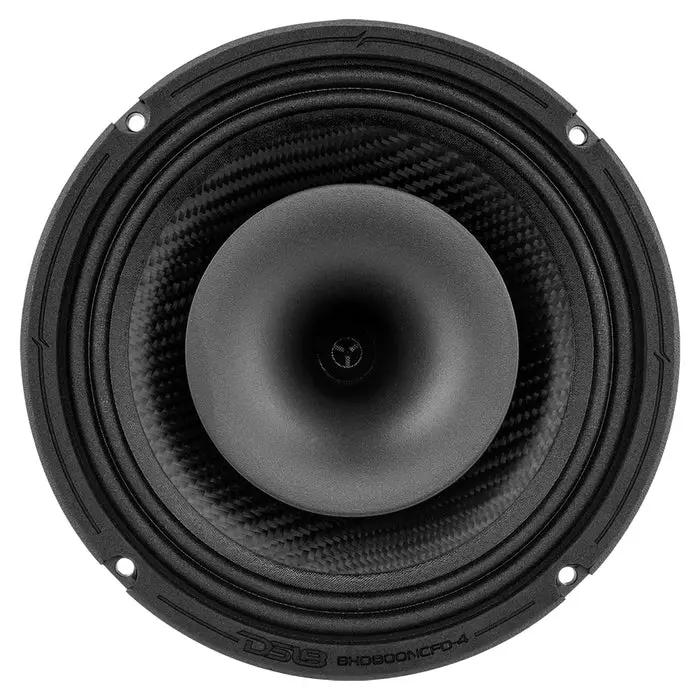

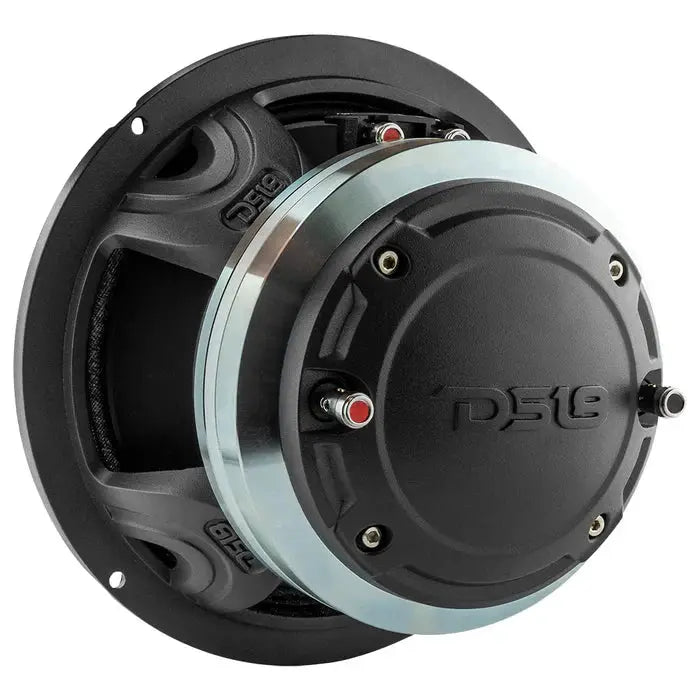

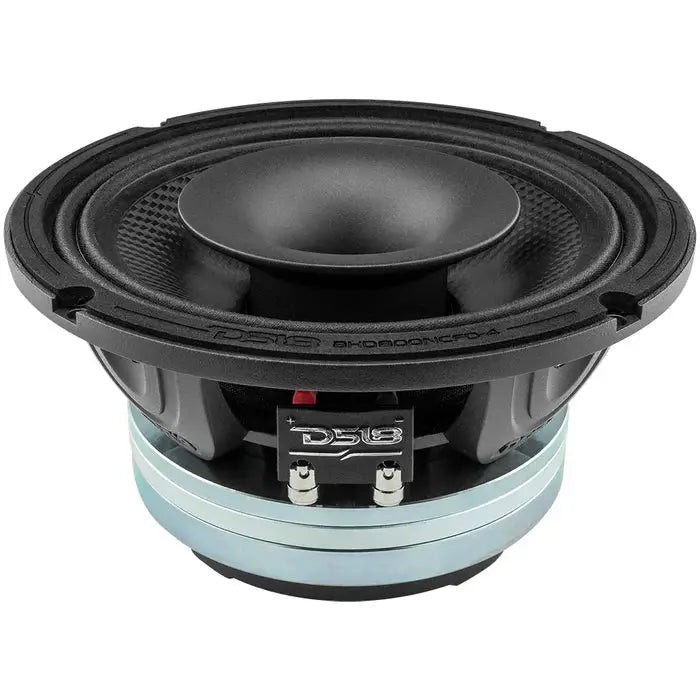

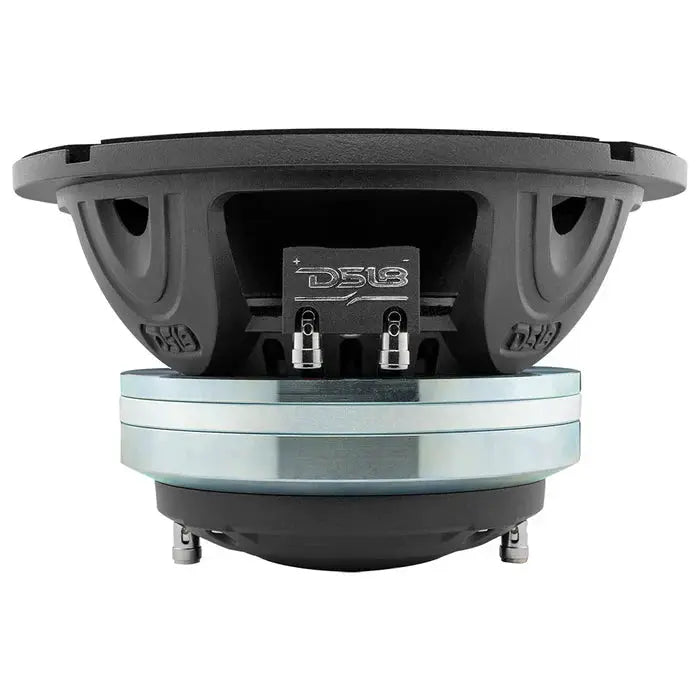

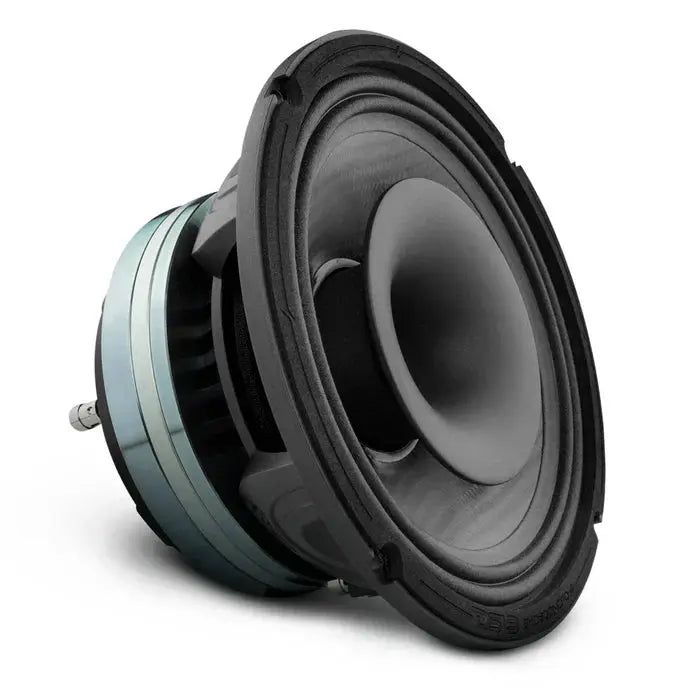

DS18 8HD800NCFD-4 8" Water Proof Carbon Fiber Mid Bass and Driver Coaxial Hybrid Neodymium Magnet 4-Ohm (each)

The DS18 8HD800NCFD-4 is an 8" water-resistant carbon fiber mid-bass with a built-in coaxial hybrid driver and compression horn, built for enthusiasts who demand high output and precise full-range performance in demanding automotive and marine installs.

• Nominal Diameter: 8" / 203mm – provides substantial cone area for strong bass and solid midrange presence in a standard 8" mounting footprint.
• Nominal Impedance (Woofer / Driver): 4 Ω (woofer) / 8 Ω (driver) – dual impedance lets you tailor crossovers and loading for a two-way system.
• RMS Power Handling (Combined): 400W – continuous power handling for steady musical peaks; MAX Power Handling (Combined): 800W – supports short bursts and dynamic transients.
• Sensitivity: 105 dB (1W/1m) – high efficiency means more output with less amplifier power, aiding dynamic performance in loud installations.
• Frequency Response (Combined): 40 Hz – 20 kHz – broad coverage from deep bass to detailed highs when the two-way hybrid is correctly integrated.
• Construction: Water-resistant carbon fiber cones – durability against moisture for installations in boats, motorcycles, and vehicles.
• Hybrid Driver Design: Built-in coaxial driver with compression horn – two-way integration within a single assembly for coherent midrange and HF response.
• Wiring Options: Four terminals (two for midrange, two for driver) – flexible crossover configurations and ease of wiring in complex installs.
• Woofer Specs: RMS 250W / MAX 500W; Sensitivity 96.5 dB; 40 Hz–10 kHz; 2.6" (66 mm) voice coil; Neodymium magnet; water-resistant carbon fiber cone.
• Driver Specs: AES Power 150W / Program Power 300W; Sensitivity 100.5 dB; 315 Hz–20 kHz.
• Magnet Material: Neodymium – compact, high-strength magnet for efficient, linear motor performance.
• Sold In: Singles – product is sold as singles; Grill Included: No.
• SKU: 8HD800NCFD-4

In a real car build, the 8HD800NCFD-4 provides a cohesive 2-way footprint with a single mounting reference, pairing an 8" woofer with a coaxial high-frequency driver to deliver deep bass and clear highs with minimal cross-overs. The water-resistant carbon fiber cone adds dependable durability in moisture-prone installations, while the four-terminal design supports flexible crossover strategies to suit your amplifier and processor setup. With up to 800W peak and 105 dB sensitivity, it maintains high dynamic range and strong SPL without undue distortion, making it well-suited to high-efficiency, power-dense systems in cars, boats, and motorcycles alike.
