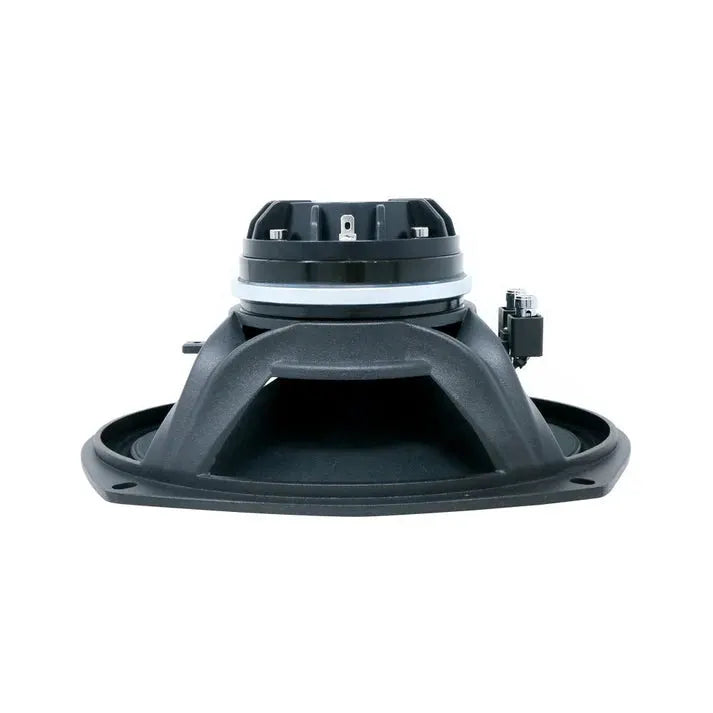

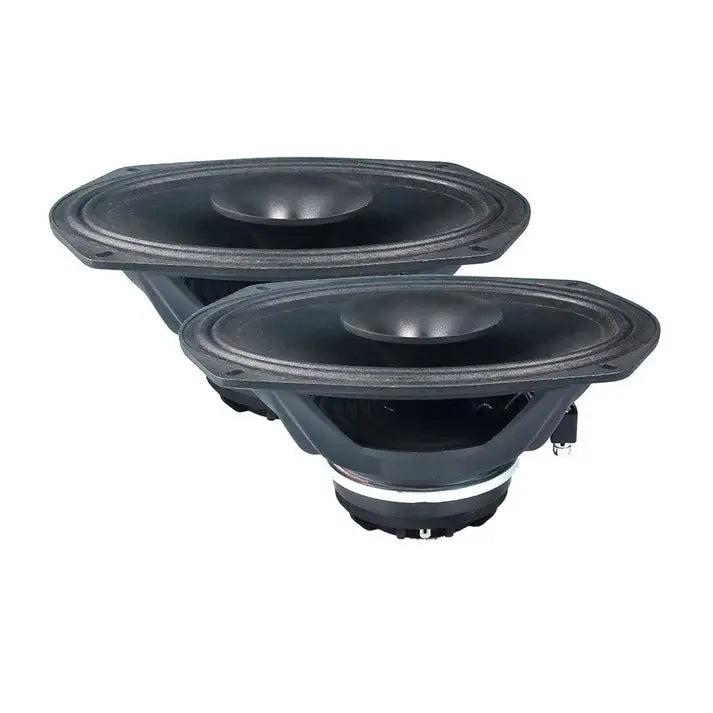

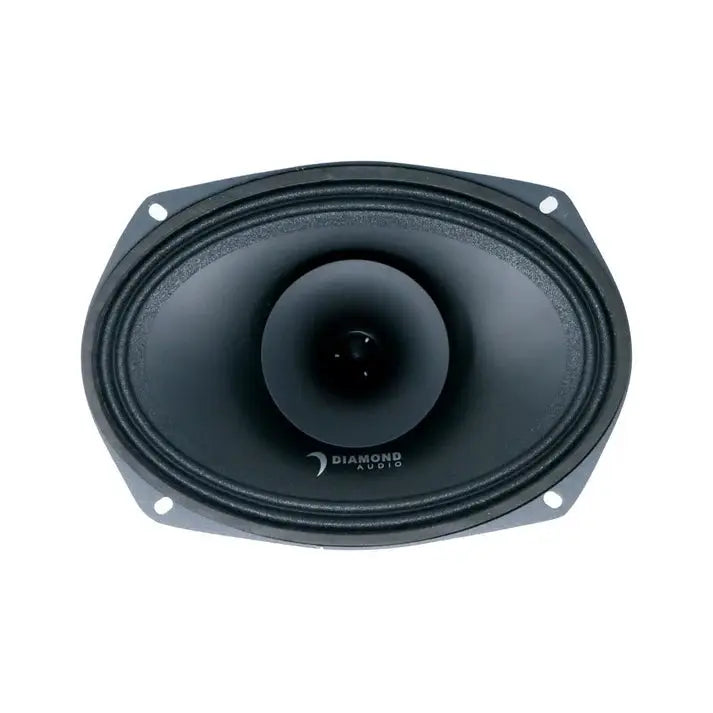

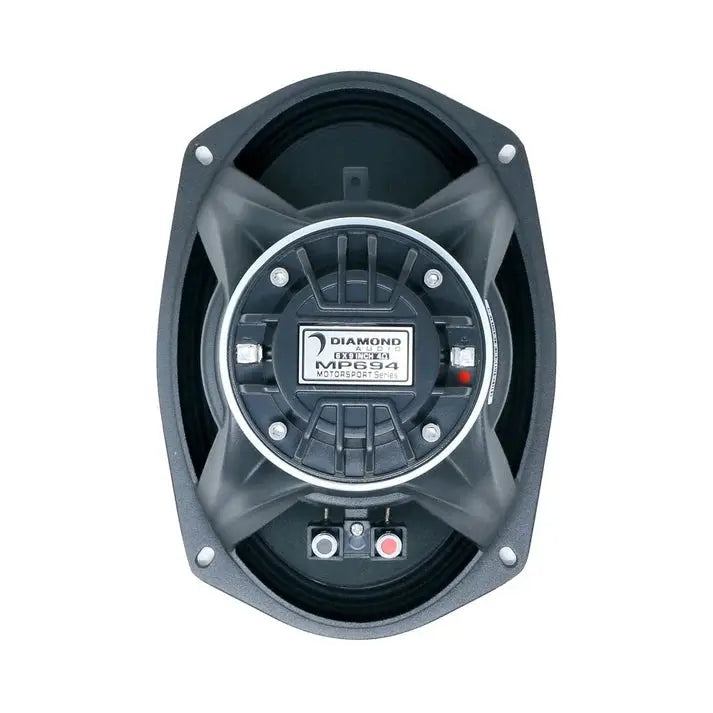

Diamond Audio 6"x 9" MP Series 2-Way Full-Range Coaxial Speakers w/1" Horn Tweeter (4Ω) - MP694

Diamond Audio MP694 — 6"x9" 2-Way Full-Range Coaxial Speaker with 1" Horn Tweeter (4Ω)

The Diamond Audio MP694 is a 6"x9" 2-way coaxial speaker engineered for riders, boaters, and adventurers who need high-output, full-range audio in demanding environments. Part of the MP Series lineup, the MP694's larger oval format extends low-end response down to 80Hz while maintaining the same proven NEO magnet motor, 1" horn-style tweeter with replaceable diaphragm, and heavy-duty steel basket found across the MP Series — delivering 150W RMS with 101dB sensitivity (1W/1M).

Designed for Harley Davidson motorcycles, boats, and recreational vehicles, the MP694's 3.99" mounting depth and standard 6x9 cutout dimensions make it a direct upgrade for existing 6x9 locations in fairings, saddlebags, and marine enclosures. Water-resistant construction ensures durability in high-vibration, high-exposure environments.

Key Features

• NEO magnet structure for lightweight, high-efficiency motor design
• 1" horn-style tweeter with replaceable tweeter diaphragm for long-term serviceability
• Heavy-duty steel basket for rigidity and vibration resistance
• 1.5" high-temp 4Ω voice coil for reliable power handling
• 101dB sensitivity (1W/1M) — high output from low-powered amplifiers
• Extended low-end response: 80Hz – 18kHz for fuller bass from a coaxial
• 12dB 2nd Order crossover for tweeter protection
• Water-resistant construction (not waterproof)
• Compatible with Harley Davidson, marine, and RV applications

Specifications

Thiele/Small Parameters

• Power Handling: 150W RMS / 300W MAX
• SPL (dB) MidBass: 95.6
• SPL (dB) Tweeter: 107
• Sensitivity: 101dB (1W/1M)
• Frequency Response: 80Hz – 18kHz
• Re (Ω): 3.2
• Qms: 9.42
• Qes: 0.43
• Qts: 0.42
• Fs (Hz): 82.6
• Vas (L): 18.2
• Cms (mm/N): 0.25
• Mms (g): 15.1
• Sd (cm²): 229.7
• BL (T*M): 7.6
• Xmax (mm): 1.0
• Crossover: 12dB 2nd Order Filter

Voice Coil

• Mid Driver: 1.5" Single Layer High Temp 4Ω Voice Coil
• Tweeter: 1.0" 8Ω Single Layer High Temp Voice Coil

Dimensions

• Diameter: 9.33" x 6.57" (237mm x 167mm)
• Mounting Diameter: 8.86" x 5.98" (225mm x 152mm)
• Mounting Depth: 3.99" (101.3mm)
• Total Depth: 4.26" (108.3mm)
• Magnet Diameter: 3.94" (100mm)

Disclaimer: The MP694 speakers are water-resistant, not waterproof. Avoid prolonged exposure to large amounts of water to prevent damage.
