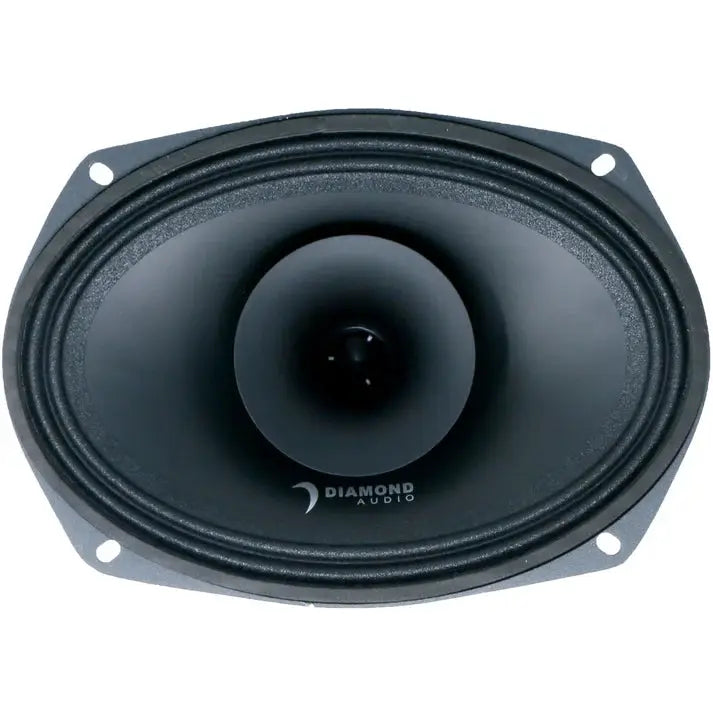

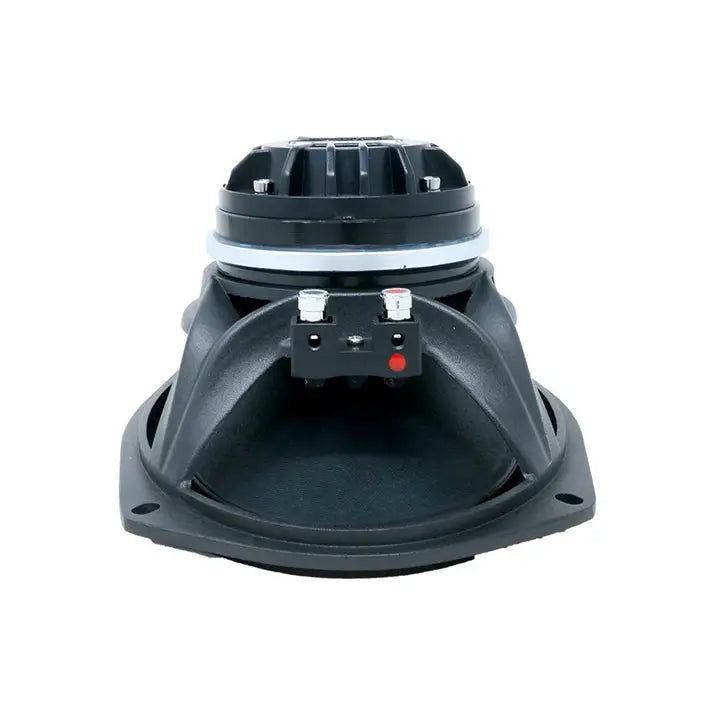

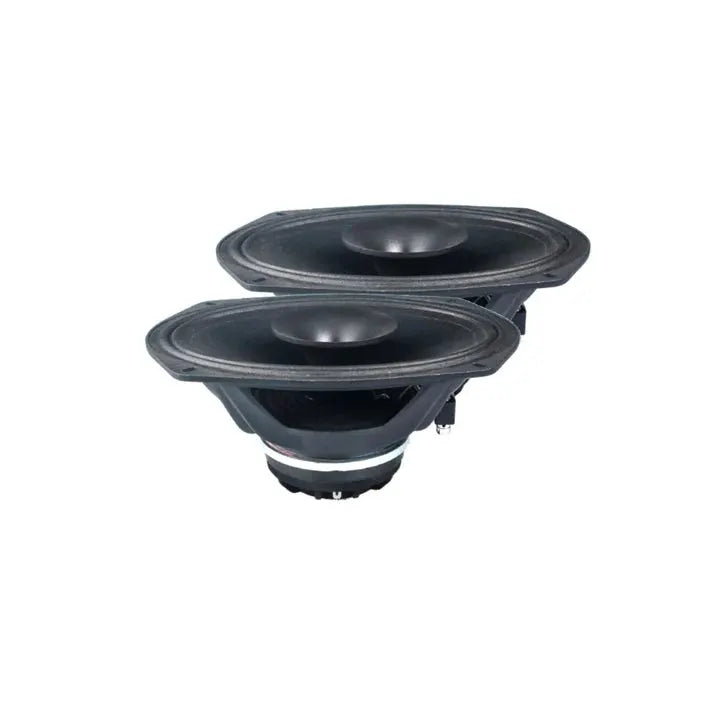

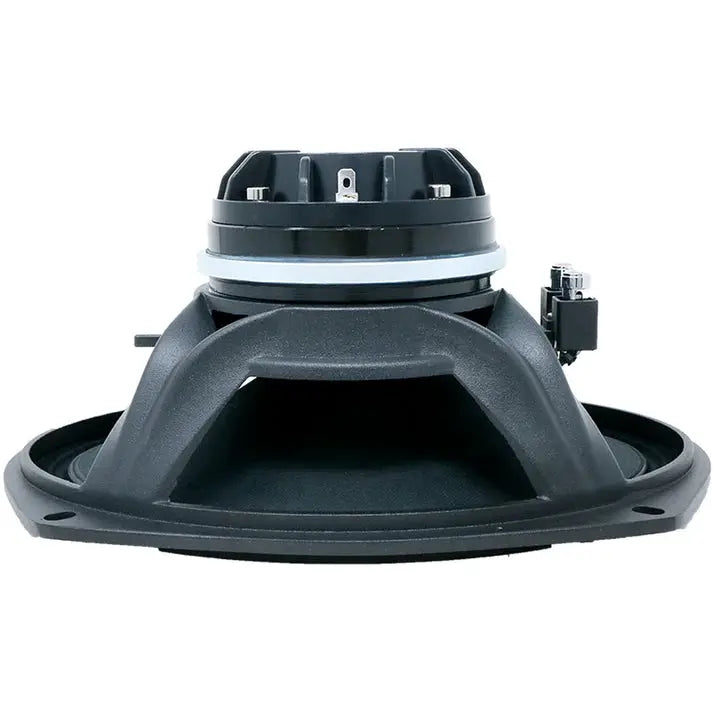

Diamond Audio 6"x 9" MP Series 2-Way Full-Range Coaxial Speaker w/1" Horn Tweeter (2Ω) - MP692

Diamond Audio MP692 — 6"x9" 2-Way Full-Range Coaxial Speaker with 1" Horn Tweeter (2Ω)

The Diamond Audio MP692 is the 2Ω variant of the MP Series 6"x9" coaxial speaker, engineered for riders, boaters, and adventurers running low-impedance amplifier systems who need high-output, full-range audio in demanding environments. Sharing the same proven MP Series platform as the MP694, the MP692 combines a ferrite strontium high-temp magnet, a 1" horn-style tweeter with a replaceable diaphragm, and a heavy-duty die-cast aluminum basket — delivering 250W RMS with 101dB sensitivity (1W/1M) and extended low-end response down to 80Hz.

Designed for Harley Davidson motorcycles, boats, and recreational vehicles, the MP692's 3.99" mounting depth and standard 6x9 cutout dimensions make it a direct-fit upgrade for existing 6x9 locations in fairings, saddlebags, and marine enclosures. Water-resistant construction ensures durability in high-vibration, high-exposure environments.

Key Features

• 2Ω impedance — maximizes amplifier output for louder, more aggressive performance
• Ferrite strontium high-temp magnet structure for reliable, high-output motor design
• 1" horn-style tweeter with replaceable tweeter diaphragm for long-term serviceability
• Heavy-duty die-cast aluminum basket for rigidity and vibration resistance
• Advanced voice coil heat sink design for improved heat dissipation
• 101dB sensitivity (1W/1M) — high output from low-powered amplifiers
• Extended low-end response: 80Hz – 18kHz for fuller bass from a coaxial
• 12dB crossover for tweeter protection
• Water-resistant construction (not waterproof)
• Compatible with Harley Davidson, marine, and RV applications

Specifications

• Power Handling: 250W RMS / 500W MAX
• Sensitivity: 101dB (1W/1M)
• Frequency Response: 80Hz – 18kHz
• Impedance: 2Ω
• Crossover: 12dB
• Woofer Voice Coil: 1.5" Single Layer High Temp
• Tweeter Voice Coil: 1.0" Single Layer High Temp
• Magnet: Ferrite Strontium High Temp
• Basket: Heavy-Duty Die-Cast Aluminum
• Mounting Depth: 3.99" (101.3mm)
• Mounting Diameter: 8.86" x 5.98" (225mm x 152mm)

Disclaimer: The MP692 speakers are water-resistant, not waterproof. Avoid prolonged exposure to large amounts of water to prevent damage.
