Diamond Audio 6.5" MP Series 2-Way Full-Range Coaxial Speaker w/1" Horn Tweeter (2Ω) - MP652

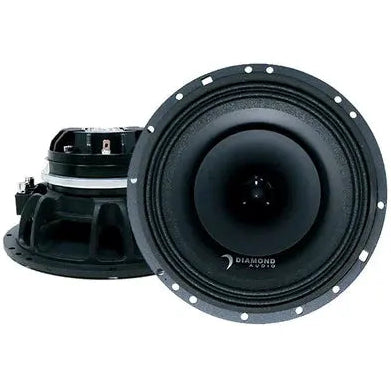

Diamond Audio MP652 — 6.5" 2-Way Full-Range Coaxial Speaker with 1" Horn Tweeter (2Ω)

The Diamond Audio MP652 is the 2Ω variant of the MP Series 6.5" coaxial speaker, engineered for riders, boaters, and adventurers running low-impedance amplifier systems. Sharing the same proven MP Series platform as the MP654, the MP652 combines a high-temp NEO magnet motor, a 1" horn-style tweeter with a replaceable diaphragm, and a heavy-duty steel basket — delivering 250W RMS with 101dB sensitivity (1W/1M) for powerful, efficient output from motorcycle and marine amplifiers.

Designed for Harley Davidson motorcycles, boats, and recreational vehicles, the MP652's 3.33" mounting depth and 5.73" mounting diameter fit standard fairing and marine enclosure cutouts. Water-resistant construction ensures durability in high-vibration, high-exposure environments.

Key Features

• 2Ω impedance — optimized for low-impedance motorcycle and marine amplifiers
• NEO magnet structure for lightweight, high-efficiency motor design
• 1" horn-style tweeter with replaceable tweeter diaphragm for long-term serviceability
• Heavy-duty steel basket for rigidity and vibration resistance
• 101dB sensitivity (1W/1M) — high output from minimal power
• 12dB 2nd Order crossover for tweeter protection
• Frequency response: 110Hz – 18kHz
• Water-resistant construction (not waterproof)
• Compatible with Harley Davidson, marine, and RV applications

Specifications

Power & Sensitivity

• Power Handling: 250W RMS / 500W MAX
• Sensitivity: 101dB (1W/1M)
• Tweeter SPL: 107dB
• Frequency Response: 110Hz – 18kHz
• Crossover: 12dB 2nd Order Filter

Voice Coil

• Mid Driver: 1.5" 2Ω Single Layer High Temp Voice Coil
• Tweeter: 1.0" 8Ω Single Layer High Temp Voice Coil

Dimensions

• Diameter: 6.5" (165.5mm)
• Mounting Diameter: 5.73" (145.5mm)
• Mounting Depth: 3.33" (91.6mm)
• Total Depth: 3.88" (98.6mm)
• Magnet Diameter: 3.94" (100mm)

Disclaimer: The MP652 speakers are water-resistant, not waterproof. Avoid prolonged exposure to large amounts of water to prevent damage.
