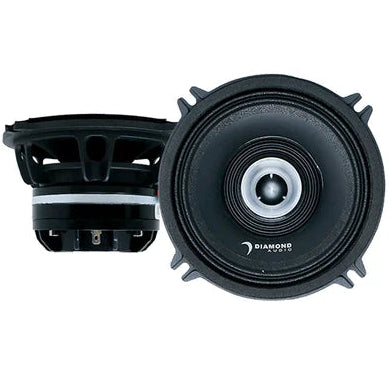

Diamond Audio 5.25" MP Series 2-Way Full-Range Coaxial Speaker w/1" Horn Tweeter (4Ω) - MP525

Diamond Audio MP525 — 5.25" 2-Way Full-Range Coaxial Speaker with 1" Horn Tweeter (4Ω)

The Diamond Audio MP525 is a 5.25" 2-way coaxial speaker engineered for riders, boaters, and adventurers who need high-output, high-clarity audio in demanding environments. Part of the MP Series lineup, the MP525 combines a high-temp NEO magnet motor, a 1" horn-style tweeter with a replaceable diaphragm, and a heavy-duty die-cast aluminum basket — delivering 150W RMS with 101dB sensitivity (1W/1M) for exceptional efficiency and loudness from even modest amplifiers.

Designed for Harley Davidson motorcycles, boats, and recreational vehicles, the MP525's compact 2.99" mounting depth and 4.68" mounting diameter make it easy to fit in tight spaces including motorcycle fairings and marine enclosures. Water-resistant construction ensures durability in high-vibration, high-exposure environments.

Key Features

• High-temp NEO magnet structure for lightweight, high-efficiency motor design
• 1" horn-style tweeter with replaceable tweeter diaphragm for long-term serviceability
• Heavy-duty die-cast aluminum basket for rigidity and vibration resistance
• Advanced voice coil heat sink design for improved heat dissipation
• 101dB sensitivity (1W/1M) — ideal for low-powered motorcycle and marine amplifiers
• 12dB 2nd Order crossover for tweeter protection
• Frequency response: 110Hz – 18kHz
• Compact 2.99" mounting depth for tight fairing and marine installs
• Water-resistant construction (not waterproof)

Specifications

• Power Handling: 150W RMS / 300W MAX
• Sensitivity: 101dB (1W/1M)
• Frequency Response: 110Hz – 18kHz
• Crossover: 12dB 2nd Order Filter
• Woofer Voice Coil: 1.5" Single Layer High Temp
• Tweeter Voice Coil: 1.0" Single Layer High Temp
• Mounting Depth: 2.99" (76mm)
• Mounting Diameter: 4.68" (119mm)

Disclaimer: The MP525 speakers are water-resistant, not waterproof. Avoid prolonged exposure to large amounts of water to prevent damage.
