Diamond Audio MICRO4V2 4-Channel Full Range Class D Amplifier

Power your full speaker system with precision and efficiency using the Diamond Audio MICRO4V2 4-Channel Full Range Class D Amplifier. Built for car, motorcycle, marine, and powersports audio systems, the MICRO4V2 delivers clean, dynamic output in an ultra-compact chassis that installs just about anywhere.

Running full-range Class D topology, this amp puts out 80W x 4 @ 4Ω, 150W x 4 @ 2Ω, and 300W x 2 bridged @ 4Ω — plenty of headroom for a full speaker setup or a bridged subwoofer channel. Balanced differential inputs keep the signal clean and noise-free, while Advanced Rollback and Thermal Protection ensures the amp keeps running without shutdown under sustained load.

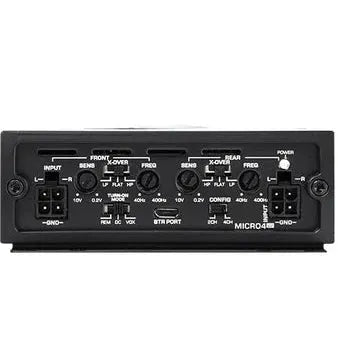

The high-density aluminum alloy chassis handles heat dissipation efficiently while keeping the footprint tight. Tune your system with selectable LPF / FLAT / HPF crossovers, a 40–400Hz adjustable crossover filter (12dB slope), and 12dB bass boost @ 45Hz. Selectable REM, VOX, and DC turn-on modes plus 2CH / 4CH input options make integration with factory or aftermarket head units straightforward.

Key Features

• 4-channel full range Class D amplifier
• 80W x 4 @ 4Ω / 150W x 4 @ 2Ω / 300W x 2 bridged @ 4Ω

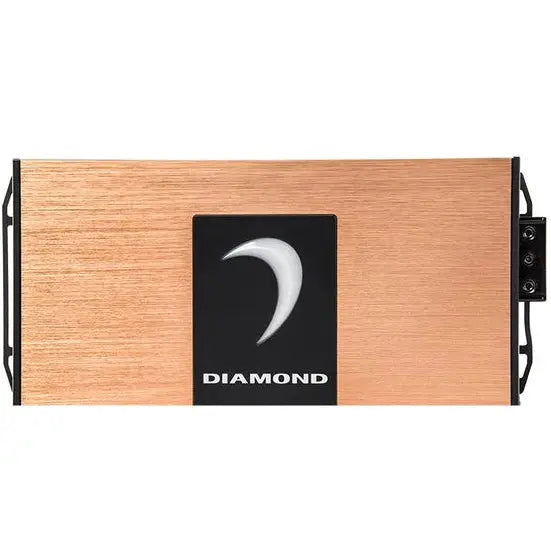

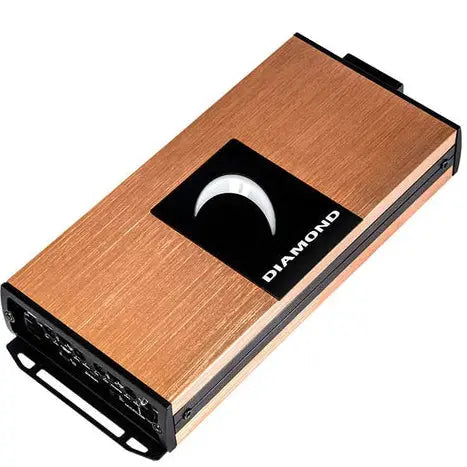

• Ultra-compact high-density aluminum alloy chassis
• Balanced differential inputs for noise-free signal
• Advanced Rollback & Thermal Protection
• Selectable LPF / FLAT / HPF crossovers
• 40–400Hz crossover filter, 12dB per octave slope
• 12dB bass boost @ 45Hz
• Selectable REM / VOX / DC turn-on modes
• Selectable 2CH / 4CH input modes
• Disconnected RCA input & speaker output harness kits included

Specifications

• 150W x 4 @ 2Ω
• 80W x 4 @ 4Ω
• 300W x 2 @ 4Ω Bridged
• Input Sensitivity: 0.2–10V
• Crossover Filter: 40–400Hz, 12dB Per Octave Slope
• Frequency Response: 10Hz–33kHz
• Selectable REM / VOX / DC Turn On Modes
• Selectable X-Over: LPF / FLAT / HPF
• Selectable 2CH / 4CH Input Modes
• Dimensions: 9.7" x 4.0" x 1.46" / 230.5 x 103 x 37.2mm
• Disconnected RCA Input & Speaker Output Harness Kits Included
