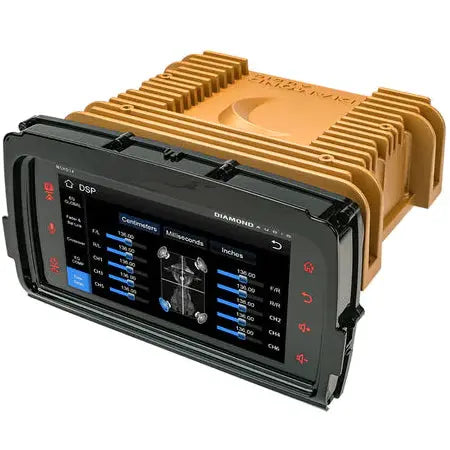

Diamond Audio 2014-2023 Plug N-Play Digital Media Receiver for Harley Davidson® Touring Motorcycles - MSHD14

2014–2023 Plug N-Play Digital Media Receiver for Harley Davidson

Introducing the MSHD14 Plug N-Play Digital Media Receiver for 2014+ Harley Davidson motorcycles — the pinnacle of audio and media performance on the road. Proudly designed in the USA, this high-end Harley radio is engineered to redefine your riding experience with unmatched features and cutting-edge technology.

Superior Sound Performance

• 10 Channel – Clip-Free Independent Outputs: (6) 5V RMS RCA outputs and (4) 50x4@2Ω/25x4@4Ω RMS clip-free outputs.

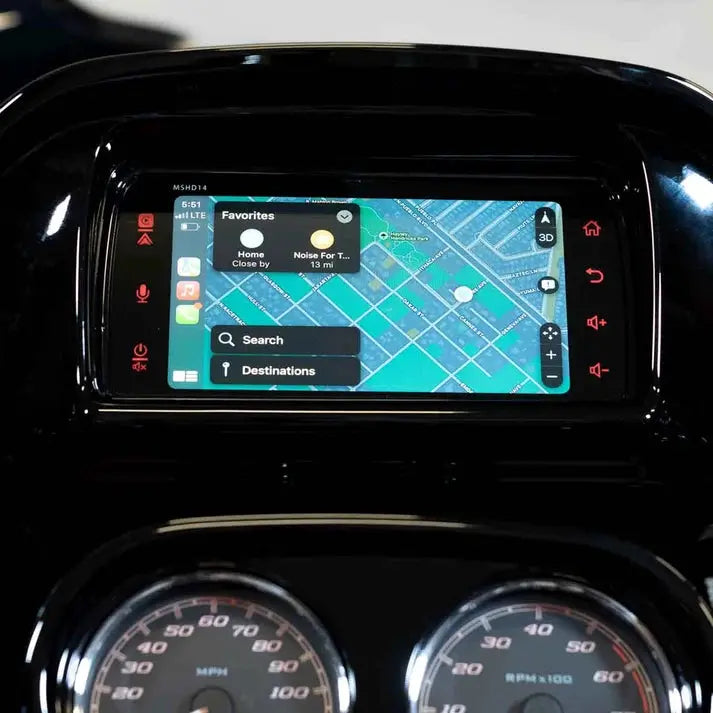

• Wireless Apple CarPlay: Seamlessly integrate your iPhone for effortless access to music, navigation, and more.

Advanced Display & Controls

• 7" Ultra-Bright, 1000 NIT LCD Touchscreen: Glove-friendly, designed for visibility even in the brightest conditions.
• Internal Maestro RR2 CANBUS Interface: World’s first of its kind — seamless integration with your Harley’s systems.

Customization & Convenience

• 6 Programmable Auxiliary Triggers: Control lighting, kickstands, and accessories via touchscreen, timers, triggers, or handlebar controls.

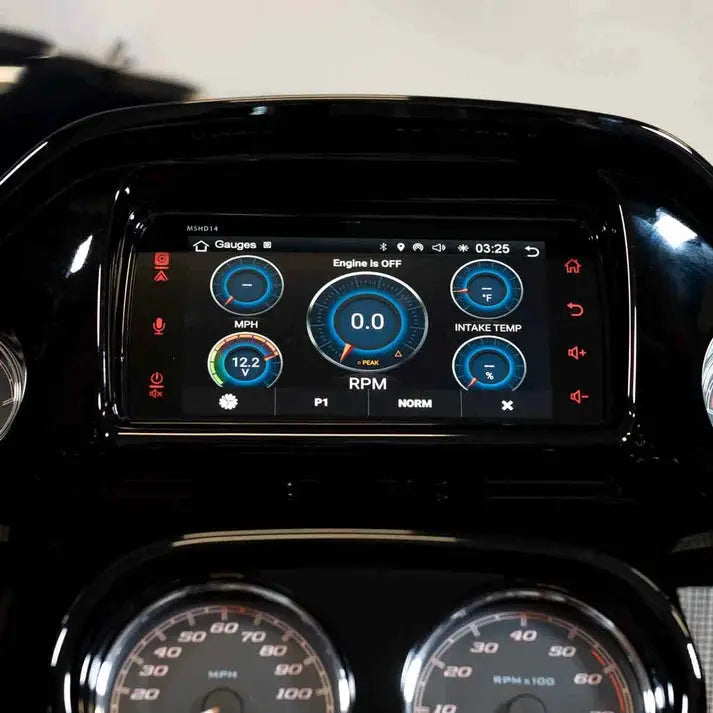

• Vehicle Data Screens: Monitor speed, oil pressure, voltage, 0–60 time, and more.
• Retains Handlebar Controls: Reconfigurable through programming for personalized control.

Ultimate Sound Customization

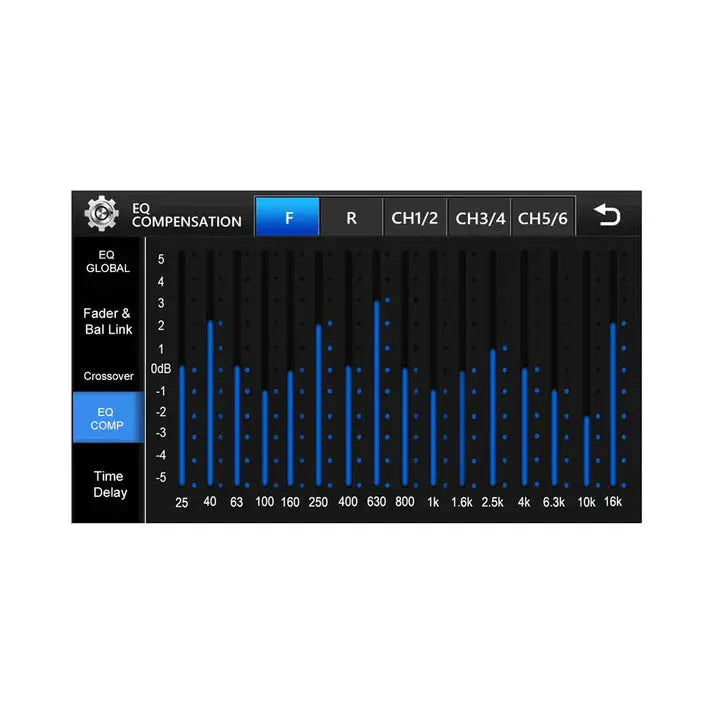

• 6 Independent EQs: 1 global + 5 setup EQs for the ultimate tuning flexibility.

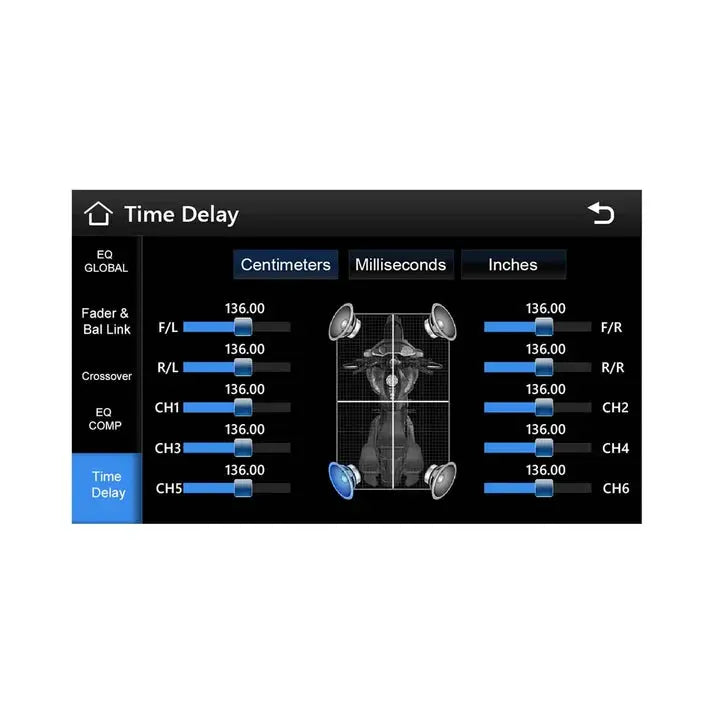

• 10CH DSP: Time delay, HP/LP/BP crossovers with adjustable 6/12/18/24dB slopes; channels can be linked or separated from fader control.

Durability & Compatibility

• IPX6 Water Resistance with weatherproof trim gasket included.
• Bluetooth 5.2 streaming and hands-free calling (microphone included).
• Media Player: Supports MP3, AAC, WMA, APE, FLAC, WAV, MPEG4, H.264, H.265, AVI, VP8, VP9.
• USB Media Input/Charger: 2.1A charging to keep devices powered on the go.
• Backup Camera Input and Boom2 Compatible.

Innovative Features

• Multiple patented technologies setting a new standard in motorcycle audio.

⚠️ ATTENTION: The internal RR2 module must be programmed on a computer before starting installation. The radio will not power up until it is programmed. If you have existing aftermarket amplifiers, reset all gains to their lowest settings before install to avoid overdriving and distortion.

Setup & Installation Videos

• Weblink Downloader
• iData Internal RR2 Programming
• iData Internal RR2 MPO Programming
• MSHD14 Installation
• Boom Audio Integration
• Android Auto & Apple CarPlay Setup
• Sirius/XM Setup
• Bluetooth Line Driver Setup
• Time Delay Setup
• Global EQ Setup
• Compensation EQ Setup
• Bluetooth Pairing Setup
• DSP Crossover Setup
• Balance & Fade Setup
• CMA Live Episode 25 – In Depth MSHD14

Specifications

• 10-Channel Clip-Free Independent Outputs: (6) 5V RMS RCA + (4) 50x4@2Ω/25x4@4Ω RMS
• Wireless Apple CarPlay
• 7" Ultra-Bright 1000 NIT LCD Touchscreen (Glove-Friendly)
• Internal Maestro RR2 CANBUS Interface (World’s First)
• 6 Programmable Auxiliary Triggers
• Vehicle Data Screens (Speed, Oil Pressure, Voltage, 0–60)
• Retains Handlebar Controls (Reconfigurable)
• 6 Independent EQs (1 Global, 5 Setup)
• 10CH DSP: Time Delay, HP/LP/BP Crossovers (6/12/18/24dB slopes)
• IPX6 Water Resistance / Weatherproof Trim Gasket Included
• AM/FM/Weatherband
• Media: MP3, AAC, WMA, APE, FLAC, WAV, MPEG4, H.263, H.264, H.265, XVID, AVI, VP8, VP9
• Bluetooth 5.2 Streaming / Hands-Free Calling (Microphone Included)
• USB Media Input / Charger 2.1A
• Backup Camera Input
• Bluetooth Line Driver for Maximum Output
• Boom2 Compatible
• Multiple Patented Features & Technologies
