Diamond Audio 2-Channel MICROV2 Series Full Range Class D Amplifier - MICRO2V2

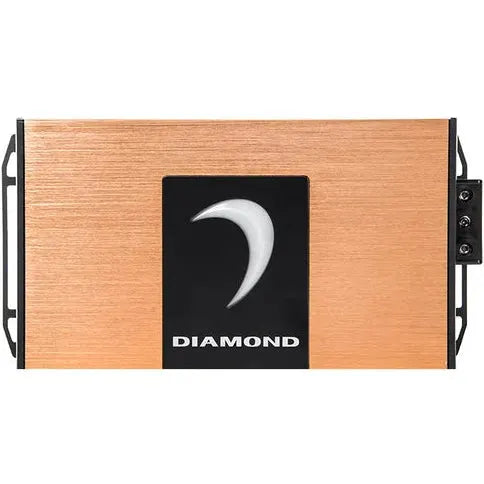

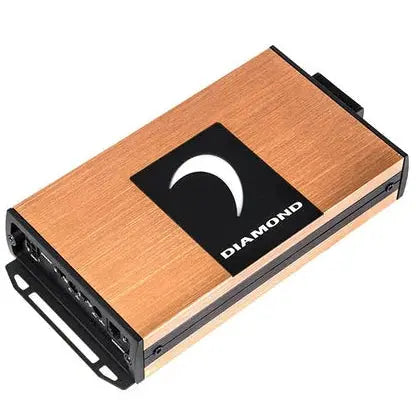

Diamond Audio MICRO2V2 2-Channel Full Range Class D Amplifier

Get clean, high-output stereo power in a compact package with the Diamond Audio MICRO2V2 2-Channel Full Range Class D Amplifier. Built for car, motorcycle, marine, and powersports audio systems, the MICRO2V2 delivers impressive output and precise tuning in a chassis small enough to fit almost anywhere.

Running ultra-efficient full-range Class D topology with a Direct FET power MOSFET output stage, this amp puts out 150W x 2 @ 4Ω, 250W x 2 @ 2Ω, and 500W bridged @ 4Ω with minimal distortion and clean dynamics. Balanced differential inputs eliminate noise even in complex installs, and Advanced Rollback and Thermal Protection keeps the amp running continuously without shutdown under load.

The high-density aluminum alloy chassis dissipates heat efficiently while keeping the footprint ultra-compact. Dial in your sound with selectable LPF / FLAT / HPF crossovers, a 40–400Hz adjustable crossover filter (12dB slope), and 12dB bass boost @ 45Hz. The included remote bass knob gives you real-time low-frequency control from the driver's seat, and selectable REM, VOX, and DC turn-on modes ensure seamless compatibility with factory and aftermarket head units.

Key Features

• 2-channel full range Class D amplifier
• 150W x 2 @ 4Ω / 250W x 2 @ 2Ω / 500W bridged @ 4Ω
• Direct FET power MOSFET output stage
• Ultra-compact high-density aluminum alloy chassis
• Balanced differential inputs for noise-free signal
• Advanced Rollback & Thermal Protection
• Selectable LPF / FLAT / HPF crossovers
• 40–400Hz crossover filter, 12dB per octave slope
• 12dB bass boost @ 45Hz
• Selectable REM / VOX / DC turn-on modes
• Remote bass knob and wiring harness kits included

Specifications

• 2-Channel Full Range Class D Amplifier
• 250W x 2CH @ 2Ω
• 150W x 2CH @ 4Ω
• 500W x 1CH @ 4Ω Bridged RMS Power Output
• Input Sensitivity: 0.2–10V
• Crossover Filter: 40–400Hz, 12dB Per Octave Slope
• Frequency Response: 10Hz–33kHz
• Selectable REM / VOX / DC Turn On Modes
• Selectable X-Over: LPF / FLAT / HPF
• Dimensions: 7.89" x 4.1" x 1.46" / 200.5 x 103 x 37.2mm
• Remote Bass Knob Included
• Disconnected RCA Input & Speaker Output Harness Kits Included
