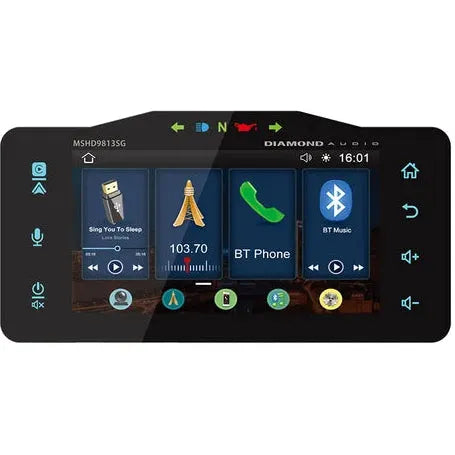

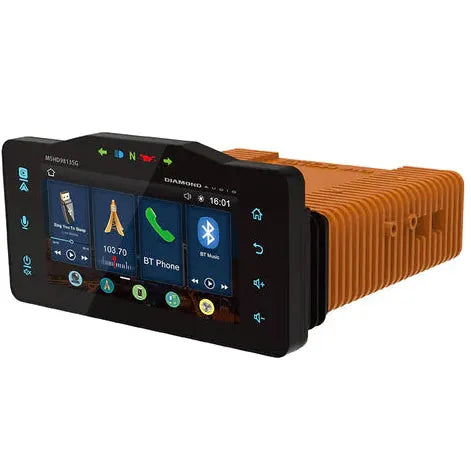

Diamond Audio 1998-2013 Plug N-Play Digital Media Receiver for Harley Davidson® Street Glide - MSHD9813SG

Diamond Audio MSHD9813SG Plug-N-Play Digital Media Receiver for 1998–2013 Harley Davidson Street Glide

Upgrade your Street Glide's audio with the Diamond Audio MSHD9813SG — a purpose-built, plug-and-play digital media receiver designed specifically for 1998–2013 Harley Davidson Street Glide motorcycles. Designed in the USA, it drops in without cutting wires, retains your handlebar controls, and delivers a level of audio performance your stock system simply can't match.

Superior Sound Performance

• 10-channel clip-free independent outputs — (6) 5V RMS RCA outputs + (4) 50W x 4 @ 2Ω / 25W x 4 @ 4Ω RMS clip-free speaker outputs
• Wireless Apple CarPlay for seamless iPhone integration — music, navigation, and calls without plugging in
• Bluetooth Line Driver for maximum RCA output to external amplifiers

Advanced Display & Controls

• 7" ultra-bright 1000-NIT LCD touchscreen — glove-friendly and fully visible in direct sunlight
• Retains OEM handlebar controls, reconfigurable through programming

10-Channel DSP & Sound Customization

• 6 independent EQs — 1 global + 5 setup EQs for precise tuning across every output
• 10-channel DSP with time delay, HP/LP/BP crossovers with adjustable 6/12/18/24dB slopes
• Independent channels can be linked or separated from fader control

Durability & Connectivity

• IPX6 water resistance with weatherproof trim gasket included
• AM/FM/Weatherband tuner
• Bluetooth 5.2 streaming and hands-free calling — microphone included
• USB media input with 2.1A charging
• Backup camera input
• Supports MP3, AAC, WMA, FLAC, WAV, MPEG4, H.264, H.265, AVI, and more
• Multiple patented features and technologies

Important: If upgrading from an existing aftermarket amplifier setup, reset all amp gains to their lowest settings before powering on. Refer to the setup videos below for proper level and output configuration.

Setup Videos

• Android Auto & Apple CarPlay Setup
• Sirius/XM Setup
• Bluetooth Line Driver Setup
• Time Delay Setup
• Global EQ Setup
• Compensation EQ Setup
• Bluetooth Pairing Setup
• DSP Crossover Setup
• Balance & Fade Setup

Specifications

• 10-Channel Clip-Free Independent Outputs
• (6) 5V RMS RCA Outputs + (4) 50W x 4 @ 2Ω / 25W x 4 @ 4Ω RMS Clip-Free
• Wireless Apple CarPlay
• 7" Ultra-Bright 1000-NIT LCD Touchscreen
• Glove-Friendly Touchscreen
• Retains Handlebar Controls (Reconfigurable)
• 6 Independent EQs (1 Global + 5 Setup)
• 10CH DSP: Time Delay, HP/LP/BP Crossovers, Adjustable 6/12/18/24dB Slopes
• IPX6 Water Resistance / Weatherproof Trim Gasket Included
• AM/FM/Weatherband
• Bluetooth 5.2 Streaming & Hands-Free Calling (Microphone Included)
• USB Media Input / 2.1A Charger
• Backup Camera Input
• Bluetooth Line Driver for Maximum Output
• Multiple Patented Features and Technologies
