Diamond Audio M01T — 1" Pro Audio High-Frequency Compression Tweeter

The Diamond Audio M01T is a 1" pro audio compression tweeter engineered for custom installers and enthusiasts who demand extreme high-frequency clarity, projection, and output. Part of the Diamond Audio Motorsport Series, the M01T features a radial slit phase plug for improved off-axis response and sound dispersion, a rebuildable diaphragm replacement design for long-term serviceability, and a swivel mount for precise sound staging — delivering 107dB sensitivity with 50W RMS from a compact, shallow-depth housing.

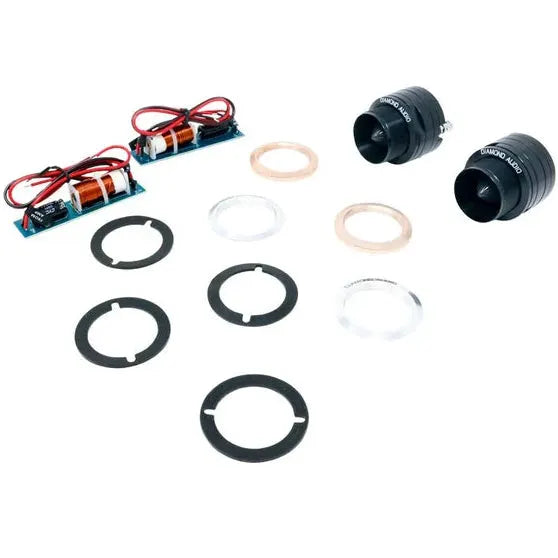

Available in both standard and short horn configurations, the M01T adapts to a wide range of system designs including car audio, UTV, motorcycle, and custom powersports builds. A 12dB crossover is included for tweeter protection and clean high-frequency rolloff out of the box.

Key Features

• 1" compression driver with radial slit phase plug for improved off-axis response and dispersion
• Rebuildable diaphragm replacement design for long-term serviceability
• 107dB sensitivity — extremely efficient for high-output systems
• Swivel mounting bracket for precise aiming and sound staging
• Composite rubber mounting frame for vibration resistance
• 12dB crossover included for tweeter protection
• Available in standard and short horn configurations
• Compatible with car audio, UTV, motorcycle, and custom powersports installs

Specifications

• Power Handling: 50W RMS / 100W MAX
• Sensitivity: 107dB
• Crossover: 12dB (included)
• Phase Plug: Radial Slit
• Mounting Frame: Composite Rubber
• Diaphragm: Rebuildable Replacement Design
• Overall Diameter: 2.28" (57.9mm)
• Overall Depth: 2.72" (69mm)
