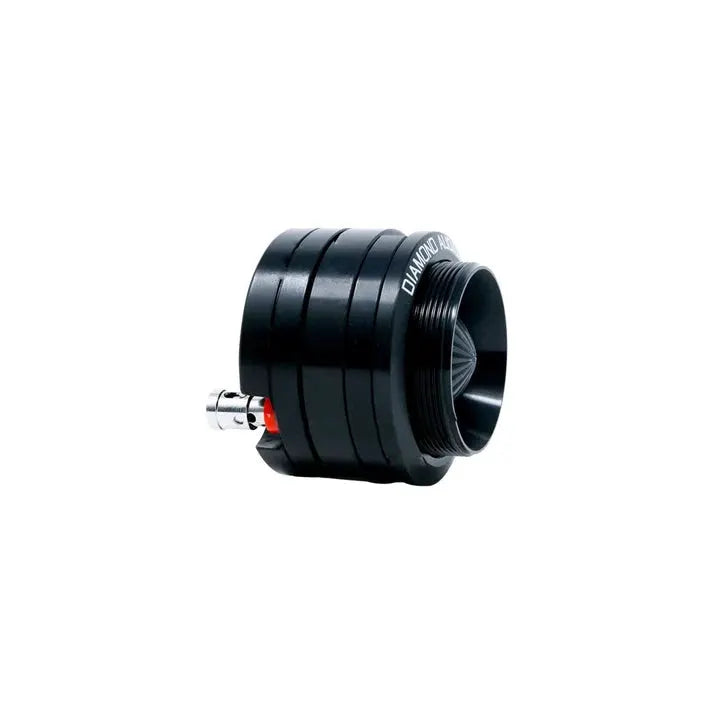

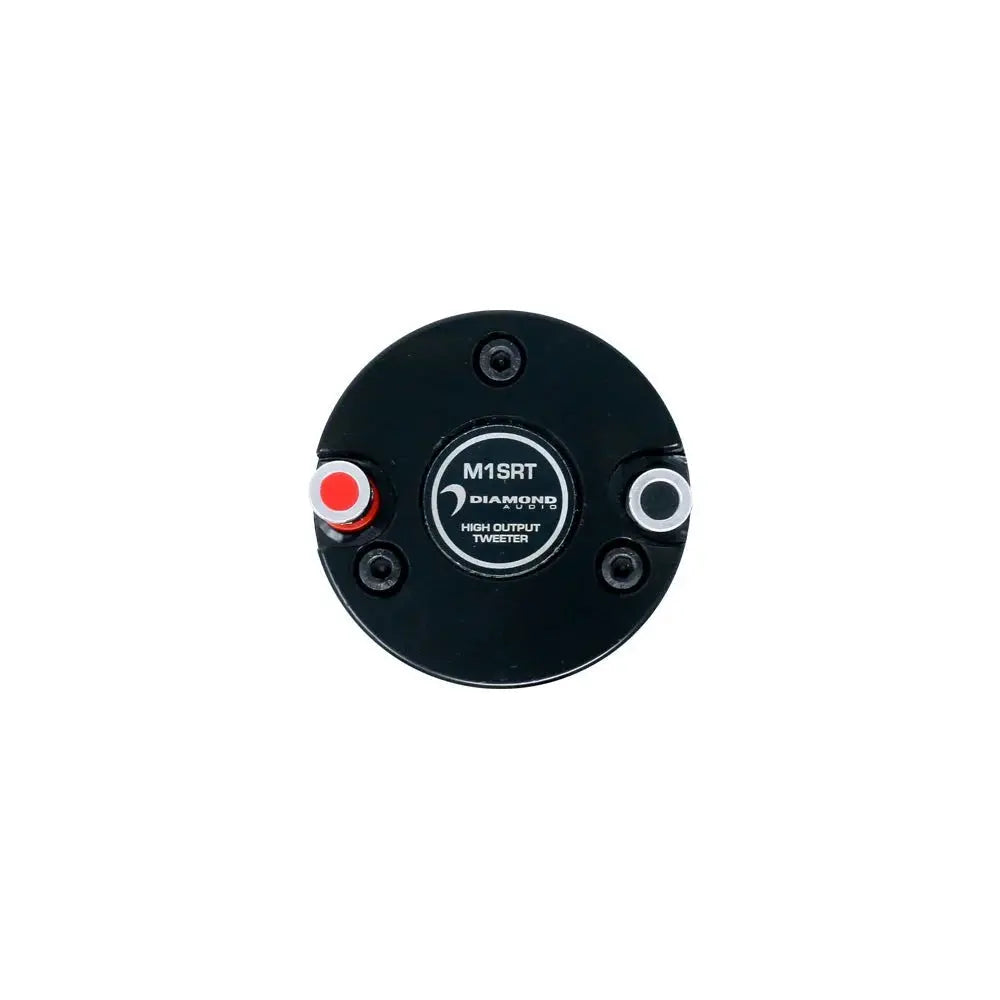

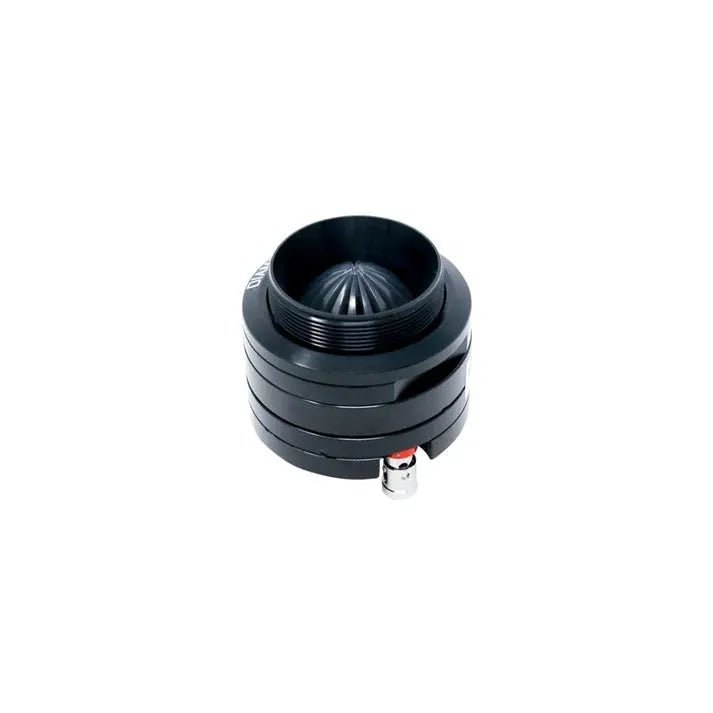

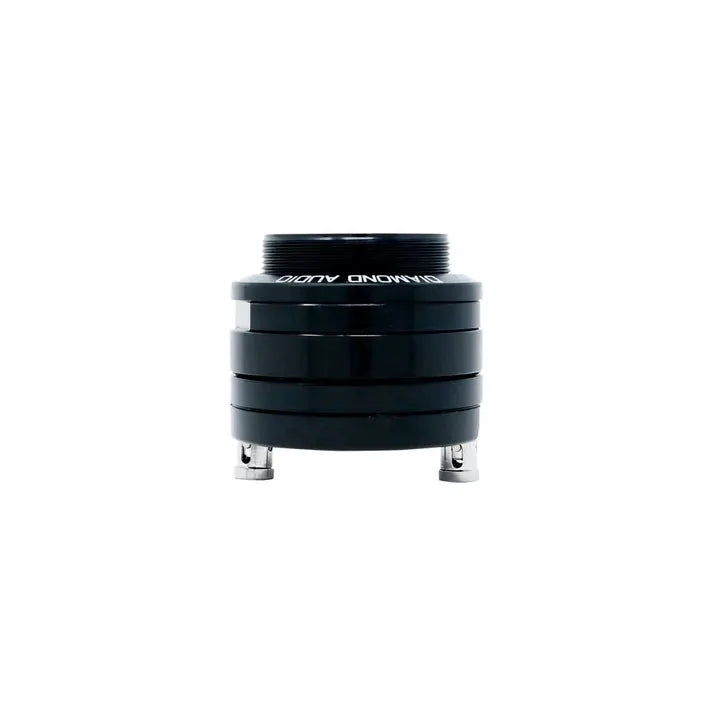

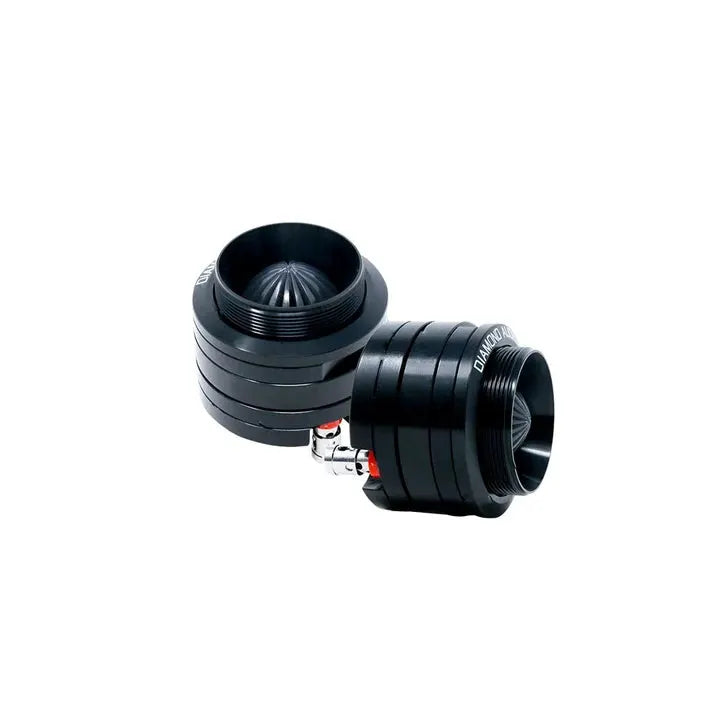

Diamond Audio 1" Compression Extreme Output Tweeters - Short Horn Version - M1SRT

Diamond Audio M1SRT — 1" Compression Extreme Output Tweeters (Short Horn)

The Diamond Audio M1SRT is a 1" compression tweeter built for riders who need extreme high-frequency output in open-air, high-noise environments. Part of the Diamond Audio Motorsport Series, the M1SRT's short horn design and radial slit phase plug deliver exceptional projection and off-axis clarity — cutting through wind and engine noise at highway speeds without distortion.

Designed for Harley Davidson motorcycles, baggers, custom fairing builds, and powersports applications, the M1SRT's compact shallow-depth housing and swivel mount make it easy to integrate into tight spaces and aim precisely for optimal sound staging. A 12dB crossover is included to protect the tweeter and ensure clean high-frequency reproduction.

Key Features

• 1" compression driver with short horn for compact, flexible installation
• Radial slit phase plug for improved off-axis response and frequency linearity
• 107dB sensitivity — extremely efficient, ideal for low-powered motorcycle amplifiers
• Swivel mounting bracket for precise aiming and sound staging
• Composite rubber mounting frame for vibration resistance
• 12dB crossover included for tweeter protection
• Designed for Harley Davidson, bagger, powersports, and custom car audio installs

Specifications

• Power Handling: 50W RMS / 100W MAX
• Sensitivity: 107dB
• Crossover: 12dB (included)
• Phase Plug: Radial Slit
• Mounting Frame: Composite Rubber
• Overall Diameter: 2.28" (57.9mm)
• Overall Depth: 2.22" (56.4mm)
